Zonex DigiTract 4-2 Installation Manual page 6

DigiTract 4-2 HP 3-Stage Heat/2-Stage Cool
BYPASS
TAP
AIR FLOW
1
2
BYPASS
RETURN
LAS. Locate the leaving air sensor between the refrigerant coil and the electric heat coil(s) or other auxiliary
1
heat source. Verify that the polarity is correct. Refer to "CAPACITY CONTROLLER – LAS INSTALLATION"
page 11, for further information.
Connect W2 from the controller to the unit's electric heat stage terminal designation. It is recommended to
2
install an outdoor thermostat in series with any electric heat stages.
Connect C from the controller to the thermostat 24V AC common terminal if hardwired. Refer to "ZONE
3
THERMOSTATS – COMPATIBILITY" page 12, for further information.
Zone damper terminals. Refer to "WIRING – ZONE DAMPERS" on page 5.
4
Install one 24V AC transformer, sized and fused for the total number of zone dampers. See "DAMPER
5
TRANSFORMER" on page 23.
Emergency heat terminal, E. Use only if emergency heat source is different from auxiliary heat W2. If used,
6
do not jumper to W2.
Reversing valve jumper: B – energize for heat; O – energize for cool
7
NOTE: Some combination thermostats do not have an E terminal. Connect W2 of the thermostat to the E ter-
minal of STAT 1 terminal block.

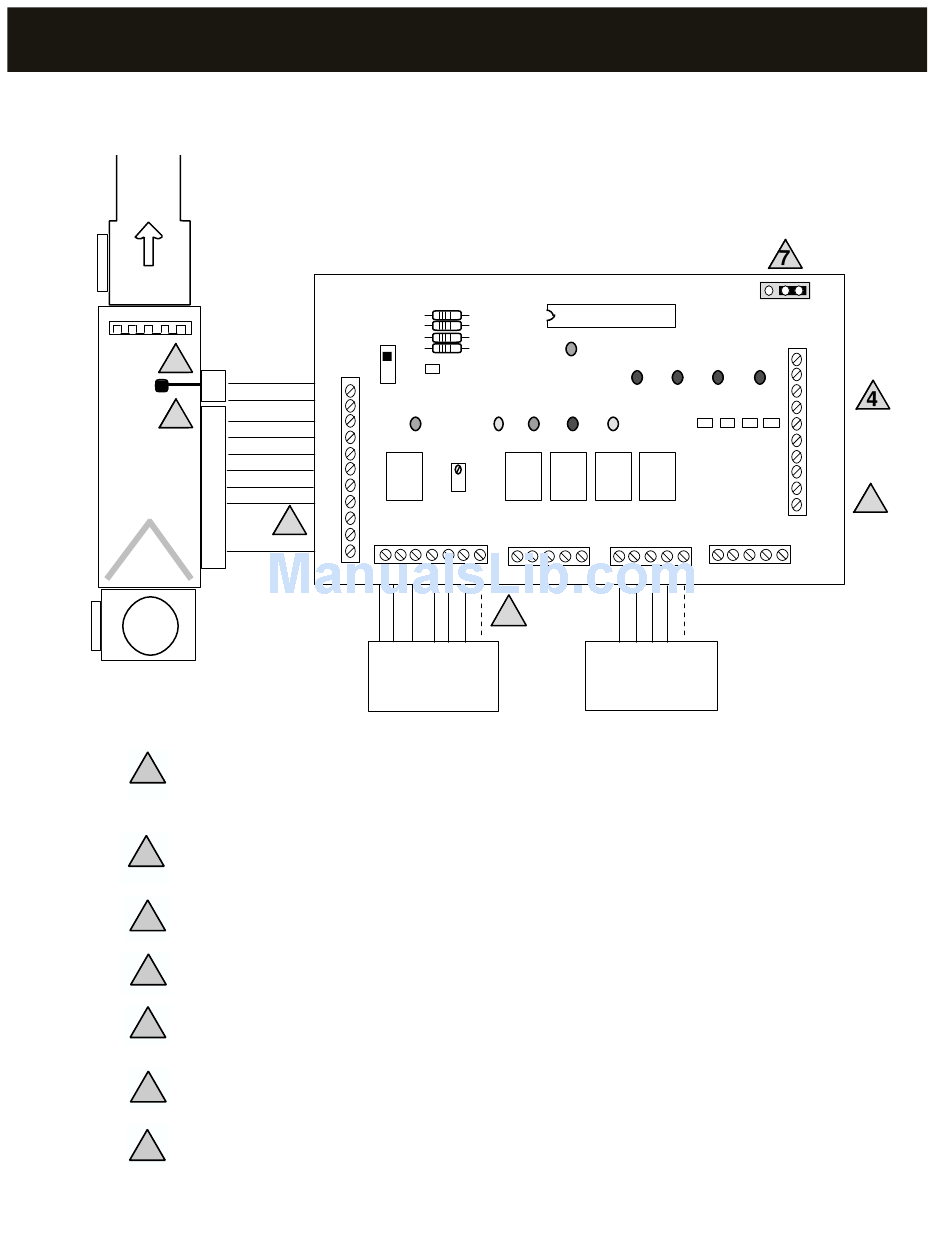

WIRING – HEAT PUMP DTHP4-2
DIGITRACT 4-2 HP TWO STAGE 210806
