- Page 1 System 2000 GEN II A MODULATING SYSTEM Vote Based Auto Changeover VAV Installation and Applications Manual Part #GENIIMAN June 2014...
- Page 2 GEN II QUICK START AND COMMISSIONING Follow these Quick steps for a successful job If you need additional information, please read the GEN II Manual 1. Install GEN II Controller in an easily accessible location for your customer. 2. Install an Independent 24 Volt 40 VA transformer, and connect to the TR1 and TR2 terminals on the GEN II controller.
- Page 3 GEN II QUICK START AND COMMISSIONING The GEN II is equipped with a Digital Display (O) on the GEN II controller that constantly displays Leaving Air Temperature from the unit. At startup, this display also reports the number of thermostats communicating with the GEN II controller. The display and 3 buttons (N) beneath the display provide the installing contractor the ability to tailor the system to your specific application.
-
Page 4: Table Of Contents
Table of Contents Page System Overview ............................1 System Overview Diagram ........................1 General Sequence of Operation ......................2 Gas Electric Operation ...........................3 Controller ID Diagram ..........................3 Installation Controller ...........................3 GE Controller Configuration .........................4 GE Advanced Configuration ........................5 H&C Cut-out Temperature ........................5 Electric Heat Fan ..........................5 Stage cut in ............................5 Heat Pump Operation ..........................6 Controller ID Diagram ..........................6... -
Page 5: System Overview
SYSTEM OVERVIEW The SYSTEM 2000 GEN II is a commercial modulating or 2-position zone control system controlling 2-17 independent zones per unit. The GEN II controller is designed for Auto Change- over, multi- stage Heat Pump (2C/3H) and Gas Electric (2C/2H) applications. -
Page 6: General Sequence Of Operation
Auto. The controllers are shipped from the factory for Auto fan. The System 2000 GEN II systems can be field configured for adjustable time based opposite call changeover, vote based majority changeover, or priority vote changeover by thermostat assignment. -
Page 7: Gas Electric Operation
GAS ELECTRIC OPERATION LEGEND A EH Jumper (Set Up Fan Operation for Electric Heat) B O/B Jumper (Heat Pump Only – Reversing Valve Operation) C H/P Jumper (Jump for Heat Pump Operation) D Priority Jumper (Allows for Priority Vote Setup) E On / Off Switch F R C Power to ModStats (18 ga. -
Page 8: Ge Controller Configuration
3. Install the leaving air sensor (LAT) in the supply air, ahead of the bypass take-off. Sensor wires are connected to the S S terminals on the controller (J). The LAT sensor leads may be extended using standard 18/2 thermostat wire. 4. -
Page 9: Ge Advanced Configuration
2. O/B and HP jumpers (B&C) should both be on one pin or removed, for GE operation. 3. PRIORITY jumper (D) should be on one pin. Note: If the Priority opposing zone strategy is to be used, this jumper position will be changed after the initial system start-up is completed. -
Page 10: Heat Pump Operation
2. To decrease the Y2 and W2 cut-in delay, press and hold the SET and DN buttons (N) simultaneously. When delay time appears in the display, release the buttons and immediately press the DN button and hold until the desired delay time is displayed, and release. To verify the change, press and hold the SET and DN buttons until the delay time is shown, and release. -
Page 11: Heat Pump Installation
General Installation Instructions GEN II Controller 1. Install the GEN II controller on an interior wall where the ambient temperature is between 32°- 120°F (0°- 48°C) non-condensing. This controller is to be installed in an accessible interior area; not in attics or above ceilings. 2. -
Page 12: Basic Configuration
To select Emergency Heat on any ModStat: 1. Press and hold the ModStat Menu button 2. When the mode display indicates Emg, release the Menu button; and immediately press and hold the Select button to set the mode. Heat Pump operation “B” reversing valve By placing the O/B jumper (B) on both pins, the GEN II controller is configured for “B”... -
Page 13: Nd Stage Cut-In
3. RAISE – Press the DN button. After “C” is displayed, immediately release the DN button, and press the UP button. Hold until the desired temperature reading is displayed; then release. 4. Press the DN button to verify the new cool cut-out temperature. Stage Heat and Cool Cut-in Configuration The GEN II controller is set up at the factory to stage Y2 and W2 cut-in operation based on a 3- minute time delay and supply air temperature. -
Page 14: Zone Thermostat - Modstat

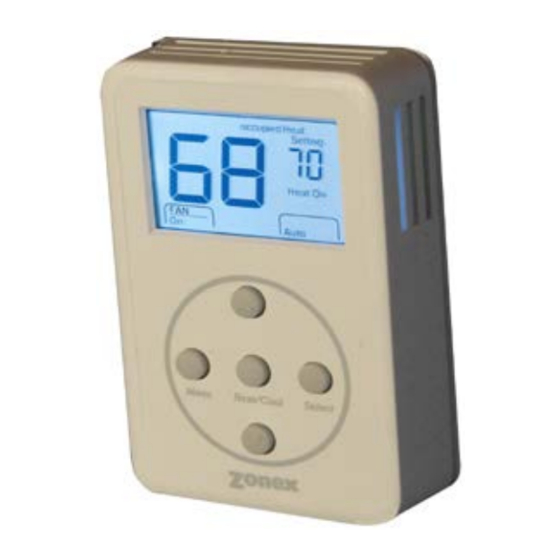

Zone Thermostat - ModStat Installation Wiring All 24-volt and communication wiring connections are made to terminal blocks on the thermostat sub-base. The communication terminal block (RX TX/RX TX) is designed as a junction for two sets of 22 ga. solid copper, twisted pair communications cable. The cable should be daisy chained from thermostat to thermostat (use Belden 8740). -
Page 15: Modstat Configuration
Configuration Addressing Each thermostat must have a unique address from 1-17. 1. Press and hold the Menu button until you see the system mode display on the lower right begin to change modes; then press and hold the Heat/Cool button with the Menu button. 2. - Page 16 Heat - If “Heat Setting” is displayed on the top right of the display, simply press the UP or DN button to change the heat set point. If “Cool Setting” is displayed and you want to change the Heat set point, press the Heat/Cool button twice to change from “Cool Setting”...
-
Page 17: Supplemental Heat Applications
SUPPLEMENTAL HEAT APPLICATIONS MODSTAT SUBBASE ModStat Terminal Designations TX – Data transmit {twisted pair} RX – Data receive AUX – Reheat/AUX Heat Fan RO – Run Open, damper {18 ga. stat wire} RC – Run Closed, damper R – 24vac power input C-MC –... -
Page 18: Zone Thermostats - Digicom / Digihp Digicom / Digihp Installation
2x4 electrical box using two #6-32” screws. Wiring The Zonex Systems DIGICOM and DIGIHP thermostats have been specifically designed to make wall mounting and wire connections very easy. The thermostat terminal base has two separate... - Page 19 Wiring (Continued) 1. Use minimum 18-gauge AWG thermostat wire for the 24vac control circuits. The load on these circuits must not exceed 1 amp. The voltage range on R and C must not exceed 28vac. Check Polarity before applying the transformer wire to R and C. Refer to the Polarity Check diagram on Page 17.
-
Page 20: Digicom / Digihp Configuration
Configuration 1. Set the unique address for each thermostat from 01 to 20. 2. Press and hold the Menu button until you see the system mode display on the lower right begin to scroll and change modes; then press and hold the Heat/Cool button with the Menu button. When the display shows “address”... -
Page 21: Voltage Polarity
energizes. Y1 de-energizes at set point. O or B is energized for the reversing valve circuit, depending on configuration. The G circuit is energized for fan. HEAT – DIGICOM: The thermostat will make a W1 heat call when the space temperature is 1 degree below the heat set point. -
Page 22: System Start And Test
System Start and Test 1. Plug all thermostats into sub-bases. Turn GEN II power switch (E) to ON. 2. Choose any Thermostat and change its address from 25 to 1. (See ModStat installation instructions – Configuration – Addressing). 3. Turn GEN II power switch OFF and then ON. The Display should flash 01 and then show the leaving air temperature. -
Page 23: Advanced Feature Configuration Gas Electric And Heat Pump
Advanced Feature Configuration - Gas Electric and Heat Pump Occupied / Unoccupied fan operation The factory setting for FAN operation is AUTO, with the FAN jumper (M) on the middle and lower pins. In this setting, the fan circuit on “G” is only energized on an active cool call in Gas/Electric mode or on an active heat call or cool call in Heat Pump mode. -
Page 24: Thermostat Security - Lock
3. Press and hold the SET and UP buttons (N), and the LED display will scroll through the number of zones starting with 01. 4. When the display indicates the address (01 to 17) of the thermostat you want to add votes to, release both buttons and press the DN button. -
Page 25: Default Thermostat Set Points
Time Clock The GCLK is a 24vac 7-Day programmable time clock offered by Zonex Systems, exclusively for the GEN II control system. This digital time clock will enable the control system to operate with “Global” Occupied and Unoccupied schedules in a 7-day format. The GCLK is powered from the GEN II controller power supply, and there is a backup battery to protect the time clock program for up to 100 hours. -
Page 26: Zone Dampers
(downstream) when the damper is closed. table to determine which zone dampers to use. ROUND MEDIUM PRESSURE ZONE DAMPERS Zonex Systems round medium pressure zone dampers are recommended for systems with a maximum differential static pressure up to 1.75”. This modulating power open/power close damper is manufactured from 20-22 gauge galvanized steel with rolled-in stiffening beads for superior rigidity. -
Page 27: Rectangular Dampers
MOTOR RECTANGULAR HEAVY DUTY ZONE DAMPERS (STCD) Zonex Systems rectangular heavy duty dampers are recommended for systems 7.5 tons or larger with a maximum differential static pressure of 1.75”. These are fully modulating, power open / power close dampers made of 20 gauge “snaplock” steel frame with S &... -
Page 28: D-Fuser
For accurate selection use duct sizing table or device. D-FUSER ZONE DAMPER Zonex Systems D-Fuser is a combination zone damper and diffuser. It mounts in a standard 2’ x 2’ T-bar ceiling opening, providing for simple installation and easy maintenance access. The D-Fuser is a cone shaped fluidic nozzle with a platen that modulates up and down to control air flow. -
Page 29: Sizing
3. Zone dampers should be preceded by 2’ − 4’ of straight pipe where possible. 4. In attic installations and high humidity areas, the Zonex Systems damper should be insulated along with the ductwork. The hat section on the round damper is delivered with insulation between the hat section and pipe. -
Page 30: Bypass Dampers - Electronic
2600 STBP18 18” 20” 21” ROUND BYPASS DAMPER SELECTION The Zonex Systems STBP damper is used for round bypass applications. When you know the bypass CFM requirements, use the ROUND BYPASS SELECTION TABLE to confirm the round damper size. NOTE:... -
Page 31: Slaving Bypass Dampers
RECTANGULAR BYPASS SELECTION TABLE WIDTH IN INCHES 1000 1167 1333 1500 1667 1833 2000 2333 2667 3000 3333 3667 4000 1042 1250 1458 1667 1875 2083 2292 2500 2917 3333 3750 4167 4583 5000 1000 1250 1500 1750 2000 2250 2500 2750 3000... -
Page 32: Bypass Damper With Integrated Pressure Control
BYPASS DAMPER with INTEGRATED PRESSURE CONTROL (Part # STBP or STCDBP) Bypass Damper with Integrated Pressure Control is used to control bypass operations. The bypass damper modulates to maintain static pressure as zone dampers open and close. The bypass system reduces air noise from the supply registers caused by excessive air velocity. - Page 33 Y outputs to unit on the zone control board and to make full cool calls on all thermostats. This will modulate dampers fully open and lock out compressor. On Zonex Systems GEN II and ModCom II, use air balance modes for simplified bypass setup.
- Page 36 The easy way to Get Quotes Fast PATENTED PRODUCT Part #GENIIMAN Zonex Systems reserves the right to discontinue, June 2014 or change at any time, specifications or designs without notice and without incurring obligations. Copyright 2013 by Zonex Systems...
