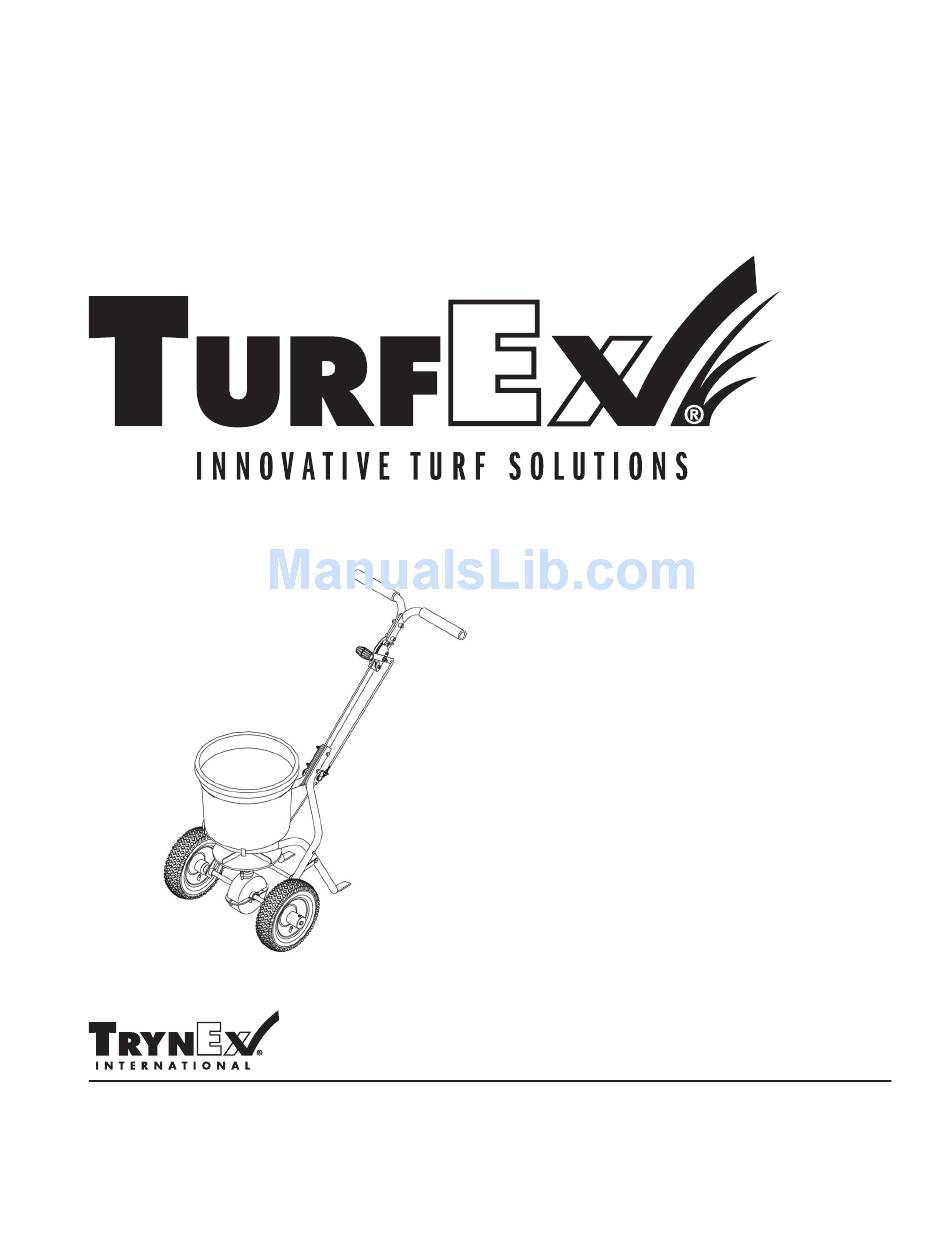

- Page 1 Owner’s Manual/Parts List/Assembly Instructions This Manual Must Be Read Before Operating The Equipment TS25 CUSTOMER COPY Madison Heights, Michigan 48071 866-5-TURFEX www.turfexproducts.com © TrynEx International 2014 F51507A REV-A141701...
-
Page 2: Table Of Contents
Table of Contents OWNER’S MANUAL Introduction ........................................3 Safety ..........................................4 Operating Instructions ....................................5-6 Component Vocabulary ....................................5 Preparation /Spreading ....................................6 Calibration Instructions ....................................7 Calibration Chart ......................................8-9 Maintenance ......................................... 10 PARTS LIST Hardware Kits ....................................... 12 Parts Kits ........................................13 Parts Breakdown .....................................14-15 ASSEMBLY INSTRUCTIONS Introduction ........................................ -
Page 3: Introduction
Introduction This Owner’s Manual is intended to acquaint you with your TurfEx TS25 Push Spreader and how to operate it safely and correctly. Read this manual and observe the instructions contained to ensure safety and performance. This manual must be read by each person that will be involved in its assembly, operation, care, maintenance, repair, or transport. In addition to this manual, observe all workplace safety practices and take precautionary measures to ensure your own safety and the safety of those around you. -
Page 4: Safety
Safety Before attempting any procedure in this book, the safety information in this manual must be read and understood by all personnel who have any part in the installation, operation, care, maintenance, repair, or transport of this equipment. Supplement this safety information with workplace regulations, material safety information, best working practices, and common sense. -
Page 5: Operating Instructions
Operating Instructions Component Vocabulary ID # COMPONENT NOTES Handle Pushes and moves the Spreader Gate Stop Adjust the open position of the gate. See Calibration Instructions. Gate Lever Opens and Closes the Gate. Pull back to open Gate; Push forward to close. Gate Regulates material flow from the hopper. -
Page 6: Preparation/Spreading
Operating Instructions Preparation/Spreading PREPARATION Inspect your spreader before each use. Make sure the Wheels turn easily, and the Spinner rotates clockwise when the spreader is pushed. The Hopper should be clean and free from cracks. The Gate should open and close smoothly. Before filling the hopper, make sure that the Gate Lever is in the“0”position (fully forward) and the Gate is closed. -
Page 7: Calibration Instructions
Calibration Instructions All seed and fertilizer mixtures, regardless of physical similarities, flow and spread differently. Therefore, your spreader should be calibrated specifically for each material you are spreading. Use the charts in this manual to record calibration data for your spreader for materials you commonly use. -
Page 8: Calibration Chart
Calibration Chart Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) - Page 9 Calibration Chart Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min) Speed (mph) Spread Width (ft) Material Gate Setting Output (lbs/min)
-
Page 10: Maintenance
Maintenance CLEANING AND MAINTENANCE Clean material out of hopper after each use. Rinse and dry the spreader after each use. Before operating make sure the tires have the recommended pressure – 25 psi (1.72 bar) Periodically check all fasteners for tightness. Periodically clean and lubricate parts. -
Page 11: Parts List
Parts List TS25 CUSTOMER COPY Madison Heights, Michigan 48071 866-5-TURFEX www.turfexproducts.com © TrynEx International 2014 F51507A REV-A141701... -
Page 12: Hardware Kits
Hardware Kits R10168 R10164 R101200 R10191 R10199 R10165 R10172 R10196 R10193 R10209 R10212 R10182 R10189 © TrynEx International 2014 F51507A REV-A141701... -
Page 13: Parts Kits
Parts Kits R10213 R10181 R10176 R10217 R10174 R10171 R10205 R10197 R10195 R10178 R10179 R10187 R10177 R10215 R10194 © TrynEx International 2014 F51507A REV-A141701... - Page 14 Part Breakdown © TrynEx International 2014 F51507A REV-A141701...
-
Page 15: Parts Breakdown
Parts Breakdown © TrynEx International 2014 F51507A REV-A141701... -
Page 16: Assembly Instructions
Assembly Instructions TS25 CUSTOMER COPY Madison Heights, Michigan 48071 866-5-TURFEX www.turfexproducts.com © TrynEx International 2014 F51507A REV-A141701... -
Page 17: Introduction
Introduction These installation instructions have been designed to guide you in assembling your TurfEx TS25 Push Spreader. Read and follow the direc- tions contained to ensure safety and performance through correct assembly. In addition to these instructions, observe all workplace safety practices and take precautionary measures to ensure your own safety and the safety of those around you. - Page 18 Assembly Instructions Before assembling the TS25 Push Spreader, read the Owner’s Manual and all safety information contained therein. You will need a set of metric tools. STEP 1: ATTACH FRAME TO HOPPER Turn Hopper upside down and attach Hopper Frame using four screws ST6.3 x 40.
- Page 19 Assembly Instructions STEP 3: INSTALL WHEEL ASSEMBLY FRAME ON THE GEAR BOX A: Attach the two Wheel Frames to the gear box. B: Insert M6x60 Bolt through one Wheel Frame and then through the Hopper Frame; Secure with Locknut M6. Repeat for the other side. Do not tighten the hardware.
- Page 20 Assembly Instructions STEP 5: ATTACH THE WHEELS A: Slip Outer Axle Bearing onto one end of the axle and secured inside the Axle Frame (there is a slot that needs matched with the frame). Slide the Inner Axle Bushing on the axle and into placing, fitting snuggly inside the Inner Axle Bushing. Repeat this for both sides. B: Attach Wheel to the right side of the axle by inserting a M6 x 60 bolt through both the wheel hub and axle.
- Page 21 Assembly Instructions STEP 7: INSTALLING GATE LEVER AND HANDLE A: Assemble the Upper Handles by using one Hex Bolt M6x50, Flat Washer Ø6 and Lock Nut M6 to put the Handle Spacer between two Upper Handles at the hole closest to the handle grips. B: Use two sets of Hex Bolt M6x50, Flat Washer Ø6 and Lock Nut M6 to assemble the Upper Handles together and fix the Gate Lever on Upper Handle.
-
Page 22: Assembly Instructions
Assembly Instructions STEP 9: CONNECT THE GATE ROD TO GATE Slip the threaded end of Gate Connecting Rod into the Gate with a Cotter Pin Ø2x10 and flat washer Ø6 above the gate; then fasten with flat washer Ø6 and lock nut M6 at the bottom of shut off plate. STEP 10: FINISHING TOUCHES –... -
Page 23: Warranty
ONE YEAR PARTS LIMITED WARRANTY TrynEx International warrants under the brand name TurfEx. The TurfEx models TS25, TS45 are warranted for a period of one (1) year from the date of purchase, including TrynEx Genuine Parts, against defects in materials or workmanship under normal use and service subject to the limitations detailed below. -
Page 24: Notes
Notes © TrynEx International 2014 F51507A REV-A141701... - Page 25 Notes © TrynEx International 2014 F51507A REV-A141701...
- Page 26 Notes © TrynEx International 2014 F51507A REV-A141701...
- Page 27 Notes © TrynEx International 2014 F51507A REV-A141701...
- Page 28 141701...
