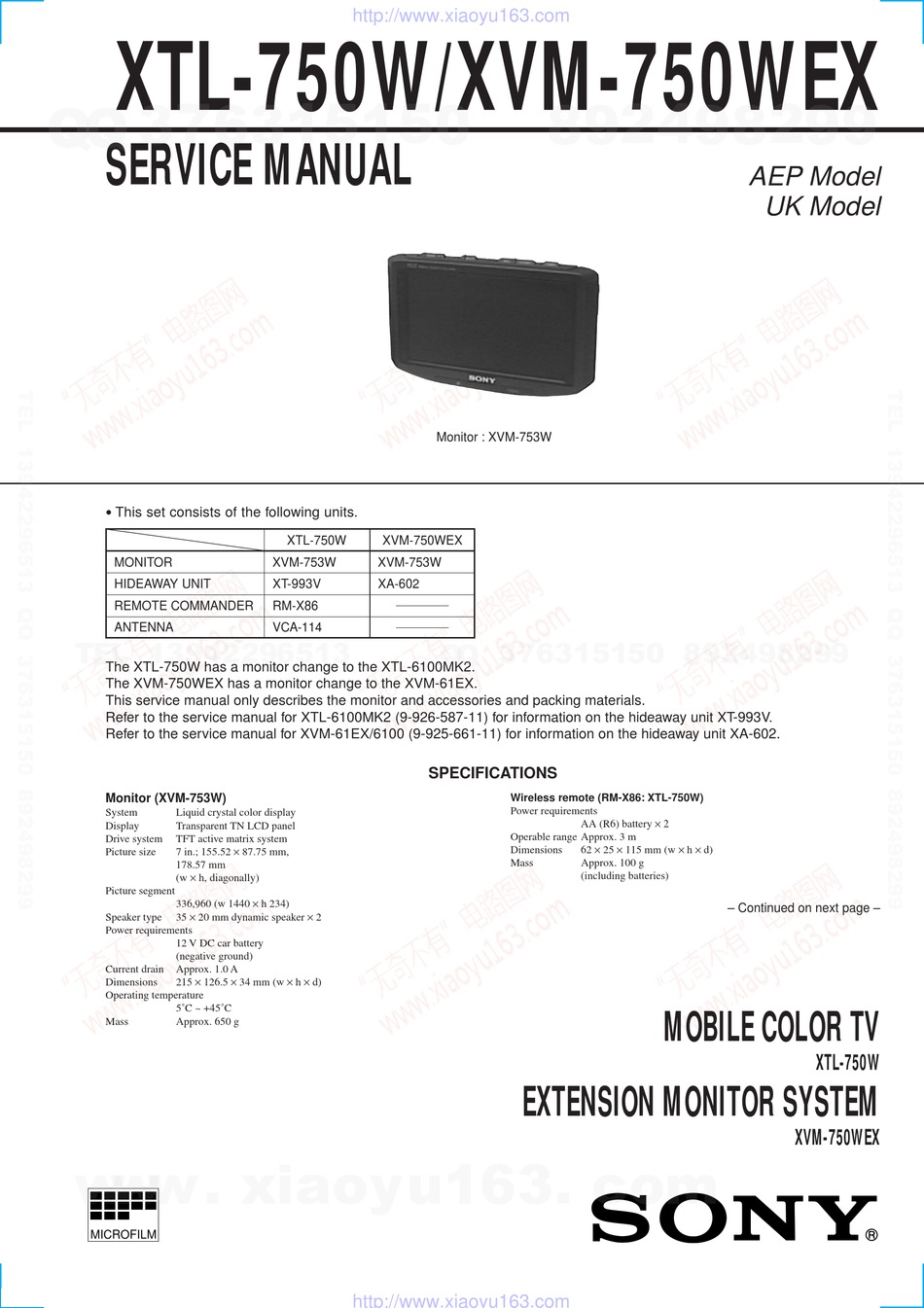

XTL-750W/XVM-750WEX
QQ
3 7 63 1515 0

SERVICE MANUAL

•
This set consists of the following units.
MONITOR
HIDEAWAY UNIT
REMOTE COMMANDER
ANTENNA
TE
L 13942296513
The XTL-750W has a monitor change to the XTL-6100MK2.
The XVM-750WEX has a monitor change to the XVM-61EX.
This service manual only describes the monitor and accessories and packing materials.
Refer to the service manual for XTL-6100MK2 (9-926-587-11) for information on the hideaway unit XT-993V.
Refer to the service manual for XVM-61EX/6100 (9-925-661-11) for information on the hideaway unit XA-602.
Monitor (XVM-753W)
System
Liquid crystal color display
Display
Transparent TN LCD panel
Drive system
TFT active matrix system
7 in.; 155.52 × 87.75 mm,
Picture size
178.57 mm
(w × h, diagonally)
Picture segment
336,960 (w 1440 × h 234)
35 × 20 mm dynamic speaker × 2
Speaker type
Power requirements
12 V DC car battery
(negative ground)
Current drain
Approx. 1.0 A
215 × 126.5 × 34 mm (w × h × d)
Dimensions
Operating temperature
5˚C ~ +45˚C
Mass
Approx. 650 g
www
.
MICROFILM
http://www.xiaoyu163.com
XTL-750W
XVM-750WEX
XVM-753W
XVM-753W
XT-993V
XA-602
RM-X86
VCA-114
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Monitor : XVM-753W
Q Q
3
6 7
1 3
1 5
SPECIFICATIONS
Wireless remote (RM-X86: XTL-750W)
Power requirements
AA (R6) battery × 2
Operable range Approx. 3 m
62 × 25 × 115 mm (w × h × d)
Dimensions
Mass
Approx. 100 g
(including batteries)
EXTENSION MONITOR SYSTEM
co
.
9 4
2 8
AEP Model
UK Model
0 5
8
2 9
9 4
2 8
– Continued on next page –
MOBILE COLOR TV
m
XVM-750WEX
9 9
9 9
XTL-750W
1
