3. Installing the AT-10
3. Installing the
Transparency Unit
Step 1
Turn your scanner off, and unplug the power
cord.
Step 2

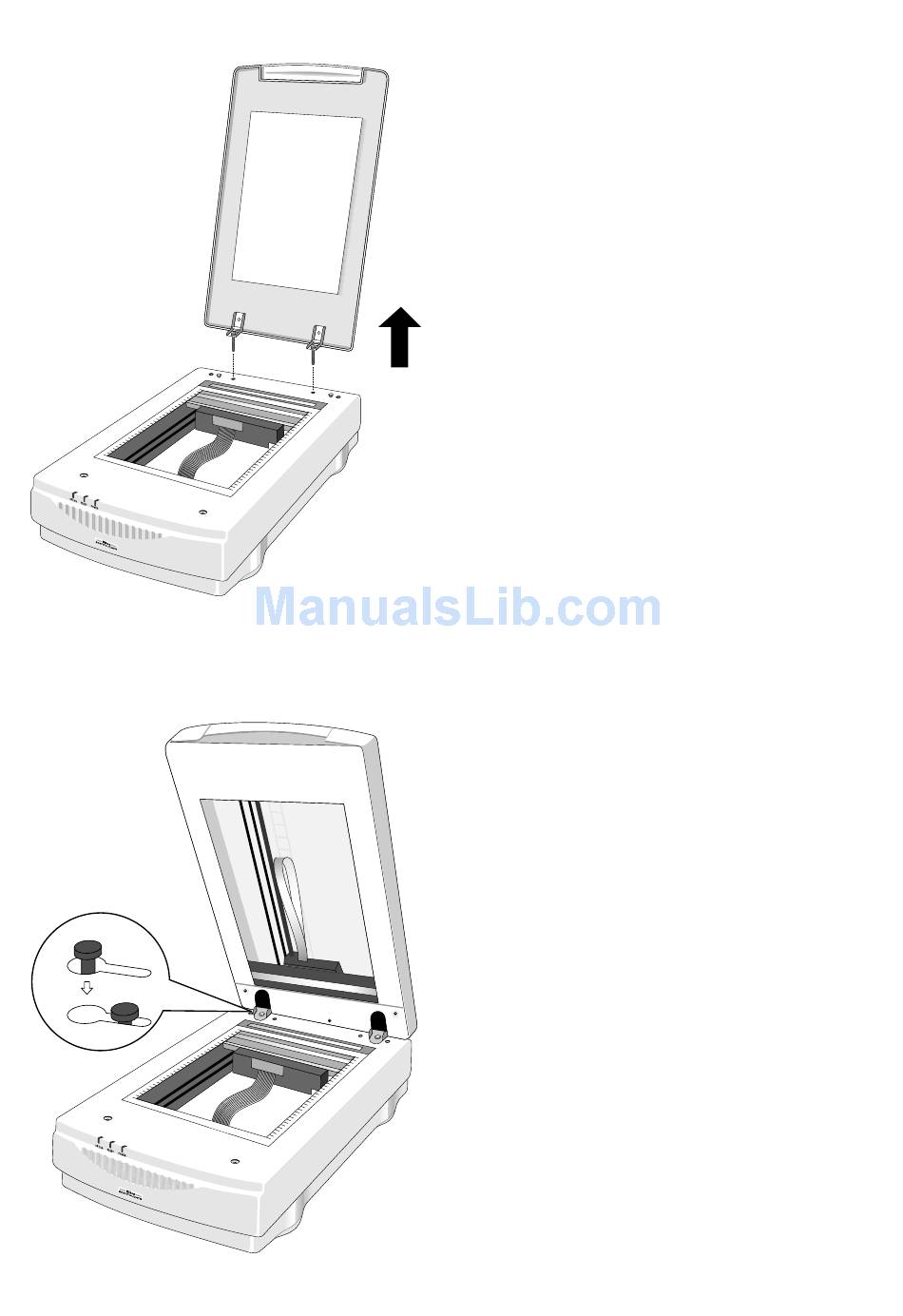

Remove the document cover by lifting it up
from the scanner to separate the guide posts
from their receptacles.
Step 3
Position the hinge brackets of the transparency
unit over the supporting posts on the scanner so
that the posts fit into the holes in both hinge
brackets.
Step 4
Gently slide the transparency unit so that the
supporting posts move into the narrow sections
of the holes.
Step 5
Insert screws into the center of each hinge
bracket and tighten them down.
