AQUA 1100
AQUA 1200
User Manual
128700022 b (10.2013)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA 1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wap AQUA 1100

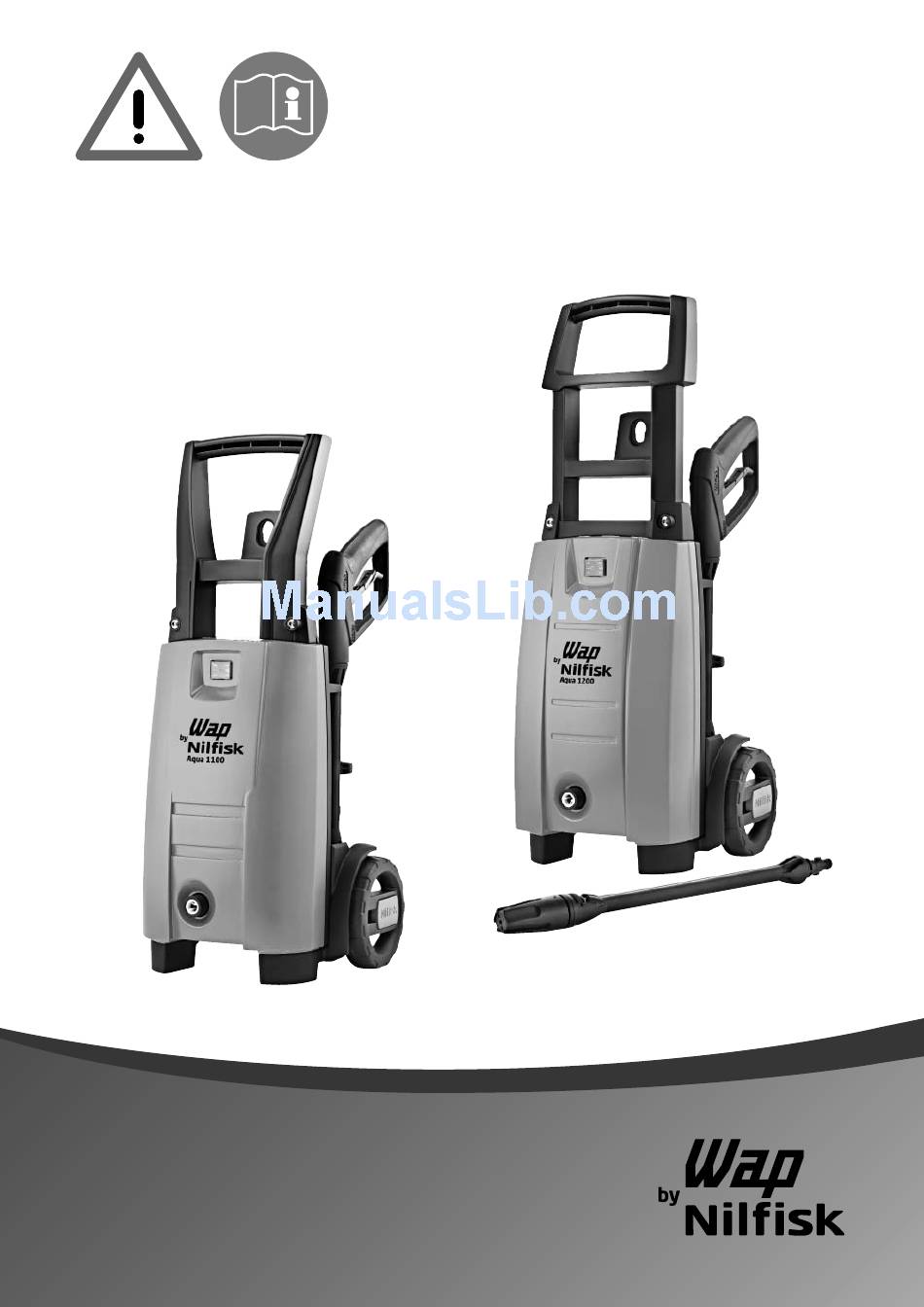

  • Page 1 AQUA 1100 AQUA 1200 User Manual 128700022 b (10.2013)
  • Page 2: Betriebsanleitung

    Betriebsanleitung ............3 - 17 User Manual ..............18 - 31 Printed in China Copyright © 2013 Nilfisk-Advance A/S...
  • Page 3: Table Of Contents

    Contents Introduction ....................19 1.1 Symbols used to mark instruction ..............19 Safety precautions and working techniques ..........19 Before you start using your high pressure washer ........ 26 3.1 Mounting of trolley handle and wheels .............26 3.2 Mounting of quick coupling ................26 Operating your high pressure washer .............
  • Page 4: Introduction

    1 Introduction 1.1 Symbols used to mark instruction All pictograms attached to the high pressure washer and its components are shown and ex- plained in this manual. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property.
  • Page 5 selves from being struck by debris dislodged during operation. • Always unplug the power plug before cleaning or maintenance and when replacing parts or converting the machine to another function. • Observe the national safety regulations issued, for example, by the employers liability insurance associa- tion, social security institutions, occupational safety and health authorities or other organizations.
  • Page 6 and repairs as specifi ed in this instruction. Clothing and equipment Always take action to protect yourself when operating the machine. • Wear shoes with non-slip soles. • Wear goggles, ear protection and protective clothes during operation. Transporting the high pressure washer ...
  • Page 7 Electrical connection WARNING! Minimize the risk for electrical shock: • Voltage and frequency of the machine (see rating plate) must match the voltage of and frequency of the mains supply. • Only connect the machine to electrical installation made by a certifi ed electrician and com ply with IEC 60364-1.
  • Page 8 mains according to national regulations. • According to EN 60335-2-79 this machine is only al- lowed to be connected with the drinking water mains when an appropriate backfl ow preventer has been installed. Type BA according to EN 60335-2-79. The backfl...
  • Page 9 sonous. • Never direct the water jet at yourself, other persons, not even to clean clothing or footwear - risk of injury. • Never direct the water jet at pets or other animals. • Never direct the water jet at live electrical equipment or the machine itself - danger of short-circuiting.
  • Page 10 after use of the machine and prior to storing. Maintenance and repairs WARNING! • Always disconnect the electrical plug from the socket prior to maintenance, cleaning and repair. • Any repair should always be made in Nilfi sk authorized workshop with original Nilfi sk spare parts. •...
  • Page 11: Before You Start Using Your High Pressure Washer

    4. High pressure hose 5. Electric cable 6. Click&Clean spray lance 7. Spray handle with lock (7a) 8. Click&Clean Tornado nozzle (AQUA 1100) 9. Click&Clean Tornado PR nozzle (AQUA 1200) 10. Click&Clean Powerspeed nozzle 11. Foam sprayer 12. Nozzle cleaning tool 13.
  • Page 12: Operating Your High Pressure Washer

    4 Operating your high pressure washer See the pictorial quick reference guide – operating your high pressure washer. 4.1 Connection of high pressure hose Attach the high pressure hose (4) to the spray handle (7). Detach the high pressure hose by pressing the pawl (A).
  • Page 13: Starting The High Pressure Washer

     When connecting the machine to operate from pressure less water supplies – always use ad- ditional fi ltering to secure that impurities are not sucked in. Hose length should be max. 3 meter and of minimum ½". To meet these requirements, Nilfi sk recommends that you use the original Nilfi sk suction hose kit.
  • Page 14: Maintenance

    6 Maintenance See the pictorial quick reference guide - maintenance.  To ensure a long and problem free working life of the high pressure washer, please take the following advices: • Wash out water hose, high pressure hose, spray lance and accessory before mounting •...
  • Page 15: Warranty Conditions

    Symptom Cause Recommended action Machine stops Fuse has blown Replace fuse. Switch off other machines. Incorrect mains voltage Check that the mains voltage corresponds to specifi cation on the model tag. Thermal sensor activated Leave the washer for 5 minutes to cool down.
  • Page 16: Main Technical Data

    10 Declaration of Conformity Declaration of Conformity Product: High Pressure Washer Type: Wap by Nilfi sk AQUA 1100, AQUA 1200 and accessory variants of above-mentioned types The design of the unit corre sponds to the following EC Machine Directive 2006/42/EC...
  • Page 18 Max. 40°C Max. 40°C...
  • Page 20 GREECE Россия Nilfi sk-Advance A.E. Website: www.nilfi sk.ru Αναπαύσεως 29 Κορωπί Τ.Κ. 194 00 SOUTH AFRICA Website: www.nilfi sk.gr WAP South Africa 12 Newton Street HOLLAND Spartan 1630 Nilfi sk-Advance Website: www.nilfi sk.com Versterkerstraat 5 1322 AN Almere Website: www.nilfi sk.nl...
