Fairchild Imaging MRDI User Manual

Ultra-high performance line scan camera cam/cmos 2k.ls owl camera series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWL CAMERA SERIES
CAM/CMOS-2K.LS
ULTRA-HIGH PERFORMANCE
Line Scan Camera
Camera User's Manual
Models RDI & MRDI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRDI and is the answer not in the manual?

Questions and answers

Summary of Contents for Fairchild Imaging MRDI

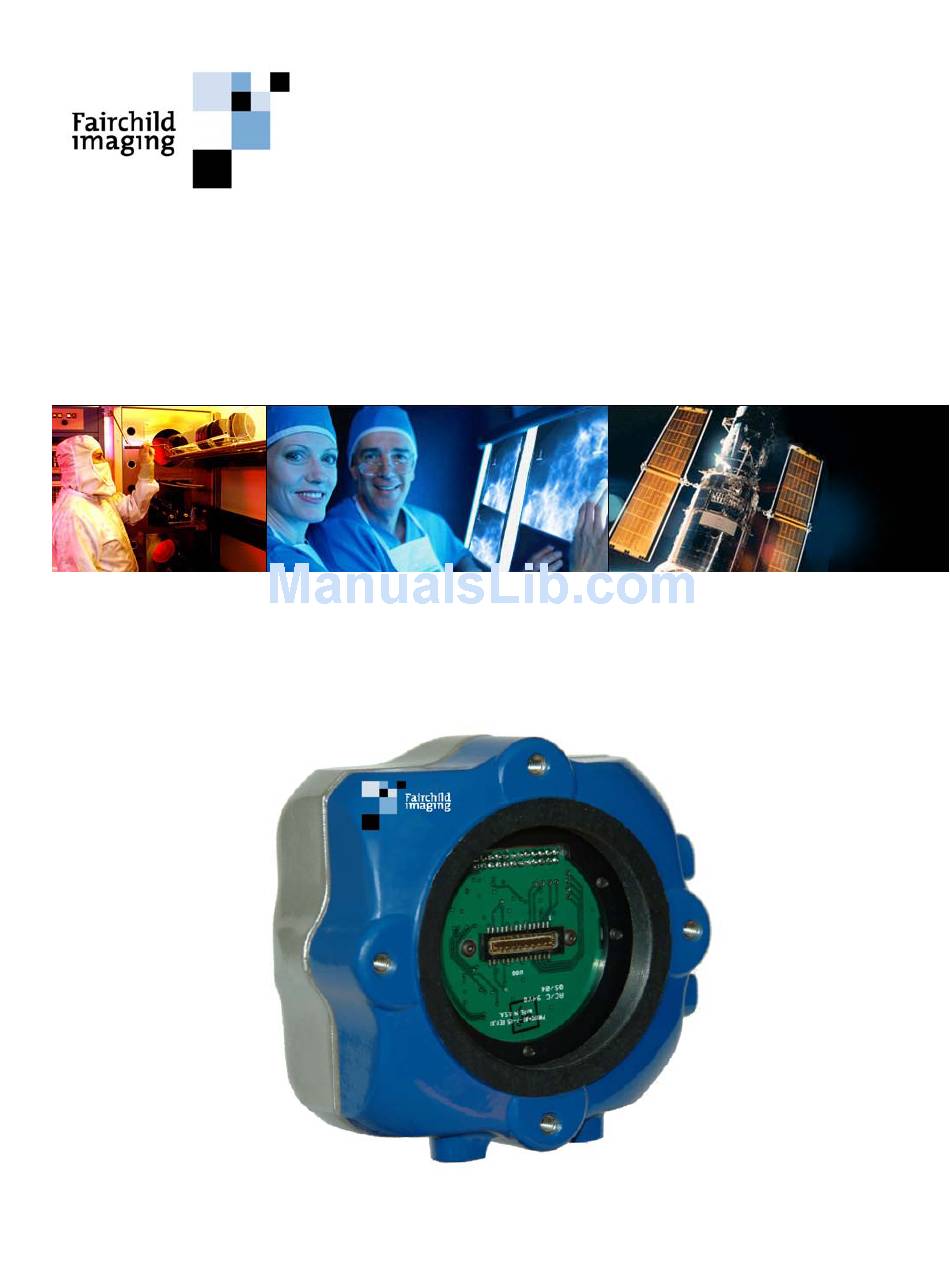

  • Page 1 OWL CAMERA SERIES CAM/CMOS-2K.LS ULTRA-HIGH PERFORMANCE Line Scan Camera Camera User’s Manual Models RDI & MRDI...

  • Page 2: Users Manual

    FAIRCHILD IMAGING OWL CAMERA SERIES The CAM/CMOS-2K.LS Line Scan Camera © 2004 Fairchild Imaging, Inc. PRELIMINARY DOCUMENT The information in this manual is preliminary. All information provided in this manual is believed to be correct at the time of writing. No responsibility is assumed by Fairchild Imaging for its use.

  • Page 3: Table Of Contents

    SECTION 1 Introduction to the CAM/CMOS-2K.LS Ultra-High Performance Line Scan Camera ... 5 1.1 Camera Highlights... 5 1.2 Camera Specification: RDI and MRDI Performance Specification ... 6 1.3 Thermal Considerations ... 7 1.4 Image Sensor ... 8 SECTION 2 Camera Hardware Interface...10 2.1 Installation Overview ...10...
  • Page 4 SECTION 5 Handling Instructions ...31 5.1 Electrostatic Discharge...31 5.2 Preventing ESD Damage ...31 5.3 Protecting Against Dust, Oil and Scratches...31 5.4 Cleaning the Sensor Window ...31 SECTION 6 Troubleshooting ...32 6.1 Check the Obvious Things Out First...32 6.2 Use the Camera Control Inteface to Perform Checks ...32 6.3 Other Areas You Should Check ...32 SECTION 7 Product Support ...34...

  • Page 5: Introduction To The Cam/Cmos-2K.ls Ultra-High Performance Line Scan Camera

    RDI (Read During Integration) mode runs at line rates up to 38 KHz. Read noise for this version is ~9e- (<5.7DN in 12 bit data). MRDI (Multiple Read During Integrate) mode has a maximum read noise of 0.4e- at a maximum line rate of 2.9KHz.

  • Page 6: Camera Specification: Rdi And Mrdi Performance Specification

    • Web inspection • Sorting and routing • Biomedical readout systems • Diagnostic systems Camera Specification: RDI and MRDI Performance Specification Functions Data rates Line rates Dynamic Range Resolution Pixel size Max Clock speed Max Pixel Clock per Output Anti Blooming...

  • Page 7: Thermal Considerations

    Function Reset to Default Conditions Fixed Pattern Noise Correction PRNU Correction Integration Time External Synch / Free Run Pixel Level Gain Line Synchronization Test Patterns 1.3 Thermal Considerations The CAM/CMOS 2K.LS has been carefully designed to separate the camera electronics from the image sensor.

  • Page 8: Image Sensor

    Figure 1.3.1 RDI and MRDI Responsivity Curve 1.4 Image Sensor Pixel level processing image sensors are based on the principle that photons induced by charge at the pixel site should be converted to, as nearly as possible, a noise-free signal at the pixel site.
  • Page 9 Figure 1.4.1 Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 9 of 41...

  • Page 10: Camera Hardware Interface

    SECTION 2 Camera Hardware Interface Installation Overview Before you integrate your camera into your system you should first determine some basic operating parameters such as what resolution you need. Do you know the speed of the object that your camera will be inspecting? One additional point you want to keep in mind is your lighting requirement.

  • Page 11: Power Supply

    Camera Pin # Notes: • Exterior overshield is connected to the shells of the connectors on both ends. • 3M part 14X26-SZLB-XXX-0LC is a complete cable assembly, including connectors. • Unused pairs should be terminated in 100 ohms at both ends of the cable. 2.3 Power Supply •...

  • Page 12: Led Indicator Status Lamp

    Pin # If you are using an adjustable lab power supply it is extremely important that you apply the apppropriate voltage to your camera. Incorrect voltage might damage the camera. 2.4 LED Indicator Status Lamp Light Color Green Blinking Amber/Red Fairchild Imaging •...

  • Page 13: Section 3 Camera Control

    SECTION 3 3.1 Quick Start with the Camera Link Follow your Frame Grabber manufacturer’s instructions when inserting the frame grabber card into your PC. Be sure that you install the correct configuration software that matches the camera that you are using. At this point your camera should already be connected to the DC power supply, and connected to the frame grabber in your PC.
  • Page 14 This command will show you the current software version in your camera. The camera returns………………...FPGA REV.2.5 The current value may be different This command allows you to set line rate, enter value and enter. The range for line rate should be 204 – 38610. This command allows you to Calibrate Pixel Offset.
  • Page 15 This command allows you to set the Sync mode. When selecting the option you need, enter the appropriate single digit number, and then hit enter. The camera returns …………..…..1 This command allows you to select a correction mode. When selecting the option you need, enter the appropriate single digit number and then hit enter.
  • Page 16 This command allows you to change the color. When selecting the option you need to, enter the appropriate single digit number and hit enter. command You can input one of the following: This command allows you to show all of the DACs (Digital to Analog Converter). When selecting the option you need, enter the appropriate single digit number and hit enter.

  • Page 17: Camera Command Summary

    Set bit shift Adjust analog video offset mismatch. Calibrate analog offset 200 DN. Set analog gain 0 – 10 db Adjust analog video gain mismatch. Calibrate analog gain. Get camera serial number, returns 128 character string: serial number, model, etc. Set gain high.

  • Page 18: The Four Modes For Synchronizing With The Cam/Cmos-2K.ls

    Command Definition Change Baud rate Light Emitting Diode Get DAC All Set DAC number Get DAC number Set Bit shift Stores all parameters Recalls all parameters Get serial number Calibrate Analog Offset Calibrate Analog Gain Set Analog Gain Set Gain High Set Gain Low 3.4 The Four Modes for Synchronizing with the CAM/CMOS –...
  • Page 19 ExSync Line Synchronization with Electronic Shutter Control is the fourth mode (Figure 3.4.5). It gives the user asynchronous hardware control both start and end of integration. The control lines ExSync and ElectronicShutter are CameraLink as described in Reference A, and must be asserted by the frame grabber. Mode Synchronization The CAM/CMOS...
  • Page 20 Table 3.4.2 ...in this basic mode, usually used for diagnostics & debugging, no triggering is applied to the camera..instead, the camera drives the system with the LineValid Camera Output. Reset Initiation LineValid Camera Output 2048 Clock Cycles Notes specific to this mode 1 The camera is not triggered -- instead, the camera itself synchronizes the system.
  • Page 21 Table 3.4.3 ...gives the user asynchronous hardware control over initiation of the camera readout cycle ...separately gives the user asynchronous hardware control >t MinSync Hold ExSync Camera Input LineValid Camera Output 2048 Clock Cycles Notes specific to this mode Unlike Freerunning mode, the user triggers (separately) both the CAM/CMOS - 2K.LS readout cycle, and the CAM/CMOS - 2K.LS reset-&-integration cycle.
  • Page 22 Table 3.4.4 Mode 3: ExSync Synchronization with Programmable Integration Time ...the differences are that the reset-&-integration cycle is initiated when ExSync is taken low... Reset3 >t Sync mera Input LineV alid mera Output 2048 Clock Cycles Notes specific to this mode 1 The reset-and-integration cycle is initiated by ExSync being taken low by the user;...
  • Page 23 Table 3.4.5 Mode 4: ExSync Synchronization and Electronic Shutter Control ...this mode gives the user full asynchronous hardware control over start and end of integration Wait >t ElectShutter Camera Input HoldLow >t MinSync ExSync Camera Input LineValid Camera Output Readout 2048 Clock Cycles Notes specific to this mode 1 The user initiates the reset-&-integration cycle by taking the ElectShutter Camera Input high...
  • Page 24 Synchronization Timing Values initiation Readout Reset2 Reset3 MinSynch Hold Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 24 of 41 Table 3.5.6 CAM/CMOS-2K.LS 300nsec 40nsec 25.6nsec 4usec 5usec 40nsec 40nsec...

  • Page 25: Mechanical And Optical Guidance

    SECTION 4 Mechanical and Optical Guidance Camera Dimensions and Mounting Facilities The CAM/CMOS – 2K.LS camera housing is manufactured with high precision. Planar, parallel, and angular sides guarantee precise mounting with high repeatability. The CAM/CMOS – 2K.LS is equipped with four M4 mounting holes on the front and two M4 mounting holes on one side and on the bottom of the camera.

  • Page 26: Lensing

    4.2 Lensing The CAM/CMOS – 2K.LS as shipped from the factory accepts universal manual "F" mount lenses that are available from a number of suppliers. The standard 0.050" Nikon mounting ring is shown in Figure 4.3 below. Figure 4.3 below shows that the lens extender tube can be detached by unscrewing it so that an optional "C"...
  • Page 27 Figure 4.3.2 Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 27 of 41...

  • Page 28: Mechanical Drawing Of Available Camera Face Mounting "L" Bracket

    4.4 Mechanical Drawing of Available Camera Face Mounting “L” Bracket Contact your Fairchild Imaging representative for more details Figure 4.4.1 Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 28 of 41...

  • Page 29: Lenses

    4.5 Lenses Fairchild Imaging does not supply lenses. 4.6 Positioning Accuracy of the Sensor Chip in the Camera Positioning accuracy of the sensor chip in the horizontal and vertical direction is + 0.2 mm. Rotational positioning accuracy is as shown. Reference position is the center of the camera housing.

  • Page 30: Lens Modeling

    4.9 Lens Modeling Several camera companies have included this and like information in their manuals. For reference material it is very useful. The focal point is the point at which the image of an infinitely distant object is brought to focus. The effective focal length (f’) is the distance from the second principal point to the second focal point.

  • Page 31: Handling Instructions

    SECTION 5 Electrostatic Discharge The Fairchild Imaging LNL2048S is a metal oxide semiconductor (MOS) device, and as all such devices, has some limited inherent susceptibility to electrostatic discharge (ESD). All reasonable and customary design steps have been taken to provide ESD protection circuitry.

  • Page 32: Section 6 Troubleshooting

    SECTION 6 6.1 Check the Obvious Things Out First When trouble shooting, you want to start the process with the obvious components contained within your system: • Computer system: hardware & software • Is the frame grabber plugged into the correct slot on the mother board •...
  • Page 33 Everything Seems To Be Working, But No Image Remove the cover from your PC and reset all the cards into the Mother board. Sometimes when you move your PC, cards inside the PC work themselves loose. Data Clocking/Output Signals Verify the presence of all data clocking and output signals. Horizontal Lines or Patterns in Output To eliminate this type of problem use a DC light source.

  • Page 34: Section 7 Product Support

    SECTION 7 If after troubleshooting your camera, and you still have problems, collect the following data about your application and situation and call Fairchild Imaging Customer Support. Note: You may want to photocopy this page to fax to Fairchild Imaging @ 408-735-7352 Your Name Company name Your phone number...

  • Page 35: Reference A

    REFERENCE A Camera Link Introduction Camera Link is a Protocol that is Implemented in Channel Link Hardware Camera Link is a communication interface for machine vision. The interface extends the underlying technology of Channel Link to provide a specification more useful in this application. For years, the scientific and industrial digital video market has lacked a standard method of communication.

  • Page 36: Camera Control Signals

    Video Data Signals The Channel Link technology is integral to the transmission of video data. Image data and image enable signals are transmitted on the Channel Link bus. Four enable signals are: FVAL-Frame Valid (FVAL) is defined HIGH for valid lines LVAL-Line Valid (LVAL) is defined HIGH for valid pixels DVAL-Data Valid (DVAL) is defined HIGH when data is valid Spare- A spare has been defined for future use...

  • Page 37: Port Assignments

    Power Per the standard, power is not provided on the CameraLink connector of the camera. Power is supplied through the Hirose connector. Port Assignments See Tables 3.4.1 for the options of using the CAM/CMOS - 2K.LS with CameraLink In CameraLink , a port is defined as an 8-bit word as shown in Figure A.2.
  • Page 38 Camera Link Connections -- the MDR 26-Pin Connector The 3M MDR-26 connector was selected for its robust design and reputation for success with high- frequency Channel Link transfer rates over several years of experience. The MDR-26 connector is addressed in Section 2.2 Figure A.1 Channel Link Operation Fairchild Imaging •...
  • Page 39 Figure A.2 Data Routing for Base, Medium and Full Configurations Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 39 of 41...
  • Page 40 Figure A.3 Data Routing for Base, Medium and Full configurations Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 40 of 41...
  • Page 41 Figure A.4 Camera Link Cable Figure A.5 3M Part Number Ordering Information (see further www.3M.com) Fairchild Imaging • CAM/CMOS-2K.LS Line Scan Camera User’s Manual • Rev A • 41 of 41...
