GE ZISS360NXSS Dimension Manual

GE Monogram
®
SPECIFICATIONS
Overall Width
Overall Height
Overall Depth
Door Clearance
Cutout Width
Cutout Height
Cutout Depth
Plumbing Requirements
Shipping Weight
ATTENTION ELECTRICIAN:
A 115 volt 60Hz., 15 or 20 amp power supply
is required. An inidividual properly grounded
branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical
receptacle recessed into the back wall.
36" Built-In Side-by-Side Refrigerator
36" (91.44 cm)
84" (213.36 cm)
25 3/4" (65.41 cm)
20 5/8" (52.4 cm)
35 1/2" (90.2 cm)
83 1/2" - 84 1/2"
(212.1 - 214.6 cm)
24" (61 cm)
1/4" OD copper
tubing or GE
SmartConnect kit
675 lb

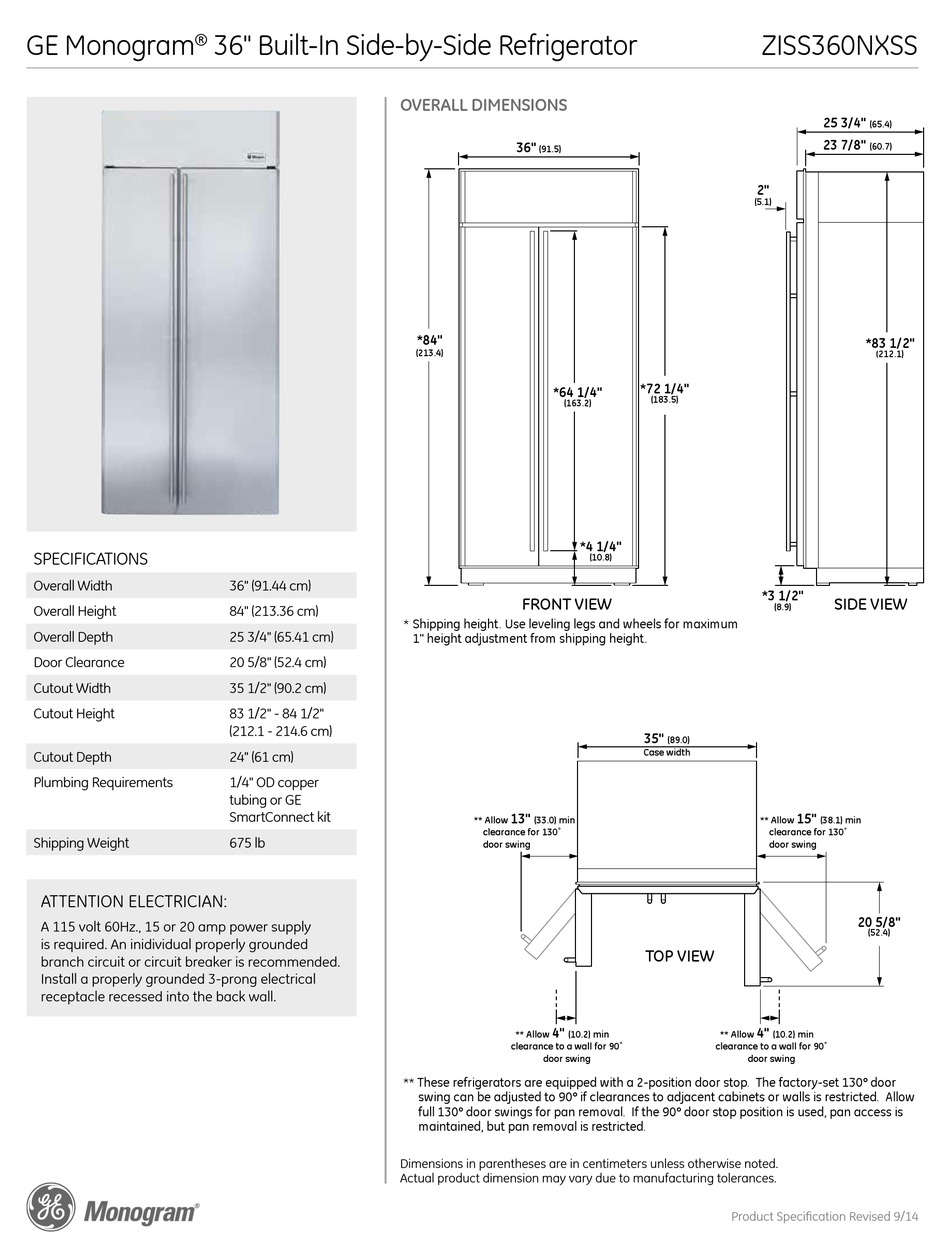

OVERALL DIMENSIONS
36"
(91.5)
36"
(91.5)
*64 1/4"
(163.2)
*64 1/4"
(163.2)
*4 1/4"
FRONT VIEW
* Shipping height. Use leveling legs and wheels for maximum
1" height adjustment from shipping height.
FRONT VIEW
* Shipping height. Use leveling legs and wheels for maximum
1" height adjustment from shipping height.
13"
** Allow (33.0) min
clearance for 130˚
door swing
13"
** Allow (33.0) min
clearance for 130˚
door swing
4"
** Allow (10.2) min
clearance to a wall for 90˚
door swing
** These refrigerators are equipped with a 2-position door stop. The factory-set 130° door
4"
** Allow (10.2) min
swing can be adjusted to 90° if clearances to adjacent cabinets or walls is restricted. Allow
clearance to a wall for 90˚
full 130° door swings for pan removal. If the 90° door stop position is used, pan access is
door swing
maintained, but pan removal is restricted.
** These refrigerators are equipped with a 2-position door stop. The factory-set 130° door
swing can be adjusted to 90° if clearances to adjacent cabinets or walls is restricted. Allow
full 130° door swings for pan removal. If the 90° door stop position is used, pan access is
maintained, but pan removal is restricted.
Dimensions in parentheses are in centimeters unless otherwise noted.
Actual product dimension may vary due to manufacturing tolerances.
2"
(5.1)
2"
(5.1)
*72 1/4"
(183.5)
*72 1/4"
(183.5)
*4 1/4"
(10.8)
(10.8)
*3 1/2"
35"
(89.0)
Case width
35"
(89.0)
Case width
TOP VIEW
TOP VIEW
** Allow
clearance to a wall for 90˚
door swing
4"
** Allow
clearance to a wall for 90˚
door swing
ZISS360NXSS
Product Specification Revised 9/14
ZISS360NXSS
ZISS360NXSS
25 3/4"
(65.4)
23 7/8"
(60.7)
25 3/4"
(65.4)
23 7/8"
(60.7)
*83 1/2"
( 212.1)
*83 1/2"
( 212.1)
*3 1/2"
SIDE VIEW
(8.9)
SIDE VIEW
(8.9)
15"
** Allow (38.1) min
clearance for 130˚
door swing
15"
** Allow (38.1) min
clearance for 130˚
door swing
20 5/8"
(52.4)
20 5/8"
(52.4)
4"
(10.2) min
(10.2) min
