Summary of Contents for Allnet all2295V2

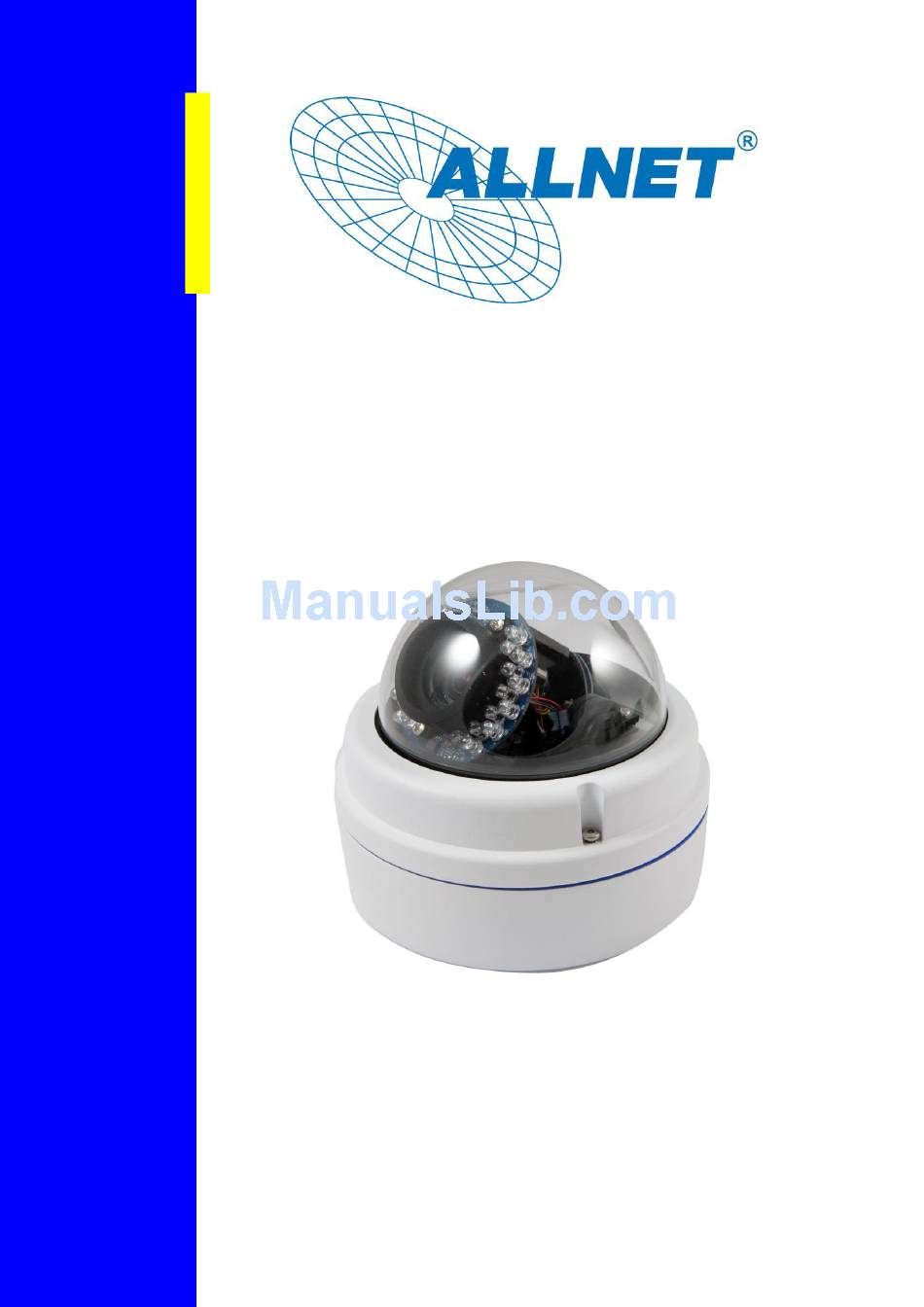

- Page 1 Full HD Multiple Streaming IP Fixed Dome Camera ALL2295V2 User Manual...
-
Page 2: Table Of Contents
Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................4 Connectors ........................5 Camera Cabling ........................6 Connect Power ......................6 Connect Ethernet Cable....................6 Connect Alarm I/O ....................... 6 System Requirements ......................7 Access Camera ........................ -
Page 3: Overview
Overview Supported with both H.264 and MJPEG standard, the product series not only features in superior Full HD resolution for real-time streaming at 25/30 fps, but also supplies D1 720p real-time streaming. With more computing power, the IP Camera could provide more flexibility for users and system managers. Features ... -
Page 4: Package Contents
Package Contents Please check the package contains the following items listed below. Indoor Camera Package Contents Vandal Proof DC Jack Cable Fixed Dome IP Camera Power Terminal Block Security Torx Rubber Washers (×6) Self Tapping Screws Plastic Screw Anchors (×4) (×4) Quick Guide (bundled software and... -
Page 5: Dimensions
Dimensions The IP Dome Camera’s dimensions are shown below. Indoor Top View Side View Outdoor Top View Side View... -
Page 6: Connectors
Connectors The diagram below shows the IP Camera’s reset button and various connectors. Definition for each connector will be given as follows. Connector Definition Remarks Reset Button Restore to factory default Analog Video Output GND (Input－) Input＋ Alarm I/O Alarm connection Output－... -
Page 7: Camera Cabling
Camera Cabling Please follow the instructions below to complete IP Camera connection. Connect Power Please refer to Section: Connectors. Alternatively, connect the Ethernet cable to the camera’s PoE port and plug the other end of the cable into a PoE switch. NOTE: If using PoE, make sure Power Sourcing Equipment (PSE) is in use in the network. -
Page 8: System Requirements
System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meet system requirements as described below. Items System Requirement ® ® ® 1. Intel Pentium M, 2.16 GHz or Intel Core 2 Duo, 2.0 Personal Computer... -
Page 9: Access Camera
Access Camera For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Device Search Software Setup Step 1: Double click on the program Device Search.exe. After its window appears, click on the <Device Search>... - Page 10 Additionally, users can change the IP Camera’s network property, either DHCP or Static IP directly in the device finding list. Refer to the following section for changing the IP Camera’s network property. Example of Changing IP Camera’s Network Property Users can directly change an IP Camera’s network property, ex. from static IP to DHCP, in the finding device list.
- Page 11 The download procedure of DC Viewer software is specified as follows. Step 1: In the DC Viewer installation window, click on <Next> to start installation. Step 2: The status bar will show the installation progress. After the installation is completed, click on <Finish> to exit the installation process. Step 3: Click on <Finish>...
- Page 12 Image and Focus Adjustment The image displays on the Home page when successfully accessing to the IP Camera. Adjust zoom and focus as necessary to produce a clear image. Note: Please refer to Full HD Multiple Streams IP Camera Menu Tree for more button function detail.
-
Page 13: Setup Video Resolution
Setup Video Resolution Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. -
Page 14: Video Format
2M Model Video Format Under Video Resolution section, select a preferred resolution setting. The available Video Resolution for MJPEG & H.264 format includes: H.264 + H.264 H.264-1 H.264-2 BNC SUPPORT √ 1280 x 720 (30fps)* 1024 x 768 (30fps) 800 x 600 (30fps) 1920 x 1080 (15fps) √... - Page 15 √ 640 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) 352 x 240 (30fps) 352 x 240 (30fps) H.264 + MJPEG H.264 MJPEG BNC SUPPORT √ 1280 x 720 (30fps) 1024 x 768 (30fps) 800 x 600 (30fps) 1920 x 1080 (15fps) √...
- Page 16 352 x 240 (30fps) 352 x 240 (30fps) MJPEG Only MJPEG BNC SUPPORT √ 1920 x 1080 (15fps) √ 1280 x 1024 (30fps) √ 1280 x 720 (30fps) √ 1024 x 768 (30fps) √ 800 x 600 (30fps) √ 720 x 480 (30fps) √...
- Page 17 2M Real-time Model Video Format Under Video Resolution section, select a preferred resolution setting. The available Video Resolution for MJPEG & H.264 format includes: H.264 + H.264 H.264-1 H.264-2 BNC SUPPORT √ 720 x 480 (30fps)* √ 1920 x 1080 (30fps) 640 x 480 (30fps) √...
- Page 18 √ 720 x 480 (30fps) √ 720 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √ 640 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) 352 x 240 (30fps) 352 x 240 (30fps) H.264 + MJPEG H.264 MJPEG...
- Page 19 √ 800 x 600 (30fps) √ 720 x 480 (30fps) 800 x 600 (30fps) √ 640 x 480 (30fps) √ 352 x 240 (30fps) √ 720 x 480 (30fps) √ 720 x 480 (30fps) 640 x 480 (30fps) √ 352 x 240 (30fps) √...
-
Page 20: Configuration Files Export/ Import
Configuration Files Export/ Import To export/ import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera. -
Page 21: Appendix A: Technical Specifications
Appendix A: Technical Specifications Camera 2M Real-time 1/2.7” Progressive CMOS Image Sensor Effective Pixels 1920(H) x 1080(V) Color 0.2 lux Minimum Illumination 0.02 lux Shutter Speed 1~ 1/10000 sec. White Balance Manual / AWB/ ATW Lens Lens Type Vari-focal/ Motorized lens F1.2/ f =3-9 mm FOV (16:9 resolution) 103.5(W) ~ 34.3(T) - Page 22 Two-way Audio Line out, Line in/ mic in Audio Compression G.711/G.726 5V 10kΩ pull up Input Alarm Output Photo Relay Output 300V DC/AC Event Notification HTTP, FTP, SMTP English, French, German, Italian, Korean, Simplified Chinese, Multiple Languages Traditional Chinese, Russian Network Interface 10/100Mbps Ethernet (RJ-45)
- Page 23 ∅ 170 x 210 mm (∅ 6.7 x 8.3 in.) Outdoor Indoor 0.8 kg (1.8 lb) Weight Outdoor 1.3 kg (2.9 lb) (*) Optional...
-
Page 24: Appendix B: Delete The Existing Dc Viewer
Appendix B: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing to the IP Camera. Deleting the DC Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>. -
Page 25: Appendix C: Setup Internet Security
Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>... - Page 26 The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL2295V2 conforms to the Council Directives of 2004/108/EC EMC. This equipment meets the following conformance standards:...
