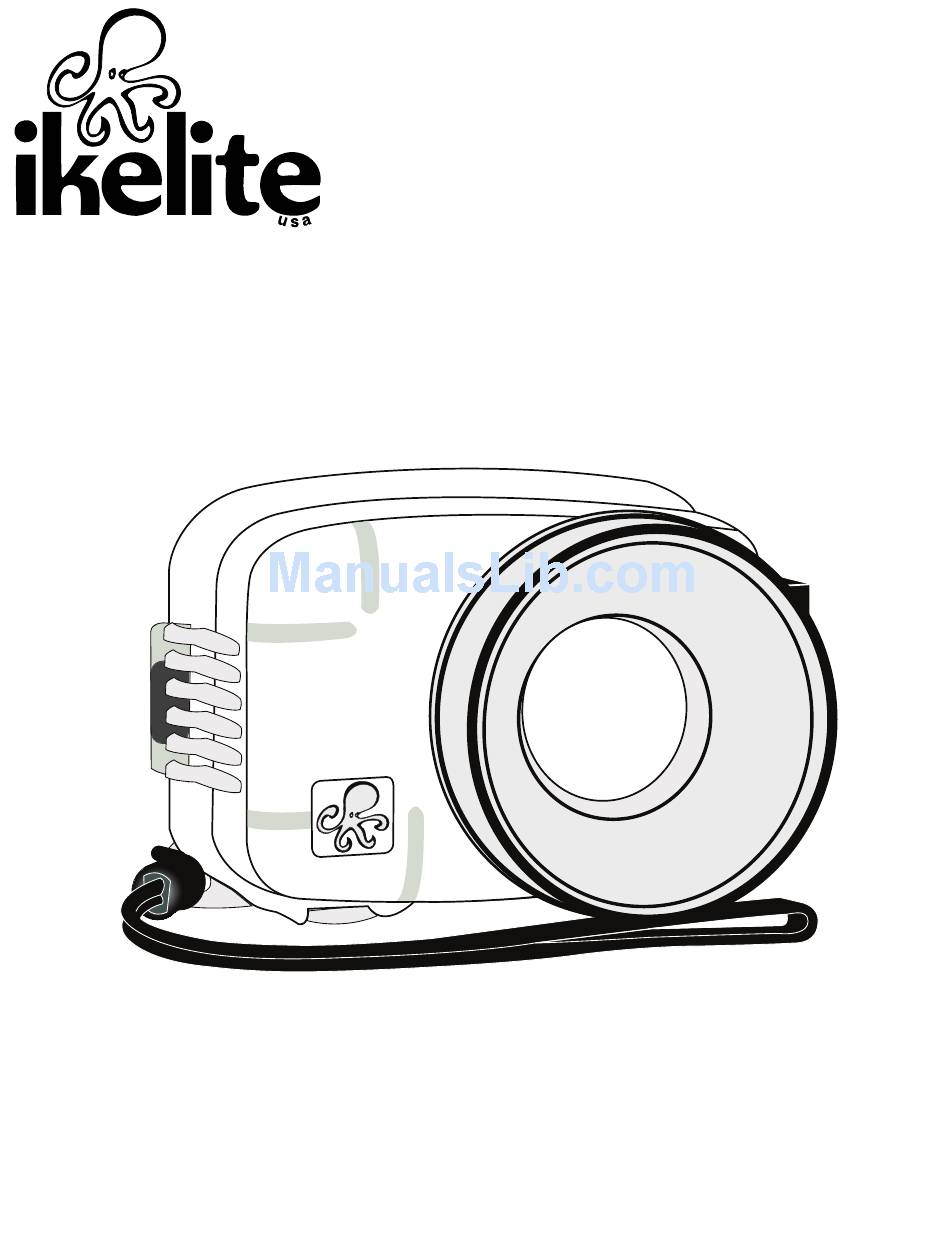

D i g i ta l H o u s i n g

Su p p l e m e n ta l In s tr u c ti o n s

6214.08 Sony DSC-WX80

Size and Weight

Width ......................5.8 in. (147mm) including controls

Height ....................4.6 in. (117mm) including controls

Depth ......................4.4 in. (112mm) including controls & lens port

Weight ....................1.5 lb (680g)

Buoyancy ................Slightly positive in freshwater

Table of Contents

Do you have a question about the 6214.08 Sony DSC-WX80 and is the answer not in the manual?

Page 1 D i g i ta l H o u s i n g Su p p l e m e n ta l In s tr u c ti o n s 6214.08 Sony DSC-WX80 Size and Weight Width ......5.8 in. (147mm) including controls Height ....4.6 in.

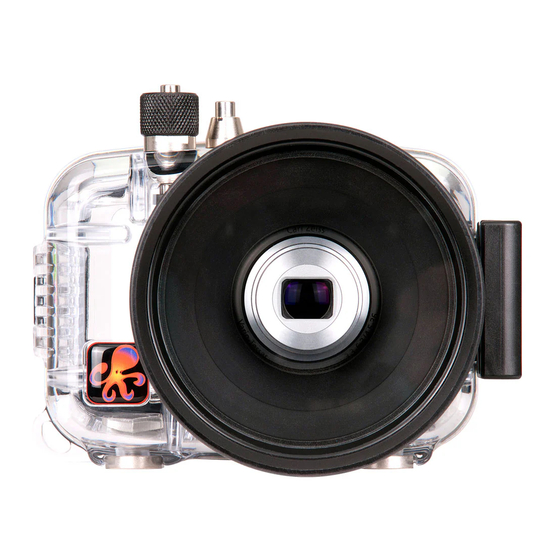

Page 2: Front View
Parts of the Housing ON/OFF Button Front View Lens Port Latch Tray Mounts Back View Shutter Button Zoom Lever Lanyard ULTRA compact Made in USA 7. MENU Button Movie Button DISP Flash Delete Self-timer Playback Shooting Settings Note: No control is provided for the Mode Switch or Control Wheel. Use the Movie Button to switch between shooting modes.
Page 3 Initial Camera Settings (before placing camera in housing) Insert and Format a high capacity SD or SDHC memory card. Set Date and Time. Set REC Mode to “P” Program Auto. Set Still Image Size to “16M.” Set ISO to “200.” Set White Balance to “WB Auto.”...
Page 4: Customer Support
Handle with rubber grip - Tray (single or dual) Mounting hardware. A full range of accessories is available to support your housing. Please visit http://www.ikelite.com to see the most current information about recommended accessories for your housing. Customer Support Please read the troubleshooting section of the “Instruction Manual”...
