Alpha VH30CAK Series Installation And Use Instructions Manual

VH30CAK Video

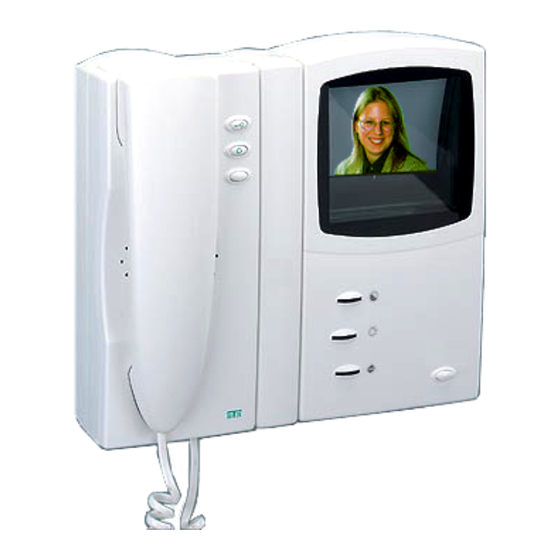

Monitor Station (shown)
APPLICATION
The VH30CAK series video-intercom system allows any
number of VH30CAK series inside monitor+handset
stations to communicate with one or more door entry
stations with (or without) a built-in color camera. When
used as an apartment video-intercom system, the
VH30CAK can view the caller, speak with the caller, and
activate an electric door release (if required).
PROCEDURE
1. Read installation instructions for each unit to deter-
mine equipment location and installation method.
2. Install housings and wiring.
3. Install equipment.
4. Check wiring and connect. Observe all local
and national electrical codes.
5. Apply power and check system operation.
Copyright© 2002-2006, Alpha Communications®, All Rights Reserved.
VH30CAK Series (Color Apartment Type)
Video-Intercom Installation and Use
Instructions, used with the VCU6

System Power Supply Unit(s)

HOUSING INSTALLATION AND
EQUIPMENT LOCATION

INSIDE MONITOR+HANDSET STATION(s)

Locate stations where needed at convenient speaking and
viewing height, about 4.5 feet (137 cm) from the finished
floor. Unit can be secured directly to the finished wall
surface or can be mounted over a single gang electrical
'gem' box or single gang electrical plaster ring.

DOOR ENTRY STATION(s)

Locate door entry station(s) at a convenient speaking
location at the building entry location(s). NOTE: For best
picture (video) quality DO NOT POINT CAMERA
INTODIRECTSUNLIGHT!!!

SYSTEM TRANSFORMER(s)

The SS146 (and T1240) system transformers may be
plugged into an accessible source of 117 VAC, preferably
within 50' (15 meters) of the VCU6 system power supply
unit(s), but no closer than 3 feet (1 meter).

ELECTRIC DOOR OPENER (OPTIONAL)

The DO-001 (or equivalent 12-16VAC type) electric door
release is installed in the door jamb in place of the regular
door strike plate. It can be electrically operated by the
VH30CAK video monitor+handset station(s).

WIRING

INSIDE HANDSET STATIONS
Run 2 conductor #18AWG (common), 4 conductor
#22AWG (common), RG59/U (common) and 1 conduc-
tor #22AWG (selective) cable from video monitor+handset
to video monitor+handset to the central equipment location
(where the VCU6 unit is found). Additional cables may be
used to serve other monitors on other risers (lines). Cables
may be straight or twisted pair type and may be solid or
stranded conductors. Depending upon additional system
options and/or functions you may need to run additional
wires. Please consult the factory for more information.
RG59/U coax cable must be good quality, ALL COPPER,
with minimum 95% copper braiding. As with all systems,
we recommend running some spare wires, for future use.
Route cable away from AC power wiring, transformers,
fluorescent lights, light dimmers or other electrical de-
vices. Protect cable from damage. Shielded cable should
