  • Page 1: Operating Manual

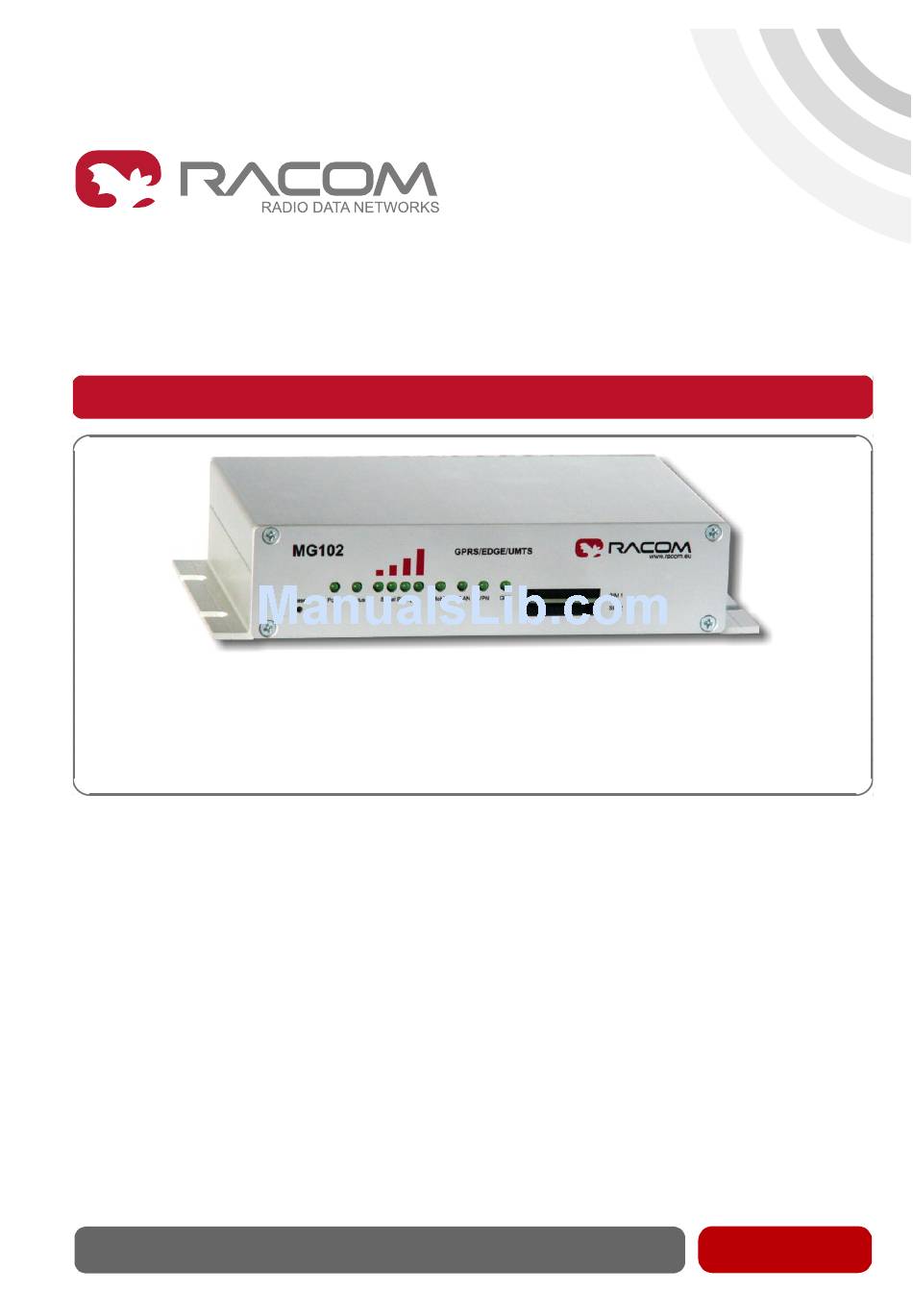

    Operating manual GPRS/EDGE/UMTS routers M!DGE, MG102 11/16/2011 RACOM s.r.o. • Mirova 1283 • 592 31 Nove Mesto na Morave • Czech Republic www.racom.eu Tel.: +420 565 659 511 • Fax: +420 565 659 512 • E-mail: racom@racom.eu...

  • Page 3: Table Of Contents

    1. Router MG102 ..........................5 2. Router M!DGE ..........................5 1.1. Production code MG102 ....................... 6 1.2. Front panel and terminal panel of M!DGE ..................7 1.3. The Front Panel ..........................9 1.4. The Back Panel of 2009 model ....................11 1.5.
  • Page 4 A.1. Pin assignment COM interface RS232 ..................107 A.2. Pin assignment COM interface RS485 ..................107 A.3. Pin assignment Ethernet Interface ................... 108 A.4. Pin assignment power plug ...................... 108 A.5. Pin assignment Ethernet Interface ................... 108 GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 5: Introduction

    Introduction Introduction Thank you for purchasing M!DGE/MG102 Wireless Router from Racom. This chapter gives you an in- troduction to M!DGE/MG102 Wireless Router. The following chapters describe the installation and the configuration. In next description is used the notation router instead of GPRS/EDGE/UMTS router.

  • Page 6: Product Description

    Product description 1. Product description 1.1. The M!DGE – MG102 Family The handling of the different MG models is very similar. All models run MG Software which adapts itself to the MG Hardware. The software will not allow you to configure options the hardware does not offer (e.g.

  • Page 7: Product Description M!Dge

    Product description 1.2. Product Description M!DGE Fig. 1.2: Front panel and terminal panel of M!DGE The following table describes the meaning of the status indicators: Tab. 1.2: M!DGEs interfaces and status indicators Label Color State Function solid The caption on the green side apply start up, maintenance...

  • Page 8: Pin Assignment Of Screw Terminal

    Tab. 1.3: Pin assignment of screw terminal signal V1+ (12–48 V=) V2+ (12–48 V=) Out1: Dry contact relay Normally open with M!DGE without powering Out2: Dry contact relay Normally open with M!DGE without powering DI1− DI1+ DI2− DI2+ GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 9: Product Description Mg102

    The front panel has 10 status indicators. In addition there are two SIM card slots and a reset button at the front panel. Fig. 1.3: The Front Panel The following table describes the components on the front panel: © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

  • Page 10: Components On The Front Panel

    Restart: press this button when the status LED is on Front Reset – – Factory reset: press and hold this button for at least 5 seconds Front SIM1 – – SIM socket 1 Front SIM2 – – SIM socket 2 GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 11: The Back Panel Of 2009 Model

    No physical link Ports) flashing Data transmission S p e e d Data rate 100 MBit/s 10/100 Data rate 10 MBit/s Back green ( E t h e r n e t Ports) © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

  • Page 12: M!Dge/Mg102 Software

    ○ Over the air software update 1.5. Application Overview M!DGE/MG102 is an access router for mobile telecom networks. Router can hook up a whole local area network to the mobile telecom network. Certainly M!DGE/MG102 can also be used to attach a single device.
  • Page 13 General Packet Radio Service (GPRS), Enhanced Data rates for GSM Evolution (EDGE) • Circuit Switched Data (CSD) 1.5.2. Access to a Remote Network M!DGE/MG102 can be used to access a remote network. Possible setups are: • Access via public IP address •...

  • Page 14: Installation

    MG102 is designed for mounting to a panel using through holes or to be put on a worktop for installing to DIN rails use DIN rail bracket. M!DGE is designed for mounting to a DIN rail. M!DGE is designed for mounting to a DIN rail.

  • Page 15: Gprs/Edge/Umts Router Assembly

    MG102 can be powered with the included power supply or another external source supplying between 9 and 32 Volts DC (10–55 Volts DC M!DGE). M!DGE/MG102 is for use with certified (CSA or equivalent) power supply, which must have a limited and SELV circuit output.

  • Page 16: Configuration

    • M!DGE can be configured via a USB stick with a prepared configuration file. If you are new to M!DGE/MG102 we recommend configuring it using the M!DGE/MG102 Web Manager. 3.1. Configuration via the M!DGE/MG102 Web Manager The M!DGE/MG102 Web Manager can always be reached via the Ethernet interface. After the successful setup the Web Manager can also be accessed via the mobile interface.
  • Page 17 If not yet enabled, please enable the Dynamic Host Configuration Protocol (DHCP) so that your computer can lease an IP address from M!DGE/MG102. Wait a moment until your PC has re- ceived the parameters (IP address, subnet mask, default gateway, DNS server).
  • Page 18 Configuration 3.1.3. Home This page gives you a system overview. It helps you when initially setting up device but also functions as dashboard during normal operation. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 19 Configuration 3.1.4. Interfaces In the section the physical Interfaces of M!DGE/MG102 are configured. Details for all enabled connec- tions are displayed on its own section Appendix A, Connectors and Cables • Link Management FW 3.4 introduces a WAN link manager. Depending on your hardware, you can choose from Mobile (GSM/UMTS), WLAN, Ethernet and PPPoE.
  • Page 20 Specify whether the Signal strength LEDs on the NB2500/NB2600/NB2600R front LED shows: panel shall indicate the WLAN or mobile signal strength. Note WLAN is available only with relevant HW. IP health check option is not used at M!DGE. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 21 Ethernet Interface • Switch Settings Choose whether you want to have all Ethernet ports in one LAN (default) or apply a subnet for every Ethernet port or have a WAN port separated. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 22 Port 1–3 (MG102) 192.168.1.0/24 192.168.1.1 Port 4 (MG102) 192.168.2.0/24 192.168.2.1 M!DGE uses two Ethernet interfaces. It is possible set the same LAN for both or LAN1 and LAN2 or LAN and WAN combination. Separated mode (LANs ) Ports Network MG102 IP Address Port 1 192.168.1.0/24...
  • Page 23 • IP Settings Define the M!DGE/MG102 LAN. Usually the first address within that LAN is assigned to the router. Provide that IP address and net mask in dot-decimal notation or use the defaults. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 24 Static configuration allows you to set the IP parameters. IP mode: DHCP means that the IP configuration will be retrieved automatically from an external DHCP server. Status: Enable or disable the PPPoE connection GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 25 Access con- centrator This may be left blank and the client will connect to any access concentrator. name: © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 26 Operational connection Shows whether a connection is up or not. status: Application Choose mobile if M!DGE/MG102 is driving around. For stationary installation choose area: ‘stationary’ Service type: The preferred service type can be set here. IP address: IP address on mobile interface (ppp0) assigned by PPP server...
  • Page 27 Enable or disable PPP data compression. In order to benefit of this features the pression: mobile operator must support it. PPP DNS Specifies whether a DNS request to the provider is made or not. query: © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 28 If the time set in Services Connection Supervisor Ping Monitor Configuration is shorter then time set. In the above mentioned menus – Fallback Profile NEVER be used. • Maximum Segment Size (MSS) described above Maximum Segment Size GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 29 PIN protection. M!DGE/MG102 can only read SIM cards if the correct PIN code is provided or if PIN protection is disabled. It is not recommended to disable PIN protection since a SIM card thief could misuse an unprotected SIM.
  • Page 30 Parity: This property specifies the parity used with every frame that is transmitted or received. Stop bits: This property specifies the number of stop bits used to indicate the end of a frame. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 31 Enable USB autorun feature. Digital I/O Server (M!DGE only) • Digital I/O Management via Web Manager The digital inputs and outputs can be monitored and controlled via the Web Manager or by software. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 32 To manage digital inputs and outputs via TCP software is required that handles the TCP connection. For test purposes e.g. telnet can be used. The payload contains the states of the four inputs/outputs: The value 0 represents the state “off”, the value 1 the state “on”. OUT1 OUT2 GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 33 Turn output 1 on, turn output 2 on ○ Get status of digital inputs and output To get the states of the digital I/O send the following pattern as ASCII characters Pattern Description 00010000 Request a message with all states © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 34 Identity of network interface through which a packet will be sent to reach the gateway. The 'distance' to the target (usually counted in hops). It is not used by recent kernels, Metric but may be needed by routing daemons. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 35 3.1.6. Firewall Access Control Lists • Access Control for Local Host – The access from the WAN interface to M!DGE/MG102 itself and its local applications can be managed using this filter. • Access Control for Exposed Host from WAN and OpenVPN – The access from the WAN interface to a defined Exposed Host can be managed using this filter.
  • Page 36 VPN tunnel or the WAN interface to get direct Internet access. Note Filtering for LAN interfaces is available only if 4LANs are set in Interfaces Switch setings Ethernet Mode. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 37 Host to which the traffic will be forwarded. Internal port: Port to which the traffic will be forwarded. Protocol: Protocol (UDP or TCP) to which this entry applies. Enabled: Enable (Yes) or disable (No) the entry. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 38 Configuration • NAPT on OpenVPN Interface The same settings as above, but for other interface Expert Mode Upload text files with firewall rules. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 39 A Guide to basic RSA Key Management is found under http://openvpn.net/easyrsa.html For alternative authentication methods see http://openvpn.net/index.php/documentation/howto.html#auth For more information also see http://openvpn.net/howto.html Please make sure that the M!DGE/MG102 system time is correct when working with OpenVPN. Other- wise authentication issues may arise. •...
  • Page 40 Second OpenVPN server address (optional) dress Second server port Second OpenVPN server port (optional) VPN device type tun or tap Bridging With tap: bridge tap device with ethernet, or use routing Compression Enable or disable OpenVPN compression GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 41 If OpenVPN is enabled and the configuration mode is set to “client expert configuration” all configurations (*.conf) will be started after mobile connection establishment. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 42 Configuration OpenVPN Configuration (Server Expert Configuration) This configuration mode lets you run an OpenVPN server on M!DGE/MG102. The configuration upload takes a zip file which may include one or more OpenVPN server configurations. Typically such a zip file includes files such as: •...
  • Page 43 Configuration • IPsec Administration Parameter Description IPsec administrative Enable or disable IPsec. status: • IPsec Configuration © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 44 Configuration GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 45 (R_U_THERE, R_U_THERE_ACK) that are sent for this connection (default 30 [sec]: seconds). The number of unanswered DPD R_U_THERE requests until the IPsec peer is Failure count: considered dead (M!DGE/MG102 will try to reestablish a dead connection automat- ically) © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 46 Microsoft Dial-up Networking. Users that are allowed to connect to the PPTP server are defined under the section “User Accounts”. Parameter Description PPTP state Enable/disable PPTP server PPTP address range Address range start for PPTP server start: PPTP address range Address range size for PPTP server size: GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 47 Configuration Dial-in Server On this page the Dial-in server of M!DGE/MG102 can be administrated and configured. Users that are allowed to dial-in are defined under the section “User Accounts”. • Dial-in Server Administration Parameter Description Dial-in administrative The Dial-in server can be enabled or disabled. Consequently the device status: will allow incoming calls or not.
  • Page 48 Max Packet Timeout: If data is received on serial line, waits for more data for the configured time to avoid to much segmentation which would lead on inefficiency • Max Latency Timeout: Limits the maximum latency if the above criteria are not fulfilled GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 49 Protocol on COM port: The protocol implicitely defined on the COM port. Time-out TCP – timeout in seconds or endless • UDP Configuration Parameter Description Local Port Local UDP port Remote IP IP address of remote © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 50 Second the active connection should be monitored. If you are running an IPsec or OpenVPN based VPN we recommend to use the protocol integrated monitoring service (IPsec DPD or OpenVPN keep- alive). Else you should configure and enable the ping monitor application. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 51 If both Host1 and Host2 are not available the restarting with primary profile will follow. In case that IP health check is set for longer period that Ping monitor for internal switch to the fallback profile will NEVER be proceded. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 52 The DHCP server assigns the following information: Any IP address out of the configured range As default gateway the IP address of M!DGE/MG102 is assigned As DNS server the IP address of M!DGE/MG102 is assigned or manually configured DNS servers • DHCP Server Administration...
  • Page 53 Propagate DNS proxy server as third DNS server DNS Proxy Server The DNS Proxy enabled M!DGE/MG102 forwards DNS requests to the DNS server provided by the mobile operator. Devices within the M!DGE/MG102 LAN may be configured to use M!DGE/MG102 as DNS server.
  • Page 54 Configuration Dynamic DNS The Dynamic DNS Client of M!DGE/MG102 is completely compatible to the Dynamic Network Services provided by the organization DynDNS (www.dyndns.com). • Dynamic DNS Administration Parameter Description Dynamic DNS status: Enable or disable the Dynamic DNS Client •...
  • Page 55 Description From e-mail address: Sender’s e-mail address Server address: SMTP server address Server port: Default port for SMTP is 25 If enabled M!DGE/MG102 will logon to SMTP server before sending e- Authentication required: mails User name: Username Password: Password © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 56 VPN connection failure VPN failure to connect. See logs to identify the problem. Dial-in connection estab- Dial-in connection establish: user: %DIN_USER% from: %DIN_IP%. lished Dial-in connection down Dial-in connection terminated: user: %DIN_USER% from: %DIN_IP%. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 57 The IP address of the dial-in peer %LOGIN_USER% Name of the user who tried to log on to the Web Manager %DIO_SOURCE% Source that triggered an output change %UDP_MESSAGE% Text message that has been received by the message receiver © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 58 Subscribers are recepients of SMS or e-mail event notifications. It is possible to create groups and fill them with users and other groups. This mechanism let you send event notifications to multiple destinations/users. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 59 Configuration • Event Processor Notifications can be generated or digital outputs can be set based on the occurrence of several events. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 60 Destination UDP port of application where the GPS data will be sent to GPS update cycle: The refresh cycle / frequency of sending data • GPS Data GPS Data is only supported with activated Berlios GPS daemon. Go to GPS Settings to configure. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 61 Configuration SMS can be used to control M!DGE/MG102 and for event notification. Parameter Description Sending SMS can be enabled or disabled. Disabling sending SMS means that SMS notification: no notification via SMS will be performed. Receiving SMS can be enabled or disabled. Disabling receiving SMS means SMS control: that controlling M!DGE/MG102 via SMS will not be possible.
  • Page 62 Set administrative status of the mobile connection to enabled, dial on dialondemand demand. 1 on Switch output 1 on 1 off Switch output 1 off output 2 on Switch output 1 on 2 off Switch output 2 off GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 63 Configuration SSH Server Parameter Description Port: SSH server port The standard port 22 is used. For higher security change it to different number. This number shall be used as parametr in SSH command. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 64 No further traps will be sent as long signal strengt his not higher than this. ivation threshold dBm: Operation mode SNMP version. SNMP traps are generated in the following situations, if the SNMP agent is enabled: GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 65 The system-shutdown trap is sent, when the system is rebooted via the reboot function of the web in- terface or when the watchdog reboots the system. Telnet Server Parameter Description Port: Telnet server port © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 66 UDP packets with a string in the payload. If an UPD package is arriving, the event “Arriving UDP Message” is fired (see chapter ???). Use the Event Manager (the section called “Event Manager”) to forward the message (UDP payload) to a SMS or E-mail destination. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 67 GSM Network. A sample USSD service is the bill status service accessed by dialing *141# or similar numbers in between * and # ac- cording to mobile network. Contact your mobile operator for further information. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 68 Configuration Web Server Parameter Description HTTP port: Web server port for http connections HTTPS port: Web server port for https connections GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 69 Enable or disable the captive portal. Define whether user must accept by pressing a button or they have to au- Authentication Mode: thenticate to a RADUIS server. Walled Garden Address: Requests to this address are not being checked. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 70 Configuration 3.1.9. System Authentication GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 71 Confirm the password File Configuration Configuration via the Web Manager becomes tedious for large volumes of devices. M!DGE/MG102 offers automatic and manual file-based configuration. A single text file (*.cfg) or a zip archive (*.zip) containing one or more of the following files can be up- loaded.
  • Page 72 Description Status: Enable/disable automatic configuration update Time of day: Every day at this time M!DGE/MG102 will do a check for updates Mode: Update over mobile or Ethernet Interface? Specify the protocol used to transfer the new user configuration file to Protocol: M!DGE/MG102.
  • Page 73 The following files are acceppted for upload: • *.cfg (max size 100KB) • *.zip (max size 100KB) The zip file may include New configuration • user-config.cfg files: • ca.crt.credential_mode • ca.crt.certificate_mode • client.crt.certificate_mode • client.key.certificate_mode • templateProfiles © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 74 This action can also be initiated by pressing and holding the Reset button for at least five seconds. The factory reset will also set the IP address of the Ethernet interface to 192.168.1.1. You will be able to communicate again with the device using the default network parameters. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 75 Configuration Troubleshooting • Network Debugging © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 76 Configuration • Log Files Log files can be viewed a downloaded here. Please provide these files when placing a support re- quest. • System Log Redirection GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 77 The host where the syslog messages will be forwarded to. IP address: A Syslog server has to be running on this IP address. You can use free TFTP server TFTPD32 for example. • Restart • Tech Support © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 78 Configuration Note For using of this feature a connection to Internet is required. • System Information: Provide this information when placing a support request. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 79 Time and Region The Network Time Protocol (NTP) is a protocol for synchronizing the clocks of computer systems over packet-switched, variable-latency data networks. M!DGE/MG102 can synchronize its system time with a NTP server. If enabled, time synchronisation is done after the mobile interface is up but before starting any VPN connections.
  • Page 80 • Manual Software Update The easiest way to update the M!DGE/MG102 Software is to connect M!DGE/MG102 to network with a TFTP server. If you only have a Notebook or a PC available the update process involves the preparation of a TFTP Server.
  • Page 81 Parameter Description Mode: Update over mobile or Ethernet Interface? Specify the protocol used to transfer the new software to M!DGE/MG102. Protocol: You will need an appropriate server. Server IP address and Provide a host name and a path to a server which hosts the new software.
  • Page 82 Check the results of the update. Refreshing the page or even reopening the browser windows may avoid cache problem. In case of success, “software update successfull” will be displayed, otherwise an error message. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 83: Configuration Parameters Of The M!Dge/Mg102

    3.2. Configuration Parameters of the M!DGE/MG102 The information in this chapter is needed to configure M!DGE/MG102 via the Command Line Interface or File Configuration. If you are using the Web Manager and its forms to configure M!DGE/MG102, you may skip this chapter.
  • Page 84 Configuration Racom has defined some types of parameters that are often used. The table below shows the defined parameter types. In addition other types of parameters may exist. Parameter Type Allowed charac- Format Description ters a–z A–Z String must include “@”...
  • Page 85 Condition for profile switch dition temptsReached] dialout.profiles.1.name void username Profile name dialout.profiles.1.username void username Username dialout.profiles.1.password void password Password dialout.pro- void phone number Phone number files.1.phoneNumber dialout.profiles.1.authMeth- Chap = CHAP void [chap, pap] Pap = PAP © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 86 0 = set values after reboot to digitalIO.afterReboot.output1 digitalIO.keepOnReboot [0,1] digitalIO.afterReboot.output2 1 = restore values after reboot digitalIO.afterReboot.output1 [on,off] State of output 1 after reboot digitalIO.afterReboot.output2 [on,off] State of output 2 after reboot GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 87 [1 .. 65535] Internal port [0..49] napt_mobile.<j>.protocol [TCP, UDP] TCP or UDP 0 = disabled napt_mobile.<j>.status [0,1] 1= enabled 0 = redirect to other host napt_mobile.<j>.isRedirect [0,1] 1 = redirect to localhost © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 88 0 = deny all firewall_exposed_host_mobile.policy [0,1,2] 1 = permit entries 0 = permit all firewall_exposed_host_mobile.host void hostname The exposed host firewall_exposed_host_mo- void hostname Source host / net bile.<j>.target with j = [0..19] firewall_exposed_host_mo- void netmask bile.<j>.mask GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 89 For credential-based authentication IPsec Parameters Parameter Default Value Range Description 0 = disabled ipsec.status [0,1] 1= enabled ipsec.remote.serverIp void ipaddress 0 = crertificate-based authentication ipsec.remote.lanAddress void Ipaddress 1= credential-based authentication © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 90 Description 0 = Dial-in disabled dialin.status [0,1] 1= Dial-in enabled dialin.configuration.address- 192.168.254.1 ipaddress Address range start RangeStart dialin.configuration.address- [2..254] Address range size RangeSize 0 = off dialin.disableNapt [0,1] 1= Disable NAPT on Dial-on GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 91 1= DHCP server on network.DHCPSettings.AddressRange- 192.168.1.100 ipaddress DHCP range start Start network.DHCPSettings.AddressRangeS- [1..255] DHCP range size network.DHCPSettings.DNSServer Proxy hostname DNS Server 1 network.DHCPSettings.DNSServer0 void hostname DNS Server 2 network.DHCPSettings.DNSServer1 void hostname DNS Server 3 © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 92 1= enabled email.sending.smtp.host void hostname email.sending.smtp.port void [1 .. 65535] email.sending.smtp.from void email From E-mail Address email.sending.smtp.authen- 0 = disabled void [0,1] tication 1= enabled email.sending.smtp.user- void username name email.sending.smtp.pass- void password word GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 93 Event Message events.digitalOutput2_On.message void password Event Message events.digitalOutput1_Off.message void password Event Message events.digitalOutput2_Off.message void password Event Message events.udpMessage.message void password Event Message events.gpsUp.message void password Event Message events.gpsDown.message void password Event Message © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 94 [1 .. 65535] snmp.siglow -113 [-113 to -51] Signal strength trap threshold dBm Signal strength trap reactivation snmp.sighigh [-113 to -51] threshold dBm: GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 95 0 = disabled administrator.deviceAccess [0,1] 1= enabled user.<k>.name void hostname with k = [0..20] user.<k>.password void password Troubleshooting Parameter Default Value Range Description redirectSyslogIp void ipaddress 0 = disabled webMgrDbg.status [0,1] 1= enabled © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

  • Page 96: Configuration Via Command Line Interface (Cli)

    3.3. Configuration via Command Line Interface (CLI) The command line interface is accessible after successful login to M!DGE/MG102 via telnet or Secure Shell (SSH). By default the telnet server answers on port 23, the SSH server on port 22.
  • Page 97 CLI will stop after every call. You have to include ‘cli’ for every new call. 3.3.1. CLI Overview The Command Line Interface mainly provides functions to read and write values of the M!DGE/MG102 configuration parameters. In addition, the CLI provides functions to query status information.
  • Page 98 ‘cli select automatic’ and ‘cli select automatic sim1’ The following commands have the same effect: ‘cli select automatic sim1’ and ‘cli set networkselec- tion.mode=automatic’ ‘cli select automatic sim2’ and ‘cli set networkselec- tion.sim2.mode=automatic’ GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 99 NAPT service on the mobile if napt_state_mob © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 100 M!DGE/MG102 CPU cli status system wireless_module show the M!DGE/MG102 wireless module cli status system ram show the amount of RAM installed in the M!DGE/MG102 cli status system flash show the amount of flash installed in the M!DGE/MG102 Help Print the cli help message (usage) GPRS/EDGE/UMTS routersM!DGE, MG102 –...
  • Page 101 Configuration Command Usage and Return Value Exit Not for end user use! Root rights are required. © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

  • Page 102: Software Interfaces

    $ G P R M C , < t i m e > , < s t a t e > , < l a t i t u d e > , < l o n g i t u d e > , < s p e e d > , < c o u r s e > , <date>,0.0,E,<mode>*<CS><CR><LF> Sample Data: $GPRMC,154250,A,4749.8678,N,00871.8469,E,0.0,0.0,230707,0.0,E,A*1F<CR><LF> GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 103 Format: $PNMID,serialnumber*<CS><CR><LF> Sample Data: $PNMID,0112BFFF2B0*1F<CR><LF> Name Data Description Sentence Identifier $GPGGA Racom Proprietary Sentence M!DGE/MG102 serial number / MAC Ad- Serial number <serial number> dress Used by program to check for transmission Checksum *<CS> errors White spaces <CR><LF> Carriage return and line feed...

  • Page 104: Troubleshooting

    5.2. System Log and Log Files Find more information about troubleshooting tools. The Web Manager provides varions debugging tools under SYSTEM/Troubleshooting: 5.3. Network Protocol Analyzer Via the Linux Shell (bash), the protocol analyzer “tcpdump” is available: GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.
  • Page 105 Troubleshooting © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

  • Page 106: Customer Service

    Customer Service 6. Customer Service 6.1. Support Please send questions or comments about M!DGE/MG102 to: support@racom.eu GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 107: Connectors And Cables

    DSUB9F COM – RS485 signal In/ Out — — — — 3 (M!DGE) RxD/TxD+ — — — — — — RxD/TxD− 9(MG102) RxD/TxD+ Note Do not use pins that are not listed here! © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

  • Page 108: Ethernet Plug (Eth; Rj-45)

    MSTB 2,5/ 2-ST-5,08 Power (Phoenix Contact) signal − Fig. A.3: Power connector A.4. Cable ETH/RS232 Tab. A.5: Pin assignment Ethernet Interface ETH RJ-45 RS232 D-SUB-9 signal In/ Out Fig. A.4: RJ-45 and RS232 D-SUB-9 GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 109: Safety Instructions

    The M!DGE/MG102 Wireless Routers must not be opened. Only the replacement of the SIM card is permitted. Voltage at all connectors of the communication module is limited to SELV (Safety Extra Low Voltage) and must not be exceeded.

  • Page 110: Rohs And Weee Compliance

    In accordance with the requirements of the counsil directive 2002/96/EC on Waste Electronical and Electronic Equipment (WEEE), ensure that at end-of-life you separate this product from other waste and scrap and deliver it to the WEEE collection system in your country for recycling. GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 111: Glossary

    Internet Protocol Security ISDN Integrated Services Digital Network Internet Service Provider Local Area Network NAPT Network Address Port Translation Network Address Translation Point of Presence POP, POP3 Post Office Protocol, Version 3 http://www.ce.org © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...
  • Page 112 Subscriber Identity Module Software Transmission Control Protocol TFTP Trivial File Transfer Protocol User Datagram Protocol UMTS Universal Mobile Telecommunications System Universal Resource Locator Virtual Private Network WEEE Waste Electrical and Electronic Equipment) environmental directives GPRS/EDGE/UMTS routersM!DGE, MG102 – © RACOM s.r.o.

  • Page 113: Revision History

    Revision History Appendix D. Revision History Revision 1.1 2011-11-01 1. XML version © RACOM s.r.o. – GPRS/EDGE/UMTS routersM!DGE, MG102...

This manual is also suitable for:
