Installation Instructions

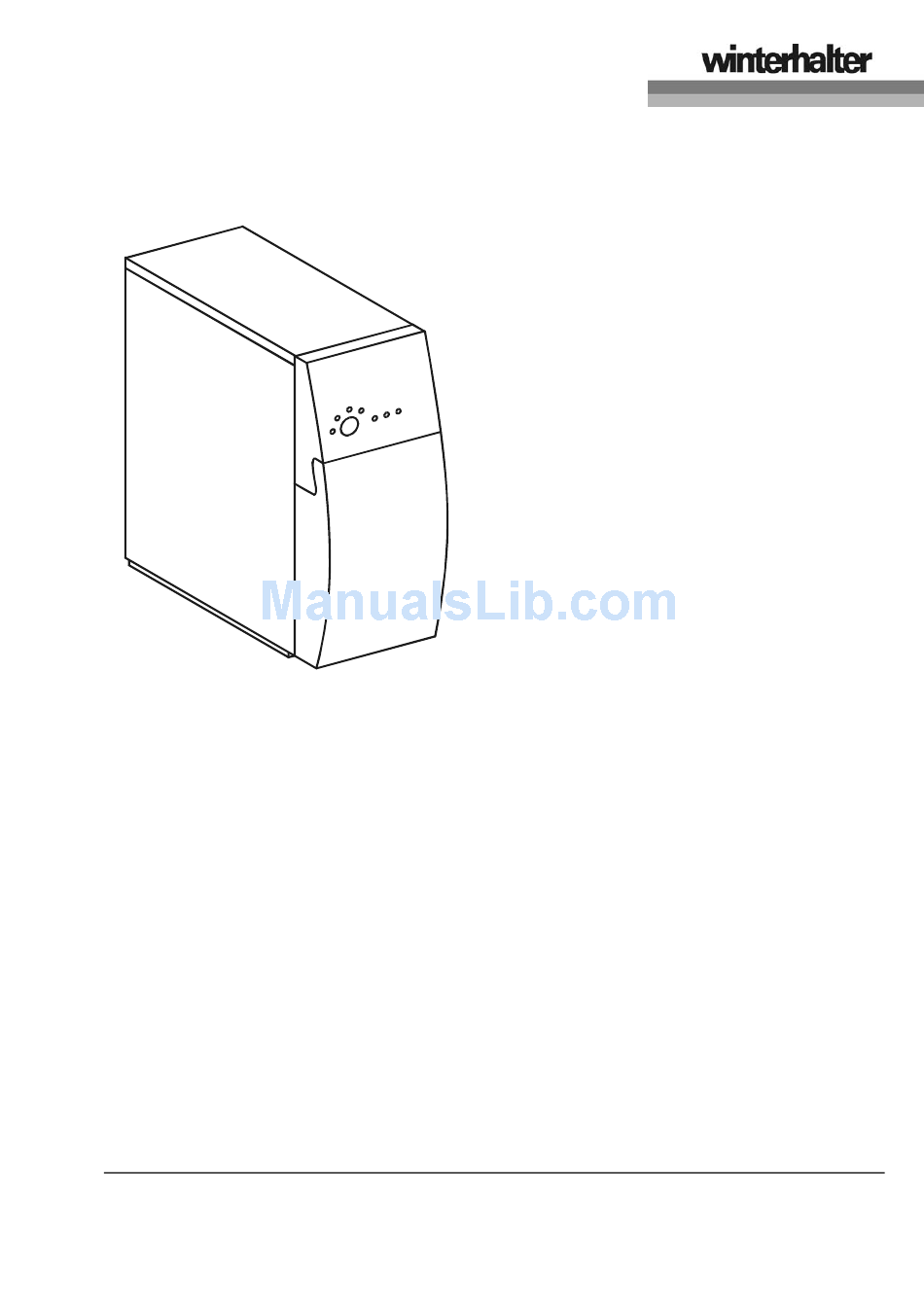

Winterhalter Gastronom RoMatik 150
Contents:
1. Safety information.................................................................................................................... Page
2. Unpacking................................................................................................................................. Page
3. Installation................................................................................................................................ Page
4. Connection............................................................................................................................... Page
1. Safety information
•
The appliance must be connected to the water supply and drainage system by a trained fitter in
accordance with the locally applicable regulations.
•
The data in the connection diagram must be observed.
•
Only corrosion-resistant materials such as stainless steel, plastic or food-safe, compression-proof rub-
ber may be used at the purified-water end.
•
The RoMatik 150 must be installed in the upright position.
•
The RoMatik 150 may only be connected to one consumer (dishwasher).
•
The appliance may only be connected to the cold water supply (max. 30°C).
89005234-02
05/06 sch
In order to guarantee many years of trouble-free
service, we recommend that you sign a mainte-
nance contract with your local Winterhalter ser-
vice centre.
Winterhalter Gastronom GmbH
Tettnanger Str. 72
D-88070 Meckenbeuren
1
2
2
3
1
Advertisement
Table of Contents
Related Manuals for Winterhalter Gastronom RoMatik 150
Summary of Contents for Winterhalter Gastronom RoMatik 150
-
Page 1: Safety Information
Installation Instructions Winterhalter Gastronom RoMatik 150 In order to guarantee many years of trouble-free service, we recommend that you sign a mainte- nance contract with your local Winterhalter ser- vice centre. Contents: 1. Safety information........................Page 2. Unpacking..........................Page 3. Installation..........................Page 4. - Page 2 Do not use detergents. Only wipe the outside of the appliance with a damp cloth. If the appliance cannot be protected against splash water for structural reasons, an additional substruc- ture should be provided. Winterhalter Gastronom GmbH 89005234-02 Tettnanger Str. 72 05/06 sch...
- Page 3 Refer to connection diagram 890053104 for machines with pressurised boilers and connection diagram 890052364 for other machines. For further information, contact your local Winterhalter service centre. Removing the shipping seals: The feed water (cold water), reject water and purified water connections are located at the rear of the appliance, and are sealed with plugs.
- Page 4 Once all the connections have been completed, the RoMatik 150 is ready for operation. The start-up procedure must be performed by a service technician trained at the Winterhalter works in accordance with the "Start-up instructions for Winterhalter Gastronom RoMatik 150".
