Galaxy GHDXS2-1430R-16F4D Installation And Hardware Reference Manual

16-bay 4g fc to sas/sata raid subsystem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

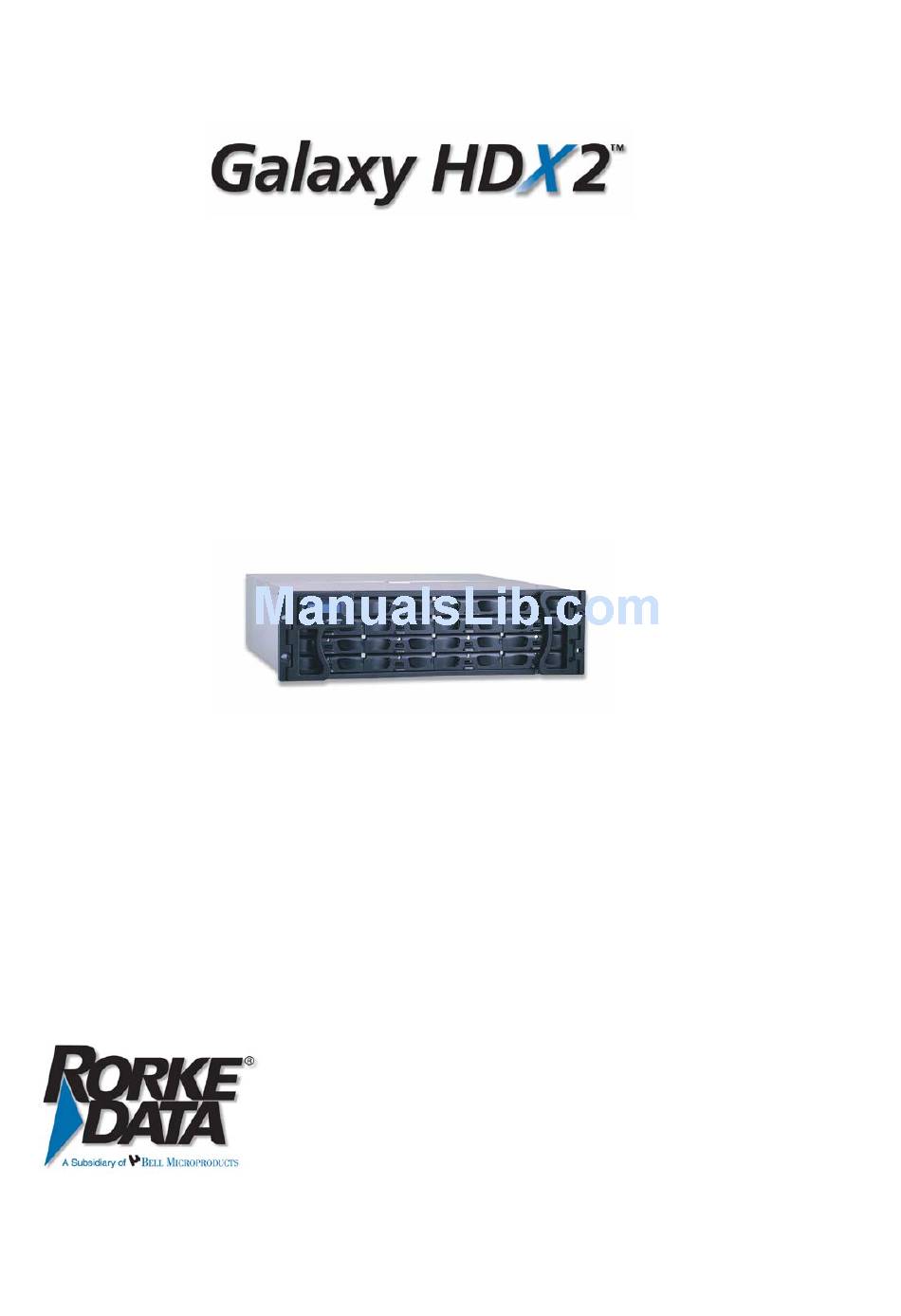

Galaxy RAID
16-bay GHDXS2-1430R-16F4D
4G FC to SAS/SATA RAID Subsystem
Installation and Hardware
Reference Manual
Version 1.0 (9/07)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GHDXS2-1430R-16F4D and is the answer not in the manual?

Questions and answers

Related Manuals for Galaxy GHDXS2-1430R-16F4D

Summary of Contents for Galaxy GHDXS2-1430R-16F4D

  • Page 1 Galaxy RAID 16-bay GHDXS2-1430R-16F4D 4G FC to SAS/SATA RAID Subsystem Installation and Hardware Reference Manual Version 1.0 (9/07)

  • Page 2: Contact Information

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Contact Information Americas Rorke Data 76276 Golden Triangle Drive Eden Prairie, MN 55344 Tel: +1-800- 328 8147 Fax: +1-952 829 0988 sales@rorke.com techsupport@rorke.com http://www.rorke.com...

  • Page 3: Copyright 2007

    Product specifications are also subject to change without prior notice. Trademarks Rorke, the Rorke logo, RAIDWatch and Galaxy are registered trademarks of Rorke Data, Inc. Other names prefixed with “GAL” and “Galaxy” are trademarks of Rorke Data, Inc.

  • Page 4: Warnings And Certifications

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Warnings and Certifications Restricted Access Location: This equipment is intended to be installed in a RESTRICTED ACCESS LOCATION only. Electric Shock Warning! To Prevent Electric Shock: Access to this equipment is granted only to trained operators and service...

  • Page 5: China Rohs

    Galaxy GHDX2-1430R-16F4D Installation and Hardware Reference Manual WARNING: A shielded power cord is required in order to meet FCC emission limits and also to prevent interference to nearby radio and television reception. Use only shielded cables to connect I/O devices to this equipment. You are...

  • Page 6: Table Of Contents

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual This device is in conformity with UL standards for safety. Rorke is committed to being properly prepared and taking all the necessary steps that will result in our compliance with the new European directive, RoHS (2002/95/EC), on or before the specific dates set forth in those applicable laws and regulations.
  • Page 7 Galaxy GHDX2-1430R-16F4D Installation and Hardware Reference Manual 1.3.1 LCD Keypad Panel ..................1-5 1.3.2 Drive Tray ....................1-6 1.3.3 MUX Kit ...................... 1-7 1.3.4 The RAID Controller Module............... 1-8 1.3.4.1 JBOD Support......................1-9 1.3.4.2 Controller Module Interfaces ...................1-9 1.3.4.3 DIMM Module.......................1-12 1.3.5...
  • Page 8 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 4.1.4 LCD Screen ....................4-4 ..................4-5 OWER ROCEDURE ............... 4-6 YSTEM ONITORING VERVIEW ................... 4-8 TATUS INDICATING 4.4.1 Brief Overview of the LEDs................. 4-8 4.4.2 LCD Keypad Panel ..................4-8 4.4.3 Drive Tray LEDs ..................4-10 4.4.4...
  • Page 9 Galaxy GHDX2-1430R-16F4D Installation and Hardware Reference Manual APPENDIX B SPARE PARTS AND ACCESSORIES ......................B-1 PARE ARTS ......................B-2 CCESSORIES APPENDIX C PINOUTS SFP C .................. C-1 ONNECTOR INOUTS COM1 C : DB9 ..........C-3 ABLE UDIO INOUTS COM1 C : DB9 A ........

  • Page 10: Precautions And Instructions

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Precautions and Instructions • If it is necessary to transport the subsystem, repackage all disk drives with its drive trays in the foam blocks in the original shipping package. • Provide a soft, clean surface to place your subsystem on before working on it.

  • Page 11: About This Manual

    Galaxy GHDX2-1430R-16F4D Installation and Hardware Reference Manual About This Manual This manual: • Introduces the Galaxy RAID Subsystem series. • Describes all the active components in the system. • Provides recommendations and details about the hardware installation process of the subsystem.

  • Page 12: Conventions

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Conventions Naming From this point on and throughout the rest of this manual, the Galaxy series is referred to as simply the “subsystem” or the “system” and Galaxy is frequently abbreviated as “GAL.”...

  • Page 13: Software And Firmware Updates

    Galaxy GHDX2-1430R-16F4D Installation and Hardware Reference Manual Software and Firmware Updates Please contact your system vendor or tech support for the latest software or firmware updates. Problems that occur during the updating process may cause unrecoverable errors and system downtime. Always perform a backup of your data and consult technical personnel before proceeding with any firmware upgrade.

  • Page 14: Chapter 1 Introduction

    Introduction Product Overview 1.1.1 Product Introduction This chapter briefly introduces the Galaxy (GAL) RAID Fibre-to-SAS (Serial Attached SCSI) subsystem. With compatible interface connectors, the drive bays also support SATA-II (Serial ATA) disk drives. The 16-bay model comes with up to four (4) 4Gb/s host channels and sixteen (16) hot- swappable SAS/ SATA disk drives in a 3U chassis.

  • Page 15: Chassis Overview

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual to the subsystem. The modular design of the subsystem ensures the ease of subsystem maintenance. NOTE: On receiving and unpacking your subsystem, please check the package contents against a printed copy of Unpacking List included in kit. If any modules are missing or appear damaged, please contact your subsystem vendor immediately.

  • Page 16: Rear Panel Overview

    Chapter 1: Introduction Drive bays with drive tray canisters: The front section of the chassis houses sixteen (16) drive bays. LCD keypad panel and handles: The forearm handles on the sides of the subsystem provide an easier means for installing or retrieving the chassis into and out of a rack or cabinet.

  • Page 17: Integrated Backplane

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Once the subsystem is rebooted, all system configurations revert to the default stage so that Controller A becomes the primary controller and Controller B the secondary controller. BBUs: Two (2) BBUs come as standard equipment for the dual- controller GHDX2-1430R-16F4D.

  • Page 18: Lcd Keypad Panel

    Chapter 1: Introduction design facilitates the ease of installation and maintenance procedures. Hot- swap mechanisms are incorporated to eliminate power surges and signal glitches that might occur while removing or installing these modules. Each component is further described below: 1.3.1 LCD Keypad Panel PN: GAL-9273CHandLLCD The LCD keypad panel consists of a 2-rows x 16-characters LCD screen with push buttons and LED status-indicators.

  • Page 19: Mux Kit

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual The subsystems are housed in an enclosure that is 4 bays wide and 4 bays high. When viewing from the front, drive bay IDs are numbered from Slot 1 to Slot 16 (see Figure 1-5), from left to right, and then from top to bottom.

  • Page 20: The Raid Controller Module

    Chapter 1: Introduction NOTE: If the dual-ported SAS hard drives are preferred, there is no need for a MUX kit on each drive tray. The MUX kits should then be manually removed from each drive tray. CAUTION! The MUX kits are small, delicate components that must be handled with care.
  • Page 21 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual WARNING! Although the RAID controller can be removed, the only time you should touch the controller itself is to install/upgrade the memory modules. The RAID controller is built of sensitive components and unnecessary tampering can damage the controller.

  • Page 22: Jbod Support

    Chapter 1: Introduction Docking Connectors: The FCI docking connectors at the rear of the controller boards connect the controller module to the backplane board. Ejection levers: The two (2) ejection levers on the sides of the controller canister ensure positive connection and provide a graceful means to retrieve the canister from chassis.
  • Page 23 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Figure 1-8: RAID Controller Faceplate 4G FC host ports: Each controller module has four (4) FC ports with the onboard hub functionality, two (2) for each Fibre Channel. Each host port comes with two (2) LEDs to indicate link and speed statuses.
  • Page 24 Chapter 1: Introduction LED indicators: Each controller’s interface faceplate comes with numerous LED indicators. Please refer to Chapter 4 for information on the LED definitions. Restore Default Button/LED: Pressing the “restore default button” while powering on the subsystem will restore firmware defaults. CAUTION! The Restore NVRAM Default push button is a function that carries some risks.

  • Page 25: Dimm Module

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual practice the steps listed above. You can access array information even without a password. How to use the button? After the subsystem is powered down, you can use a straighten paper-clip to press the button. Press and hold the button while powering on the subsystem, and wait for the associated LED and system Ready LED to light up.

  • Page 26: Bbu

    Chapter 1: Introduction 1.3.5 BBU Figure 1-9: BBU GAL-9273CBTE The Li-Ion BBU module, a shown above, can sustain cached data for days during a power failure. The use of a BBU is highly recommended in order to ensure data integrity. If power outage occurs, the BBU supplies power to sustain the unfinished writes cached in memory.

  • Page 27: Psus

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual New Feature: The battery cell packs come with an EEPROM to record the date of installation; and when the approximate one-year life expectancy is reached (by checking against the real-time-clock), system administrators will be notified for replacing the BBU.

  • Page 28: Cooling Modules

    Chapter 1: Introduction permanently mounted into a 2U bracket especially designed to house both the PSU and a cooling module. If a PSU is removed from the chassis, the cooling module within is also removed. As shown in Figure 1-10, each PSU comes with a single power socket for power cord plug-in and a power switch to turn the subsystem on and off.

  • Page 29: Subsystem Monitoring

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Intelligent Dual Speed Operation The cooling fans in the cooling module operate with two rotation speeds. Under normal conditions, the cooling fans run at the low speed, which is sufficient for maintaining airflow across components. Under the following conditions, cooling fans raise their rotation speed to increase airflow: 1.

  • Page 30: Firmware (Fw) And Raidwatch Gui

    Chapter 1: Introduction • Drive trays (2 LEDs on each tray) • RAID controllers, each module has − 10 Ethernet port Link and Speed LEDs − 6 controller status LEDs − 1 Restore Default LED • BBUs (1 LED on each module) •...

  • Page 31: Hot-Swappable Components

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Hot-swappable Components Proper subsystem cooling is referred to as “normalized” airflow. Normalized airflow ensures the sufficient cooling of the subsystem and is only attained when all components are properly installed. Therefore, a failed component should only be hot-swapped when a replacement is available.
  • Page 32 Chapter 1: Introduction This page is intentionally left blank. Hot-swappable Components 1-19...

  • Page 33: Chapter 2 Hardware Installation

    3. Hard drives: Up to sixteen (16) SATA-II or SATA-I hard drives have been preinstalled into drive trays and are ready to be installed in the Galaxy RAID subsystem. (See Section Error! Reference source not found.) 4. Cabling: All the fiber optical cables that connect the subsystem to the hosts should be purchased separately.

  • Page 34: Safety Precautions

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual see Chapter 3 for sample topologies and configuration options. Please contact your vendor or Rorke for the list of compatible cables. 5. SFP transceivers: SFP transceivers must also be separately purchased. (See Chapter 3) 6.
  • Page 35 Chapter 2: Hardware Installation d. Consideration should be given to the connection of the subsystem to the supply circuit and the effect that overloading of circuits might have on over current conditions. 4. The power source outlet sockets should be adequately adjacent and easily accessible.

  • Page 36: Static-Free Installation

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual d. The enclosure has been dropped against a hard surface. The enclosure shows obvious signs of breakage. 15. Thermal notice: All drive trays (even if they do not contain a hard drive) must be installed into the enclosure. Leaving a drive bay or module slot open will seriously affect the airflow efficiency, and consequently lead to overheating.

  • Page 37: Preparation

    Chapter 2: Hardware Installation 2.3.3 Preparation Make sure you are aware of the related positions of each plug-in module and interface connector. Default configurations: The R (redundant controller) model provides a total of eight (8) 4Gb/s Fibre Channel host ports and a 4x (4-PHY), wide-link, SAS port.

  • Page 38: Installation Procedure Flowchart

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 5. Cable connection: Use the supplied power cords to connect the subsystem to main power. It is recommended to connect power cords to separate and independent power sources, e.g., UPS, for higher redundancy. Make sure your subsystem is electrically grounded.

  • Page 39: Unpacking The Subsystem

    Chapter 2: Hardware Installation 2.5 Unpacking the Subsystem Compare the Unpacking List against the actual package contents to confirm that all required materials have arrived. Carefully check the items contained in each box before proceeding with installation. WARNING! Do not rely on the non-definitive, summarized unpacking list shown below--it is for reference only.

  • Page 40: Hard Drive Installation

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 2.6 Hard Drive Installation NOTE: Your hard drives have been preinstalled and tested. Use the following hard drive procedure when a faulty drive needs replacement. 2.6.1 Hard Drive Installation Prerequisites Hard drives must be purchased separately. When purchasing the hard drives, the following factors should be considered: Capacity (MB/GB): Use drives with the same capacity.

  • Page 41: Drive Installation Without Mux Kit

    Chapter 2: Hardware Installation WARNING! 1. Handle hard drives with extreme care. Hard drives are very delicate. Dropping a drive onto a hard surface (even over a short distance) and hitting or touching the circuits on the drives with your tools may damage the drives.

  • Page 42: Drive Installation With Mux Kit

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 2.6.3 Drive Installation with MUX Kit Step 1. Place the hard drive into the drive tray, making sure that the connector at the back of the drive is facing the open side of the drive tray, the circuit side facing downward, and the label side facing upward.
  • Page 43 Chapter 2: Hardware Installation Step 1. Make sure the rotary bezel lock is in the unlocked position, i.e., the groove on its face is in a horizontal orientation as shown in Figure 2-5. If the groove is in a vertical position, then the rotary lock prevents the front flap on the drive tray from opening.

  • Page 44: Optional Mux Kit Installation

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual board. If the front flap is not closed properly, the connection between the hard drive and the subsystem will not be secure. Figure 2-8: Closing the Front Flap Step 5. Lock the front flap into place by turning the rotary bezel lock using a small-size flathead screwdriver.

  • Page 45: Bbu Installation

    Chapter 2: Hardware Installation Figure 2-10: Installing a MUX Kit Step 1. Orient the MUX kit with mounting positions near the open end of the drive tray. The SATA connector should face the front side and the SAS connector should face the rear side. Align the mounting holes on the drive tray with those on the MUX kit.

  • Page 46: Installation Procedure

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Do not use nor leave the BBU near a heat source. Heat can melt the insulation and damage other safety features of the battery cells, possibly causing an acid leak and may result in a fire or explosion.
  • Page 47 Chapter 2: Hardware Installation Step 3. Secure the BBU to the subsystem by fastening the two (2) retention screws on the BBU. (See Figure 2-12) Figure 2-12: Installing the BBU Step 4. The LED should start flashing to indicate that the BBU is being charged.

  • Page 48: Rackmounting

    2.9 Rackmounting WARNING! Always use a slide, shelf or other chassis mounting hardware to secure the Galaxy RAID in a rack cabinet. NOTE: The front screws are not sufficient to properly hold the chassis. FAILURE TO PROPERLY MOUNT THE GALAXY WITH...

  • Page 49: Chapter 3 Subsystem Connection

    Chapter 3 Subsystem Connection This chapter outlines some general configuration rules you should use when configuring a storage system and introduces basic information about Fibre optical cables and Fibre Channel topologies for the subsystem. You can set up the subsystem using these topologies or use them as a guide for developing your own unique topologies.

  • Page 50: Fc Lasers

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual WARNING! All optical cables are sensitive and must be handled with care. To prevent interference within a rack system, the cable routing path must be carefully planned and the cables must not be bent.

  • Page 51: Topology And Configuration Considerations

    FC performance and reliability specifications. NOTE: SFP transceiver modules must be purchased separately. You may also purchase the SFP transceivers (GAL-9270CSFP4GA01) from your Galaxy subsystem vendor/distributor. Topology and Configuration Considerations 3.2.1 Basic Configuration Rules When you are cabling your subsystem, the following are some basic rules that should be followed.

  • Page 52: Fibre Channel Topologies

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual When cabling, follow all Fibre Channel specifications. Pay attention to signal quality and avoid electronic noise from adjacent interfaces. The disk drives in the same logical array should have the same capacity, but it is preferred that all the drives within the subsystem have the same capacity.

  • Page 53: Drive-Side Connection

    Chapter 3: Subsystem Connection 3.2.4 Drive-side Connection The drive-side connection is made through redundant data paths on the back-end PCB that are compatible with the dual-ported connectivity feature of SAS drives. Disk drives are connected through separated SAS domains. And these domains are separately managed by different RAID controllers. I/Os are dynamically distributed through these separate domains;...

  • Page 54: Dip Switch

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual DIP Switch Figure 3-2: Rear Panel DIP Switches DIP switches can be used to determine the following parameters: Onboard hub: The onboard hub combines the same channels on different RAID controllers into the same host loops. The configuration...
  • Page 55 Chapter 3: Subsystem Connection IMPORTANT: 1. One drawback of using the hub function is that the host ports looped together may not be connected to the N_ports on a fabric switch. When host ports are hubbed together, they are ideal for connecting direct-attached servers with path redundancy while without the costs on expensive FC switches.

  • Page 56: Sample Topologies

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual CH0/CH1 Link Speed Shown below are the combinations of DIP switch mode settings: DIP Switch Mode Setting Switches Enclosure ID: defaulted to represent number “0,” SW ID: 0, 0, 0; No need to change.
  • Page 57 Chapter 3: Subsystem Connection Figure 3-5: 2 Servers with 3 RAID Subsystems and Fault-tolerant Paths Channel Settings Host CH0 and CH1 Drive Via system bus, through the backplane Onboard Hub Disabled Configuration Information RAID controller Host server Multiple Data path connection Fault-tolerant configuration 16Gb/s Host channel bandwidth...

  • Page 58: Dual-Controller, Fault-Tolerant Connection

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Configuration Rules: 1. When cascading multiple RAID subsystems, you should disable the onboard hub, and separately cross-link the host ports on different RAID controllers. 2. When connecting to a switched fabric, onboard hub should be disabled.
  • Page 59 Chapter 3: Subsystem Connection Channel Settings CH0 and CH1 Host Drive Via system bus, through the backplane Onboard Hub Disabled Configuration Information RAID controller Host servers 2 or more in the switched fabric Data path connection Fault-tolerant configuration Host channel bandwidth 16Gb/s Max.

  • Page 60: Drive-Side Expansion

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 3.4.3 Drive-side Expansion Configuration Rules: Dual-port Configuration Feature: Following are the rules for connecting SAS interfaces across RAID and JBOD enclosures: 1. Corresponding to SAS drives’ dual-ported interface, two (2) physical links are available from each disk drive, routed across the backplane board, and then interfaced each through a 4x wide external SAS port.
  • Page 61 Chapter 3: Subsystem Connection 4. On the RAID subsystem, each RAID controller can be considered as managing a separate SAS Domain. Firmware supports SAS protocols such as SMP, STP, and SSP transport layers. With the help of redundant circuitry on the MUX boards, the idea of SAS Domain applies even when SATA drives are used.
  • Page 62 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual This page is intentionally left blank. 3-14...

  • Page 63: Chapter 4 System Operation And Monitoring

    Chapter 4 System Operation and Monitoring Power On Once all of the components have been installed into the 1430R-16F4Dand the I/O ports or management interfaces have been connected, the subsystem can be powered on. 4.1.1 Check List BEFORE powering on the subsystem, please check the following: Memory module: Memory modules have been correctly installed on the controller boards.

  • Page 64: Power On Procedure

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 4.1.2 Power On Procedure When powering on the subsystem, please follow these steps: Step 1. Power on the Fibre Channel networking devices. These devices include FC switches and any other such device that have been connected between application servers and your RAID subsystem.

  • Page 65: Power On Status Check

    Chapter 4: Subsystem Operation and Monitoring Figure 4-1: Power Sockets and Power Switches CAUTION! Although the PSUs are configured in a fault-tolerant pair and a single PSU can provide sufficient power to the system, it is necessary to turn on both power supplies.

  • Page 66: Lcd Screen

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 6. PSU LEDs: If the PSU is operating normally and experiencing no problem after being powered on, the LEDs on the PSU should light green constantly. 7. Firmware and RAIDWatch: The overall status of the system may be checked via the embedded firmware utility or the RAIDWatch GUI.

  • Page 67: Power Off Procedure

    Chapter 4: Subsystem Operation and Monitoring 1430R-16F4D Verifying installed cache memory. 512MB RAM, Wait… 1430R-16F4D System is ready. You can now start to No Host LUN configure the subsystem. NOTE: The primary/secondary controller status is only shown on the 1430R- 16F4D’s LCD screen.

  • Page 68: System Monitoring Overview

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual System Monitoring Overview The RAID subsystem is equipped with a variety of self-monitoring features that help keep subsystem managers informed of the subsystem operational status. These monitoring features provide vital feedback to help you maintain the operational integrity.
  • Page 69 Chapter 4: Subsystem Operation and Monitoring and must be heeded at all times. Events such as a breaching of the temperature threshold will trigger the alarm. If a subsystem manager is present, he can use the LED panel, LCD keypad panel, or the PC hyper- terminal to determine the cause of the alarm and take the appropriate measures.

  • Page 70: Status-Indicating Leds

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Status-indicating LEDs 4.4.1 Brief Overview of the LEDs All FRUs (Field Replaceable Units) have status-indicating LEDs that reflect the operational status and integrity of the subsystem components. The list in Error! Reference source not found. shows the number of LEDs that reside on each component.

  • Page 71: Drive Tray Leds

    Chapter 4: Subsystem Operation and Monitoring OFF indicates that there is no activity on the host/drive channels. ON indicates that a component failure/status event has occurred. ATTEN (Attention) OFF indicates that the subsystem and all its components are operating correctly. Table 4-1: LCD Panel LED Definitions NOTE: During the power-on process, the ATTEN LED will light up steadily.

  • Page 72: Controller Module Leds

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual OFF indicates that there is no activity on the drive. GREEN indicates that a drive is installed in the drive tray. Green/ Power Status RED indicates that a drive has failed or is missing.

  • Page 73: Fibre Port Leds

    Chapter 4: Subsystem Operation and Monitoring Green ON indicates BBU is present. Link FLASHING indicates there is active traffic through the host ports. Green Hst Bsy OFF indicates there is no activity on the host ports. FLASHING indicates there is active traffic on the drive channels.

  • Page 74: Bbu Led

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Figure 4-6: LAN Indicators Name Color Status ON indicates the management port is Link Status Green connected to a node or networking device. Green LAN Activity BLINKING indicates active transmission Table 4-5: LAN Port LED Definitions 4.4.5 BBU LED...

  • Page 75: Cooling Module Leds

    Chapter 4: Subsystem Operation and Monitoring Figure 4-8: PSU LED Color Status The power supply has not been turned on. The PSU Intermittent LED flashes when the subsystem is connected to a Flashing Green power source but not yet turned on. Static Green The PSU is operating normally Static Red...

  • Page 76: Audible Alarm

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual The subsystem has a novel approach to stabilizing the temperature within the chassis: When temperature sensors detect an elevated temperature reading or the failure of any cooling fan/power supply, firmware will instruct the remaining cooling fans to operate at a high speed. Once...

  • Page 77: I 2 C Monitoring

    Chapter 4: Subsystem Operation and Monitoring C Monitoring Presence detection and the general working status of all component modules are monitored through an I C serial bus. If any of these modules fails, you will be notified via the various methods described above. I2C Monitoring 4-15...

  • Page 78: Overview

    Chapter 5 System Maintenance Overview 5.1.1 About Subsystem Maintenance Constant monitoring and maintenance of your subsystem minimizes system downtime and preserves the working integrity of the system for a longer period of time. If any of the subsystem components fails, they must be replaced as soon as possible.

  • Page 79: General Notes On Component Replacement

    Qualified engineers who are familiar with RAID storage hardware should be the only ones who make component replacements. If you are not familiar with the Galaxy series or with RAID subsystem maintenance in general, it is strongly advised that you refer subsystem maintenance to a suitably qualified engineer.

  • Page 80: Replacing Controller Module Components

    Chapter 5: Subsystem Maintenance and Upgrading Replacing Controller Module Components IMPORTANT! The docking connectors on the controller module are very delicate and the connector pins can be broken easily. Do not touch the connector pins. Visually examine each connector pin before inserting the controller module into the subsystem.
  • Page 81 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Step 1. Prepare a clean, static-free work pad or container to place the removed controller. Step 2. Disconnect all cables from the controller module. These may include the Ethernet cable, Fibre Channel host links, and serial cables connected to the COM ports.

  • Page 82: Replacing The Controller Module

    Chapter 5: Subsystem Maintenance and Upgrading WARNING! Unnecessary tampering with the controller module can cause severe and permanent damage. Remove the controller only if it is absolutely necessary. When removing a controller module from the chassis, all anti-static preventative measures should be strictly adhered to. Failure to adhere to specified cautionary measures could result in damage to the controller board.
  • Page 83 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Step 3. Secure the controller module. Carefully push the controller until you feel the contact resistance when the board edge connectors are engaging the backplane. Do not use force. If unusual contact resistance is felt, remove the controller, wait for a few seconds and try again.

  • Page 84: Dimm Module Replacement

    Chapter 5: Subsystem Maintenance and Upgrading DIMM Module Replacement The subsystem comes with a preinstalled 512MB capacity or above DDR RAM DIMM module on each controller. The controller supports memory up to 2GB in size. If any of the memory modules have failed or a different size DIMM module is preferred, the preinstalled module can be replaced.
  • Page 85 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Step 1. Remove the controller module from the subsystem, and place it on a clean, static-free surface. (See Section 5.2.2) Step 2. Remove the BBU module, if installed. Carefully place the module for it contains Li-Ion batteries. Do not drop it to the floor or place it near any heat source.

  • Page 86: Replacing A Faulty Bbu

    Chapter 5: Subsystem Maintenance and Upgrading Figure 5-7: Installing a DIMM Module Step 5. Install the controller module and BBU module back in its original locations. (See Section 5.2.3) Replacing a Faulty BBU The subsystem comes standard with two (2) BBUs. The BBU can sustain cache memory in the event of a power failure or in the extremely unlikely event of failing both PSUs.
  • Page 87 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual BBU Warnings and Precautions: Install or replace the BBU with BBU’s supplied by your Galaxy vendors only. Use of battery cells provided otherwise will void our warranty. Always dispose of a replaced battery in an ecologically responsible manner.
  • Page 88 Chapter 5: Subsystem Maintenance and Upgrading Figure 5-8: Removing the BBU Step 2. Install the replacement BBU. Align the BBU with the slot, and then gently push the BBU into the slot. When you feel the contact resistance, use slightly more force for the back-end connector to mate with the backplane.

  • Page 89: Replacing A Faulty Psu

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Figure 5-10: BBU LEDs NOTE: 1. A new or replaced BBU takes at most twelve (12) hours to charge to its full capacity. Reset the subsystem whenever a BBU is replaced or added in order for the new BBU to take effect.

  • Page 90: Replacing The Psu

    Before you install a replacement PSU, be sure that it has the same warning text on its extraction handle as that shown on the handle of a remaining PSU. Double-check to avoid mixing a similar yet different PSU of another Galaxy series. To replace a PSU, please follow these steps: Step 1.
  • Page 91 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Figure 5-12: Removing the PSU Retention Screw Step 4. Remove the PSU by grabbing the extraction handle and pulling the handle upwards. The extraction handle should gracefully disconnect the PSU from the backplane connectors.
  • Page 92 Chapter 5: Subsystem Maintenance and Upgrading WARNING! When a PSU is removed from the chassis, the cooling module is also removed from the chassis. It is recommended that the replacement procedure is completed in less than five (5) minutes to prevent the subsystem from overheating. Step 7.

  • Page 93: Cooling Module Maintenance

    Although the cooling modules are fully redundant, it is not advisable to run the Galaxy subsystem with fans in a single PSU module for an extended period of time. If the cooling fans in the only remaining module fail, the subsystem will quickly overheat.

  • Page 94: Replacing A Cooling Module

    Chapter 5: Subsystem Maintenance and Upgrading audible alarm, the firmware utility, the RAIDWatch manager software, or the Configuration Client utility can notify you. Immediate replacement: Once you are notified that a cooling module has failed, it should be replaced as soon as possible. A failed cooling module should only be removed from the subsystem when you have a replacement immediately available.
  • Page 95 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Step 3. Remove the cooling fan assembly by the following steps: (See Figure 5-17) Step 3-1. Make sure the PSU handle is in the down position so that you can grab the edge of the cooling fan assembly.

  • Page 96: Replacing A Failed Hard Drive

    Chapter 5: Subsystem Maintenance and Upgrading Step 4. Install the replacement module by aligning it with the module bay on the PSU module and gently lowering it into. The fan outlet should be aligned with the PSU faceplate and that the side with screw holes should be facing up. Step 5.

  • Page 97: Replacing A Hard Drive

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual 5.7.2 Replacing a Hard Drive To replace a hard drive, please follow these steps: WARNING! Hard drives are fragile; therefore, always handle them with extreme care. Do not drop a hard drive. Always be slow, gentle, and careful when handling a hard drive.
  • Page 98 Chapter 5: Subsystem Maintenance and Upgrading Figure 5-19: Opening the Front Flap Step 4. Remove the drive tray by pulling it one inch away from the drive bay. Wait for at least 30 seconds for the disk drive to spin down (if the disk drive is removed for a different purpose, e.g., cloning the members of a logical drive or Copy &...

  • Page 99: Replacing Amux Kit

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Step 6. Install the replacement drive. Please refer to the complete hard drive installation procedures in Section 2.6. Step 7. Re-install the drive tray back to the subsystem. Refer to Section 2.7. Replacing a MUX Kit...
  • Page 100 Chapter 5: Subsystem Maintenance and Upgrading Step 6. Re-insert the drive tray to the subsystem, after the hard drive has been placed in the drive tray. Replacing a MUX Kit 5-23...
  • Page 101 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual This page is intentionally left blank. 5-24 Replacing a MUX Kit...

  • Page 102: Appendix A Specifications

    Appendix A Specifications Technical Specifications Environmental Specifications Operating: 5% to 95% (non-condensing) Humidity Non-operating: 5% to 95% (non-condensing) Operating: 0º to 40ºC (32º F to 104º F) Temperature Non-operating: -40º to 60ºC (-40º F to 149º F) w/ BBU: 0º to 35ºC (32º F to 95º F) Operating: Sea level to 3,658m (12,000 ft.) Altitude Non-operating: Sea level to 12,192m (40,000 ft.)

  • Page 103: Certifications

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Certifications • FCC Class-A • • • UL60959/ IEC 60950 • BSMI Warning Alarms • Audible alarms • System LEDs • RAIDWatch Manager • LCD screen • RS-232C terminal • Event notifications sent over email, fax, LAN broadcast, SNMP traps,...

  • Page 104: Architectural Specifications

    Appendix A: Specifications Architectural Specifications 800MHz PowerPC 750GL DIMM Slot One 184-pin DDR DIMM socket ASIC Rorke 64-bit chipset (ASIC400) Flash ROM 64Mbit (8MB) 128Mbit with RTC (with embedded RAIDWatch NVRAM utility) Hardware XOR For event messages with time record and task Real-time Clock scheduling Power Supply Specifications...

  • Page 105: Cooling Module Specifications

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Cooling Module Specifications Specifications High or low rotation speed controlled by firmware Speed proactive mechanisms Max. Airflow (each High speed: 90CFM module) Low speed: 70.7CFM Input Power 13.2W max. Input Current 1.1A max.

  • Page 106: Fault Tolerance Management

    Appendix A: Specifications Fault Tolerance Management Specifications Yes, with user-configurable Drive S.M.A.R.T Support detect-only, clone and replace, and perpetual clone functions. Yes, life expectancy and charge Battery Back-up Option level aware Host Link Multipathing Yes, via MPIO drivers Sensors and module presence detection through an I C serial bus Automatic Drive Failure Detection...
  • Page 107 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual This page is intentionally left blank. Fault Tolerance Management...
  • Page 108 Model Name Description GAL- Fibre to SAS RAID controller module, for 83SF14RE16M5 Galaxy 1430R-16F4D subsystem, 4 x 4G FC SFP host ports, RAID 6 GAL-9273CHandR Right-side forearm handle for Galaxy 3U series subsystems GAL- Left-side forearm handle for Galaxy 3U series...

  • Page 109: Accessories

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual GAL- Drive tray, 2 SAS-to-1 SATA(SATA-II) MUX 9273S1DT2S1S conversion, power MOS switch embedded, dual- controller subsystems. Table B-1: Spare Parts NOTE: ADDITIONAL FC SWITCHES, HBAS, CABLES AND OTHER FC SYSTEM COMPONENTS ARE AVAILABLE BY CONTACTING RORKE DATA SALES.
  • Page 110 Optical FC cable, LC-LC, MM-62.5/125, Duplex, 9270CFCCab03 LSZH, O.D.=1.8mmx2, 10 meters GAL-DX-RACK- Enhanced slide rail assembly for Galaxy 3U series subsystem, 28 to 32 inches rack depth GAL-DX-RACK- Enhanced slide rail assembly for Galaxy 3U series subsystem, 32 to 36 inches rack depth...
  • Page 111 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual This page is intentionally left blank. Accessories...

  • Page 112: Appendix C Pinouts

    Appendix C Pinouts SFP Connector Pinouts Each of the SFP host or expansion ports is comprised of a case bottom, an EMI case, and a 20-pin host connector. These port sockets receive Small- Form-Factor (SFP) fiber optical and copper-based transceivers. Please refer to the latest Interoperability Test Report for compatible modules that have been tested to comply with the sockets.
  • Page 113 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Name Pin Description Transmitter Ground (common with Receiver Ground) Transmitter Fault: not supported FAULT Transmitter Disable: Laser output disabled on high or open MOD_DEF(2) Module Definition 2: Data line for Serial ID MOD_DEF(1)

  • Page 114: Com1 Cable : Db9 A

    Appendix C: Pinouts SAS Expansion Port Pinouts Figure C-2: SAS Connector Pinouts Pin Description G1-G9 Signal Ground IBtxlp(0) IBtxln(0) IBtxlp(1) IBtxln(1) IBtxlp(2) IBtxln(2) IBtxlp(3) IBtxln(3) IBtxOn(3) IBtxOp(3) IBtxOn(2) IBtxOp(2) IBtxOn(1) IBtxOp(1) IBtxOn(0) IBtxOp(0) Table C-2: SAS Expansion Port Pinout Definitions COM1 Cable: DB9 and Audio Jack Pinouts COM1 cable is used to connect a management computer running a terminal...
  • Page 115 Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual PN: GAL-9270ASCab Figure C-3: COM1 Cable CN1 and CN2 Connectors CN1 Pin Number Pin Name Ground CN2 Pin Number Pin Name DTR (Shorted) DSR (Shorted) RTS (Shorted) CTS (Shorted) Table C-3: COM1 Cable CN1 and CN2 Pinout Definitions...
  • Page 116 Appendix C: Pinouts CN1 Pin Number Pin Name Ground CN2 Pin Number Pin Name DTR (Shorted) DSR (Shorted) RTS (Shorted) CTS (Shorted) Table C-4: COM1 Cable CN1 and CN2 Pinout Definitions COM2 UPS Cable: DB9 and Audio Jack Pinouts COM2 cable is used to connect the COM2 port to a UPS. PN: GAL-9270CUPSCab Figure C-5: COM2 Cable CN1 and CN2 Connectors CN1 Pin Number...

  • Page 117: Odem

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual Ground Table C-5: COM2 Cable CN1 and CN2 Pinout Definitions GAL-9011 Null Modem A null modem is used for wire-swap and is necessary for connecting COM1 CN2 to a PC serial port. PN: GAL-9011...

  • Page 118: Power Connectors

    Appendix C: Pinouts Ethernet Port Pinouts Figure C-7: Ethernet Port Pinouts Pin Name Pin Name LAN_TXP LAN_TXN LAN_RXN LAN_RXP Table C-7: Ethernet Port Pinouts Power Connectors IEC-type receptacle. Connector Type and Other Information The Agilent AFBR-57R5APZ optical transceivers as optional accessories.

  • Page 119: Other Information

    Galaxy GHDXS2-1430R-16F4D Installation and Hardware Reference Manual This page is intentionally left blank Connector Type and Other Information...

Table of Contents
