Vector TLC3-FCR Engineering Manual
Hide thumbs Also See for TLC3-FCR:

Advertisement

Quick Links

TLC3-FCR
Intelligent Fan Coil Controller
Features
The PWM control option reduces room temperature
fluctuations and energy consumption
Low power energy consumption: < 1W per unit
Temperature control for 2-pipe fan coil systems.
Automatic fan control for three stage fans.
Cost saving option with Economy functionality and set point
limitations
Control for single stage heating, cooling and fan only
operation modes
Password protected programmable user and control
parameters
Setpoint range limitation
o
Access control for setpoints, fan speeds and mode
o
change
Access control for heat/cool change and time
o
programs
Select your display contents
o
Selectable behavior after return from power failure
o
Temperature display in Celsius or Fahrenheit
Deluxe Version:
Clock and time schedule functions with power failure protection
Blue backlight for LCD
Infrared remote controller option:
With special features for Boost and delayed switching on or off
Applications
Air Only Systems: Three stage fans for single duct systems with up to one binary output for auxiliary heating
and cooling devices.
Air/Water Systems: Induction units, fan coil units for 2-pipe systems with one binary output for a spring
return valve.

General Description

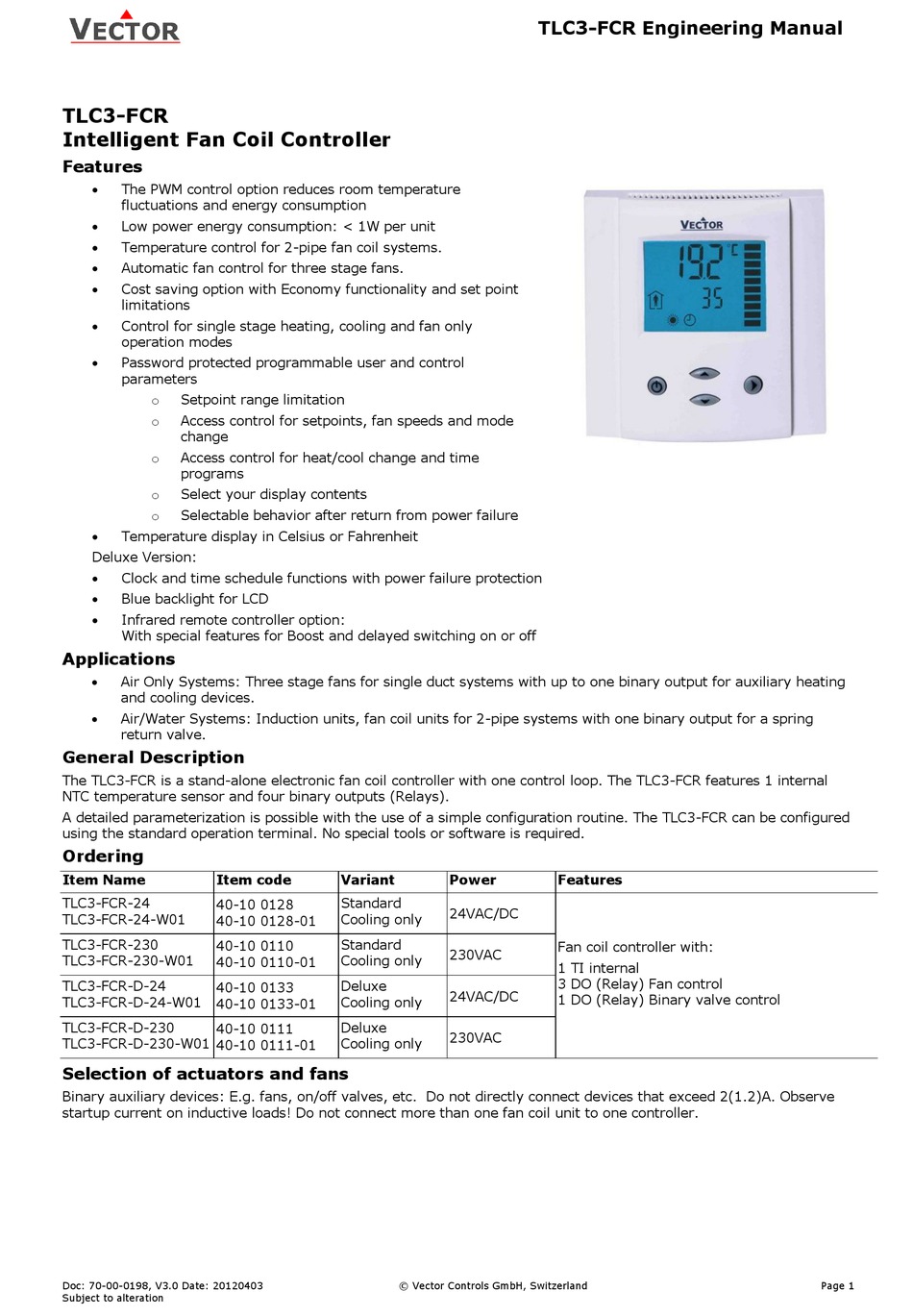

The TLC3-FCR is a stand-alone electronic fan coil controller with one control loop. The TLC3-FCR features 1 internal
NTC temperature sensor and four binary outputs (Relays).
A detailed parameterization is possible with the use of a simple configuration routine. The TLC3-FCR can be configured
using the standard operation terminal. No special tools or software is required.
Ordering
Item Name
Item code
TLC3-FCR-24
40-10 0128
TLC3-FCR-24-W01
40-10 0128-01
TLC3-FCR-230
40-10 0110
TLC3-FCR-230-W01
40-10 0110-01
TLC3-FCR-D-24
40-10 0133
TLC3-FCR-D-24-W01
40-10 0133-01
TLC3-FCR-D-230
40-10 0111
TLC3-FCR-D-230-W01
40-10 0111-01
Selection of actuators and fans
Binary auxiliary devices: E.g. fans, on/off valves, etc. Do not directly connect devices that exceed 2(1.2)A. Observe
startup current on inductive loads! Do not connect more than one fan coil unit to one controller.
Doc: 70-00-0198, V3.0 Date: 20120403
Subject to alteration
Variant
Power
Standard
24VAC/DC
Cooling only
Standard
230VAC
Cooling only
Deluxe
24VAC/DC
Cooling only
Deluxe
230VAC
Cooling only
© Vector Controls GmbH, Switzerland
TLC3-FCR Engineering Manual
Features
Fan coil controller with:
1 TI internal
3 DO (Relay) Fan control
1 DO (Relay) Binary valve control
Page 1
