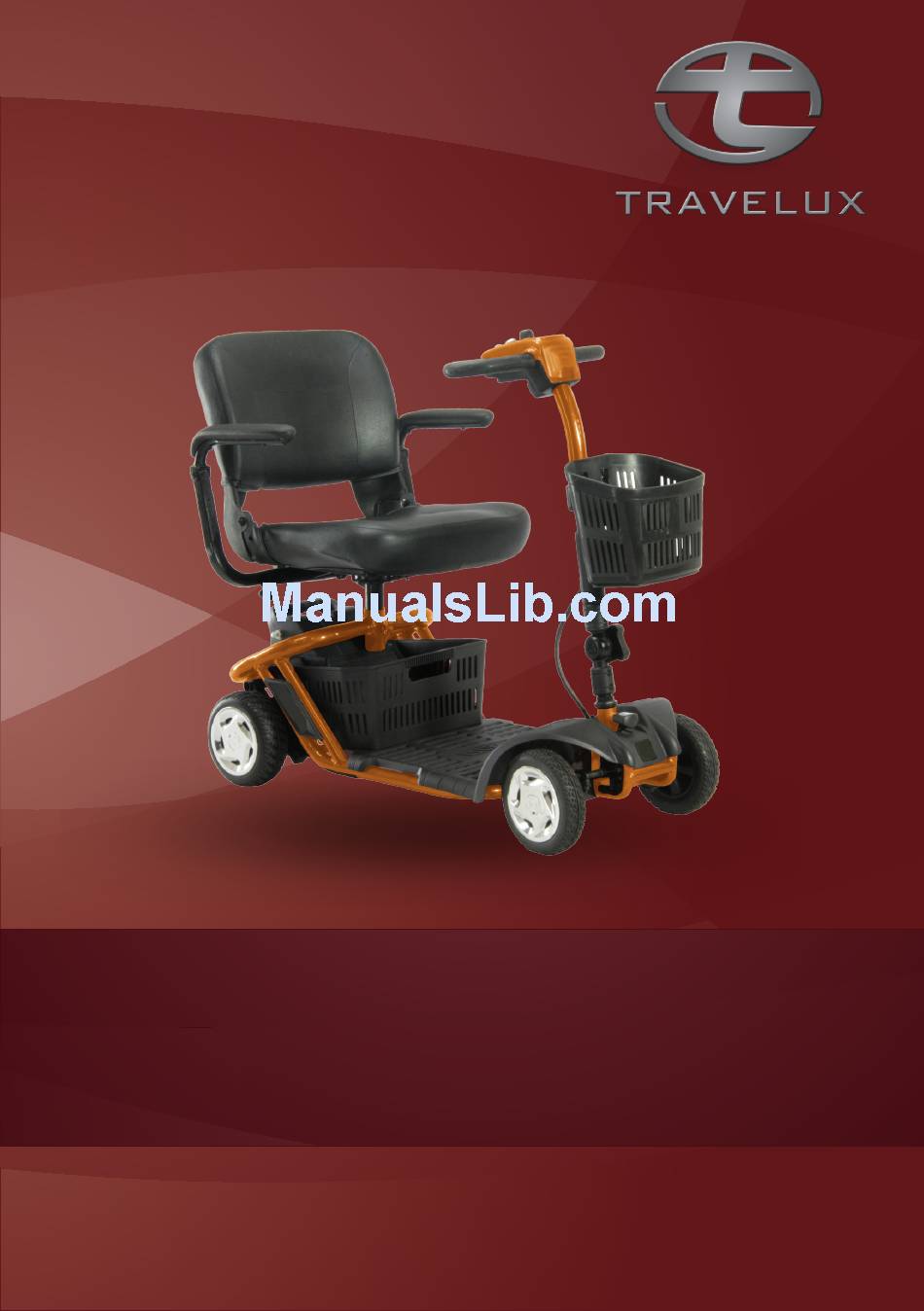

- Page 1 RAVELUX TRAVEL TRAVELUX TRAVELUX TRAVELUX TRAVELUX TRAVELUX User Manual Travelux Zoom Mini...
- Page 2 You have just purchased a Van Os Medical UK ltd. scooter and we want to thank you for the confidence in our Travelux products. The scooter is a quality product. The policy of Van Os Medical UK ltd. is to continually improve the quality and reliability of our products.
- Page 3 User Manual Fill out the information on your authorized dealer below: Company: ………………………………………………………………… Address: ………………………………………………………………… ………………………………………………………………… Telephone number: ………………………………………………………………… Fax number: ………………………………………………………………… Email address: ………………………………………………………………… Website: ………………………………………………………………… © 2014 VAN OS MEDICAL UK Ltd., Excel House, Escrick Business Park, Escrick, ~ 2 ~ York,YO19 6FD - Tel.
-
Page 4: Table Of Contents
User Manual INDENTIFICATION ......................4 GENERAL EXPLANATION OF YOUR SCOOTER ..............5 2.1 C .....................5 OMPONENTS OF THE UW SCOOTER 2.2 G ........5 ENERAL EXPLANATION OF THE FUNCTION AND POSSIBILITIES OF YOUR SCOOTER SAFETY REGULATIONS ....................6 3.1 G ....................6 ENERAL SAFETY REGULATIONS 3.2 W ......................6... -
Page 5: Indentification
User Manual INDENTIFICATION Your Travelux Zoom Mini scooter is equipped with a unique serial number. You can find this number on the frame of your scooter. Below is an example of the frame label on which you can find the identification number. Furthermore you will find the explanation of the various data stored on the frame label listed below. -
Page 6: General Explanation Of Your Scooter
User Manual GENERAL EXPLANATION OF YOUR SCOOTER 2.1 Components of the uw scooter Backrest Handgrip Armrest Basket Seat Seat post Battery pack Tiller adjustment knob Frame Floor Basket Rear wheel Tiller lock knob Foot deck Front bumper Dashboard Front wheel Your scooter is equipped with a number of elements and parts. -
Page 7: Safety Regulations
If used correctly, the Travelux Zoom Mini is an utmost safe and stable product, if the instructions for use as described in this manual are followed. -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE Your Travelux Zoom Mini scooter is a battery-operated personal mobility vehicle. Please exercise caution and consideration when you are operating it. Driving your scooter carefully and thoughtfully will help ensure your personal safety and the safety of other people. -
Page 9: Tiller Control Panel
User Manual 4.1 Tiller control panel Battery indicator Speed button Key switch Lever for driving Lever for driving forward reverse Horn Control panel: Key switch With the key switch you are able to turn your scooter on and off. Put your key in the key switch and turn it 90ᵒ clockwise to turn on the scooter; ... -
Page 10: Getting On And Off
User Manual Forward / Reverse To move forward push the lever on the right side; To move backwards push the lever on the left side. Battery indicator This meter shows the amount of voltage in your scooter’s batteries. Green indicates a full charge on the batteries;... -
Page 11: Before Driving
User Manual Getting off your scooter: Make certain that the power is turned off and the key is removed; Return tiller to full upright position; Flip up or remove the armrests; Unfasten the seatbelt, if your scooter is equipped; ... -
Page 12: Basic Driving
User Manual Warning: Pushing the scooter too quickly in freewheel (photo 1) will cause the motor to act as a generator causing the scooter to become difficult to push; Never set your scooter in freewheel mode when it is on an incline; ... -
Page 13: Control Through Tight Spots
User Manual Steering in a tight spot If you must steer in a tight spot, such as entering or leaving a doorway or when you are turning around; Bring your scooter to a full stop; Set speed at the lowest setting; ... -
Page 14: Going Up An Incline / Down A Decline
User Manual Curbs Do not go up or down a curb that is higher than 4 cm; Always use caution when descending any curb; Approach the curb so that both back wheels of your scooter go over the curb at ... - Page 15 Whenever it is safely possible, drive forward down any ramp, low rise, or incline. Travelux does not recommend that you drive your scooter in reverse down any incline, ramp, curb, or low rise. Backing down any slope may create a very hazardous situation.
-
Page 16: Emi / Rfi
User Manual 4.8 EMI / RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham radios), wireless computer links, microwave transmitters, paging transmitters, etc. - Page 17 User Manual EMI / RFI recommendations Do not turn on or use hand-held personal electronic communication devices such as cellular phones, walkie-talkies, and CB radios while your scooter is turned on; Be aware of any nearby transmitters (radio, television, microwave, etc.) on ...
-
Page 18: Instructions For Use And Mounting Options
SAFETY AND THE FUNCTION OF YOUR SCOOTER. ADJUSTMENTS MADE BY YOURSELF ARE STRONGLY ADVISED AGAINST AND CARRIED OUT AT YOUR OWN RISK. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS 5.1 Technical information Travelux Zoom Mini scooter Length 101 cm Width 50 cm Front wheels 8”... -
Page 19: Armrest Adjustments
User Manual 5.2 Armrest adjustments Armrest width adjustment To adjust the armrest width: Loosen the star knob at the rear of the seat, photo 2; Slide the armrest in or out to the desired width is reached; Tighten star knob. ... -
Page 20: Seat Adjustments
User Manual 5.3 Seat adjustments Seat rotation lever The seat swivel lever (under the seat) allows the seat to rotate in the seat 360ᵒ and the seat will be locked every 45º. Pull up on the seat rotation lever up, photo 5 and rotate the seat to the desired ... -
Page 21: Disassembly
User Manual 5.4 Disassembly This scooter can be separated into the following part, photo 7: Front frame; Rear frame with motor and transaxle; Basket; Floor basket; Battery pack; Seat with armrests. Follow the procedures below to disassemble your scooter and transport it with care. Photo 7 Warning: ... - Page 22 User Manual Remove the seat Place your scooter on a level surface; Loosen the armrest adjustment knobs and remove the arms from the seat. This will reduce the weight of the seat making it easier to lift; While holding the seat rotation lever up, grab the seat on opposite sides and ...
- Page 23 User Manual Remove the floor basket Go stand behind your scooter; Fold down the backrest and remove the seat Lift the floor basket up and off of the frame, photo 10; Photo 10 Remove the basket Go stand before your scooter; ...
-
Page 24: Assembly
User Manual Separate the front train from the rear frame Warning: Be careful not to pinch your fingers between the frames. Pull up the release lever, photo 12; Pull the frame up and off of the drive train, photo 13. ... - Page 25 User Manual Install the battery pack Gently lower the battery pack onto the frame, photo 15. Photo 15 Raise the tiller Loosen the tiller adjustment knob and raise the tiller, photo 16; Tighten the tiller adjustment knob at the desired position. ...
- Page 26 User Manual Replace the floor basket Go stand behind the scooter; Replace the tiller basket onto the tiller, photo 17. Photo 17 Replace the basket Go stand in front of your scooter; Grab the basket at the side; ...
-
Page 27: Transport Of Your Scooter
User Manual TRANSPORT OF YOUR SCOOTER Your Travelux Zoom Mini scooter is designed to be easily transported by car. See chapter 5.4 how to disassemble your scooter and see chapter 5.5 assembly for mounting your scooter. To transport your scooter Disassemble or fold down the seat and tiller as close as possible to the loading ... - Page 28 User Manual Body Clean the body of your scooter with a damp cloth. Do not hose down your scooter! Dry with a clean soft cloth; Use cool water mixed with a mild soap to remove dirt and oils; Clean by hand with a soft cloth.
- Page 29 Make certain that the key switch is set to the “On” position. If none of the above procedures solve the problem, contact your authorized Travelux dealer. Main circuit breaker The 50-amp main circuit breaker reset button is located on the side of the battery pack, photo 21.
- Page 30 Recharge your scooters batteries. See “Charger and Batteries” in this section of this manual; If the problem continues, have your authorized Travelux dealer load test the batteries; If the batteries are good, the charger may be the problem. Consult your ...
-
Page 31: Problem Analysis And Solutions
User Manual PROBLEM ANALYSIS AND SOLUTIONS Your Travelux Zoom Mini scooter is inspected and adjusted so that you can use it immediately. Diagnostics The diagnostics feature of your scooter microprocessor based motor control board functions as follows; Any fault condition with the controller or with an associated system will cause ... -
Page 32: Warranty
Travelux offers a warranty period of 2 years on the complete product except the batteries and charger: 6 months. Also you can find the warranty periods label on the frame of your Travelux Zoom Mini scooter. See also chapter 1. - Page 33 However you do need to provide to Travelux a complete filled in warranty registration form, a copy of the bill with the date of purchase and the original packaging.
-
Page 34: General Maintenance Instructions
User Manual GENERAL MAINTENANCE INSTRUCTIONS Your scooter needs periodical maintenance. A badly maintained scooter will give more technical problems, turn less flexible and fall out the warranty terms. Preventive maintenance is most important and many of these things you can easily do yourself or a friend or family member can help you. - Page 35 User Manual Product identification Product: Electrically powered wheelchairs, scooters and their chargers Brand: Travelux Model/type: Zoom Version: Mini Manufacturer: Name Van Os Medical B.V. Address Koperslagerij 3 4651 SK Steenbergen Country The Netherlands EU Representative: Name W. van Os Address...
- Page 36 Van Os Medical UK Ltd. Van Os Medical B.V. Excel House Koperslagerij 3 Ashbrooke Park, Lincoln Way 4651 SK Steenbergen (NB) Sherburn in Elmet Nederland North Yorkshire LS25 6PJ Tel.+44 (0) 1977 68 1400 Tel.+31 (0) 167 57 30 20 Fax.
