Page 2: Introduction

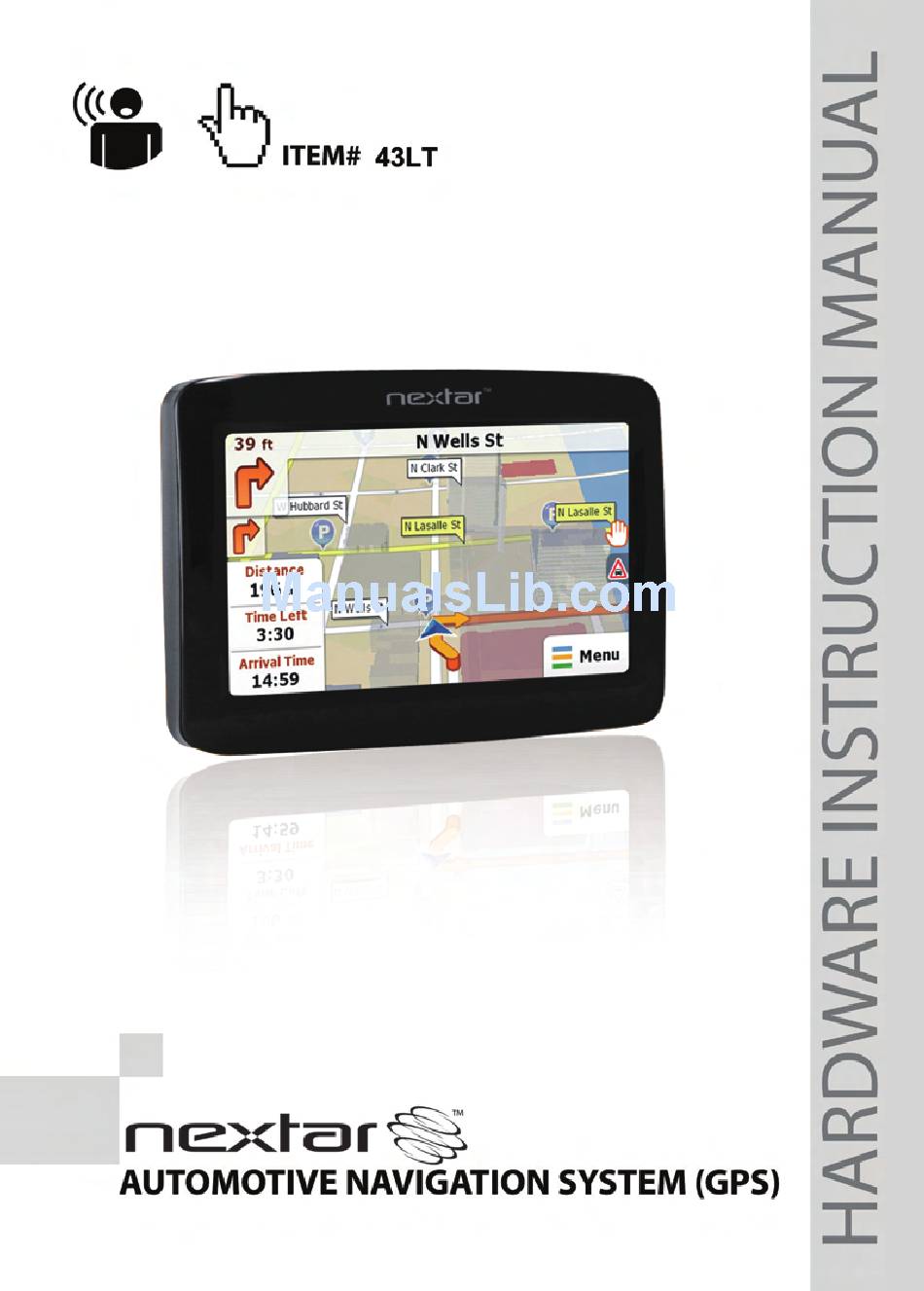

Introduction Congratulations on purchasing your Nextar GPS Navigator. Your mobile navigation system assures that your days of getting lost are over! Finding an address or any of millions of different points of interest such as the nearest gas station or restaurant is a snap anywhere across the U.S. - Page 3 When in a car, do not mount your GPS on or near an air bag. If the air bag is deployed, you may be seriously injured. • Only use a power cord and live traffic receiver provided by NEXTAR. Use of products provided by other suppliers may void the warranty. •...
- Page 4 See Page 12 for details. Live Traffic Service Your Nextar GPS unit comes with lifetime Live Traffic service that provides you with information about traffic events and traffic flow that may affect your route or driving time. Important: In order for your GPS unit to receive and display traffic information, you must first connect the supplied FM receiver and antenna to your unit.
-
Page 5: Fcc & Ul Compliance
FCC & UL Compliance FCC COMPLIANCE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. -
Page 6: Table Of Contents
Table of Contents Introduction Important Safety Information ...1 FCC & UL Compliance ...4 Getting Familiar With Your Hardware Main Unit ...6 Accessories...7 Power Adaptor...8 Live Traffic Receiver...9 System Connections ...10 Using the Mounting Bracket ...12 Using Your Navigator General Setup ...13 Playing Music ...18 Photo Viewer...20 Service &... -
Page 7: Main Unit
Main Unit POWER Button Press and hold for 2 seconds to enter or exit standby mode. Card Slot Insert the SD card into the slot. Used for Mapping Data card or user’s music or photo SD card Earphone Jack Connect user supplied earphone for private listening. When an earphone jack is plugged in, the speaker will be turned off automatically. -
Page 8: Accessories
Accessories The Following Items Are Included With Your GPS Unit NOTE: The SD card may be shipped installed in the GPS Unit. See Page 9 for installation of the Live Traffic receiver and antenna Instruction Manual Quick-Start Guide Warranty Card Live Traffic Receiver / Antenna Vehicle Power Adaptor Suction-Cup Mounting Bracket... -
Page 9: Power Adaptor
Power Adaptor Using the Power Adaptor The GPS unit is supplied with a DC Power Adaptor for charging the internal battery and for powering the unit while in a vehicle. Connect the Power Adaptor USB plug to the unit’s USB port and plug the other end to the vehicle’s 12V accessory/ cigarette socket. -
Page 10: Live Traffic Receiver
(RDS) used for broadcasting real-time traffic information. Traffic data is received, decoded, and delivered to your navigation system. Nextar provides you with a separate FM receiver and antenna to pick up these signals; it is not connected in any way to your vehicle radio. -
Page 11: System Connections
System Connections Inserting SD Card The unit is designed with an SD Card slot which allows you to insert an SD card into the unit as shown below: To remove the card, gently press the card in with your fingernail. The card unlocks and protrudes slightly. - Page 12 System Connections USB Mode When you connect the GPS device to a computer with USB cable, a menu appears on screen for setting the USB Mode, as shown below. You can set the USB mode to determine how the device behave when it was connected to a computer.
-
Page 13: Using The Mounting Bracket
Using The Mounting Bracket A suction cup mount is provided for attaching the GPS unit to the windshield or the dashboard. Assemble the bracket and cradle as shown below and then attach the GPS to the cradle. Fig. 1 Slide the mount cradle onto the end of the mount bracket. It will snap into place. -
Page 14: General Setup
General Setup System Main Menu When in navigator, tap Exit button of the Navigation Menu to exit the application. A confirmation message appears: Are you sure you want exit the program? Tap Exit and the system main menu appears. In the main menu, there are four items for selecting. Touch the corresponding item to enter. - Page 15 General Setup Setup Menu In the main menu, tap to enter the Setup menu, the screen will display as below: In the Setup menu, tap to return to the main menu. Language in the Setup menu to enter Language setting menu for language selection, as shown below: Tap the buttons to select language.
- Page 16 General Setup Date & Time in the Setup menu to enter Date & Time setting menu for changing to the current time zone, date and time, as shown below: Tap the buttons to select the proper Time Zone. Tap the buttons of Date group to change the corresponding date.
- Page 17 General Setup Volume in the Setup menu to enter Volume settings menu for volume adjustment, as shown below: Tap the to decrease the volume. Tap the to increase the volume. Then tap to confirm or tap Align Screen in the Setup menu to align the screen, as shown below. Tap the center of the cross with your finger.
- Page 18 General Setup Power in the Setup menu to enter Power menu, as shown below: The Power menu displays the unit’s battery status. The values are between 0% and 100%, where 0% means the battery power has run out completely, and 100% represents a full battery power.
-
Page 19: Playing Music
Playing Music The unit is designed with an SD card slot and supports MP3 and WMA format music files. To use the music player, you will need to have an SD card with your MP3 music files preloaded. Please note that you cannot use the navigation function of the device at the same time you are using the music player. - Page 20 Playing Music button to enter the music play list menu, as shown below: When you open the play list, the system will look for audio files on its SD memory card and create a play list automatically. If the play list consists of more than one screen, tap the up arrow for the previous page and the down arrow for the next page.
-
Page 21: Photo Viewer
Photo Viewer The unit is designed with an SD card slot and supports JPEG format files playback. To use the Photo Viewer, you will need to have an SD card with your JPEG picture files preloaded. Please note that you cannot use the navigation function of the device at the same time you are using the Photo Viewer. - Page 22 Photo Viewer Viewing Photos In the folder menu, double tap the memory card icon, and the photos stored in the memory card will be listed on the screen. In the photo list, double tap a photo to display it on the LCD screen. You can also tap a photo to select it and then tap to return to the previous menu.
- Page 23 Photo Viewer Using the slide show in the photo list screen to enter the Setting menu for setting the Slide Show. You can set the slide show on or off to determine whether or not to play photos in slide show mode.
-
Page 24: Troubleshooting
Before contacting customer service, review the steps below to solve simple problems. If you still suspect something wrong with this unit, immediately turn the power off, disconnect the power connector from the unit, and contact Nextar Customer Service. Never try to repair the unit yourself. - Page 25 Troubleshooting Problem Satellite signal strength is unstable. Comes and goes. Live Traffic data does not show on the screen Other possibilities Static or other external interference may cause the unit to function abnormally. In order to recover normal status, please unplug the power supply cord and then plug it into the outlet again to reset the unit.
-
Page 26: Specifications
Specifications TFT screen size Frequency Response Audio Signal-to-noise Rate Audio distortion + noise Channel Separation Dynamic Range Power Power Consumption Dimensions Weight Design and specifications are subject to change without notice. 4.3 inches 20Hz - 20kHz ≥65dB ≤-20dB (1kHz) ≥70dB (1kHz) ≥80dB (1kHz) DC 5V <... - Page 27 All products distributed by Nextar Inc. unless otherwise indicated Made in China © 2009 Nextar (Hong Kong) Limited. Nextar is a trademark and service mark of Nextar (Hong Kong) Limited. All other brand names, trademarks and service marks are property of their owners.
