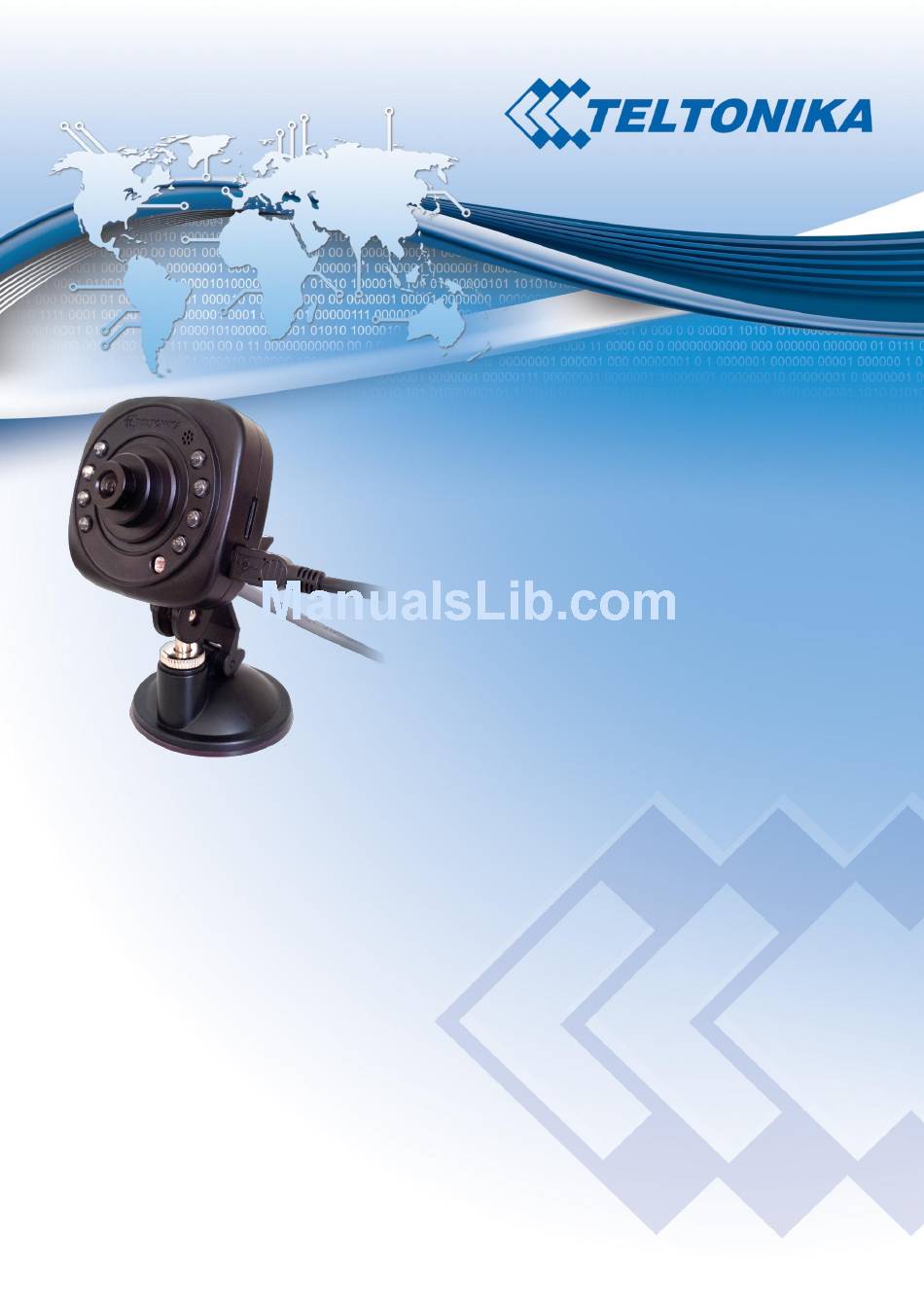

- Page 1 MVC300 camera GPS application manual Version 1.03...
-
Page 2: Legal Notice
1. Legal notice Copyright © 2012 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without prior written permission of TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical improvement without prior notice. -
Page 3: Table Of Contents
Legal notice ................................2 Attention ..................................2 Table of Contents ............................... 3 Introduction ................................4 Benefits of MVC300 with FM1100/FM3300/FM5300 ....................4 Brief setup description ............................... 4 Setting up your camera .............................. 5 Setting up FM1100 ..............................5 Setting up FM3300 ..............................6 Setting up FM5300 .............................. -
Page 4: Introduction
4. Introduction The MVC300 camera is a sleek and compact video recording device perfect for in-car mounting: an ideal solution if you want to capture any significant events that might occur on the road. It can also be used to augment any fleet management system with added video surveillance. -
Page 5: Setting Up Your Camera
7. Setting up your camera Configuration of the camera is done through its WebUI. To access WebUI connect the camera to your PC by Ethernet cable and make sure your PC belongs to 192.168.1.0/24 subnet. 1. Type http://192.168.1.10 into your internet browser’s address field in order to reach the camera’s WebUI 2. -
Page 6: Setting Up Fm3300
9. Setting up FM3300 FM3300 GPS terminal needs to have power supplied and GPS antenna connected to function. Please refer to FM3300 user manual for detailed description of the device. 1. Locate 1x6 socket near USB port of FM3300. 2. Use supplied 1x6 plug to connect FM3300 to car battery (please refer to the FM3300 user manual for a pin out of a 1x6 socket). -
Page 7: Connecting The Camera To The Gps Terminal
2. Use supplied 2x10 plug to connect FM5300 to car battery. GND (pin 1) and VCC (pin 11) are used to power the device. Pin out of 2x10 socket is displayed below. 3. Connect GPS antenna to GPS/GLONASS connector. Connecting the camera to the GPS terminal After the camera and FM1100/FM3300/FM5300 are set up they need to be connected. - Page 8 2. Supply power to FM1100/FM3300/FM5300 3. Give a few seconds for GPS terminal to start up and supply power to the camera by DC connector 4. Connect the camera to your PC by Ethernet cable 5. Open camera’s Live view tab to make sure that GPS coordinates are displayed 6.
