Summary of Contents for Unisen KP-810-25BTT

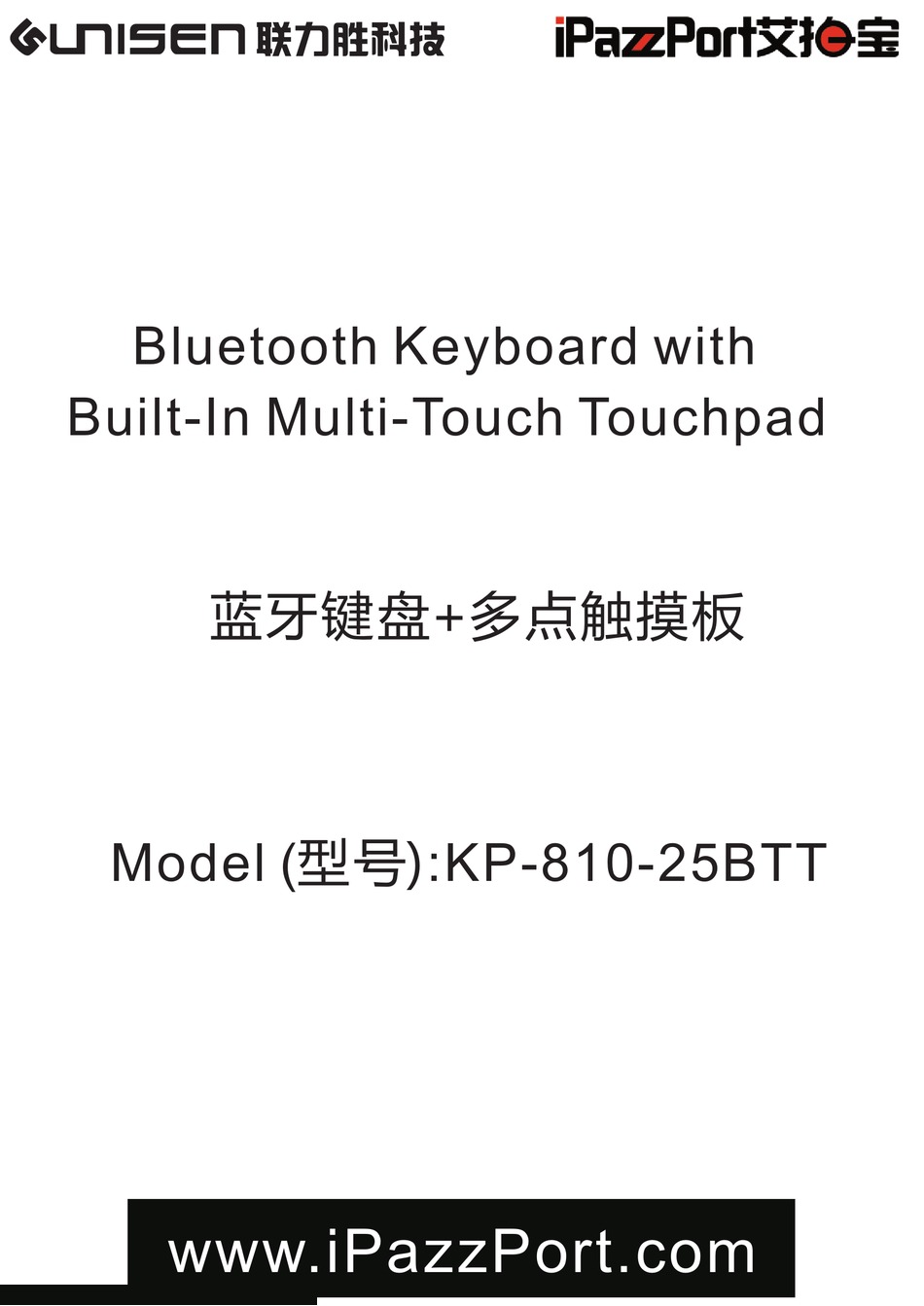

- Page 1 联力胜科技 Bluetooth Keyboard with Built-In Multi-Touch Touchpad 蓝牙键盘+多点触摸板 Model (型号):KP-810-25BTT www.iPazzPort.com...
- Page 2 使 用 说 明...
-
Page 3: Table Of Contents
目录 Contents English Portion Introduction Package Feature Specifications System Requirement Starting up Pairing and establishing connection with computer Windows xp/2000 Windows 7 Connect to iPAD/iPhone Connect to other smart mobile with Android OS Touchpad mode Function description of keyboard Binds keys description WEEE Directive &... -
Page 4: Introduction

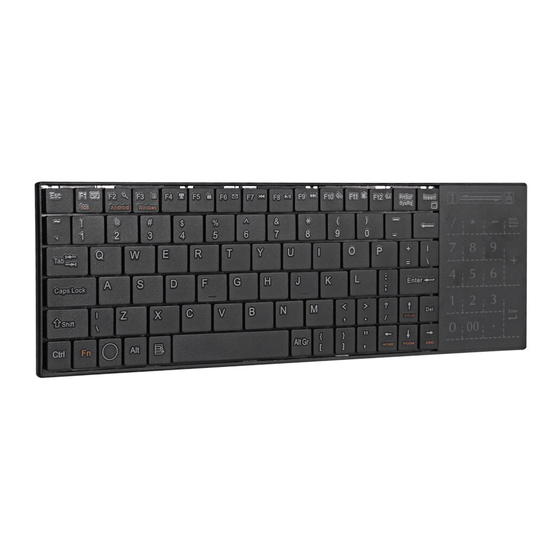

Introduction iPazzPort slim is a bluetooth keyboard with built-in,Multiple touchpad .You can type touch and swipe comfortably in 8m away from computer or big HD screen. -
Page 5: Package
Package: Buletooth Keyboard with Built-In Multi-Touch Touchpad User manual Feature: - Sleek, low-profile keys: Easy and comfortable typing on quiet keys with bold, easy-to-read characters - Touch panel switch to digital mode or mouse touchpad mode - Ultra-sensitive mouse touchpad - Built-in multi-touch touchpad: Large touchpad with multi-touch navigation for easier web browsing - Supports multi language... -
Page 6: Pairing And Establishing Connection With Computer
2.Turn on the keyboard by switching power button to on. Power Switch Pairing and establishing connection with computer Windows XP/2000 Let's take Microsoft Bluetooth Software as an example to describe Bluetooth Search,Pairing and Connection, other Bluetooth software please refer to its own user manual.Insert Bluetooth adaptor into any vacant USB port on your computor, please be patient to wait system search and install new hard driver. -
Page 7: Windows 7
3.Click “Start”, “Control Panel” (make sure you're in the Classic View), and then double-click Bluetooth Devices. Select “Add”. 4.In the “Add Bluetooth Device Wizard”, select the “My device is set up and ready to be found check box”, and then click “Next”. 5.After icon of “Bluetooth keyboard”... - Page 8 An window like below will popup indicating that system is searching a devie to add... Turn on unit by moving the power switch to ON, press key “Esc+K” reset it (about 5 seconds). Bluetooth iPazzPort and Bluetooth Keyboard will appear in the window.
-
Page 9: Connect To Ipad/Iphone
NOTE:1. Do not tap key “Bluetooth Reset” or you will be disconnect its connection during operation. 2.keyboard functions will not work until a bluetooth connection with the computing device is completed. Connect to iPAD/iPhone 1.Turn your Bluetooth Keyboard on by switch button to on, press Bluetooth Reset key (about 5 s). - Page 10 2.Click “Bluetooth” 3.Turn on“Bluetooth”, 1.Click “Settings” Search for devices 5.Connected successfully 4.Enter Keyboard “9376", Press “Enter”...
-
Page 11: Touchpad Mode
Touchpad mode Move finger on the touchpad,from left to right is Touchpad mode; from right to left is Numeric keypad. Turn on “Numeric keypad” Turn on “Touchpad mode” Function description of keyboard Backspace Hot key for shorcut Left/right/down/up System Fn+F1 (iOS) Fn+F2 (Android) Fn+F3(windows) Keys Ejest... -
Page 12: Binds Keys Description
Binds keys description all binds key must work with Fn, for example: if you want to operate key “Home”, you have to press key “Fn” and key “ ” together, Item Operation Fuction Press “F1” and “Fn” together Android Android Press “F2”... -
Page 13: Caution
Caution : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Compliance statement: 1: This device is verified to comply with Part 15 of the FCC Rules. Operation subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference... - Page 14 应用 蓝牙键盘应用于家庭娱乐丶教育丶培训丶会议丶演讲和投影仪 iPAD丶iPhone和三星等智能手机的外接键盘 Windows/Mac 电脑丶机顶盒 包装清单 蓝牙键盘 说明书 特征 QWERTY全键盘布局 触摸板可切换为鼠标模式和数字模式两种 支持多点触摸和滚动条 支持多国语言 规格 蓝牙连接 电源：DC 3V (1.5V AAA电池 2节） 距离：最大半径10m 尺寸：262x84x34mm 重量：170g 支持系统 Windows Android 注意：同时按住Fn+Windows/IOS/Android可以切换到相应系统的键值 开机 1.打开电池盖，把两节AAA电池装进去，盖好电池盖；...
-
Page 15: Windows Xp/2000
电池 盖 2.打开键盘电源开关 电源开关 连接电脑 Windows XP/2000 连接建立：首先要确定你要连接的电脑是否具有蓝牙功能，如果没有的话，你必须 要有一个蓝牙适配器使之与电脑相连接。 1.1 打开电脑中蓝牙通信软件,使之处于可搜寻其它蓝牙设备的状态.具体操作请参考 其蓝牙设备说明书.这里所描述的只是作为参考. 打开"控制面板”,找到蓝牙设备 图标,右击该图标, 选择“打开",在弹出来的对话框里单击“贴加”,在接下来弹出 的对话框中选择“我设备已连接并设置好,可以查找”然后单击“下一步”.电脑 会自动搜索已打开的其它蓝牙设备。 1.2 拔动蓝牙键盘的开关至ON处,打开电源.单击"Esc+K"(大约5秒)然后松开该键， 进行搜索. 注：在操作过程中，不要再按"Esc+K"键，否则连接会断开的，... -
Page 16: 连接 Ipad/Iphone
1.3 搜索成功后会出现如下对话框,单击该图标,选择"下一步" 1.4 在接下来弹出的对话框里，软件会要求你输入连接密码，此时你可以按要求输 入你软件给你的随机密码，同时你也可以选择不要输入密码。然后软件会自动 安装，至此连接配对成功，你可以使用蓝牙键盘。 连接 iPAD/ iPhone 1. 打开键盘的电源开关，按住“Esc+K”约5秒，使键盘进入到可搜索并配对状态。 2. 单击iPhone手机上的“ 设置 ”=》" 蓝牙 ”.iPhone 会自动搜索其它可配对的 蓝牙设备。 3. 待手机搜索到蓝牙键盘，在下拉列表中会出现"Bluetooth iPazzPort” 单击该 “Bluetooth iPazzPort",程序会自动安装蓝牙键盘，并提示要求输入密码，在 蓝牙键盘输入密码并按“Enter"确认（表示连接成功）。... - Page 17 连接安卓系统 1. 激活手机上的蓝牙设备，使蓝牙处于搜索状态 2. 打开蓝牙键盘的电源开关，按住“Esc+K”键(大概5秒)。 3. 当手机搜索到蓝牙键盘时,手机上的蓝牙设备列表里面会出现"Bluetooth Keyboard” 4. 单击"Bluetooth Keyboard "图标，进行配对。 5. 当提示输入密码时，在键盘上同时输入密码, 然后按"回车键"确认,表示连接成功. 注意:1. 因不同的手机品牌采用不同的蓝牙芯片，以及不同的方案，一些蓝牙芯片 不支持 HID 协议，所以会出现一些手机能配对，但不能连接使用的情况， 2. 不同的品牌的手机可能操作步骤稍有区别，请按照手机提示进行操作。 3.打开蓝牙, 1.单击”设置“ 2.单击”蓝牙“ 进行设备搜索 进入蓝牙设置界面 5.连接成功 4.在键盘上输入 "3225", 然后按"回车键"...
- Page 18 触摸板模式 手指放在触摸板上,从左滑向右,为鼠标模式;则从右滑向左,为数字模式. 打开 “数字模式” 打开 “鼠标模式” 键盘功能描述 清除 菜单快捷键 上/下/左/右 系统 Fn+F1 (iOS) Fn+F2 (Android) Fn+F3(windows) 按键 Ejest Ejest 搜索 搜索 Screen Save 锁屏 锁屏 Screen Lock 邮件 上一曲 上一曲 暂停/播放 暂停/播放 下一曲 下一曲 音量减小 音量减小 静音 静音 音量增大 音量增大 PrtScr 抓屏...
- Page 19 组合键 所有的组合键都必须与Fn配合使用，例如你想操作Home键，你就要按住Fn+ 功能 操作 按住Fn+F1 Android 按住Fn+F2 Android 按住Fn+F3 Windows Windows 按住Fn+ 向上翻页键 向下翻页键 按住Fn+ 按住Fn+ 按住Fn+ Home...
