Summary of Contents for Unisen iPazzPort KP-810-21SDL
-

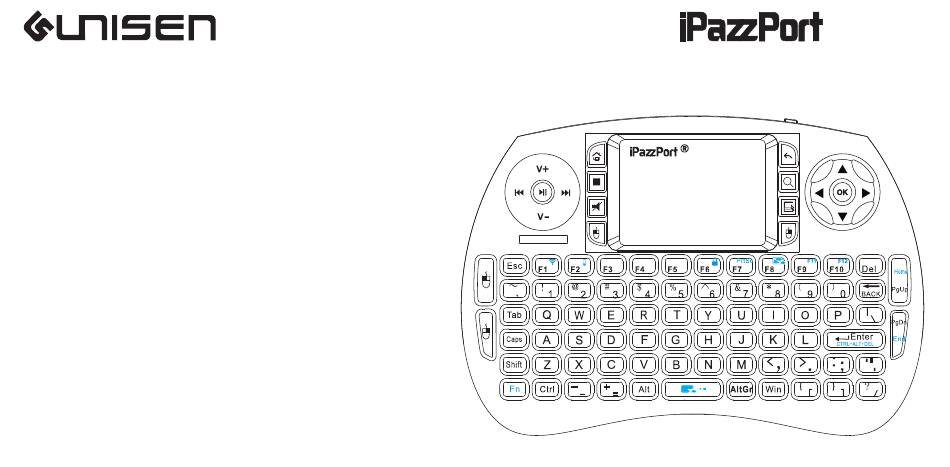

Page 1: Mini Keyboard
Mini Keyboard instructions... - Page 2 FN+Space Power Switch Adjust sensitivity of the touchpad the browser FN+F6 Lock/Unlock back home page keyboard and touchpad stop searching FN+F8 Turn on/off click function of mouse touchpad Menu mute free switch in FN+F2 different backlit colors left mouse right mouse quick screenshot Mouse touchpad...
- Page 3 Introduction: Specifications: - PC Keyboard for Home entertainment, - Wireless connection multi-media Education, Training, Conference, - Max Distance:10 m presentation controlled with computer. - Size:147X99.5X21.6mm Andriod/ Google TV box, Raspberry pi, Smart TV, - Weight:110g Xbox360,PS3, HTPC/IPTV,PC - Transmit power: +5db Max - Operation voltage: 3.3V - Power Supply: Rechargeable Li-ion battery...
- Page 4 6.How to use 6.1.Start up 2.Plug USB dongle into any USB port of your device (Raspberry Pi/Smart TV /PC) USB dongle Power Switch 1. Open the battery cover, 3. Turn the unit on by switching the power switch take USB dongle out to the position “on”(the LED would be flashing then go out ) 4.
- Page 5 6.2. Pair:in case of lose connection between USB dongle and keyboard, please follow below steps to do re-pair procedure: 6.2.1. Press button “Fn” and “ ” at the same time till LED flash; 6.2.2. Plug USB dongle into any USB port of your computer; 6.2.3.put mini keyboard close to the USB dongle and LED goes off ,which means re-pair is successful.
- Page 6 Note: Work with Raspberry Pi/Smart TV: 1.How to use: 1.1. Open the battery cover, take out the USB dongle 1.2 .Plug USB dongle into device USB port. 1.3. Before connection established ,it will take seconds to install driver by USB dongle itself. 2.If still can't work or lost connection in using, Please do re-pair procedure as following 2.1.
- Page 7 Multi-touch application: the touchpad supports various gesture, the related gesture and function is described below: Mouse Finger Finger Touchpad Remark Function Action Function Gesture Move Slide one finger Moving Cursor on the touchpad Scroll upward Middle Middle Tap the touchpad Scroll botton botton...
- Page 8 FAQ: 1. How to connect it with Smart TV/Raspberry Pi (Windows/Android System): The same way as above one 2.Touchpad become unstable /insensitive or type the letter, they are stuck on the screen. Charge battery for several hours. 3.No response or need to press several times from a long distance.
- Page 9 WEEE Directive & Product Disposal: At the end of its serviceable life,this product should not be treated as household or genaral waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment,or returned to the supplier for disposal. Notice to customers This symbol on the battery indicates that the battery is to be collected separately.
