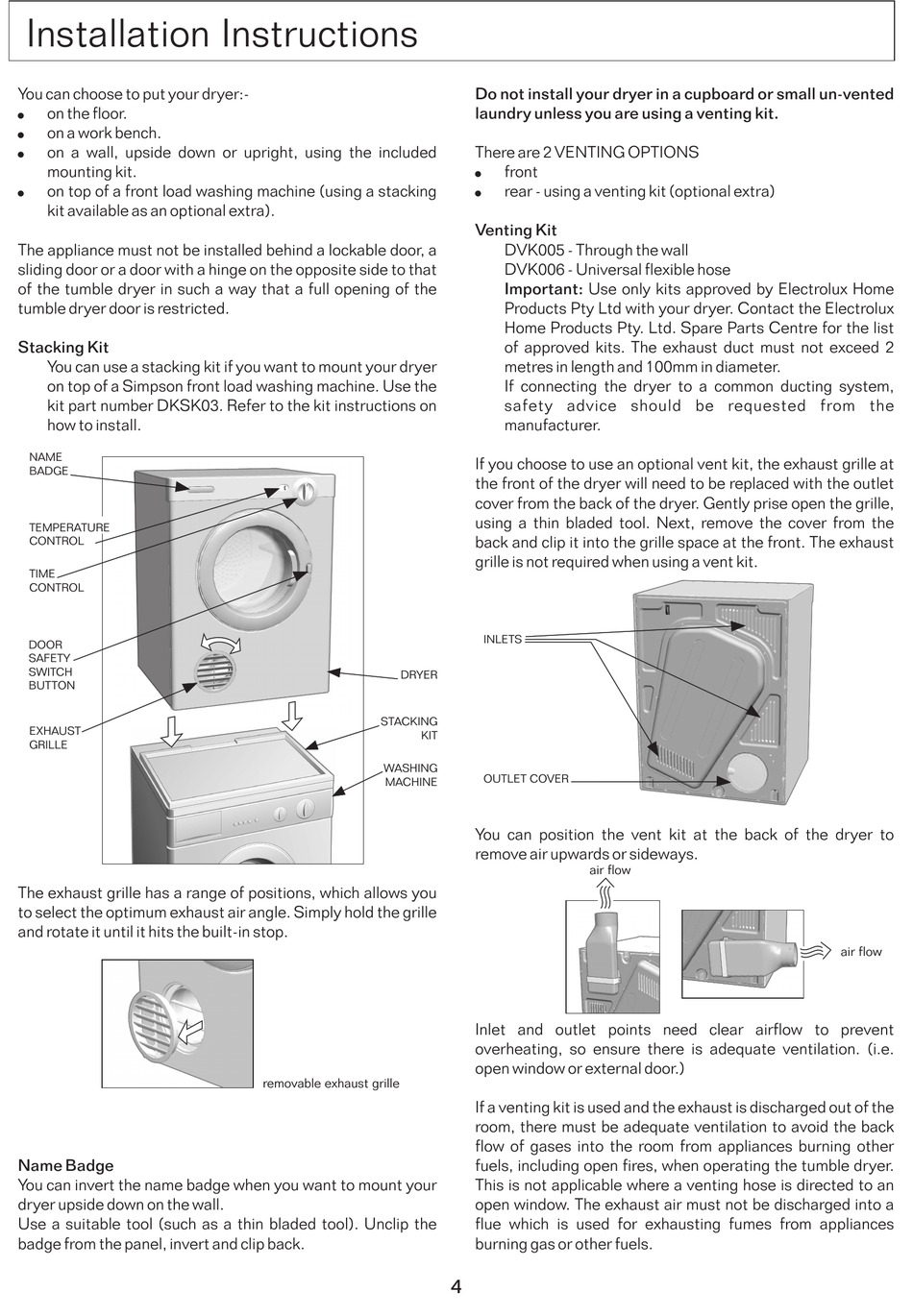

Installation Instructions

You can choose to put your dryer:-
!
on the floor.
!
on a work bench.
!
on a wall, upside down or upright, using the included
mounting kit.
!
on top of a front load washing machine (using a stacking
kit available as an optional extra).
The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that
of the tumble dryer in such a way that a full opening of the
tumble dryer door is restricted.

Stacking Kit

You can use a stacking kit if you want to mount your dryer
on top of a Simpson front load washing machine. Use the
kit part number DKSK03. Refer to the kit instructions on
how to install.
NAME
BADGE
TEMPERATURE
CONTROL
TIME
CONTROL
DOOR
SAFETY
SWITCH
BUTTON
EXHAUST
GRILLE
The exhaust grille has a range of positions, which allows you
to select the optimum exhaust air angle. Simply hold the grille
and rotate it until it hits the built-in stop.
Name Badge
You can invert the name badge when you want to mount your
dryer upside down on the wall.
Use a suitable tool (such as a thin bladed tool). Unclip the
badge from the panel, invert and clip back.
DRYER
STACKING
KIT
WASHING
MACHINE
removable exhaust grille
Do not install your dryer in a cupboard or small un-vented
laundry unless you are using a venting kit.
There are 2 VENTING OPTIONS
!
front
!
rear - using a venting kit (optional extra)

Venting Kit

DVK005 - Through the wall
DVK006 - Universal flexible hose
Important: Use only kits approved by Electrolux Home
Products Pty Ltd with your dryer. Contact the Electrolux
Home Products Pty. Ltd. Spare Parts Centre for the list
of approved kits. The exhaust duct must not exceed 2
metres in length and 100mm in diameter.
If connecting the dryer to a common ducting system,
safety advice should be requested from the
manufacturer.
If you choose to use an optional vent kit, the exhaust grille at
the front of the dryer will need to be replaced with the outlet
cover from the back of the dryer. Gently prise open the grille,
using a thin bladed tool. Next, remove the cover from the
back and clip it into the grille space at the front. The exhaust
grille is not required when using a vent kit.
INLETS
OUTLET COVER
You can position the vent kit at the back of the dryer to
remove air upwards or sideways.
air flow
Inlet and outlet points need clear airflow to prevent
overheating, so ensure there is adequate ventilation. (i.e.
open window or external door.)
If a venting kit is used and the exhaust is discharged out of the
room, there must be adequate ventilation to avoid the back
flow of gases into the room from appliances burning other
fuels, including open fires, when operating the tumble dryer.
This is not applicable where a venting hose is directed to an
open window. The exhaust air must not be discharged into a
flue which is used for exhausting fumes from appliances
burning gas or other fuels.
4
air flow
