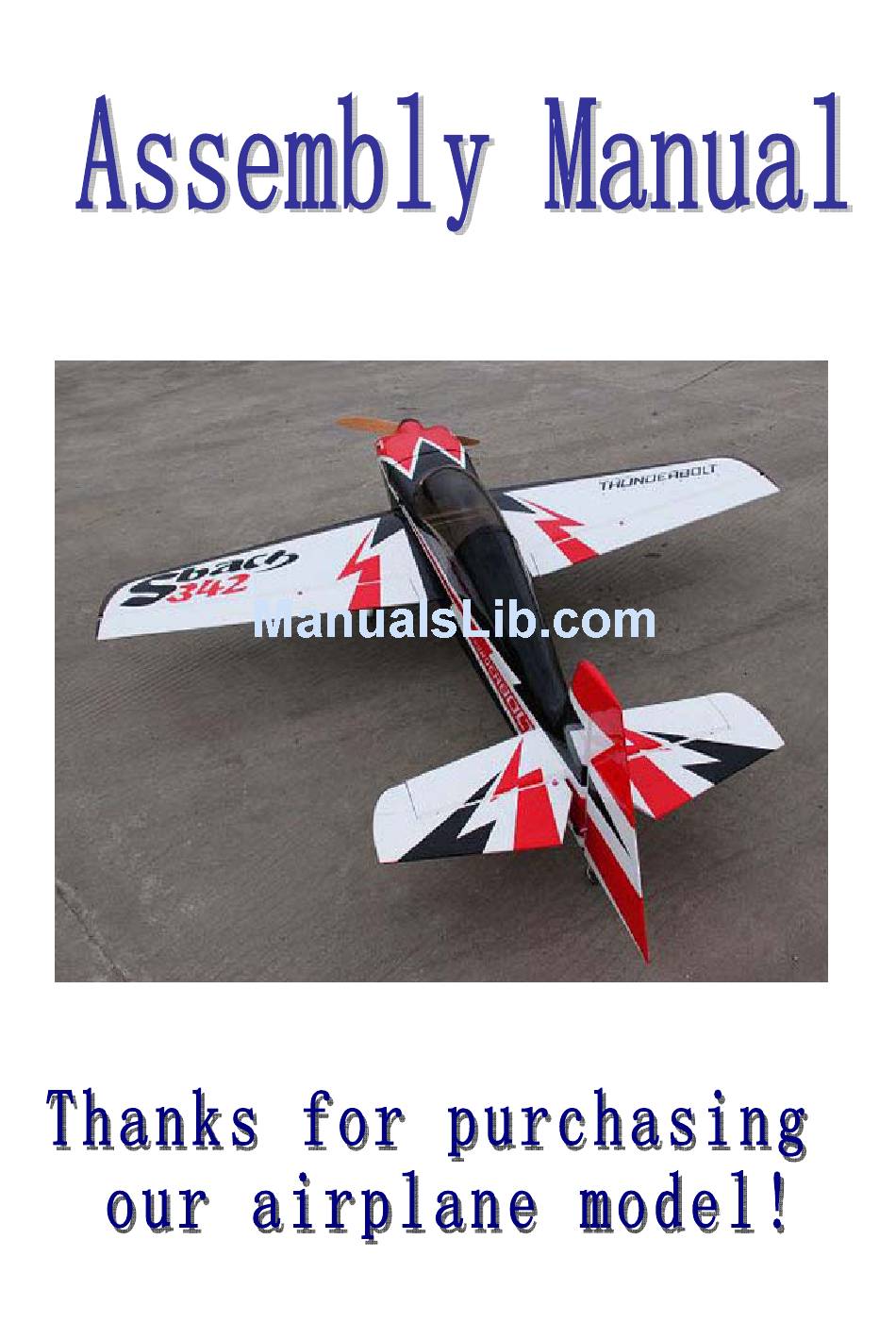

- Page 2 Our airplane model: 1 All our plane have the matching carbon fiber servo arms, carbon fiber main and tail landing gear, carbon fiber spinner and wood propeller available. Pre-glued cowling ring with blind nuts mounted. Canister installation position in Fuselage Removable wings and stabs...
- Page 3 Pre drilled servo control horns Laser cut engine mounting templates Pre installed firewall Pre install pull pull wire with ball links on rudder Carbon Fiber wing tube include 10 Floor and dashboard for cockpit...
- Page 4 Caution! 1 You should not regard this plane as a toy! 2 To ensure safety, please read this instruction manual thoroughly before assembly. 3 Building and operating a model plane requires diligent practice and correct guidance. An inexperienced flyer can cause serious injury and property damage.
- Page 5 Main Landing Gear and Tail Wheel Unit Tail Wheel Unit Drill a hole and make it fit the steering tube. Do not glue it into position untill the tail wheel installation step is completed. Assembly photo for the tail wheel parts. Use the tail wheel bracket as a template and drill holes for the mounting bolts.
- Page 6 Install the blind nuts through the openning in the rear of the fuselage. Attach the tail wheel bracket and secure the bolts with Blue Loctite. Install the hatch with 4 self- tapping screws Insert the steering arm into the rudder steering tube and position the tube ready for gluing.
- Page 7 Main Landing Gear Istallation All parts for the main landing gear Install the landing gear in the pre-drilled holes with the supplied bolts and locking nuts. Secure the bolts with Blue Loctite Install the landing gear axles with lock nuts but do not tighten yet.
- Page 8 Install the wheel and tighten the collar set screw using a drop of Blue Loctite. Make sure the wheel rotates freely. Slipping the wheel pant over the axles and mark the position for the two attached bolts. Drill the holes for the attached bolts and install the blind nuts as shown.
- Page 9 Main Wing Assembly Parts for Main wing installation Remove the covering from the servo position. Find out the slot pre-opened for rudder control horn, remove the film. as shown. Fit the control horn into the slot, glue the horns into the aileron of each side.
- Page 10 Drill holes for the servo mounting screws and harden the wood around the holes with a drop of thin CA. Use the safety clips (buy separately) to secure the servo and servo extension connected. 5 Put the servo into the servo hole, and mark the position for the screw to fixup the servo.
- Page 11 Drill holes for the servo mounting screws and harden the wood around the holes with a drop of thin CA. Install the control horn. Adjust the horn and servo arm. Fix the horn in place firmly. Install the ball link and push rod .
- Page 12 Connect the two wings with carbon fiber tube and four nylon screw supplied. Rudder Installation Parts for Rudder installation...
- Page 13 Find out the slot pre-opened for rudder control horn, remove the film Fit the control horn into the slot, meansure the correct length for it Cut the longer part Glue the horns into the rudder of each side...
- Page 14 Repeat the same method on the other side of the rudder. Thread the cable connecter halfway into the ball link . Connect the pull-pull wire and control horn with ball link Drill holes for the mounting screws. Fit the servos as shown with the servo label facing the rudder.
- Page 15 Use brass crimps on each cable and thread, the cable through the end of the pull- pull connector. Crimp the brass tube with a crimping tool or pliers A drop of thin CA may be applied to the brass tube to help secure the cable Install the rudder ball links with bolts and locking nuts.
- Page 16 Stabilizer Installation Parts for stabilizer Connect the pushrod and control horn as shown Put the control horn into the slot pre-opened, glue it to the stab, on each side...
- Page 17 Sbach 30cc / Sbach 50cc / Mxsr 50CC's hidden servo Mxsr 30cc's exterior servo Install the servos in the Install the elevator servo fuselage in precut locations as shown on both sides. Connect the control horm Connect the servo and the...
- Page 18 Repeat the previous steps for the other wing. Install the stabilizer tube and bolts. Attn: Engine Installation 1 Use a drill to drill screw holes for engine Installation. The holes position for 3W & DL have been lased on the firewall.
- Page 19 Insert the bolts through flat fender washers, the firewall and into the engine stand offs. Tighten firmly. Secure mounting bolts nuts with Blue Loctite. Use a bit to drill a pushrod exit hole on the firewall in line with the engine carburetor throttle arm.
- Page 20 Insert the throttle servo into the servo mounting tray with an output arm forward. Insert the throttle pushrod into the servo arm easy link. Mark a line for the throttle servo tray, then glue it to the fuselage. Use a drill to drill the servo mounting holes.
- Page 21 Insert the throttle pushrod into the servo easy link. Move the servo arm to the center position. So that carburetor is half open. Tighten the easy link set screw. Use self-tapping screw to fixup the wood to lock the hatch of the engine box.
- Page 22 Muffler and Canister Remove the cover from the pre-cut canister ari exit openning and ensure the edge has been sealed. Bend the flexible manifold to connect to the canister muffler. Trim the excess pipe to fit. Tighten the manifold bolts and secure with blue loctite.
- Page 23 Fuel Tank Install the inside parts of fuel tank as shown. Assembly the outside fuel pipe as shown. 3 Tighten the velcro ties secure the fuel tank.
- Page 24 Cowl Assembly Use a paper template to measure where the cowl will need to be cut for the exhaust and spark plug. Trial fit to make sure there is a minimum of 3/8" clear space around the engine for cooling. Use a fiber cutting tool to rough out the cowl and finish with a round sander.
-
Page 25: Center Of Gravity
The center of gravity is on the rear of the wings tube. Your balance at the CG will determine the fin al mounting location for batteries. Mount batteries and secure with Nylon zip ties. 30cc Sbach MXSR Yak54 Yak55 Slick 27% Mac CG Location 132mm... - Page 26 Trail run the Engine to check its stability at high speed and low speed to ensure there are no problems with vibration on the model. Run the motor at high speed about 30 min,check the Engine and make sure the temperature is bleow the prescription of manufacturer.Once everything is right.
