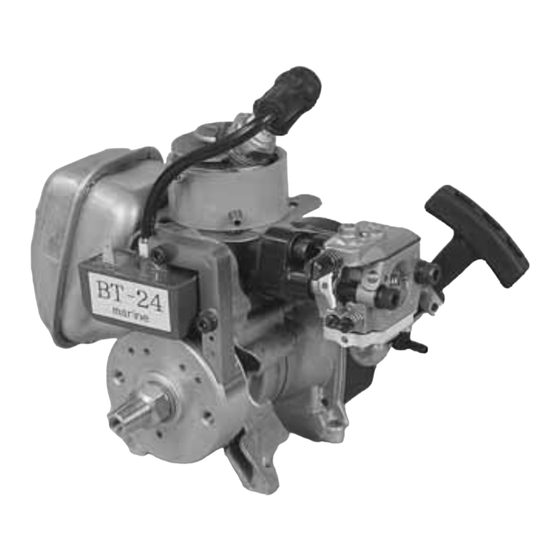

Fuji Imvac BT-24M Operator's Manual

Worldwide Distributor
·
Always use a balanced prop. An unbalanced prop will cause high levels of
vibration that may be harmful to your driveshaft and engine.
·
Be sure to keep your driveshaft well lubricated. Failure to do so may cause vibrations
that can be harmful to the engine. Re-lubricate your driveshaft every 2-3 runs.
·
Keep foreign objects away from the propeller. Never start the engine on loose
gravel or sand.
·
Keep onlookers away from the running engine, especially small children.
·
Do not attempt to stop the engine by throwing anything into the path of the
propeller or by grabbing the driveshaft.
·
Make sure the fuel line is well-secured to the engine and to the fuel tank so that
it won't come off while in use.
·
Do not use silicone fuel line because it will be attacked by the gasoline. Use
vinyl or neoprene rubber fuel line.
·
Always secure the fuel line away from the cylinder head. The engine's heat can
damage the fuel line.
·
Muffler pressure to the fuel tank is not required.
·
Never touch the engine or exhaust system after a run. Parts of the engine and
exhaust will be hot and may burn you.
Operator's Manual for BT-24M
Manufactured by FUJI-IMVAC INC.
YOKOHAMA, 235-0005 JAPAN
Champaign, IL 61826 USA
www.fuji-imvac.com
Fuji-Imvac is not related to the original Fuji Engines sold by Mecoa.

SAFETY TIPS AND WARNINGS

SPECIFICATIONS

Displacement:
Horsepower:
Ignition Style:
R.P.M.:
Fuel:
Weight w/Muffler: 3.13 lbs [1.4kg]
: Hobbico, Inc.
(except Japan)
1.45 cu in [23.9cc]
3.0hp [2.18kw]
Spring-Assisted
Recoil Starter
4000 - 12,000rpm
Gas/2-cycle engine oil
