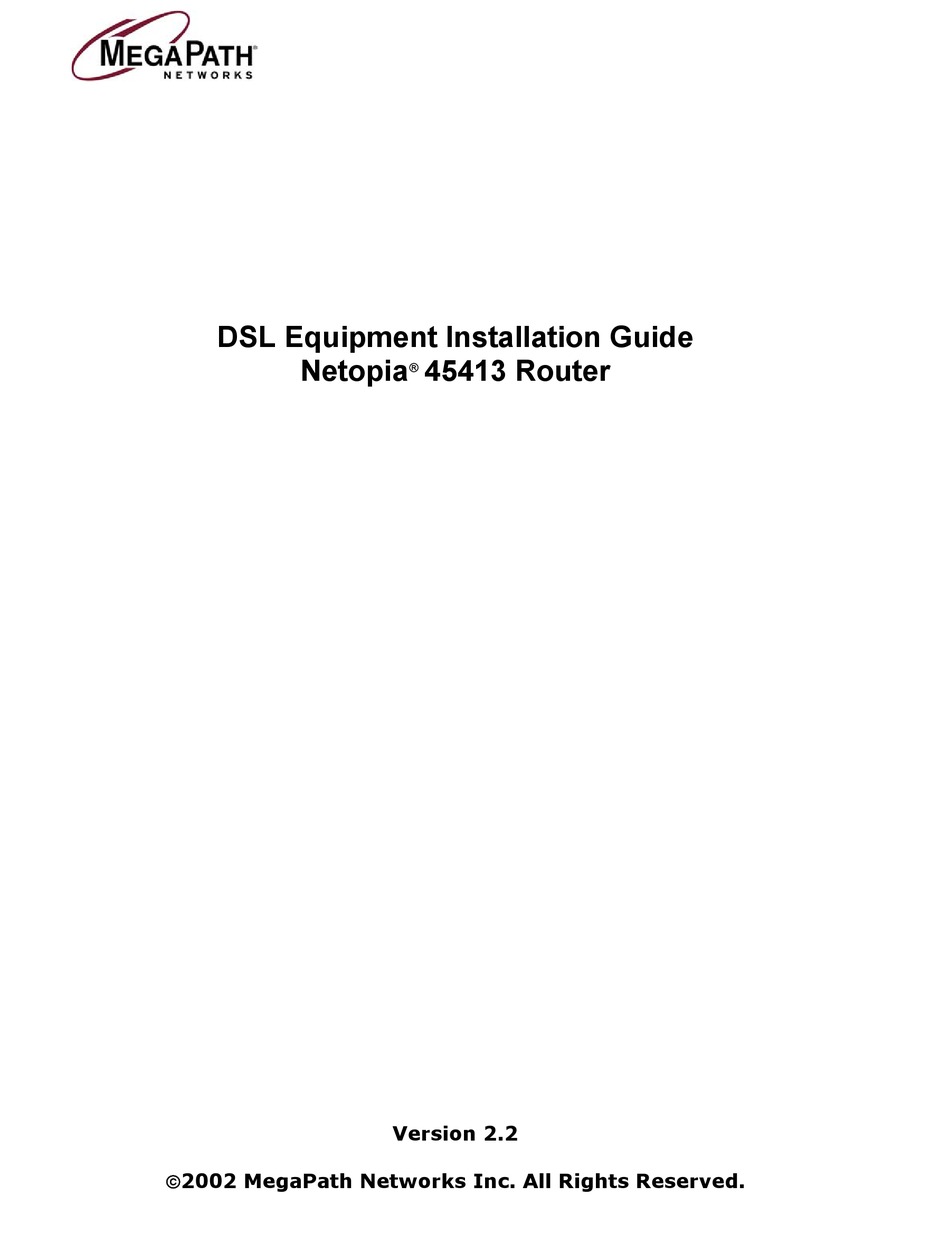

DSL Equipment Installation Guide
Netopia
45413 Router
Version 2.2
2002 MegaPath Networks Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45413 and is the answer not in the manual?

Questions and answers

Related Manuals for Netopia 45413

Summary of Contents for Netopia 45413

  • Page 1 DSL Equipment Installation Guide Netopia 45413 Router  Version 2.2 2002 MegaPath Networks Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Step 1: Verify Your System Requirements and Documents Step 2: Verify the Contents of Your DSL Equipment Kit Step 3: Install a Telephone Filter on Every Telephone Line Step 4: Install the Netopia® DSL Router Step 5: Configure Your Computer ...

  • Page 3: Step 1: Verify Your System Requirements And Documents

    Welcome to MegaPath DSL service. You will find everything you need to install your DSL service in this kit. It is important to carefully and exactly follow the step-by-step instructions for your operating system. Note: Do NOT use the instructions that came with your Netopia. Step 1: Verify Your System Requirements and Documents This MegaPath DSL kit was designed for installation on computers operating with Microsoft ...

  • Page 4: Netopia Router

    Cable Serial Port Cable Ethernet/Data Phone Cable Cord Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000  2002 MegaPath Networks Inc. All rights reserved. Netopia Router 4-Phone Line Filters 1-Standard Phone Cord Netopia Router Serial Port Cable /Mac Page 4...

  • Page 5: Step 3: Install A Telephone Filter On Every Telephone Line

    Step 3: Install a Telephone Filter on Every Telephone Line IMPORTANT: Install filters on every phone jack on your DSL line that will be used for an analog device to prevent interference from the digital signal provided by DSL service. A filter is required between all phones, answering machines, fax machines, Caller ID units or analog routers and the phone jack for the DSL line.

  • Page 6: Warnings And Cautions

    “ADSL HPN”. 1. Connect the router to your phone jack. 2. No filter is required if the Netopia does not share the line with an analog device. /Mac Page 6...

  • Page 7: Step 4: Install The Netopia® Dsl Router

    Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000  2002 MegaPath Networks Inc. All rights reserved.  45413 DSL Router Use Serial Port cable to transfer Plug one end data between your Router and the of the Ethernet...

  • Page 8: Windows  95 And 98 Dynamic Configuration

    PC Environment Step 5: Configuring Your Computer Windows 95 and Windows 98 Dynamic Configuration (Recommended) ® ® Before you use your new DSL connection, you must have TCP/IP set up on your computer. If you do not see TCP/IP listed in your Network Components, go to page 22 and follow the instructions for installing TCP/IP.
  • Page 9 3. Select the IP Address tab. Click Obtain an IP Address automatically. 4. Click on the Gateway tab. If the box under Installed Gateways contains any IP addresses, highlight the IP addresses and click Remove. /Mac Page 9 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 10 5. Click on the DNS Configuration tab. Click Disable DNS. Click OK. 6. When prompted, reboot the computer. Click OK. 7. To check the success of your setup, open a web browser and visit www.megapath.net. While there, you will find more information about additional services as well as setup and other support information.

  • Page 11: And 98 Static Configuration

      Windows 95 and Windows 98 Static Configuration (Optional) 1. Find the Network Neighborhood icon on your desktop. Right click on Network Neighborhood and select Properties. Once highlighted, left click on your mouse. 2. Highlight TCP/IP and click on the Properties button. If you do not see TCP/IP in the list, go to the section in this guide titled Installing TCP/IP.
  • Page 12 3. Select the IP Address tab. Click Specify an IP Address. Move your cursor to the IP address dialog box. Enter 192.168.1.2 as your IP address. Your subnet mask is 255.255.255.0. If you have multiple computers, use the same subnet mask number and different IP addresses for each computer. 192.168.1.3 - second computer 192.168.1.4 - third computer 192.168.1.5 - fourth computer...
  • Page 13 5. If you already have an Internet connection, this window will be populated with the information required by your current Internet provider. It is necessary to remove this information and replace it with the information below. Click on the DNS configuration tab. Enter the information as shown below. 4.
  • Page 14 If you do not already have an Internet Service provider, move your cursor to each dialog box and enter the information as shown. 3. Type in 66.80.130.23 and click Add. The IP address will appear in the box shown in box 4.

  • Page 15: Windows  2000 Dynamic Configuration

     Windows 2000 Dynamic Configuration (Recommended) 1. Right click on My Network Places and select Properties. Once highlighted, left click once on your mouse. 2. Double click on Local Area Connection. 3. Select the Properties button. /Mac Page 15 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 16 4. Highlight Internet Protocol (TCP/IP) and click on the Properties button. If you do not see TCP/IP in the list, go to the section in this guide titled Installing TCP/IP. 5. Click Obtain an IP address automatically. Click Obtain DNS server address automatically. 6.

  • Page 17: Windows  2000 Static Configuration

     Windows 2000 Static Configuration (Optional) 1. Right click on My Network Places and select Properties. Once highlighted, left click once on your mouse. 2. Double click on Local Area Connection. 3. Select the Properties button. /Mac Page 17 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 18 4. Highlight Internet Protocol (TCP/IP) and click on the Properties button. If you do not see TCP/IP in the list, go to the section in this guide titled Installing TCP/IP. 5. Click Use the following IP address. Enter in your static IP address, Subnet Mask, and Gateway as shown below.

  • Page 19: Windows  Nt Dynamic Configuration

     Windows NT Dynamic Configuration (Recommended) 1. Right click on My Network Places and select Properties. Once highlighted, left click once on your mouse. 2. Single click on the Protocols tab at the top of the window. /Mac Page 19 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 20 3. In the next window, you will see TCP/IP Properties. Highlight this, and left click on the Properties button at the bottom of the Network Protocols window. 4. The following window will appear. Click on Obtain an IP address from DHCP server and then click OK. /Mac Page 20 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000...
  • Page 21 5. Click OK in this window as well. Under most circumstances, Windows NT will not require a reboot. If it does, please do so. 6. To check for the success of your setup, open a web browser and visit www.megapath.net. While there, you will find more information about additional services as well as setup and other support information.

  • Page 22: Installing Tcp/Ip For Windows

     Installing TCP/IP for Windows Note: Complete this section only if you do not see TCP/IP listed in your Network Components when you begin configuring your computer. Once completed, return to “Configuring Your Computer.” 1. From the Start menu, open Settings/Control Panel. 2.
  • Page 23 3. Click Add. 4. Select Protocol and click Add. 5. Select Microsoft® on the left half of the screen, and select TCP/IP on the right half of the screen. Click OK. /Mac Page 23 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 24 6. From the Start menu, open Settings/Control Panel. 7. Double click the Network icon. /Mac Page 24 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000  2002 MegaPath Networks Inc. All rights reserved.
  • Page 25 8. Choose Client on the Network Control panel window. 9. Select Microsoft on the left half of the screen, and select Client for Microsoft Networks on the right half of the ® screen. Click OK. /Mac Page 25 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...

  • Page 26: Macintosh Dhcp Configuration

    Macintosh DHCP Configuration (Recommended) Single click the Apple Menu and move down to Control Panels. Highlight TCP/IP and single click once on your mouse. 2. Select Ethernet form the Connect via: pull down menu. Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 27 3. Select Using DHCP Server from the Configure pull down menu. 4. Single click in the DHCP Client ID and enter any name you choose for your Macintosh. /Mac Page 27 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000  2002 MegaPath Networks Inc.
  • Page 28 5. Single left click on File, then select Quit. 6. A warning box will appear asking you to save your settings. Select Save, then restart your Macintosh. 7. To check for the success of your setup, open a web browser and visit www.megapath.net. While there, you will find more information about additional services as well as setup and other support information.

  • Page 29: Macintosh Static Configuration

    Macintosh Static Configuration 1. Single click the Apple Menu and move down to Control Panels. Highlight TCP/IP and single click once on your mouse. 2. Select Ethernet from the Configure pull down menu. /Mac Page 29 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000 ...
  • Page 30 3. Select Manually from the Configure pull down menu. 4. Single click in the IP Address text box and enter 192.168.1.2 as shown below. /Mac Page 30 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000  2002 MegaPath Networks Inc. All rights reserved.
  • Page 31 5. Single click in the Subnet mask text box and enter your subnet mask. The Subnet Mask is always 255.255.255.0. 6. Single click in the Router Address text box and enter the LAN IP of the router. The LAN IP is always 192.168.1.1 as shown below.
  • Page 32 7. Single click in the Name server addr text box and enter the IP addresses for the domain name servers located where you live. Enter 66.80.130.23 and 66.80.131.5. 8. Single click in the Search domains text box and enter megapathdsl.net. /Mac Page 32 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000...
  • Page 33 9. Single click on File, then select Quit. 10. A warning box will appear asking you to save your settings. Select Save, then restart your Macintosh. /Mac Page 33 Installation Guide for Customer Self Install, Windows 9x/ME/NT/2000  2002 MegaPath Networks Inc. All rights reserved.

  • Page 34: Troubleshooting

    Troubleshooting The Power, Ethernet , and DSL lights (labeled on the face of the router) should all turn solid green within two minutes after the unit is turned on. If the Power light does not turn solid green (it is also fine if it occasionally flashes amber), check your power cable.
