D-Link DIR-320 Quick Installation Manual

D-Link DIR-320 Quick Installation Manual

Wireless g router
Hide thumbs Also See for DIR-320:

Advertisement

Quick Links

Download this manual See also: User Manual
WIRELESS G ROUTER
DIR-320
Quick Installation
Guide+

Advertisement

loading
Need help?

Need help?

Do you have a question about the DIR-320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-Link DIR-320

Summary of Contents for D-Link DIR-320

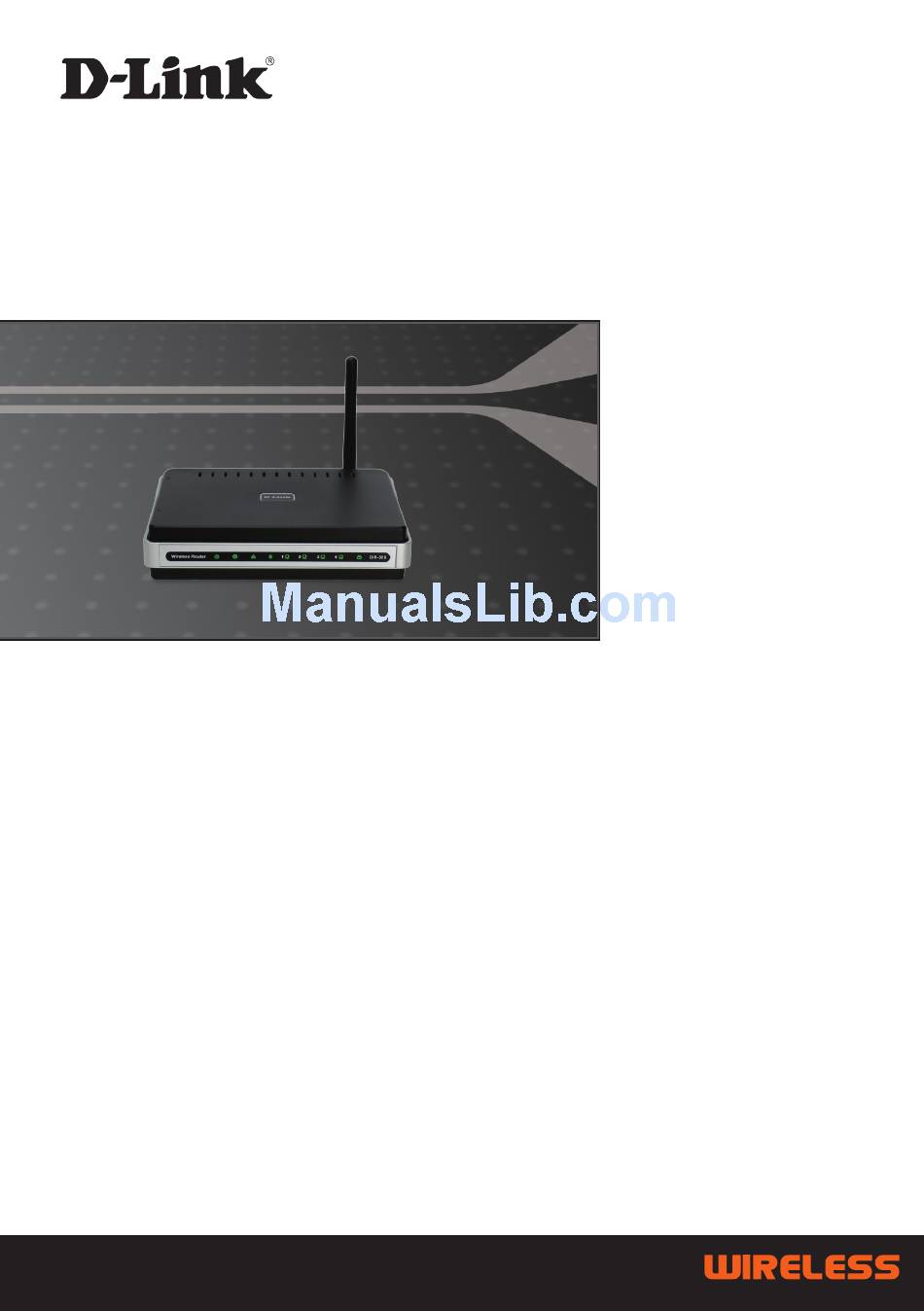

  • Page 1 WIRELESS G ROUTER DIR-320 Quick Installation Guide+...

  • Page 2: Before You Begin

    If any of the above items are missing, please contact your reseller. ©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice.
  • Page 3 First, connect the power adapter to the receptor at the back panel of the DIR-320 and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED lights up indicating proper operation.
  • Page 4 Connecting Additional Computers To The DIR-320 Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers to the remaining Ethernet LAN ports on the back panel of the DIR-320. WLAN LED – a solid light LOCAL NETWORK LEDs – a Status LED –...
  • Page 5 Using The Internt Connection Setup Wizard Open your Web browser and type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key. The logon pop-up screen will appear. Click Log In Type “admin” for the username and leave the password field blank.
  • Page 6 The Internet Connection Setup Wizard (Continued) You will see the following screens: Click Next Set up your new password. You have the option to establish a password. Click Next Choose your time zone from the drop down list. Click Next...
  • Page 7 The Internet Connection Setup Wizard (Continued) Otherwise, you will see the following screen: Select your Internet Connection. will be prompted to select the type of Internet connection for your router. If you are unsure of which setting to select, please contact your Internet Service Provider.
  • Page 8 The Internet Connection Setup Wizard (Continued) If your ISP requires a Static IP Address, and this option is selected, then this screen will appear: Enter the IP address information originally provided to you by your ISP. You will need to complete all the required fields. Click Next If your ISP uses...
  • Page 9 The Internet Connection Setup Wizard (Continued) Click Connect...
  • Page 10 Using The Wireless Connection Setup Wizard In the wireless connection section, you can start the wireless setting in the wireless conncetion setup wizard. Click Wireless Connection Setup Wizard You will see the following screens: Click Next...
  • Page 11 Your 802.11g wireless network are SSID:dlink Click Next Choose your encryption type. The DIR-320 is capable of three levels of wireless encryption-Good, Better and Best By default the encryption is none. You can change the encryption settings for more secure wireless communication. Click Next...

  • Page 12: Test Internet Connection

    The Wireless Connection Setup Wizard (Continued) You can review the wireless setting before confirmation. Click Save Test Internet Connection You will be returned to the Setup tab. Then relaunch your Web browser (i.e., Internet Explorer or Netscape Navigator), to link to your favorite Web site to test your Internet connection. For additional settings or information, refer to the Advanced, Tools,...
  • Page 13 To connect to the network, make sure the network adapter in your computer is configured properly. Here’s how to configure the network adapter to obtain an IP address automatically for the DIR-320 Wireless Broadband Router. Microsoft Windows XP: right click on My Network Places icon on the desktop >...
  • Page 14 Apple Macintosh OS X: Go to the Apple Menu Click System Preferences Click on Select Network. Network Select Built-in Ethernet in the Show pull down menu Select Using DHCP in the Configure pull down menu Click on Apply Now The IP address information, the Subnet Mask, the Router’s IP address and the Ethernet adapter address will appear.

  • Page 15: Technical Support

    Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers in Australia: Tel: 1300-766-868 Monday to Friday 8:00am to 8:00pm EST Saturday 9:00am to 1:00pm EST http://www.dlink.com.au e-mail: support@dlink.com.au India: Tel: 1800-222-002 Monday to Friday 9:30AM to 7:00PM http://www.dlink.co.in/support/productsupport.aspx...
  • Page 16 Technical Support You can find software updates and user documentation on the D-Link website. Tech Support for customers in Egypt: Tel: +202-2919035 or +202-2919047 Sunday to Thursday 9:00am to 5:00pm http://support.dlink-me.com e-mail: amostafa@dlink-me.com Iran: Tel: +98-21-88822613 Sunday to Thursday 9:00am to 6:00pm http://support.dlink-me.com...
  • Page 17 Ver. 1.10(I) 2008/01/23 6DIR320QML01G...
