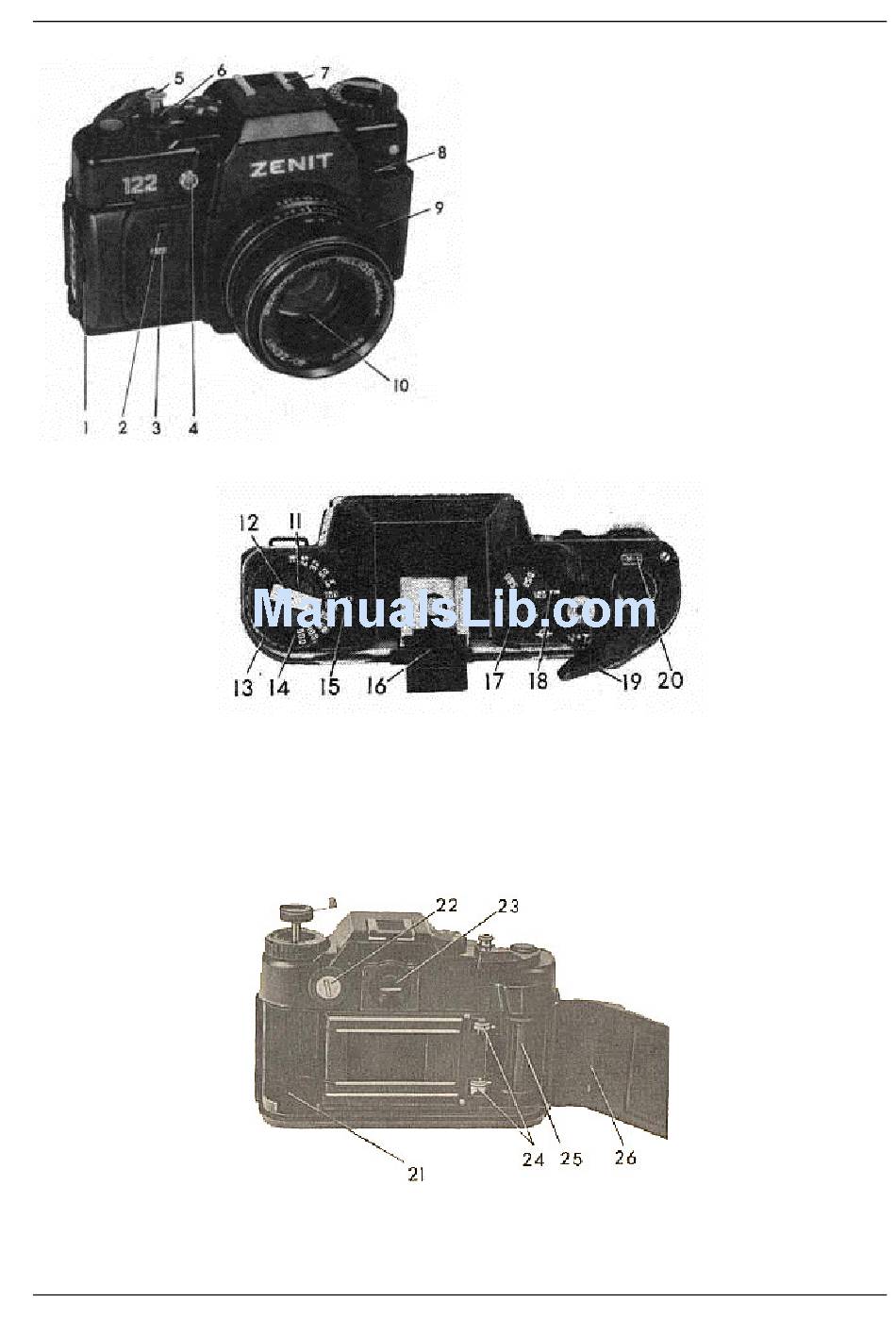

4. Camera Design

11 — film rewind knob
12 — film rewind crank
13 — film speed dial
14 — film speed scale
15 — film speed index mark
21 — cassette chamber
22 — battery compartment end cap
23 — viewfinder eyepiece
1 — self-timer cocking handwheel
2 — self-timer release button
3 — self-timer window
4 — flash unit connector socket
5 — release button threaded for cable release
6 — shutter disengaging knob of stay-put type
7 — shoe for mounting flash units and other
8 — eyelet of strap securing
9 — film check pocket
10 — lens
16 — protective strip
17 — shutter speed dial
18 — shutter speed index mark
19 — shutter cocking and film advance lever
20 — frame counter
– 3 –
accessories
24 — sprocket teeth
25 — take-up spool
26 — back door
