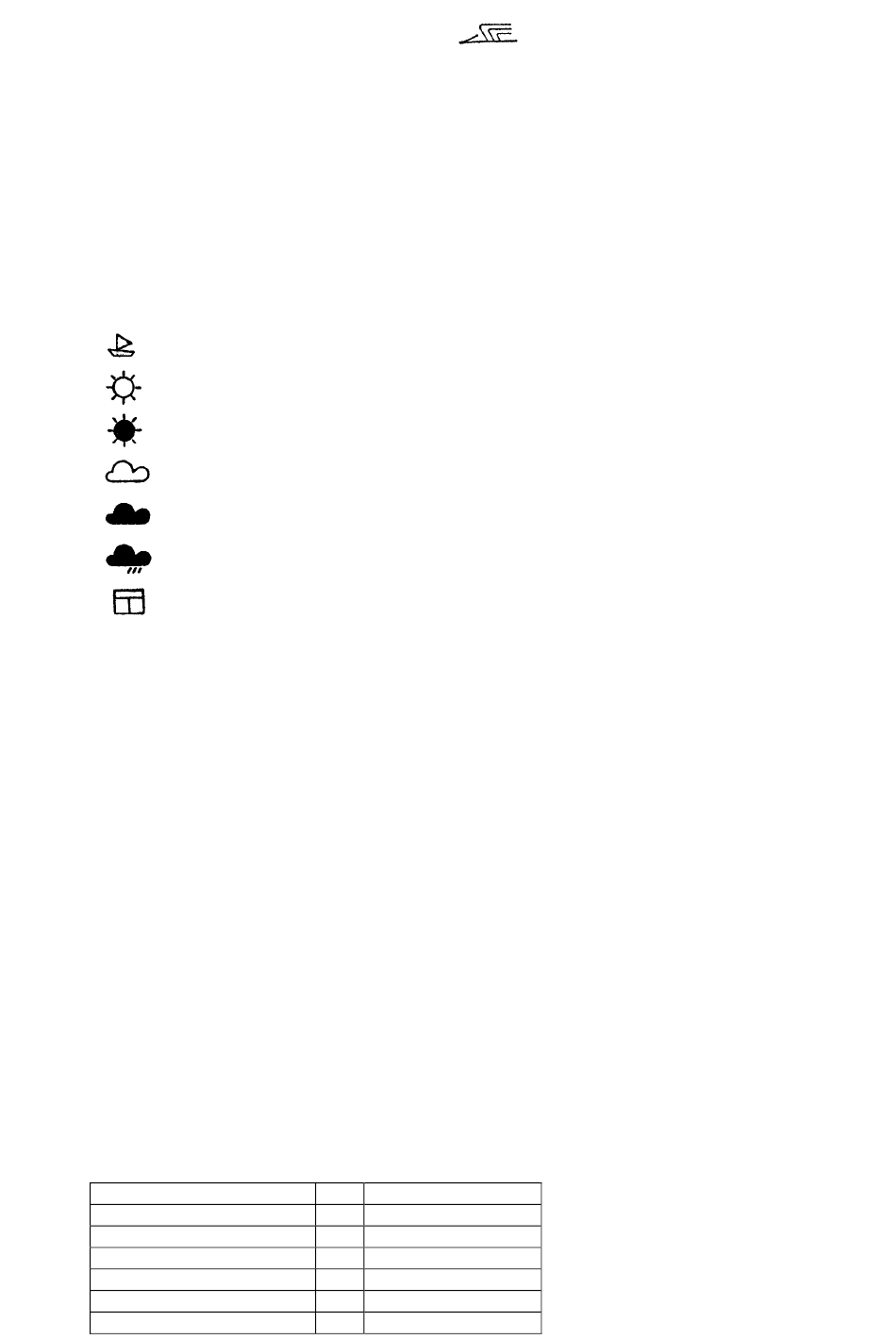

ATTENTION! Exposure setting in your camera is made by symbols of weather that correspond to the
following typical conditions of shooting at daylight for middle latitudes.
Object on snow, in mountains, at sea at the clear sun.
Sun is clear or in easy haze, sharp shadows.
Sun is in haze, soft shadows.
Light overcast, without shadows.
Cloudy or the shadow side under an open, clear sky.
Very cloudy, thunderclouds.
In a room in 1 meter from a window at absence of direct solar illumination.
Due to continuous modernization of the camera construction there are possible inessential differences
between this manual and your camera.
1. GENERAL INDICATIONS
"Agat-18K" is modern compact scale camera. The camera works in a range of temperatures from a minus 15
up to 45 centigrade.
2. TECHNICAL DATA
Frame size, mm ............................................... 18x24
Number of frames ............................................... 72
Lens (fixed) .............................................. "Industar-104"
Focal length, mm ................................................ 28
Aperture ratio ................................................... 1:2.8
Scale range, m .............................................. 0.9 to inf.
Exposure parameters range ...... 1:2.8 @ 1/60sec to 1:16 @ 1/500sec
Film speed range, ISO ................................. 25 to 1600
Dimensions, mm, no more ............................ 95x60x45
Weight, kg, no more ......................................... 0.12
3. INCLUDED ITEMS
Name
Camera
Lens cap with hand strap
Insertion
Take-up spool
User's manual
Carton box
Vileyka factory "Zenit"
CAMERA "AGAT-18K"
USER'S MANUAL
0245.00.00.000-02 RE
Qty
Note
1
1
On the lens
1
Inside of the camera
1
Inside of the camera
1
1
Advertisement
Table of Contents
Related Manuals for Zenit AGAT-18K
Summary of Contents for Zenit AGAT-18K
- Page 1 Due to continuous modernization of the camera construction there are possible inessential differences between this manual and your camera. 1. GENERAL INDICATIONS “Agat-18K” is modern compact scale camera. The camera works in a range of temperatures from a minus 15 up to 45 centigrade. 2. TECHNICAL DATA Frame size, mm ..........
- Page 2 4. CAMERA CONSTRUCTION The camera consists of two basic parts: case with mechanisms and a demountable cover with the view finder. The camera features opportunity of transportation of a film “from cartridge to cartridge” without necessity of film rewind. Controls and functional units of the camera are shown on Figures 1-4. Figure1 Figure 2 Figure 3...
- Page 3 Figure 5 Figure 6 To do it, press the button with a finger against the stop, and turn it until overlapping an index with a white point. If there is a difficulty with pushing button, turn a bit the spool (16) in any direction. Note.
- Page 4 Table 1 shows correspondence between GOST/ISO and DIN film speed values. Table 1 GOST/IS 200 250 320 400 500 640 800 1000 1250 1600 6. OPERATING PROCEDURE 6.1. Setting of the exposure by weather symbols. Take the lens cover (21) off. Estimate a condition of the weather (sky), turn the ring (12) to set chosen symbol against index mark on the ring (10).
- Page 5 Repair and adjusting may be made by the qualified experts in repair workshops only. Using of any greasing in the camera is forbidden. 8. ACCEPTANCE CERTIFICATE The camera “Agat-18K” factory number ________________ meets to specifications TU3-3.377-83 and is recognized suitable for operation. Date of manufacturing_____________________...
- Page 6 At absence of workshop of guarantee repair the camera for repair should be sent to the factory-manufacturer in the full complete set, stacked in the container protecting the camera from damages at transportation to the address: 222410, Vileyka, Minskaya obl., zavod “Zenit”, masterskaya garantiynogo remonta.
