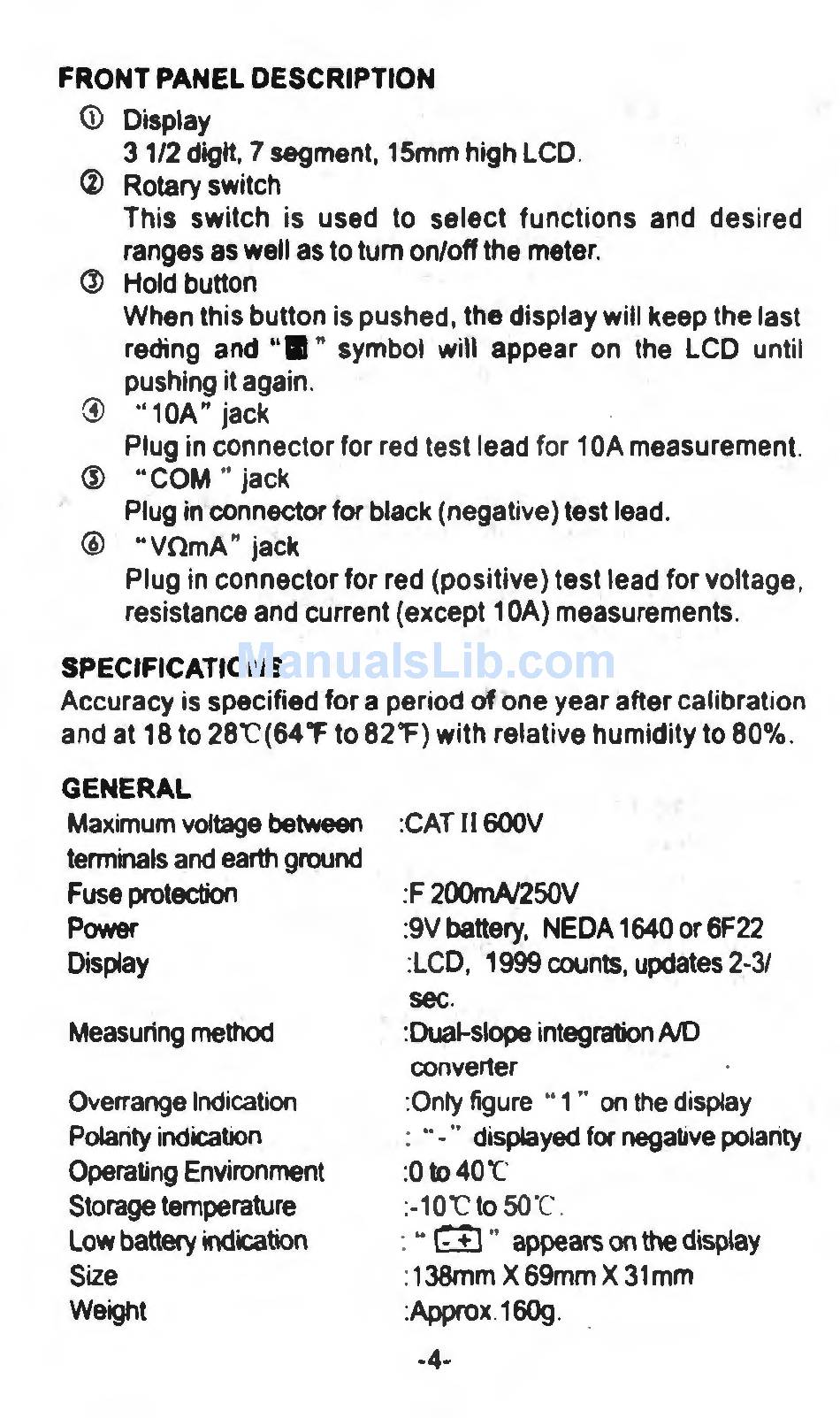

FRONT PANEL DESCRIPTION
CD
Display
31/2
digit,
7
segment,
15mm high
LCD.
CD
Rotary switch
This switch is used to select functions and desired
ranges as well as to turn on/off the
meter.
a>
Hold button
When this button is
pushed,
the display will keep the last
reding and "•
"
symbol will appear on the LCD until
pushing it again
.
Gl
"
10A" jack
Plug in connector for red
test
lead for
1
OA measurement.
@
"
COM
"
jack
Plug in connector for black
(negative)
test lead.
@
"
VOmA
"
jack
Plug in connector for red
(positive)
test lead for voltage
,
resistance and current (except 1 OA) measurements.
SPECIFICATIONS
Accuracy is specified for a period of one year after calibration
and at 18 to 28"C(64"F to 82'F
)
with relative humidity to 80%
.
GENERAL
Maximum
voltage
between
terminals and earth ground
Fuse protection
Power
Display
Measuring method
Overrange Indication
Polarity indication
Operating Environment
Storage temperature
Low battery indication
Size
Weight
:CAT11600V
:F 200mA/250V
:9V
battery,
NEDA 1640 or 6F22
:LCD
,
1999
counts,
updates 2-3/
sec.
:Dual-slope
integration
AID
converter
:Only figure
"
1
"
on the display
:
..
·
"
displayed for negative polarity
:Oto40"C
:-
10
"C
toso
·c.
:
..
G
"
appears on the display
:138mm
X 69mm X 31mm
:Approx
.160g.
-4·
