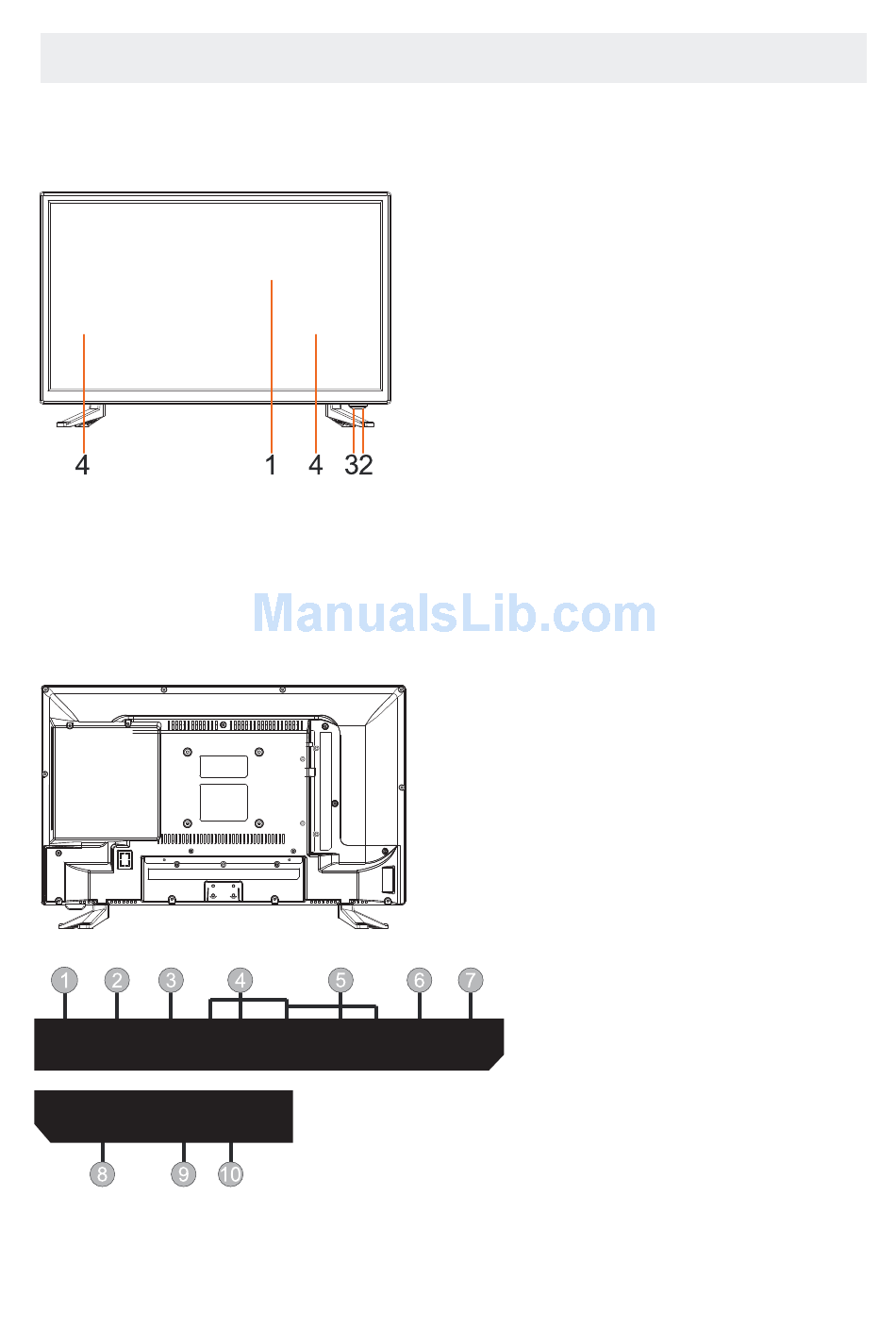

FRONT VIEW

BACK VIEW

Service
DC IN COAX R
Port
HDMI RF
CONTROL REFERENCE GUIDE
L Y(VIDEO) Pb Pr
Head
phone
1.Color Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in blue :The unit is turned ON.
4. Speakers
1.DC IN
2.Service Port
3.Coax OUT Jack
4.AV (VIDEO/AUDIO R/L IN)
5.COMPONENT IN Jack
6.VGA IN Jack
7.PC AUDIO IN Jack
8.HDMI IN Jacks
9.TV ANTENNA Terminal
10.Headphone Jack
PC
VGA
AUDIO
6
