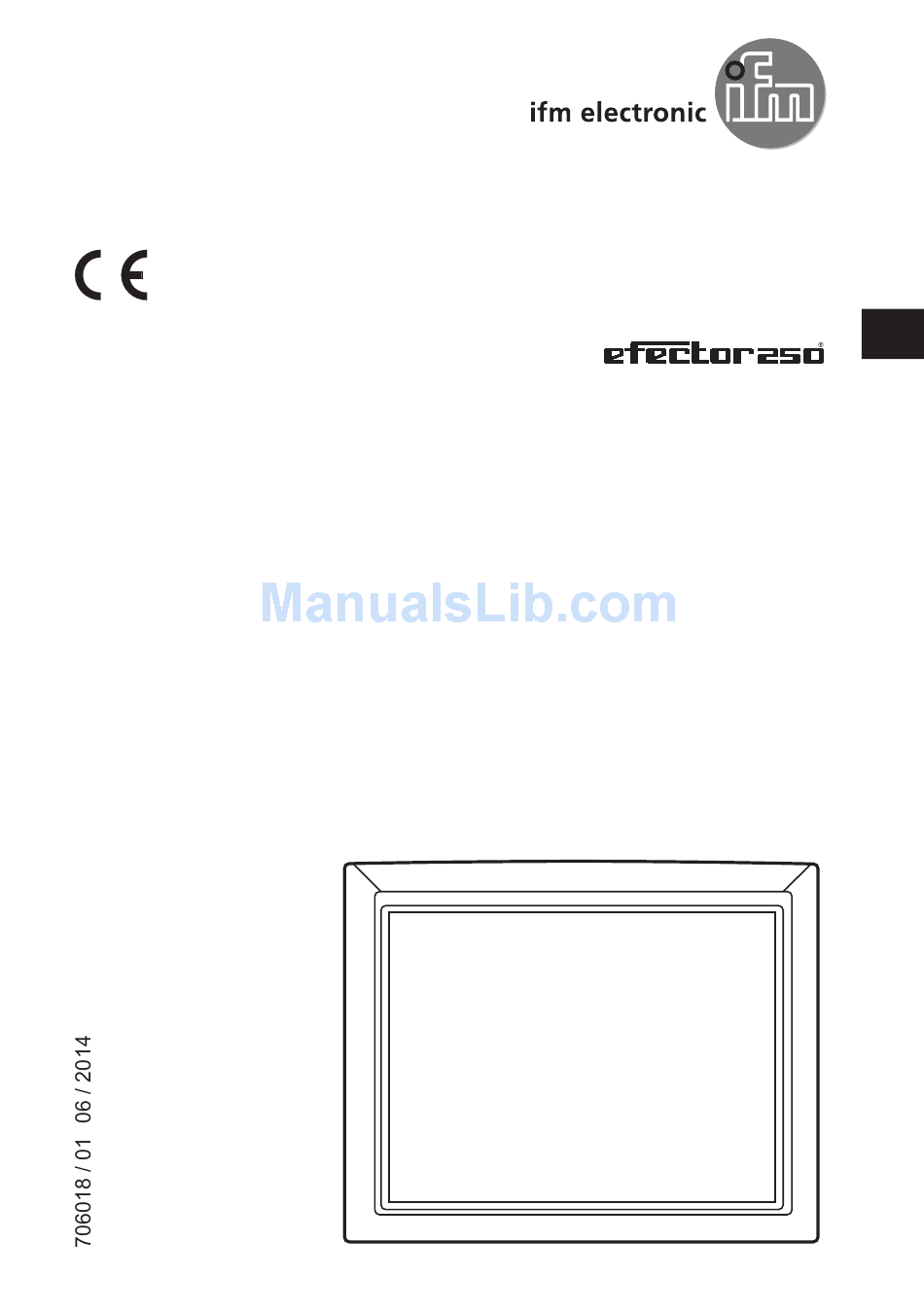

- Page 1 Operating Instruction Touch Panel PC E2D400...
-
Page 2: Functions And Features
1 Functions and features The Touch Panel PC is a control processor with a touch screen and can be flex- ibly mounted. The device ensures configuration and monitoring of the following systems: ● object recognition sensors ● 3D vision sensors ●... - Page 3 2.1.1 Mounting using the wall fixture E2D401 ► Mount the wall fixture on a free, flat sur- face using four screws. Make sure that the fixture is safely screwed and the wall can carry the weight of the Touch Panel PC. The mounting holes of the wall fixture meet the VESA 100 standard.
- Page 4 To fix the Touch Panel PC in a control panel, a rectangular cutout 224 mm x 282 mm is required. Max. material thickness of the panel: 5 mm ► Insert the Touch Panel PC into the cutout. Note that the protection rating of IP64 of the front is only guaranteed with suitable sealing.
-
Page 5: Electrical Connection
► Insert the mounting frame with the Touch Panel PC in the control cabinet and fasten 3 Electrical connection 1: audio output, 3.5 mm jack socket 7: COM3 interface (RS232/422/485) 2: reset button 8: COM1 interface (RS232) 3: USB 2.0 interfaces 9: voltage supply 9...28 V DC 4: RJ45 Ethernet interfaces coaxial power connector, lockable... - Page 6 4 Set-up ® The Windows 7 operating system and the user software for the sensors are already preinstalled on the Touch Panel PC. ► Press the mains switch (10) to start. When the PC is completely started up, the desktop environment is displayed. 4.1 Starting of the operating software of the connector sensor.
