AOS U600 / U650

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOS U600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Air-O-Swiss AOS U600

Summary of Contents for Air-O-Swiss AOS U600

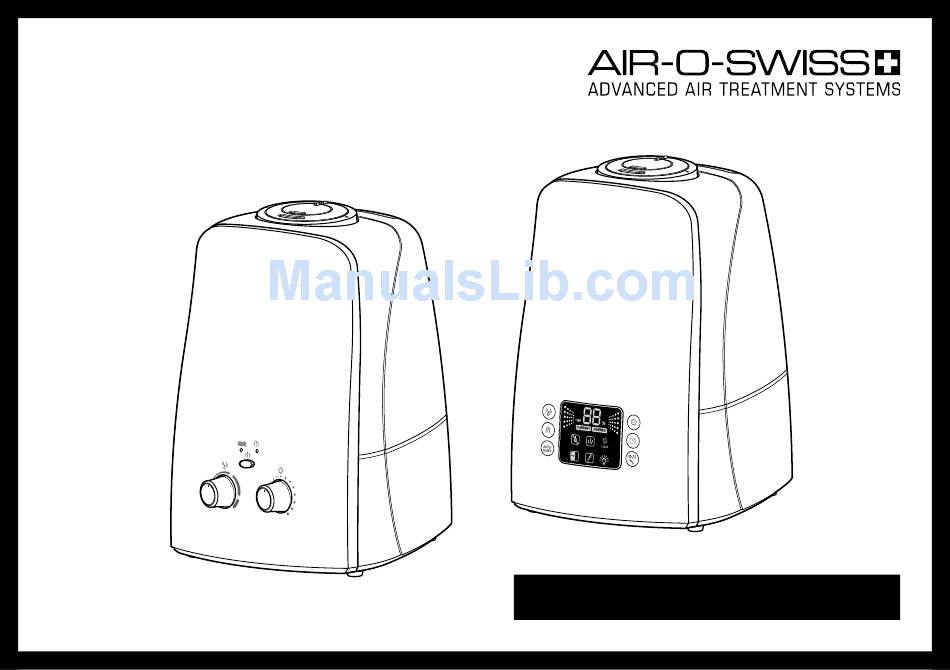

  • Page 1 AOS U600 / U650...
  • Page 2 Instructions for use...

  • Page 3: General Information

    Foreword Safety instructions • Do not place the appliance directly on the floor or next Congratulations on choosing the Ultrasonic Humidifier • Read the operating instructions carefully before using to heating. If the mist comes in contact with the floor U600 / U650! the appliance and keep them in a safe place for later before it has fully evaporated, the surface could be da- reference. maged (6). We do not accept any liability for damages Did you know that dry room air: • Connect the unit only to an AC supply with a voltage due to the incorrect placement of the unit. • Dries out the mucous membranes, and also causes according to the rating label. • The unit should be placed in an elevated position (7), chapped lips and stinging eyes? • Only use the appliance indoors and within the para- e.g. on a table, chest, etc. • Encourages infections and illnesses of the respiratory meters stated in the technical specifications. Using the • Do not pour water into the mist outlet of the appliance. system? appliance for a purpose for which it is not intended • Do not immerge the main body in water or other liquids. • Causes weariness, tiredness and poor concentration? could pose a serious hazard to health and life.

  • Page 5: Putting Into Operation

    Unpacking Description of the appliance Filling the tank • Carefully remove the unit from its box. Always switch off the appliance before removing • Remove the unit from the plastic bag. the water tank. Do not reach inside the nebuliser • Review the information given on the rating plate about space while the appliance is running! the mains supply. • Use the original packaging for storing the appliance if Do not operate the appliance when the water tank is empty! Mist outlet (rotating) you do not use it all year round. When the water reaches the minimum level, the unit swit- ches off automatically. Putting into operation Find the ideal location for your appliance: • Make sure that there are no foreign objects inside the Water tank • Do not place it directly next to a radiator or on a water tank.
  • Page 6 Water quality maintenance (recommended optional accessory) The Ionic Silver Stick (ISS) utilizes the antimicrobial pro- ® perty of silver and provides a year of optimum water quality maintenance in all AIR-O-SWISS and BONECO humidifiers. The ISS begins working as soon as it comes into contact with water – even if the unit is switched off. The ISS is intended exclusively for use in humidifiers. Look at picture 16 for the position of the ISS in the appliance. Do not reach inside the nebuliser space during operation. Switch off the unit first. Do not use additives Water additives (e.g. essential oils, fragrances, water con- ditioners etc.) must NOT be used! Even a small amount can cause damage to the tank material. The material is not...

  • Page 7: On/Off Switch

    Operation U600 C) Operation with pre-heating Button C is used for switching the pre-heating on and off (symbol D lights up). As a result, the water is pre-heated to a temperature of 80 °C before entering the nebuliser space. It takes approx. 10 to 15 minutes for the water in the base to warm up. The mist now leaves the nebuliser space at a pleasant temperature of 40 °C. The advantage of this is that the room temperature does not drop and, in addition, it significantly improves the water quality maintenance. D) Pre-heating Indicator E) Empty indicator (red) The water level is easy to see, thanks to the transparent water tank. The appliance also alerts you when the wa- ter tank is empty. The red empty indicator is illuminated A) On-off switch (symbol E). Please read the chapter «Filling the tank» for Turning the rotary switch clockwise switches the appliance more information. The red symbol E may stay illuminated on and at the same time regulates the mist output from for some seconds with a refilled tank until the base is filled low to high.
  • Page 8 Operation U650 C) Timer G) Timer Indicator Using button C, the operation time can be set – adjustable H) Mist Output Indicator between 1 and 8 hours, or continuous operation (CO). Symbol G shows the operating period that has been set I) Pre-heating Indicator (1h/2h/3h/4h/5h/6h/7h/8h/CO). The display will automati- cally show the current value after a few seconds. J) Auto Mode Indicator D) Controlling mist output and Evaporator TIME output K) Sleep Mode Indicator CURRENT DESIRED...

  • Page 9: Cleaning & Maintenance

    Cleaning/Maintenance Always switch the appliance off before removing the water tank. Do not reach inside the nebuliser space while the appliance is running! • Switch off the appliance (17) and remove the plug from the mains socket (18) before cleaning. • Clean the water tank and the nebuliser space regularly once a week (use only water, without detergent) (19). • Decalcify the water base regularly using commercially available decalcification agents (20). Rinse out the decalcification agent thoroughly with plenty of water. • To remove the mist outlet (21): Twist the mist outlet to either the right or the left. Align the arrow on the mist outlet with the arrow on the ring around the mist outlet. Pull up on the mist outlet once the arrows are aligned.
  • Page 10 Important • Make sure that no water gets into the lower part of the main body (22). • Clean the inner parts with a soft cloth. Never use any solvents or aggressive cleaning agents (23). • Only use the brush to clean the membrane (24). This should be done once a week. • Change the water in the tank at least once a week.
  • Page 11 Replacement of the demineralisation all granules are in the cartridge (32). cartridge • Remove the plastic cup and the pink styrofoam piece Always switch off the appliance before removing from the cartridge (33) and retain for future use (the the water tank. Do not reach inside the nebuliser refill resin consists of 3 refill bags) (34). space while the appliance is running! • Close the cap (35). • Soak the demineralisation cartridge in a bowl of water The cartridge must be replaced every 2 – 3 months. If the for at least 24 hours before use (38). The granules have water is very hard, it may be necessary to replace the cart- to absorb water to reach full performance. ridge earlier. White dust around the appliance is a sure sign • Now screw the cartridge onto the water tank cap (39). that the cartridge needs replacing. If white residues con- Close the tank cap securely! Place the water tank onto tinues to form around the appliance after a new cartridge the base (40). has been inserted, please make sure that the water you are Option B: Replace the entire cartridge using is untreated. If the water flows through a domestic decalcification system before it is used in the unit, salt will • Remove the water tank from the base and unscrew the precipitate around the appliance. water tank cap (25).

  • Page 13: Warranty

    Storing the appliance for extended periods Warranty Technical specifications Clean the appliance as described earlier and allow to dry The warranty conditions are defined by our representative thoroughly. Preferably store the appliance in its original box, in the country of sale. Please contact your dealer if, despite Mains voltage 230 – 240 V / 50 Hz in a dry place away from high temperatures. strict quality control, your appliance becomes defective. You Power consumption 40 / 125 – 140 W* must present your original receipt when making a claim Disposal Humidity output 400 / 550 g/h* under the warranty. Repairs to electric appliances can only Return your worn out unit to your dealer for be carried out by specialists. Through improper repairs, Suitable for rooms up to 60 m...
  • Page 14 AIR-O-SWISS is a registered trademark of PLASTON Group, Switzerland...

This manual is also suitable for:

Aos u650
