Pioneer PRO-150FD Service Manual

QQ
3 7 63 1515 0

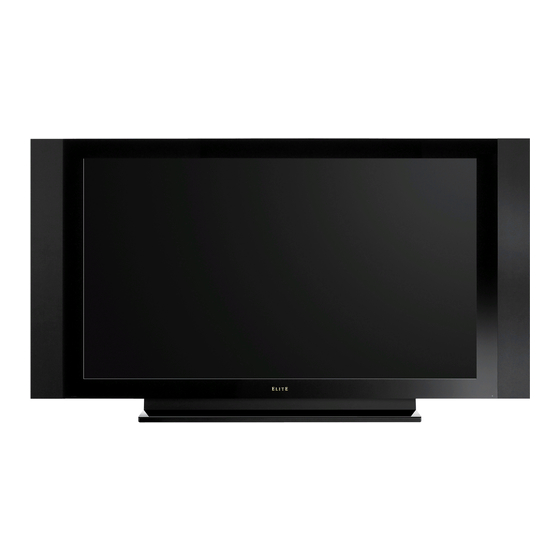

PLASMA DISPLAY SYSTEM
PRO-150FD
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
PRO-150FD KUCXC
TE This service manual should be used together with the following manual(s).
L 13942296513
Model No.
PDP-6010FD
www
PIONEER CORPORATION .
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
http://www.xiaoyu163.com
Type
AC 120 V
Order No.
ARP3453
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ...................................................................... 2
1.1 CONTRAST TABLE ....................................................................................................... 2
1.2 CONTRAST OF PCB ASSEMBLIES............................................................................. 9
2. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ............................................................ 12
2.1 OVERALL CONNECTION DIAGRAM (1/2) ................................................................. 12
2.2 OVERALL CONNECTION DIAGRAM (2/2) ................................................................. 14
2.3 HNM BLOCK DIAGRAM.............................................................................................. 16
2.4 CONNECTOR PIN DESCRIPTION ............................................................................. 17
2.5 HN MODULE ASSY (1/6) [8620 BLOCK] .................................................................... 18
2.6 HN MODULE ASSY (2/6) [8620_DDR BLOCK] .......................................................... 22
2.7 HN MODULE ASSY (3/6) [ETHERNET BLOCK]......................................................... 24
2.8 HN MODULE ASSY (4/6) [HNM_USB BLOCK] .......................................................... 26
2.9 HN MODULE ASSY (5/6) [HNM_IO BLOCK] .............................................................. 28
2.10 HN MODULE ASSY (6/6) [HNM_POWER BLOCK] .................................................. 30
3. PCB CONNECTION DIAGRAM ........................................................................................ 32
3.1 HN MODULE ASSY..................................................................................................... 32
4. DIAGNOSIS ...................................................................................................................... 34
4.1 DIAGNOSIS FLOWCHART ......................................................................................... 34
5. SERVICE MODE............................................................................................................... 37
5.1 DETAILS OF FACTORY MENU ................................................................................... 37
6. DISASSEMBLY ................................................................................................................. 38
6.1 DISASSEMBLY AND REASSEMBLY PRECAUTIONS FOR SPEAKER SYSTEM ..... 38
