Summary of Contents for Startone MK-200

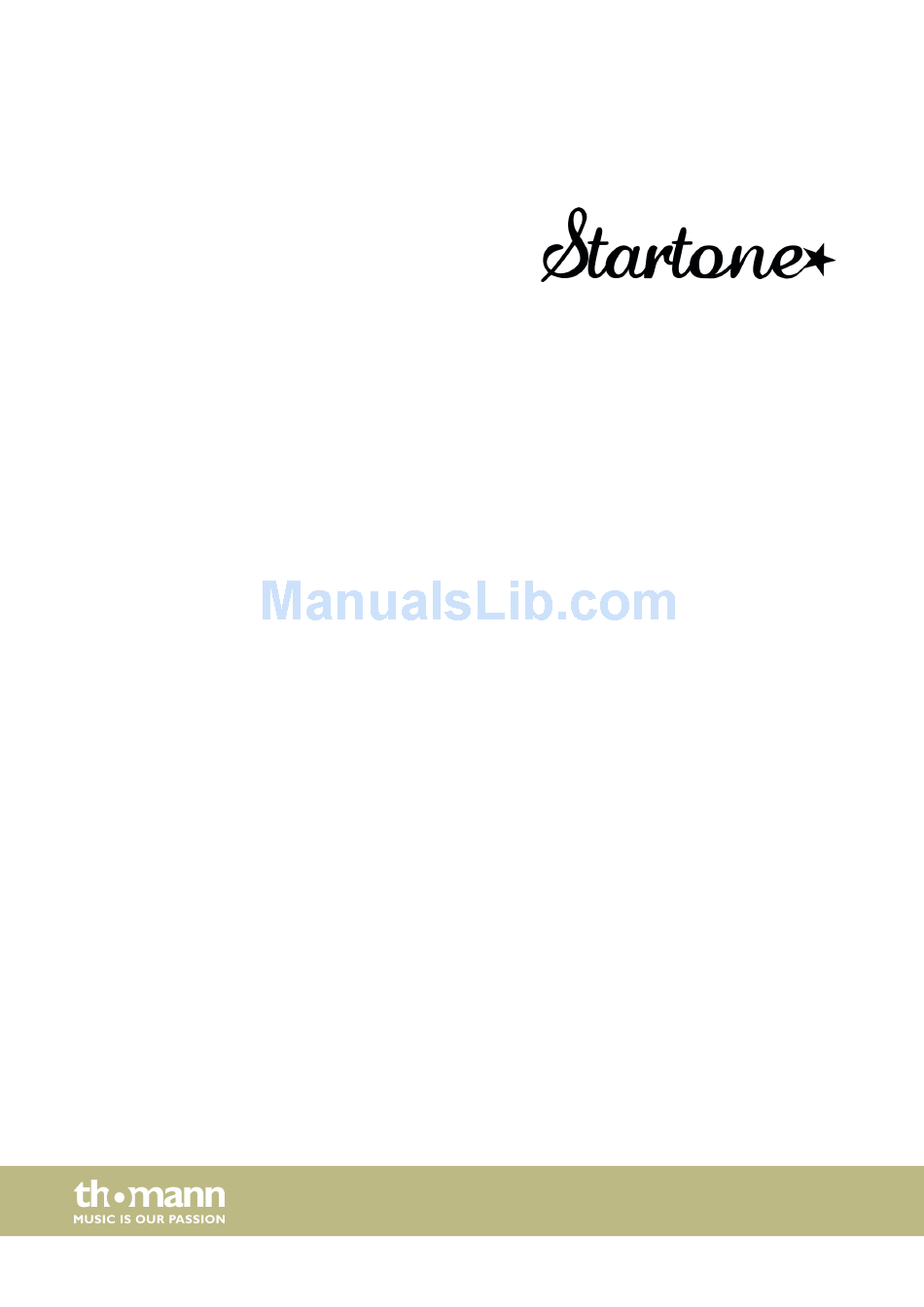

- Page 1 MK-200 keyboard user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 28.12.2015, ID: 375513...
-
Page 3: Table Of Contents
8.4 Function menu....................... 24 8.4.1 Transposing......................... 25 8.4.2 Octave shift........................25 8.4.3 Modulation........................25 8.4.4 Time signature......................26 8.4.5 Fine tuning........................26 8.4.6 Split point........................26 8.4.7 MIDI receive channel....................26 8.4.8 MIDI send channel..................... 27 8.4.9 Automatic shutoff..................... 27 MK-200... - Page 4 Table of contents 8.5 Mixer menu........................27 8.6 Touch sensitivity......................28 8.7 DSP effect......................... 29 8.8 Metronome........................29 8.9 Memory..........................29 8.9.1 Load / save parameters................... 29 8.10 Record..........................29 8.11 Rehearsal songs......................30 8.11.1 Selecting, playing and stopping rehearsal songs........30 8.12 Learning mode......................
-
Page 5: General Information
Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . MK-200... -
Page 6: Symbols And Signal Words
General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. Cross-references References to other locations in this manual are identified by an arrow and the speci‐... -
Page 7: Safety Instructions
Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. MK-200... - Page 8 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is pro‐ tected by a residual current circuit breaker.
-
Page 9: Features
100 rehearsal songs 100 demo songs Dual voice Record and playback function Modulation effect Split mode Metronome Transpose function Speaker: 2 × 3 W Connections: Headphones output, sustain pedal, USB, operating voltage Operation via power adapter (supplied) or batteries Automatic shutoff MK-200... -
Page 10: Assembly Instructions
Assembly instructions Assembly instructions Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: Control Panel And Connections
Control panel and connections Control panel and connections Overview Operating panel 1 Speaker. 2 Button to turn the keyboard on and off. 3 Rotary control [VOLUME] to set the volume. 4 [TEMPO] /[TEMPO] buttons to increase / decrease the tempo. MK-200... - Page 12 Control panel and connections 5 [LESSON/L-R PART/CHORD DICT.] buttons to adjust the lesson mode and to call the chord dictionary. 6 [SHIFT] button to call the second allocation of a button. 7 Display. 8 [FUNCTION] button to enter the function menu and fine tuning of parameters. 9 [MIXER] button to adjust the volume of each component.
- Page 13 Learning mode display for left and right hand. 11 Treble clef. To the right of it, the display shows the notes played in the right hand area. 12 USB symbol. Lights on USB connection of the device to a computer or the like. MK-200...
- Page 14 Control panel and connections 13 Bass clef. To the right of it, the display shows the notes played in the left hand area. 14 LCD symbol ‘LOWER’ Lights when the LOWER function is active. 15 LCD symbol ‘DUAL’ Display for Dual mode, left hand assignment and DSP. 16 LCD symbol ‘FADE’...
-
Page 15: Connectivity Options
NOTICE! To prevent damage to the speakers, turn the volume down to ‘Min‐ imum’ before you connect other devices to the keyboard. Computer The USB port allows the exchange of MIDI data with a computer. MK-200... -
Page 16: Switching On / Off And Basic Operation
Switching on / off and basic operation Switching on / off and basic operation 7.1 Powering up the keyboard 7.1.1 Normal switching on / off Press the power button on the far left of the operating panel to turn the keyboard on or off. -
Page 17: Functions
Keep the [SHIFT] button pressed again while pressing the [M2] / [DUAL] button to disable the Dual mode. ‘VOICE 2’ and the symbol next to ‘DUAL’ go out and you only hear the voice set for ‘VOICE 1’ . MK-200... -
Page 18: Split Mode
Functions 8.2.3 Split mode This function lets you assign an individual voice for the left hand area. Keep the [SHIFT] button pressed while pressing the [M3] / [LOWER] button to enable the Split mode. The LCD symbol next to ‘LOWER’ and ‘VOICE L’ appear in the display. -
Page 19: Starting Auto Accompaniment (Rhythm Track Only)
INTRO Before you start playing, press the [INTRO/ENDING] button to insert an Intro. ‘NOR’ or ‘VAR’ is flashing in the display. Depending on the selected Style the Intro consists of two to four bars, followed by the main part. MK-200... -
Page 20: Varying With Different Accompaniment Patterns
Functions MAIN This is the main pattern that is being repeated until a button is pressed to call another pattern of the Auto Accompaniment. FILL Press the [FILL A] or [FILL B] button to insert a rhythm variation until the end of the bar. -
Page 21: Tempo
O.T.S. mode. ‘O.T.S.’ appears in the display. The ABC mode is auto‐ matically turned on at that. Press one of the keys [M1] to [M4] that provides the desired settings suitable to the current Style. Press the [O.T.S.] button again to exit O.T.S. mode. MK-200... -
Page 22: Chord Recognition And Fingering Techniques
Functions 8.3.8 Chord recognition and fingering techniques How the chords are played or displayed for the left hand in the auto accompaniment on your keyboard is called chord fingering. A distinction is made between single and multi-finger chords on one hand and the chord detection over the entire keyboard range. - Page 23 (C, Cm, C7 and Cm7). Multi-finger chords With this method, you can play chords with normal fingering within the capabili‐ ties of the auto accompaniment. Here we show you 32 chords using the example of C chords. MK-200...
-
Page 24: Function Menu
Functions Chord recognition throughout the entire keyboard range The name of the recognized chords throughout the entire range of the keyboard appears on the display. Split Point setting for Auto Accompaniment will be ignored. 8.4 Function menu Press the [FUNCTION] button to enter the function menu. The first function to appear after activation is ‘Transpose’... -
Page 25: Transposing
Repeatedly press the [FUNCTION] button to open the Functions menu and let the display show ‘MOd oFF’ . Press the button to turn the Modulation effect on or off. When the effect is enabled, the display shows ‘oN’ , when disabled ‘oFF’ . MK-200... -
Page 26: Time Signature
Functions 8.4.4 Time signature Use this function to set the desired time signature for the Metronome function. Repeatedly press the [FUNCTION] button to open the Functions menu and let the display show ‘bEt 04’ . Use the buttons to set the time signature to 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 8/4 or 9/4. -
Page 27: Midi Send Channel
Adjustable parameters Parameter Control range Accompaniment volume ‘AVL 25’ 000 to 032 Drum volume ‘RTh 31’ 000 to 032 Bass volume ‘bAS 31’ 000 to 032 Volume polyphonic Melody 1 ‘CH1 31’ 000 to 032 MK-200... -
Page 28: Touch Sensitivity
Functions Parameter Control range Volume polyphonic Melody 2 ‘CH2 31’ 000 to 032 Volume polyphonic Melody 3 ‘CH3 31’ 000 to 032 Volume right hand voice 1 ‘UP1 28’ 000 to 032 Volume right hand voice 2 ‘UP2 20’ 000 to 032 Volume left hand voice ‘LOE 20’... -
Page 29: Dsp Effect
Memory data can not be retrieved if the O.T.S. function is turned on. The stored data will be reset to the default values when you turn off the key‐ board. 8.10 Record The keyboard lets you record your playing along with the accompaniment. A max‐ imum of 350 notes can be recorded. MK-200... -
Page 30: Rehearsal Songs
Functions Keep the [SHIFT] button pressed while pressing the [STORE] / [RECORD] button. The recording symbol ‘REC’ appears left in the display and the beats are flashing in time. Play the notes you want to record or press the [START/STOP] button to start recording. -
Page 31: Learning Mode
The rating is based on the level you have achieved during practising: Level 1: Ok (= try it again). Level 2: Good. Level 3: Very good. Level 4: Excellent. After the rating, the rehearsal song will be played again and you can go on prac‐ tising. MK-200... -
Page 32: Chord Dictionary
Functions 8.13 Chord dictionary The Chord dictionary is basically a built-in ‘Chord book’ assisting you to find the right tones of a chord if you e.g. know only the chord name, but not how to play it. DICT 1 (chord learning mode) Press the [CHORD DICT.] button to enter the ‘DICT’... -
Page 33: Midi Functions
If a ‘crash’ should occur, turn off computer and instrument and restart them after a few seconds. – If the computer is in standby or hibernation, wake the computer before connecting the USB cable. – Establish the USB connection between computer and instrument before turning on the instrument. MK-200... -
Page 34: Troubleshooting
Functions 8.15 Troubleshooting Problem Possible causes and solutions You hear a 'pop' sound from the speakers when switching the This is normal. No need to worry. digital piano on and off. No sound can be heard when playing the piano. Make sure that the volume control is set appropriately. -
Page 35: Midi Implementation Chart
Channels Pitch Bend Control Change Bank Select Modulation Portamento Time Data Entry Volume Expression Sustain Pedal Portamento ON/OFF Sostenuto Pedal Soft Pedal Reverb Program Chorus Program Reverb Level Chorus Level All Sound Off Reset All Controllers All Notes Off MK-200... - Page 36 MIDI implementation chart Function Sent Received Notes Program Change True # ******** 0 – 127 System Exclusive System Common Song Position Song Select Tune System Real Time Clock Commands Aux Messages Local ON/OFF ALL Notes OFF Active Sense Reset MIDI channel modes POLY MONO OMNI ON...
-
Page 37: Technical Specifications
DC IN, headphones (1/4"), Sustain pedal, USB Speakers 2 × 3 W Voltage supply Power adapter: 12 V (inner pole = plus) Dimensions (W × H × D) 940 mm × 136 mm × 360 mm Weight 4.5 kg MK-200... -
Page 38: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 39: Protecting The Environment
Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. MK-200... - Page 40 Notes keyboard...
- Page 41 Notes MK-200...
- Page 42 Notes keyboard...
- Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
