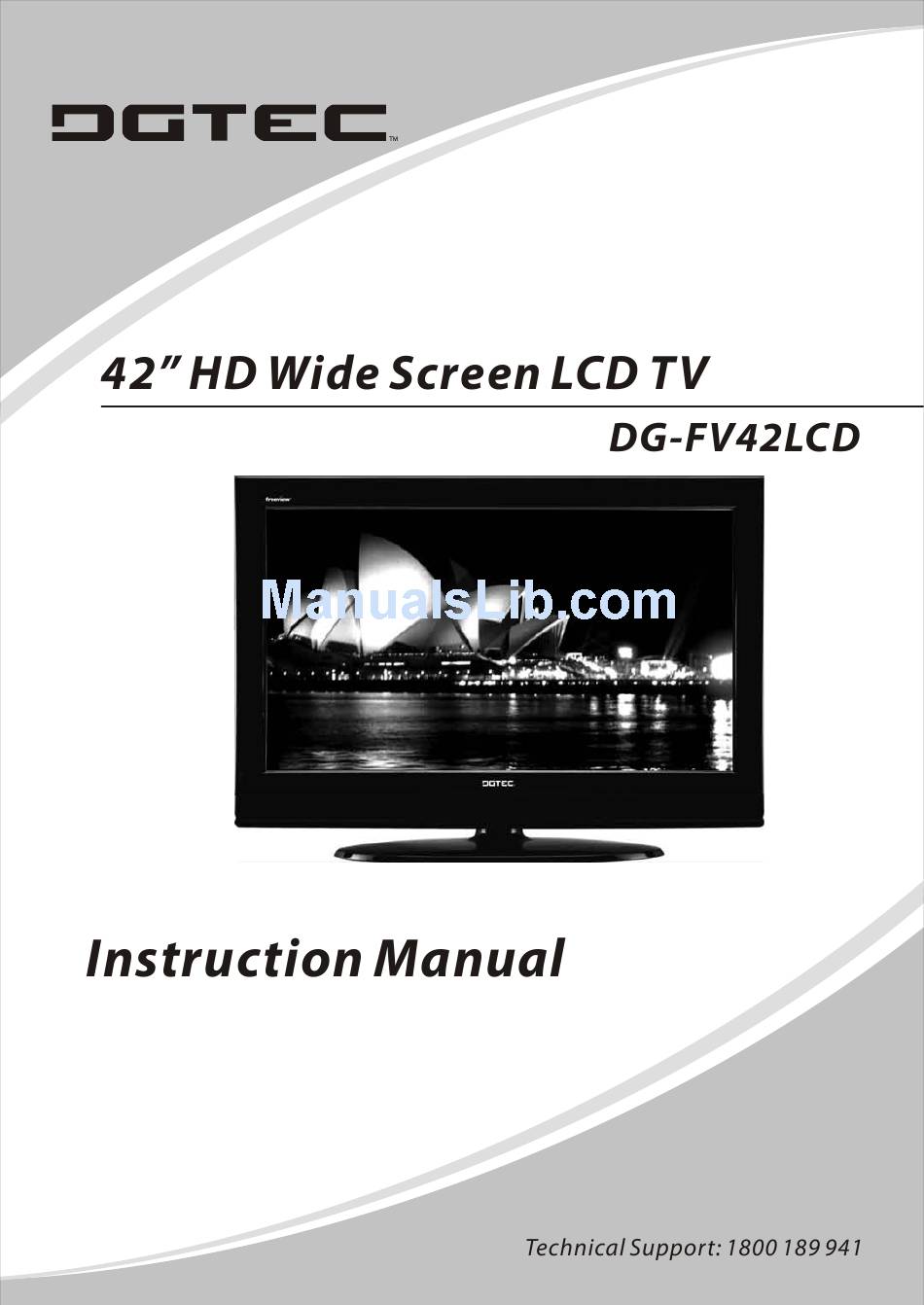

DGTEC DG-FV42LCD Instruction Manual

42” hd wide screen lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for DGTEC DG-FV42LCD

Summary of Contents for DGTEC DG-FV42LCD

  • Page 2: Table Of Contents

    Table of Contents Safety instructions............................2 Controls and connections ..........................4 Right Side Panel...................................4 Front Panel ....................................5 Rear Panel....................................6 Remote Control............................8 Remote Control Drawing ..............................8 Preparation of Remote Control ............................10 Using of Remote control..............................10 System Connections ..........................11 Connecting to Power Supply............................11 Connecting to a USB Device for Upgrading......................11 Connecting to an External AV Signal Source(Composite 1/S-Video) ..............12 Connecting to an External AV Signal Source(Composite 2) ................13 Connecting to an External AV Signal Source (YPbPr) ...................14...

  • Page 3: Safety Instructions

    Safety instructions Thank you for choosing our product. Please read this manual carefully and observe all safety and operating instructions. Store the manual in a safe place for later reference. The flash symbol displayed in a triangle warns the user of dangerous electrical voltages inside the device that could lead to electrical shocks with harmful effects to health if the device is used incorrectly.
  • Page 4 Safety instructions NOTES Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do not put product on bed, sofa or anything that blocks ventilation.

  • Page 5: Controls And Connections

    Controls and connections Right Side Panel 1. INPUT button Press to display a menu of all of the available input sources. When in setup menu, this button also serves as the ENTER button. 2. MENU button Press to enter or exit system setup menu. 3.

  • Page 6: Front Panel

    Controls and connections Front Panel 1. Power Indicator In active mode, it is blue; in standby mode, it turns red. 2. Remote Sensor Remote sensor window for the remote control. 3. Speaker 4. Color TFT screen Presents high resolution picture.

  • Page 7: Rear Panel

    Controls and connections Rear Panel 1. Antenna Input Jack Connected to external antenna to receive the ATV/DTV program in ATV/DTV mode. 2. VGA AUDIO IN Jack Connecting for VGA audio signal input. 3. AV/S-VIDEO Input Jacks Connecting for AV/S-VIDEO signal input in Composite 1 or S-Video mode.
  • Page 8 Controls and connections Rear Panel 7. VIDEO and L/R Audio Input Jacks Connecting for AV signal input in Composite 2 mode. 8. VGA Input Jack Connected to the VGA output jack on a personal computer. 9. HDMI Input Jacks Connecting for HDMI signal. 10.

  • Page 9: Remote Control

    Remote Control Remote Control Drawing 1. POWER button Press to enter or exit the standby mode. 2. DTV button Press to enter DTV mode. 3. ATV button Press to enter ATV mode. 4. SOUND button Press this button to change the audio mode: User, Standard, Music, Movie or Sports.
  • Page 10 Remote Control 15. red/green buttons 25. PICTURE button In Program Edit menu, use the red button to Press to select the picture mode: choose from delete a program and use the green button User, Dynamic, Standard or Mild. to rename a program (see P23-24 for details). 26.

  • Page 11: Preparation Of Remote Control

    Remote Control button Press this button to display the real clock and press the EXIT button to exit. Preparation of Remote Control Using of Remote control Place the remote control on an even surface and Point the remote control unit from no more than insert the supplied batteries into the remote about 7m from the remote control sensor and control as follows.

  • Page 12: System Connections

    System Connections Do not connect the power cord until all other connections have been made. Ensure that you match the cable colors with the socket colors when connecting audio and video cables. Connecting to Power Supply Connect the power supply cord to AC100~240V wall outlet, see the figure below: Connecting to a USB Device for Upgrading This unit can be connected to a USB device for upgrading the software, see the figure below: Make sure that upgrading files are stored in the USB device before connection.

  • Page 13: Connecting To An External Av Signal Source(Composite 1/S-Video)

    System Connections Connecting to an External AV Signal Source(Composite 1/S-Video) Use the audio and video cable to connect the input jacks on the rear panel of the unit to the external AV signal source. Connect the unit and the external AV signal source to the respective jacks with the S-Video cable. After connection, turn on the power of the TV and the external AV signal source.

  • Page 14: Connecting To An External Av Signal Source(Composite 2)

    System Connections Connecting to an External AV Signal Source(Composite 2) Use the audio and video cables to connect the external AV signal source to the AV input jacks on the rear panel of the unit. After connection, turn on the power of the TV and the external AV signal source. Press the INPUT button then direction buttons to select Composite 2 mode, and then press the ENTER button to confirm.

  • Page 15: Connecting To An External Av Signal Source (Ypbpr)

    System Connections Connecting to an External AV Signal Source (YPbPr) Use the audio and video cables to connect the Y/P input jacks on the rear panel of the unit to the external AV signal source. After connection, turn on the power of the TV and the external AV signal source. Press the INPUT button then direction buttons to select Component mode, and then press the ENTER button to confirm.

  • Page 16: Connecting To An External Av Signal Source (Hdmi)

    System Connections Connecting to an External AV Signal Source (HDMI) Follow the figure below to connect an HDMI signal source to the HDMI jack on the rear panel of the TV set. After connection, turn on the power of the TV and the external AV signal source. Press the INPUT button then direction buttons to select HDMI 1 or HDMI 2 mode, and then press the ENTER button to confirm.

  • Page 17: Connecting To A Coaxial Digital Output Device

    System Connections Connecting to a Coaxial Digital Output Device This unit is designed with a coaxial digital audio jack, can be connected to the digital amplifier, see the figure below: This feature is available only for amplifier equipped with coaxial digital audio input connectors.

  • Page 18: Connecting To Tv-Signal Input

    System Connections Connecting to TV-Signal Input Connect the TV signal cable (the antenna cable, for example) to the Antenna Input Jack on the back of the unit so that you can receive television programs. After connection, turn on the power of the TV set. Then use the INPUT and the direction buttons to select ATV or DTV mode, and then perform program selection using the number buttons on the remote.

  • Page 19: Connecting To An External Signal Source (Av Output)

    System Connections Connecting to an External Signal Source (AV Output) Follow the figure below to connect the external AV input device to the AV output jacks on the rear panel of the unit. After connection, turn on the power of the TV and the external AV signal source. Press the INPUT button then direction buttons to select the corresponding mode, and then press the ENTER button to confirm.

  • Page 20: Connecting To A Pc

    System Connections Connecting to a PC The unit can be connected to PC (personal computer) via the VGA cable. Follow the picture on the right to connect: Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit and connect the other end to the PC.

  • Page 21: Input Source Selection

    Input Source Selection The incorporates multiple video input modes which can be selected via the Input button on the television or remote. Press the INPUT button to enter the Input menu. The source menu will display as shown below: Use the ▲▼ direction buttons and the ENTER button On the input menu, press the ▲▼...

  • Page 22: Tv Operation And System Setup

    TV Operation and System Setup Preparations After connection, press the POWER button to turn on the unit. When turned on, the power indicator is blue. Press the INPUT button to change to ATV or DTV mode. TV mode settings are explained in the following section. The procedure in other modes is the same.

  • Page 23: Channel Setting

    TV Operation and System Setup If you did not use the unit for the first time or if your setup has changed, you can setup the unit from scratch by entering the Channel Setup menu. Please follow the instructions below: Channel Setting Press the MENU/BACK button once to enter CHANNEL and press the ENTER or ▼...
  • Page 24 TV Operation and System Setup DTV Manual Tuning Press the ▲▼ button to select DTV Manual Tuning and press the ENTER or ► button, the screen will display as shown on the right: Press the ◄► button to select desired program and press the ENTER button to start scanning.

  • Page 25: Picture Setting

    TV Operation and System Setup Rename a program: (only for ATV programs) Within the menu, press the ▲▼ button to select a program you want to rename and press the green button to set a symbol “RENAME” on the program. Press the ◄►...
  • Page 26 TV Operation and System Setup Contrast Press the ▲▼ button to select Contrast and press the ◄► button to enter the adjusting bar, then press the ◄► button to adjust the level. Brightness Press the ▲▼ button to select Brightness and press the ◄►...
  • Page 27 TV Operation and System Setup Green Press the ▲▼ button to select Green and press the ◄► button to enter the adjusting bar, then press the ◄► button to adjust the level. Blue Press the ▲▼ button to select Blue and press the ◄► button to enter the adjusting bar, then press the ◄►...

  • Page 28: Sound Setting

    TV Operation and System Setup Size Press the ▲▼ button to select Size and press the ◄► button to adjust the level. Phase Press the ▲▼ button to select Phase and press the ◄► button to adjust the level. Sound Setting Press the MENU/BACK button once to enter CHANNEL menu.

  • Page 29: Time Setting

    TV Operation and System Setup SPDIF Output Press the ▲▼ button to select SPDIF Output and press the ◄► button to select PCM, Off or AC3. AD (Audio Description) Switch For the people with poor hearing, some program has a subsidiary sound track, which description the current menu.
  • Page 30 TV Operation and System Setup Clock Press the ▲▼ button to select Clock and press the ► or ENTER button to prompt an information box, as shown: Within the sub menu, press the ▲▼ button to select desired item and press the ◄► button to set. Press the ENTER button to close after selecting Close.

  • Page 31: Option Setting

    TV Operation and System Setup Time Zone Press the ▲▼ button to select Time Zone and press the ◄► button to select desired time zone. Option Setting Press the MENU/BACK button once to enter CHANNEL menu. Press the ◄► button to select OPTION and press the ENTER or ▼...
  • Page 32 TV Operation and System Setup Subtitle Language Press the ▲▼ button to select Subtitle Language and press the ► or ENTER button to prompt an information box, as shown: Within the sub menu, press the ▲▼ button to select Primary or Secondary, press the ◄► button to select desired language.

  • Page 33: Lock Setting

    TV Operation and System Setup Allow Update Press the ▲▼ button to select Allow Update and press the ◄► button to select On or Off. System Update Time Set the time when the system update automatically in standby mode. Press the ▲▼ button to select System Update Time and press the ►...
  • Page 34 TV Operation and System Setup Lock System Press the ▲▼ button to select Lock System and press the ◄► button to select On or Off. Set Password Press the ▲▼ button to select Set Password and press the ENTER or ▼ button to prompt an information box, as shown on the right: Use the number buttons to input the new password and again to confirm.

  • Page 35: Program Guide Function

    Program Guide Function In DTV mode, press the GUIDE button to display the PROGRAM GUIDE menu on the screen, as shown: Within the menu, press the ▲▼◄► button to highlight a program. Press the DISPLAY button to display the detailed information about the highlighted program. Press again to return to the Program Guide menu.

  • Page 36: Teletext Function

    TELETEXT Function Teletext is a free service broadcast by most TV stations which provides up-to-the-minute information on news, weather, television programs, stock prices and many other topics. The teletext decoder of this TV can support the SIMPLE and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number.

  • Page 37: Nicam Function

    NICAM Function The unit supports NICAM function. Under NICAM TV broadcast: When receiving stereo audio signals, press the STEREO button on the remote control repeatedly to select the sound tracks between NICAM STEREO and Mono, the screen will show the corresponding display as shown below: When receiving bilingual audio signals, press the STEREO button on the remote control repeatedly to shift the sound tracks between NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II and Mono and...

  • Page 38: Troubleshooting

    Troubleshooting Carry out the problem-solving measures described in the following section before contacting Customer Support. Turn off the device immediately as soon as you suspect a malfunction and unplug the power plug. Do not attempt to repair the device yourself. SYMPTOM CHECK ITEM Make sure the system connection is correct.

  • Page 39: Specifications

    Specifications Model DG-FV42LCD Screen Size 42-inch TFT LCD Native Resolution 1920 × 1080 Pixels Brightness 500 cd/m2 Contrast Radio 5000 :1 Response time (ms) 6.5 ms Teletext 1000 pages Speaker Output 8 W + 8 W Power Requirement AC100V-240V, 50/60Hz Power Consumption <...
  • Page 40 NEED HELP? If you are experiencing difficulty operating this product or require set up assistance please contact the DGTEC Service Centre. The call is free from anywhere in Australia. Our operators will assist you in plain English without the technical jargon:...

This manual is also suitable for:
