Installation

This chapter describes the function of the Power-over-Ethernet Adapter Kit and shows how to install
it on your network.
Basic knowledge of networking is assumed. Read this chapter before you proceed.

The POE Injector

The PoE Injector mixes data and power into the RJ-45 connector and then transmits power and data
over the Cat5 cable to the PoE (direct connection) compatible device or PoE Splitter. This Injector
inputs 48 Volts DC into the PoE system.
Object

Injector

PWR LED
Power and Data Out Port
DC Jack
Cat 5 Ethernet Cable
YML720 Rev1
www.netcomm.com.au

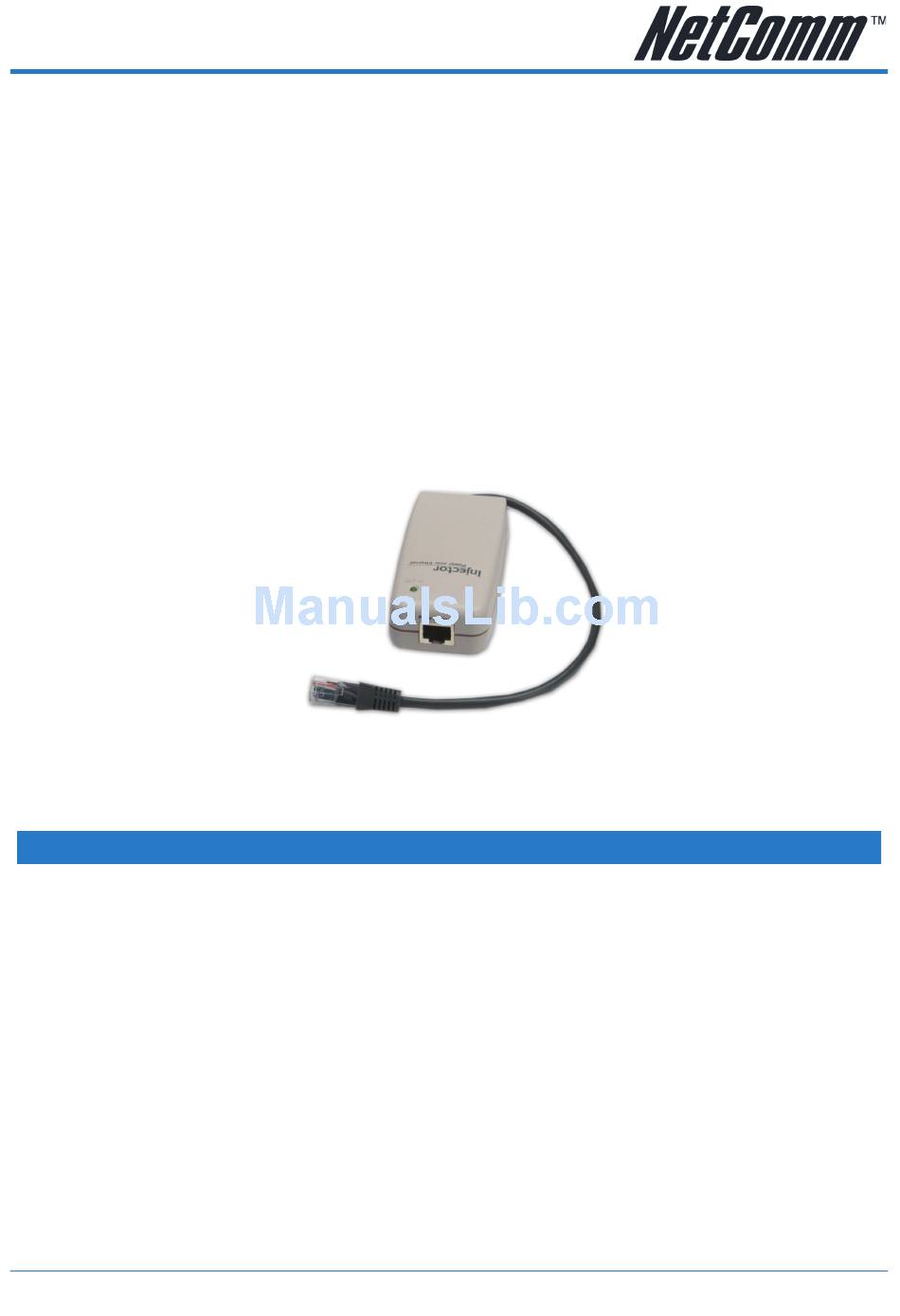

Injector
Figure 1
Description
Lights green to indicate that the power has been supplied
to the device
Connects the RJ-45 port of Splitter through Cat 5
Ethernet cable
Connects to the power adapter for receiving power - 48
Volts DC.
Connects to other network devices
NetComm NPPOE1001 Power over Ethernet Kit
5
