entraguard Platinum Installation Manual

Telephone entry controller
Hide thumbs

Advertisement

Table of Contents

®
EntraGuard
Platinum Telephone Entry Controller
Installation Guide
This installation guide provides, basic installation information, drawings, and controller setup instructions to use when
installing the EntraGuard Platinum Telephone Entry controller. The EntraGuard Platinum controller may be used alone or
may be connected to an access control network using PXL-500 family controllers. For instructions on how to install a
postal lock, see the EntraGuard Platinum Postal Lock Installation Application Note (p/n 01964-001).
NOTE: It is the responsibility of the installation organization to have only technically qualified personnel performing the
hardware installation.
1.0
Drawings
1.1
EntraGuard Platinum Enclosure

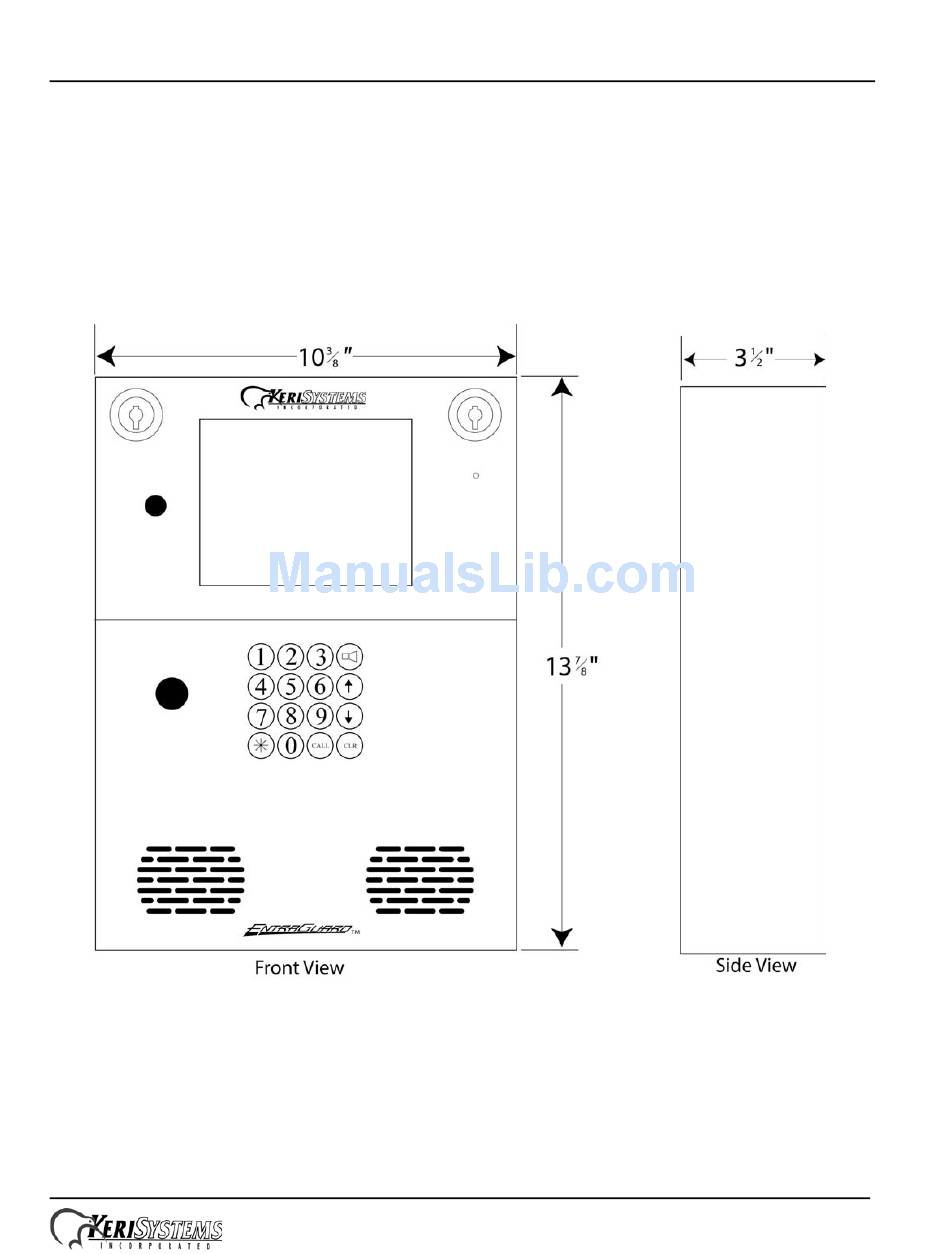

Figure 1: The EntraGuard Platinum Telephone Entry Controller
Wiring diagrams are provided for the new style Platinum controller PCB (p/n 05735-001, see Figure 3 on page 3) and old
style Platinum controller PCB (p/n 05728-001, see Figure 4 on page 4).
NOTE: Power down the unit before making or removing any connections. Failure to do so will damage the controller.
NOTE: Please refer to the Compatibility_Guide_Series_3_and_4.pdf document (p/n 01876-001) for Doors software/
Entraguard firmware compatibility.
