entraguard Gold Quick Start Manual

Telephone entry controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EntraGuard
This quick start guide provides, basic installation information, drawings, first time power-on instructions, and short
descriptions of key terms and concepts for installing the EntraGuard Gold Telephone Entry controller. The EntraGuard
Gold controller may be used alone or may be connected to a PXL network.
NOTE: It is the responsibility of the installation organization to have only technically qualified personnel performing
the installation.

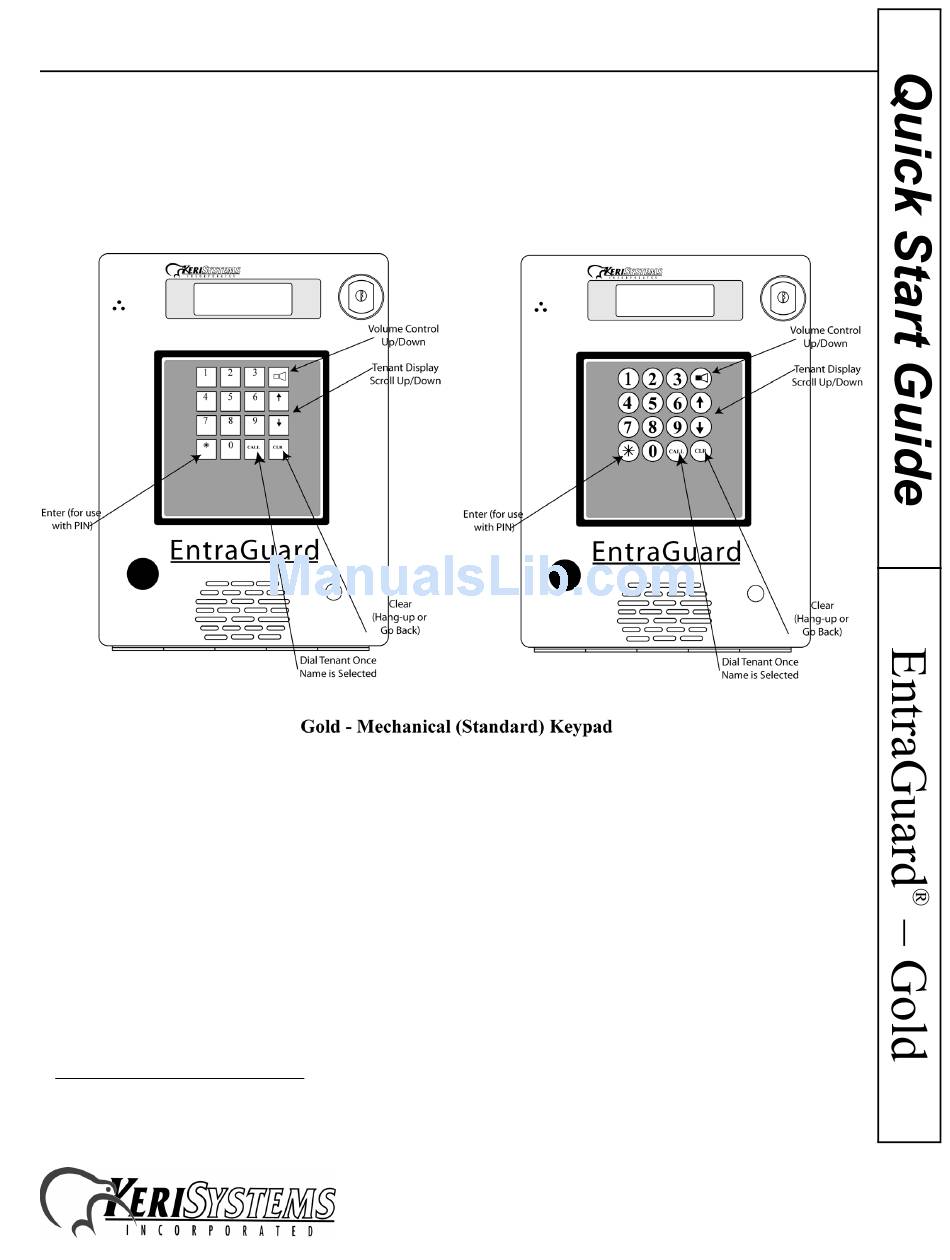

Figure 1: The EntraGuard Gold Telephone Entry Controller - Mechanical Keypad Front Panel
1. If the EntraGuard Gold unit is connected to a PXL-250 network, the EntraGuard unit must be the master
controller.
®
Gold Telephone Entry Controller
1530 Old Oakland Road, Suite 100
San Jose, CA 95112 USA
(800) 260-5265 (408) 451-2520 FAX (408) 441-0309
Web: http://www.kerisys.com E-mail: sales@kerisys.com
1
01801-001 Rev. 2.2
Page 1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gold and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for entraguard Gold

Summary of Contents for entraguard Gold

  • Page 1 Figure 1: The EntraGuard Gold Telephone Entry Controller - Mechanical Keypad Front Panel 1. If the EntraGuard Gold unit is connected to a PXL-250 network, the EntraGuard unit must be the master controller. 1530 Old Oakland Road, Suite 100 01801-001 Rev.
  • Page 2 Figure 2: The EntraGuard Gold Telephone Entry Controller - Alpha/Numeric Keypad Front Panel NOTE: Keri Systems, Inc. recommends routine maintenance on the EntraGuard Gold controller with the radiant alpha/ numeric keypad be performed by wiping down the red bezel surrounding the EntraGuard keypad.
  • Page 3 NOTE: You must power down the unit before attempting to make or remove any connections. Failure to do so will damage the controller. 1. For all EntraGuard Gold controllers with the alpha numeric keypad and EntraGuard Gold controllers with the mechanical (standard) keypad with part numbers 05712-001, 05712-002, and 05713-001.
  • Page 4 NOTE: You must power down the unit before attempting to make or remove any connections. Failure to do so will damage the controller. 1. For all EntraGuard Gold controllers with the alpha numeric keypad and EntraGuard Gold controllers with the mechanical (standard) keypad with part numbers 05712-001, 05712-002, and 05713-001.
  • Page 5 NOTE: You must power down the unit before attempting to make or remove any connections. Failure to do so will damage the controller. 1. For EntraGuard Gold controllers with the mechanical (standard) keypad with part numbers 05720-001, 05720-002, and 05721-001.

  • Page 6: Specifications

    NOTE: If an electronic locking device (such as a magnetic lock, a door strike, or similar device) is to be driven by the same power supply as the EntraGuard Gold controller, please ensure the power supply provides enough current to drive every device connected to that supply plus an adequate safety margin.

  • Page 7: Cable Requirements

    5,000 feet per star line and 16,000 feet total network length Telephone • 1 pair copper phone line NOTE: EntraGuard Gold is not to be used with a Centrex, PBX, or digital phone line. Only use a Plain Old Telephone Service (POTS) analog phone line. Input Power •...
  • Page 8 • route all controllers in a network in a single, continuous daisy-chain (with the EntraGuard Gold controller as the master) •...

  • Page 9: Wiring Instructions

    ® EntraGuard Gold Telephone Entry Controller Wiring Instructions Refer to Figure 4 on page 4 for all wiring connections. Terminal Blocks Figure 6: Connecting Wires and Removing Terminal Blocks NOTE: Screws on terminal blocks must be tightened securely. Connecting the Earth Ground and the 12 VDC Power...
  • Page 10 Connecting a Door Status Input Each EntraGuard Gold controller is shipped with an installation kit including all necessary terminal blocks and transorbs. One of these terminal blocks has a jumper across pins 1 and 2. This terminal block is designated for use on TB-4.
  • Page 11 Make the following connections for an Auxiliary RTE A-door input. Figure 11: Auxiliary A-Door RTE Input Connections 1. An EntraGuard Gold unit may only be used as a slave to a master EntraGuard Gold unit. 1530 Old Oakland Road, Suite 100 01801-001 Rev.
  • Page 12 ® EntraGuard Gold Telephone Entry Controller Connecting an Alarm Output Relay Figure 12: Alarm Output Relay Connections Connecting a Fail-Safe Lock Output Relay Figure 13: Fail-Safe Lock Output Relay Connections 1530 Old Oakland Road, Suite 100 01801-001 Rev. 2.2 San Jose, CA 95112 USA (800) 260-5265 (408) 451-2520 FAX (408) 441-0309 Web: http://www.kerisys.com E-mail: sales@kerisys.com...
  • Page 13 ® EntraGuard Gold Telephone Entry Controller Connecting a Fail-Secure Lock Output Relay Figure 14: Fail-Secure Lock Output Relay Connections 1530 Old Oakland Road, Suite 100 01801-001 Rev. 2.2 San Jose, CA 95112 USA (800) 260-5265 (408) 451-2520 FAX (408) 441-0309 Web: http://www.kerisys.com E-mail: sales@kerisys.com...
  • Page 14 (see J3 in Figure 4 on page 4) while others have a terminal block (see TB-15 in Figure 5 on page 5) for use with a phone line. If the EntraGuard Gold controller has a terminal block instead of an RJ11 plug, connect the TIP line to either Pin 1 or Pin 2 then connect the Ring line to the other Pin (see Figure 15).
  • Page 15 On controllers using an RJ11 phone plug, the phone line then goes out of the J4 phone plug to the next unit’s J3 plug and so on to all the networked EntraGuard units (see Figure 16). On all other controllers, the phone line connects from TB- 15 to the next unit’s TB-15 and so on to all the networked EntraGuard units (see...
  • Page 16 ® EntraGuard Gold Telephone Entry Controller Figure 17: Single Phone Line for a Multiple EntraGuard Gold Unit Network Using TB-15 1530 Old Oakland Road, Suite 100 01801-001 Rev. 2.2 San Jose, CA 95112 USA (800) 260-5265 (408) 451-2520 FAX (408) 441-0309 Web: http://www.kerisys.com E-mail: sales@kerisys.com...
  • Page 17 EntraGuard Gold Telephone Entry Controller Between EntraGuard Network and Host Computer A communication link between the EntraGuard network and the host computer is provided via one of two ways. • using the RJ11 phone port or TB-15 phone terminal block •...
  • Page 18 ® EntraGuard Gold Telephone Entry Controller 5.2.2 RS-232 Serial Port Using the RS-232 serial port for communication between the EntraGuard unit and the host computer may be done one of two ways: • by direct connect • through an external modem.
  • Page 19 5.2.2.1 Direct Serial Connection – Controller to PC To make the connection between the EntraGuard master controller and the host computer you will use one cable. • If the host computer has a male DB-9 connector on the serial port, you must use a Keri Systems KDP-252 cable or create a cable according to the drawings in Figure 19 or Figure 20.
  • Page 20 Figure 21: PC/DB-25F to Telephone Entry/DB-9M RS-232 Direct Serial Connections Figure 22: PC/DB-25F to Telephone Entry/TB-12 RS-232 Direct Serial Connections 1. For all EntraGuard Gold controllers with the alpha numeric keypad and EntraGuard Gold controllers with the mechanical (standard) keypad with part numbers 05712-001, 05712-002, and 05713-001.
  • Page 21 ® EntraGuard Gold Telephone Entry Controller 5.2.2.2 Modem to Controller To make the connection between the master controller and the host computer you will use two cables: one between the host computer and its modem (see Section 5.2.3 on page 24), and one between the master controller and its modem.
  • Page 22 ® EntraGuard Gold Telephone Entry Controller The Keri Systems part number for this cable is KDP-929M. Figure 25: Modem/DB-9M to Telephone Entry/DB-9M Serial Port Connection Figure 26: Modem/DB-9M to Telephone Entry/TB-12 Serial Port Connection 1530 Old Oakland Road, Suite 100 01801-001 Rev.
  • Page 23 ® EntraGuard Gold Telephone Entry Controller 5.2.2.3 Modem Cable Connection • An adapter cable is provided, when needed, with a modem purchased from Keri Systems. Connect the adapter cable between the modem and the KDP-336 cable as shown in side A of Figure 27.
  • Page 24 ® EntraGuard Gold Telephone Entry Controller 5.2.3 Modem to PC Serial Connection Keri Systems does not provide this cable. It is an off-the-shelf item from any computer supplier or electronics store, and its configuration is dependent upon the configuration of the serial port on the host computer. Based on the serial port, there are four possible cables.
  • Page 25 ® EntraGuard Gold Telephone Entry Controller Figure 30: Modem/DB-9M to PC/DB-9F PC Serial COM Port Connection Figure 31: Modem/DB-9M to PC/DB-25F PC Serial COM Port Connection 1530 Old Oakland Road, Suite 100 01801-001 Rev. 2.2 San Jose, CA 95112 USA (800) 260-5265 (408) 451-2520 FAX (408) 441-0309 Web: http://www.kerisys.com E-mail: sales@kerisys.com...

  • Page 26: Network Communication

    ® EntraGuard Gold Telephone Entry Controller Network Communication 5.3.1 RS-485 Access Control Network Connection The following figure shows how to connect more than one controller to the access control network. Figure 32: RS-485 Network Connections 1530 Old Oakland Road, Suite 100 01801-001 Rev.

  • Page 27: Postal Lock Installation

    Before the postal switch is ready for operation, you must set the postal switch jumper to the proper position. To set the postal switch jumper, locate JP1 on the EntraGuard Gold main board (see Figure 3 on page 3). When the jumper is installed, the postal switch is not enabled.

  • Page 28: Setup Controller

    If you're turning system power on for the first time, certain tasks must be performed prior to entering access control information from Doors. On the EntraGuard Gold main board (see Figure 3 on page 3), hold the S1 Button down and turn the controller’s power on.
  • Page 29 Figure 35: Set Unit Address The address range is from 1 to 128. On a mixed EntraGuard/PXL network, the EntraGuard unit must be set as the Master Controller and the Master Controller must be set to address 1. Other slave EntraGuard/PXL-250 controllers may be assigned any number from 2 to 128.
  • Page 30 NOTE: An auto-configuration must be performed any time changes are made to the 485 network. 1. The EntraGuard Gold Controller must be installed as the Master Controller in a mixed EntraGuard/PXL network.

  • Page 31: Diagnostics And Troubleshooting

    29). Once the controller’s RAM has been cleared, the unit is ready for use. The LCD will rotate between the Initialization Warning and EntraGuard Default screens (see Figure 37 on page 30 and Figure 38 on page 30) until a Total Update from Doors has been performed on the unit.

  • Page 32: Normally-Closed

    ® EntraGuard Gold Telephone Entry Controller General Information on Inputs A controller input detects a state change generated by a device outside the controller that may prompt a response from the controller. Input devices that generate a state change may be normally closed or normally open. This section provides a brief description of normally closed versus normally open inputs.
