Summary of Contents for ICRealtime AVS-1000B

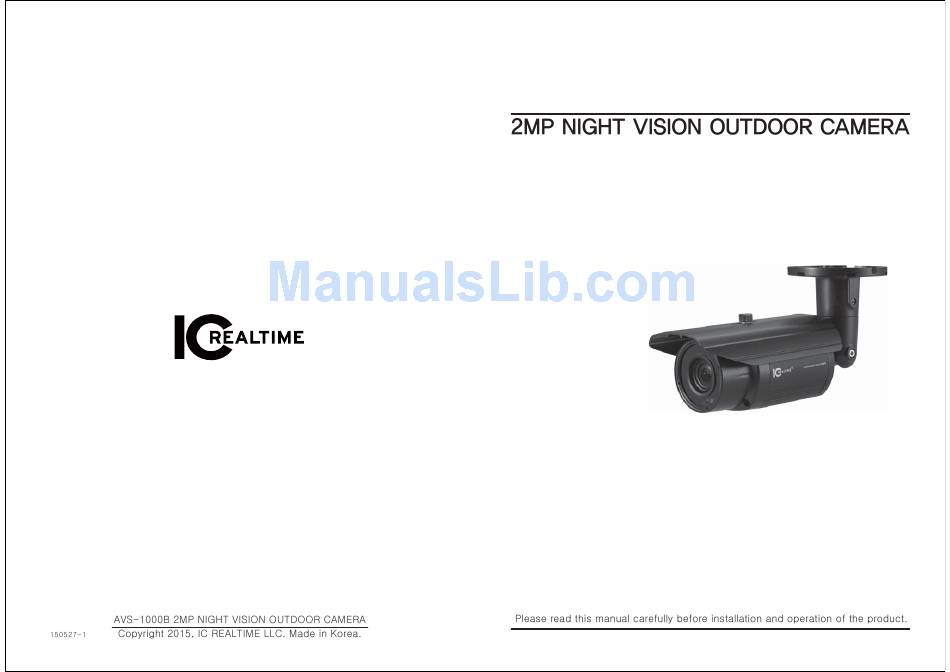

- Page 1 Full HD AVS CAMERA · AVS-1000B...
- Page 2 Important Safety Instructions Warning and Attention Symbols 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
-
Page 3: Table Of Contents
1. Precautions Table of contents 1. Precautions ------------------------------------------------------------ 5 2. Limitation of liability -------------------------------------------------- 5 3. Disclaimer of warranty ----------------------------------------------- 6 4. Package ---------------------------------------------------------------- 7 5. Main Features---------------------------------------------------------- 7 6. Installation -------------------------------------------------------- 8~10 7. Troubleshooting -----------------------------------------------------12 8. Dimension ------------------------------------------------------------13 9. Specification ---------------------------------------------------------14 2. -
Page 4: Disclaimer Of Warranty
3. Disclaimer of warranty 4. Package Installation Manual NIGHT VISION OUTDOOR CAMERA · AVS-1000B &DPHUD [ 0DQXDO [ / :UHQFK [ ‘ 7DSSLQJ VFUHZ [ 3ODVWLF DQFKRU [ 5. Main Features ‡ 6HQVRU 0HJDSL[HO 621< &026 6HQVRU ‡ (IIHFWLYH SL[HOV + [ 9 0HJDSL[HO ‡... -
Page 5: Installation
6. Installation 6. Installation 6-1. Installation overview 6-2. 3-Axis Adjustment PAN 360° Pan bolt ROTATION 360° Rotation bolt Tilt bolt TILT 180° Plastic Anchor 6-3. Zoom & Focus External Adjustment Mount Screw (Ø4X30L-3EA) Right turn Left turn ZOOM FOCUS (Tightening) (Loosening) -
Page 6: Installation
6. Installation Connecting to POWER 6-4. Waterproof processing of cable end connection A. Power connection (Power supply: (DC12V) A. Power supply B. Power Cable (Extension) (Red) a. Power cable (Black) B. Power Cable (Extension) * Caution 3OHDVH PDNH VXUH WR VHDO WKHVH SODFHV ZLWK D WDSH WLJKWO\ HQRXJK WR SUHYHQW ZDWHU VPHDULQJ LQWR WKH cable. -
Page 7: Troubleshooting
7. Troubleshooting 8. Dimension (mm) Problems Troubleshooting Nothing appears on the screen. Ø88 The image on the screen is dim. The image on the screen is dark. 120.2 83.2 39.7 The camera is not working properly, and the surface of the camera is hot. -
Page 8: Specification
9. Specifications MEMO Model AVS-1000B Image sensor 1/2.8" 2Megapixel SONY CMOS Effective Pixels 1944(H) x 1104(V) Synchronization Internal Video output 1-channel BNC HDCVI high definition video output S/N Ratio 50dB (AGC OFF, Weight ON) Min.Illumination 0.05Lux @F1.2 (0Lux IR LED on)
