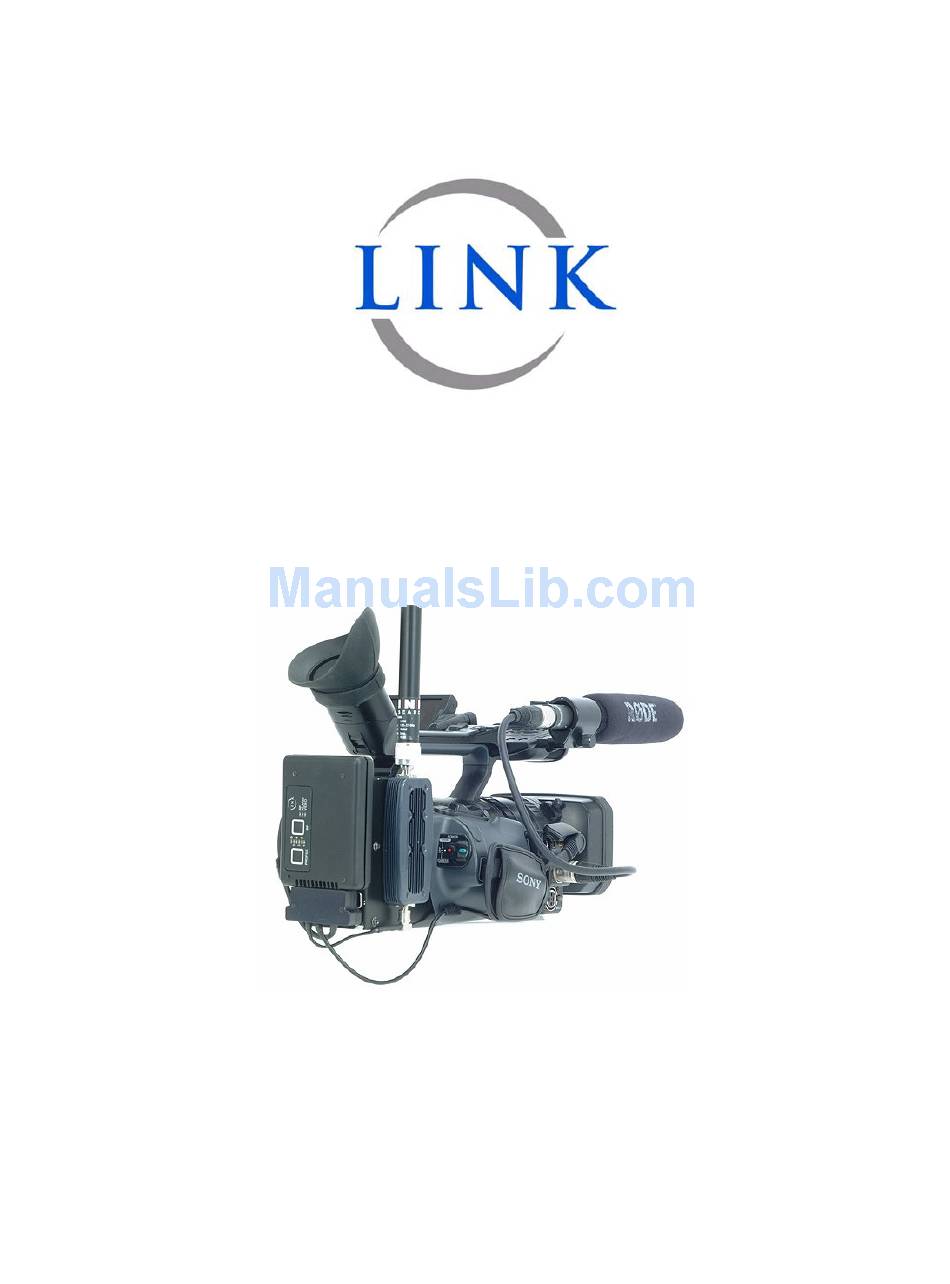

LINK RESEARCH PRODUCT MANUAL L1360 XPc Transmitter Manual Contact: Link Research Main +44 (0) 1923 474 060 Support +44 (0) 1923 474 099 Web: www.linkres.co.uk...
Default Settings Specification Connector Interface Mechanical Configuration & Firmware Upgrades XPc Configuration via Link Control Firmware Upgrades XPc Product Part Numbers Part Numbers for XPc Accessories Images are for illustration only and may differ from components supplied Link Research Ltd www.linkres.co.uk...
Page 3
The equipment has been designed to be CE compliant and an EC Declaration of Conformity and Technical files are available on request. Please contact Link SUPPORT any issues. Please ensure that normal anti-static precautions are taken when removing the XPc interface connector from the main unit.
– consult Link Research Ltd. if this is required. It should not be mounted on a hot surface. The XPc provides two RF outputs (with phantom power) designed to drive a range of amplifiers and active antennas.
RF output. LEDs provide an indication of the unit’s status; the current Profile and state of the RF output and unit Alarms. The Profiles are edited in the XPc using Link Control software running on a PC. See section 4.1 for details.
Default Settings Following a ‘Link Control Memory/Restore Defaults it will be necessary to select the required operating mode and modulation configuration. The default settings are :- Memory Memory Profile Auto Set Service Name Modulation Frequency 2.295MHz RF Output Mod. Mode QPSK Mod.
It should be noted that this corresponds to the total data rate which includes the video, audio and any user data. Images are for illustration only and may differ from components supplied Link Research Ltd www.linkres.co.uk Support UK/Europe + (44) 1923 474099 USA +(1)9786715700...
Due to the improvement that LMS-T has over DVB-T these settings give approximately 50% improvement of bit rates for the same level of ruggedness of the RF link. For example DVB-T 16QAM, 1/32 GI, 1/2 CR gives 12Mbits whereas LMS-T 16QAM gives 18Mbits.
Max power ~ 6W excluding PA / PA’s. Also dependant upon RF output power and video standard 3.6.5 RF 1 & 2 Two outputs (-3dBm into 50Ω nominal) with phantom power to drive Link Research power amplifier or active antenna. Please contact Link Research Ltd. For details of available amplifiers and active antenna.
Connect the PC COM port to the XPc via a link L0002 serial interface cable ‘Remote’ connector. Start the remote control programme by clicking on the Link Control icon and a window like that shown below will open. 4.1.1 ‘Control’...
Please consult the Link Research website for details of the latest firmware releases. http://www.linkres.co.uk/support.php. The XPc unit can be upgraded via the RS232 port. The required file can be downloaded from the Link Research website and copied onto a local PC.
Page 12
If the connection is successful, the following prompt will be seen on the PC screen. Images are for illustration only and may differ from components supplied Link Research Ltd www.linkres.co.uk Support UK/Europe + (44) 1923 474099 USA +(1)9786715700...
Page 13
N.B. If the power is interrupted at any stage during this process, the new code will not be loaded. Images are for illustration only and may differ from components supplied Link Research Ltd www.linkres.co.uk Support UK/Europe + (44) 1923 474099 USA +(1)9786715700...
Anton Bauer battery mounting kit L9994-IDX IDX battery mounting kit End of Document Images are for illustration only and may differ from components supplied Link Research Ltd www.linkres.co.uk Support UK/Europe + (44) 1923 474099 USA +(1)9786715700 Page 13 of 14 CL140067...
