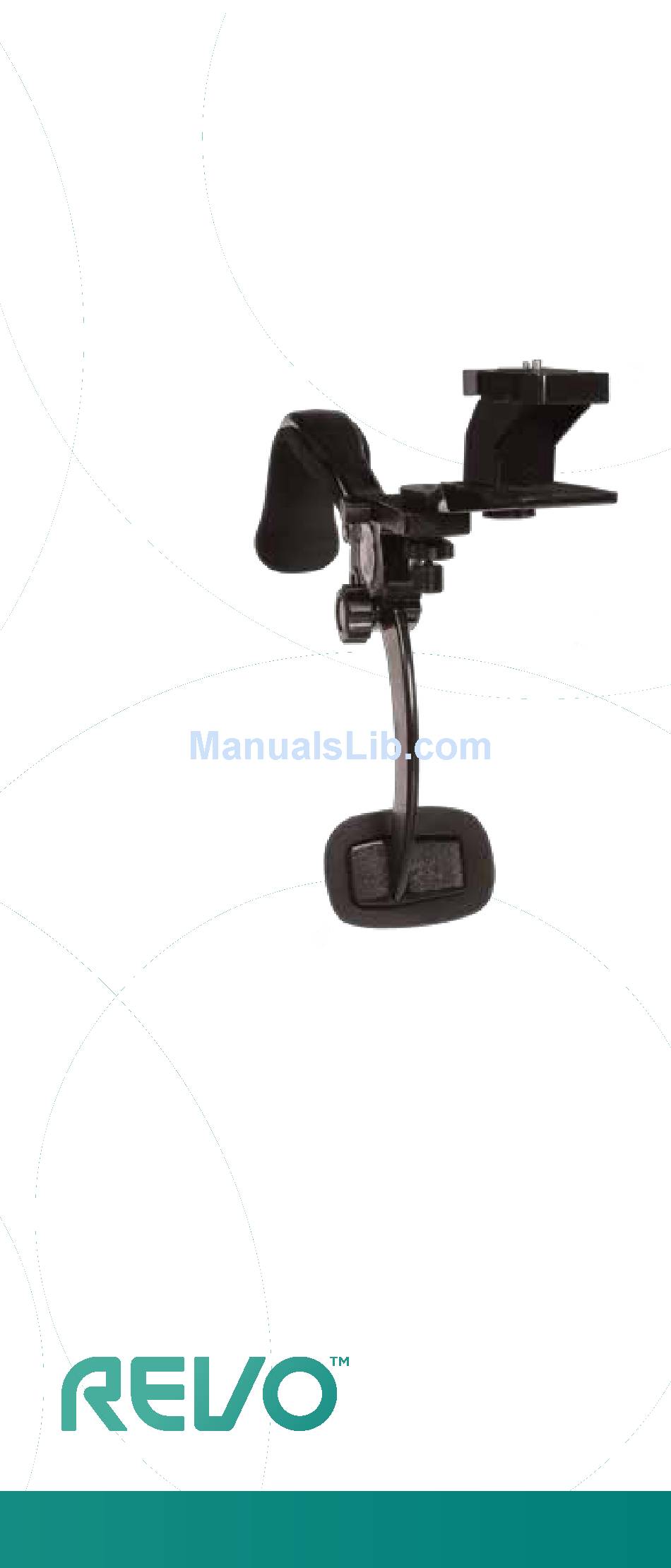

- Page 1 SR-500 Video Shoulder Support System...
- Page 2 Made from high-density plastic and weighing just 2.55 pounds, the SR-500 unit folds up for easy storage. The included baseplate and riser with quick-release plate give you flexibility and adjustability. This mount supports a camera weighing up to 4.4 pounds using the included riser, or up to...
- Page 3 Place the SR-500 mount on your shoulder and wrap the support strap around your body and attach the loose end of the strap to the other attaching ring behind the camera mounting platform.
- Page 4 Mounting the Camera with the Baseplate Slide the screw holding the camera baseplate back towards the shoulder mount. Tighten the screw until secure. If you’re mounting the camera directly on the baseplate, place the camera on the baseplate and attach it using the camera mounting screw. Tighten the screw firmly to secure the camera.
- Page 5 With the camera now mounted, lift the shoulder mount onto your shoulder and wrap the support strap around your body to attach it to the ring behind the baseplate. With the weight evenly distributed between your shoulder and your chest, be sure that the mount is securely and comfortably on your shoulder, with the chest plate snugly and comfortably against your chest, supporting the camera.
- Page 6 All photos are for illustrative purposes only. • Limited One-year Warranty Revo provides a limited warranty that this product is free from defects in materials and workmanship to the original purchaser under normal use for a period of one (1) year from the original purchase date or thirty (30) days after replace- ment (the “Warranty Period”), whichever occurs later.
