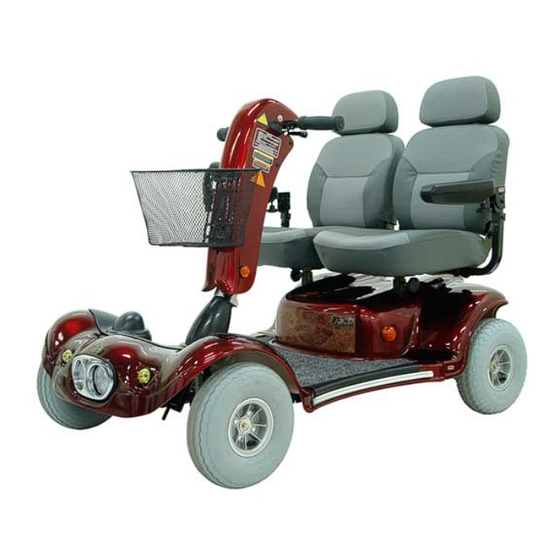

- Page 1 ATTENTION Please read your owner’s manual before driving your scooter. 889DXD Owner’s Manual...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ......................3 FEATURE GUIDE .....................3 SAFETY ADVICE .....................4 EMI Warning ......................6 ADJUSTMENTS .......................8 SCOOTER TILLER CONTROLS ................10 FREE WHEEL OPERATION ..................12 STARTING TO DRIVE YOUR SCOOTER..............13 EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER ......14 BATTERIES AND BATTERY CHARGER ..............15 MAINTENANCE .......................16 TROUBLE SHOOTING GUIDE ................17 TECHNICAL SPECIFICATIONS ................18... -
Page 3: Introduction
Congratulations on your purchase of the Shoprider scooter. This scooter incorporates the ® latest innovative designs patented and only available on a Shoprider scooter. This scooter can be used in confined spaces outdoors. Direct drive transaxles and electromagnetic brakes ®... -
Page 4: Safety Advice
SAFETY ADVICE • Only carry one passenger. • This mobility Product is intended to assist you. For your own safety, please read the Owner’s Manual before using the Scooter. If in any doubt, contact your supplier directly for advice. • Do not exceed inclines over 9 degrees (15% grade). •... -
Page 5: Emi Warning
• Do not connect any foreign device to the scooter battery or charging port. This could cause failure of the device, the scooter and personal injury. • Make sure the tiller is properly adjusted and locked to the user or damage and injury could result. - Page 6 ® Shoprider scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions.
-
Page 7: Adjustments
EMI. NOTE! There is no easy way to evaluate the overall immunity of the scooter. ® 5. Report all incidents of unintended movement or braking to your Shoprider dealer, and note whether there are sources of EMI nearby. - Page 8 pin and select the required tiller angle. Refit the pin into one of the five location holes. Seat Removal (Fig. 2) Fold down the back of the seat. Loosen the hand knob (fig. 2) and carefully lift seat off. Hand Knob Hand Knob Fig.
- Page 9 Armrest Adjustment Width (Fig. 3) On the underside of the seat there are two hand knobs, one either side. Loosening the hand knob allows the arm rest to be adjusted to the required width, or removed for transportation. Armrest Adjustable Do not use the scooter without the arms Hand Knobs being fitted.
-
Page 10: Scooter Tiller Controls
SCOOTER TILLER CONTROLS (1) Speed Controls The speed control allows you to set a speed between 1 (minimum) and 10 (maximum). Turn the dial knob counter-clockwise to “minimum” to decrease speed, and clockwise towards “maximum” to increase your speed. (2) Battery Level Indicator The number of LED bars lit, shows the amount of charge left in your batteries. - Page 11 (5) Thumb/Finger Lever Controls The left thumb/finger lever controls the reverse and the right thumb/finger lever controls the forward motion. The amount of pressure applied to each lever will determine the speed the scooter travels at. Release the lever and the scooter will slowly come to a stop and the electromagnetic brake will be applied.
-
Page 12: Free Wheel Operation
FREE WHEEL OPERATION The free wheel release levers (yellow handle) are located inside the rear chassis cover. To disengage the motor, lift up the levers (the scooter can now be pushed). To re-engage the motor push down on the levers. WARNING! Always re-engage the free wheeling device after use. -
Page 13: Starting To Drive Your Scooter
STARTING TO DRIVE YOUR SCOOTER Getting Started • Select a level area with plenty of space. • Mount the scooter, either by lifting the arm and sliding on to the seat or rotate the seat outwards and then rotate the seat back to face the tiller. •... -
Page 14: Extra Guidelines In The Control Of Your Scooter
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER Ramps The stability of your scooter is governed by several factors such as the seating position, the angle of the slope and your height and weight. When approaching an incline, do so directly and not at an angle and whenever possible avoid making turns. -
Page 15: Batteries And Battery Charger
A/C cord from the wall then unplug the 3-pin lead from the tiller. ® WARNING: Only use the original Shoprider approved charger! This charger is for indoor use only. DO NOT expose it to rain or water spray. -
Page 16: Maintenance
MAINTENANCE Lubrication At six-month intervals you should lubricate the following parts with a light oil or similar lubricant: • Seat pivot post. • Seat release lever pinion. • Wheel bearings. • Axle of scooter. CAUTION – DO NOT USE WD40 TO LUBRICATE PARTS!! DO NOT LUBRICATE TRANSAXLE/GEAR BOX!! In the event of any difficulties please consult your dealer. -
Page 17: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Circuit Breaker Your scooter is fitted with the latest in electronic controls that are programmed to protect the electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker, should there be a situation that your scooter stops for no apparent reason please check that the circuit breaker has not popped out. -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Models 889DXD Overall Dimensions: L x W x H 55 x 38 x 39 Front Tire Diameter Front 2 x 12.5” Rear Tire Diameter Rear 2 x 12.5” Suggested User Weight (on the Level Road) Total Weight (w/ Battery Pack, Basket, Seat) -
Page 19: Notes
NOTES... -
Page 20: Disclaimer
This Scooter is not intended to be used by individuals with physical limitations that could ® prevent the user from operating the Scooter safely. Shoprider disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products.
