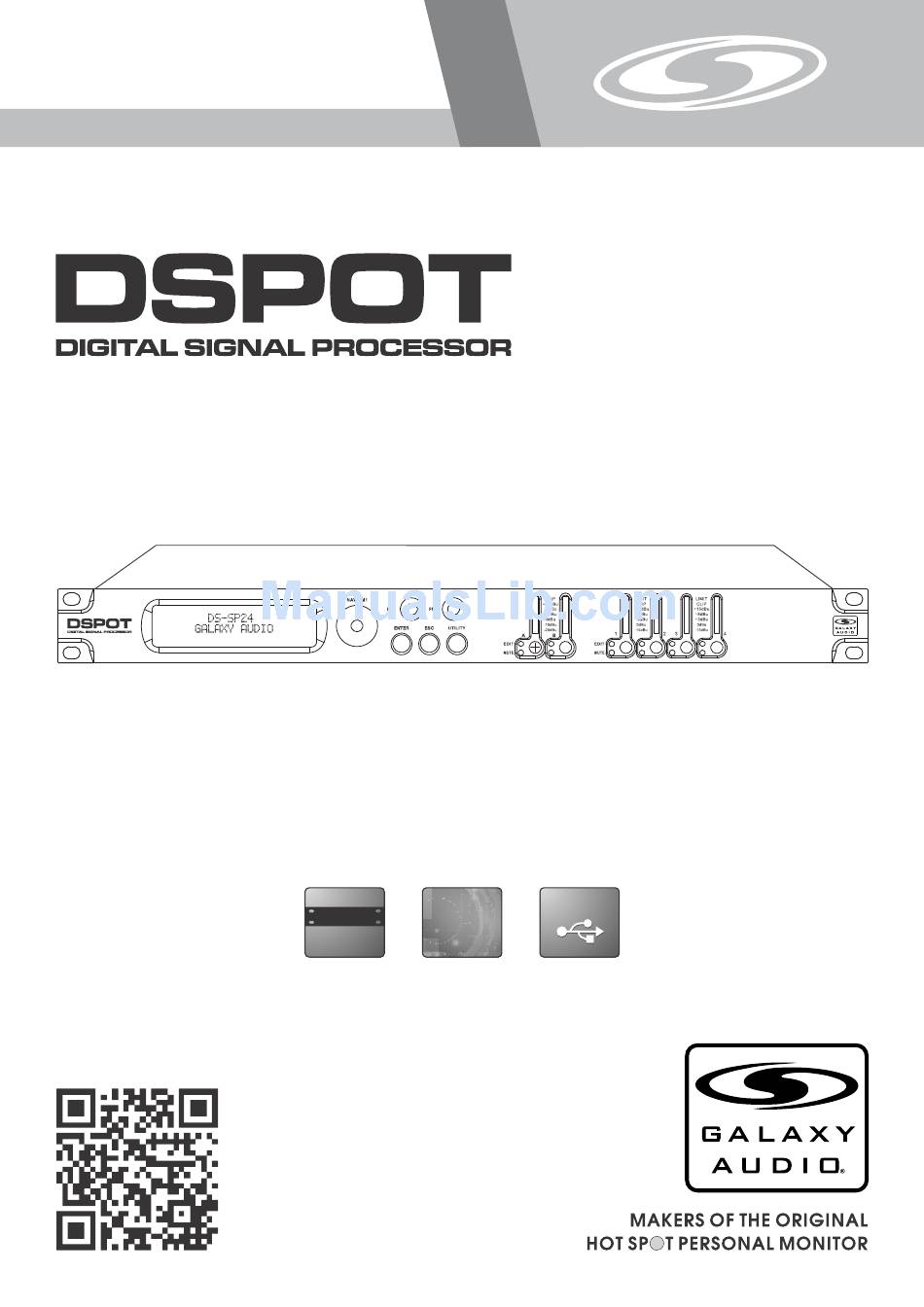

- Page 1 DS-SP24 USER’S MANUAL ® DS-SP24 2x4 Speaker Processor 19" DIGITAL DIGITAL (482mm)
-
Page 2: Table Of Contents
Specifications..................37 Introduction Introduction Thank you for choosing a Galaxy DSPOT Digital Signal Processor. You have joined hundreds of thousands of other satisfied Galaxy customers. Since 1977 Galaxy Audio’s professional experience in design and manufacturing ensure our products' quality, performance and reliability. -
Page 3: Safety Instructions
Safety Instructions Safety Instructions This symbol indicates that dangerous voltage This symbol indicates that there are important Constituting a risk of electric shock is present Operating and maintenance instructions in the within this unit. Literature Accompanying This Unit ! IMPORTANT SAFETY INSTRUCTIONS ! USE only with a cart, stand, tripod, bracket, or table READ these instructions. -
Page 4: Overview
Overview Described below are the functions of the front panel control buttons and encoders for The DS-SP24. ® DS-SP24 2 3 4 5 10 11 12 13 1 - LCD Display 2 - Navigation/Parameter 1 Key 3 - Parameter 2 Key 4 - Enter Key 5 - Escape Key 6 - Utility Key... -
Page 5: Getting Started With Front Panel Controls
Getting Started When the DS-SP24 is turned ON the device model name will appear in the LCD screen: DS-SP24 GALAXY Audio A status bar will show the progress of the DS-SP24 initialization process: DS-SP24 The DS-SP24 has two factory pre-set working modes: “1x2 Way X-Over” and “4 Way X-Over”. - Page 6 • Encoders and ENTER, ESC buttons The DS-SP24 is equipped with 3 Relative Encoders, “NAV/PM1”, “PM2” and “PM3”. These encoders allow you to navigate the user interface and edit sections of the processor. They allow the user to navigate within the screen for the selection of sub-menus, pages and parameters and to select the values to be assigned during the editing operations.
- Page 7 ● Menu “UTILITY” [access by pushing the “UTILITY” button] From the “Default Screen”, it is possible to access the “UTILITY” menu by pushing the “UTILITY” button and the Sub-Menus pages can be selected by rotating the “NAV/PM1” encoder clockwise and counter-clockwise. Once selecting the sub-menu page, using the “ENTER”...
- Page 8 When the “1x2 WAY XOVER” is selected, the “System Setup” page will appear as follows: System Setup Setup: 1x2 WAY XOVER To change the desired operating mode for the DS-SP24, the screen must reflect the X-Over required and then simply pressing the “ENTER” button will bring up the following screen asking for confirmation to load the selected operating mode: New Xover [Enter] to confirm...
- Page 9 – Delay Time/Distance: this page allows you to select the measurement unit to be used for the Delays: Time (in milliseconds “ms”) or Distance (in meters:“m”) SYSTEM UTILITY Delay Units By pressing ENTER and rotating the “PM2” or “PM3” encoder, it is possible to select the measurement unit to be used for the delay, which will be confirmed by pushing the ENTER button.
- Page 10 If presets have previously been stored by the user, anyone of them can be recalled: [ENTER] to Recall. PRESET 1 By using the “PM2” or “PM3” encoder it is possible to scroll through the stored presets. Once the desired preset appears on the screen select it by pressing the “ENTER” button and this will force the DS-SP24 to begin to load this selected preset and the following transitory screen will appear: Loading New Program .
- Page 11 When storing an edited configuration for the DS-SP24, select the location for a preset from the 24 available by using the “PM2” or “PM3” encoders. Once the desired location appears on the screen press ENTER again to reach the “Set Program Name”...
- Page 12 If you wish to proceed press “ENTER” again and the DS-SP24 will go ahead with the “Set Program Name” page and the subsequent overwrite on completion of the previously described storing process. Note: At any time it is possible to quit the storing action by pressing the “ESC” button. –...
- Page 13 Note: At any time it is possible to quit the deleting action by pressing the “ESC” button. Interface Utilities Sub-menu – this sub-menu allows you to define the remote control interface [USB or RS485] to be used for controlling the DS-SP24: UTILITY MENU Interface Utilities From “Interface Utilities”, press “ENTER”...
- Page 14 Press ENTER again and use the “PM2” or “PM3” encoders to scroll between the “be shown” and “not be shown” options. An asterisk will highlight which option is selected. Choosing the “be shown” option means that once the unit is locked, you cannot access parameter editing features, but they will be displayed on the LCD screen.
- Page 15 Using the “PM2” or “PM3” encoders to choose a character and the “NAV/PM1” encoder to move between available locations you can enter a 6 Character Password Name. The current position of the cursor for the characters to be entered is shown by a “blinking underscore”.
- Page 16 Once a Password has been entered into the DS-SP24 through the steps described in the previous paragraph, it is possible to “Enable” or “Disable” the password function and therefore lock the DS-SP24 restricting access to all functions. When a password has been entered you will be able to select the “Enable” option from the menu and the unit will not be accessible for editing.
- Page 17 Gain page – from this screen it is possible to set the Input Channels Level from -12dB to +6dB, press ENTER an arrow will appear on the left of the screen “->” then use the “PM1” or “PM2” buttons. The value set on this screen will only affect the input level of the selected Channel A or B. The following is an example screen for the “Gain”...
- Page 18 In this case, the filter's GAIN=0.0dB, and being BW=1.05, the current filter selected is a Bell type now, rotating the “PM2” encoder clockwise, the parameter BW will range from 0.05 up to 3 for identifying a bandwidth value for a Bell filter. If a Bell filter is selected, then the Gain can be modified from 0.0dB and the BW will range between 0.05 and 3.
- Page 19 Note: Once the desired Low Shelving filter is selected, the “PM3” can then be used to select the desired GAIN and when the GAIN is set at a value different from 0.0dB, then the filter type cannot be changed until this GAIN is returned to 0.0dB. Once in the Low Shelving Filter's edit screen all the filter's parameters can be modified using the “NAV/PM1”, “PM2”...
- Page 20 ● Menu “Output 1/2/3/4” Output Channels Editing [access by pushing the “1/2/3/4” buttons] From the “Default Screen”, it is possible to access the “Output Channel” menu by pressing the “1” or “2” or “3” or “4” button. Once pressed, the related blue “EDIT” LED will turn ON. The Sub-Menus pages can now be scrolled through by rotating clockwise and counter-clockwise the “NAV/PM1”...
- Page 21 LPF sub-menu – from this sub-menu it is possible to set the Output Channels Low Pass Filter (LPF). The following is an example of a LPF sub-menu screen with the filter set at 24dB Linkwitz/Riley on Output1... using the name “Low” (see later for assigning a Name to the outputs): Out-1 Low ->...
- Page 22 In order to select the filter's type, it is necessary to have the filter's GAIN=0.0dB, then using the “PM2” encoder, rotate it “clockwise” in order to decide the Bell filter's Bandwidth, or “counter-clockwise” to select the Shelving filter type (Low or High) and its order (1st or 2nd). So, in order to define the filter type for the filter number 1 (“x”=1), it is necessary from the above screen, to enter the filter's editing page pressing the ENTER button, and the screen has to appear as follows:...
- Page 23 Once in the Bell Filter's edit screen all the filter's parameters can be modified using the “NAV/PM1”, “PM2” and “PM3” encoders for editing the Filter's Center Frequency, Bandwidth BW and Gain. The Center Frequency of the Parametric Filter can be edited using the “NAV/PM1” encoder, the BW the “PM2”...
- Page 24 Note: Once the desired High Shelving filter is selected, the “PM3” can then be used to select the desired GAIN and when the GAIN is set at a value different from 0.0dB, then the filter type cannot be changed until this GAIN is returned to 0.0dB. Once in the High Shelving Filter's edit screen all the filter's parameters can be modified using the “NAV/PM1”, “PM2”...
- Page 25 To Edit press ENTER on the Name Page and the entering arrow will appear as in the example below: Out-1 Name -> Name = Low The first letter position will be blinking. Select the Character position from the 6 available by rotating the “NAV/PM1” encoder, then by using the “PM2”...
- Page 26 Limiter sub-menu – from this page it is possible to set the Output Channels Limiter. The following is an example screen for the Limiter page where the Attack Time of the Limiter is set at 5ms, the Release Time is set at 0.2Sec and the Limiter Active Threshold is set at +5dB: Out-1 Name Limiter...
- Page 27 Polarity page – from this page it is possible to set the Output Channels Polarity, by using the “PM1” or “PM2” encoders. The polarity can be “Normal” or “Inverted” (which means rotated of 180 Degrees). The following is an example of a “Polarity” screen where the Polarity of Output Channel 1 is set to “Normal”...
- Page 28 Then press the Edit button of Output Channels 2 and 4, turning on their related “Blue” LED’s. Now all parameters edited on Output Channel 1, will also be applied to channels 2 and 4. If you want to remove one of the linked channels from the Link, press the related Edit button. Exiting the editing of the Master channel during a Link session will automatically terminate that session.
-
Page 29: Using The Pc Interface
Using the PC Interface Using the DS-SP24 Software. Load the Software “SetupDS-SP24V1.0.0” either with the included CD or via the Galaxy Website. Double click on “Setup”, choose “Run” the software will load. Go to programs and double click on DS-SP24V1.0.0 Connect the SDS-SP24 with the USB cable to your computer. - Page 30 The software will look for active devices and show them in a list. To edit Double click on the desired device in the ID list. The Main Page will load.
- Page 31 The device will also be locked out from front panel control at this point. You may choose to “Load Preset from PC”, “Save Preset to PC”, “Store Preset to Device”, “Read Preset from Device” You can name a device by selecting edit device name. From the main page you can choose the section you want to adjust by clicking on the associated block.
- Page 32 Select the input block to access input and output naming. Select the gain block to access the gain and polarity of the inputs and outputs.
- Page 33 Select the PEQ block to access the input and output filters. Select the Delay block to access the input and output delays.
- Page 34 Select the Limiter Block to access the Limiter page.
- Page 35 You can copy parameters between channels by selecting the copy input or copy output block and then selecting the source parameters and the destination. You can select the meters to show either, level or limiter function.
-
Page 36: Volume Controls Table
Volume Control Table ● USB/RS485 Remote Control protocol for Preset Changing and Gain/Volume controls The following is the HEX Code for controlling the DS-SP24 recall presets and master volume control: Preset Changing: CMD_RECALL_PRESET: CMD=1BH A. The User has to send the following Command, including the number of the preset to load on the unit: ID_M ID_N... - Page 37 Input Gain and Output Volume Control: UPDATE GAINS-PHASE: CMD=01H A. The User has to send the following Command, including the value to be assigned to “Vol”, for modifying the Input Gain (Chn = 0, 1) or the Output Volume (Chn = 2, 3, 4, 5). Also the Output signal Phase can be modified: ID_M ID_N...
-
Page 38: Specifications
Specifications ● DS-SP24 Technical Specifications FUSE 800mA The DS-SP24 Digital Speaker Processor is based on a powerful analog and digital DSP platform having the following specifications: Analog Input Signal: ChA/ChB Bal. Female XLR Maximum Input Level: +20dBu Analog Output Signal: Ch1/Ch2/Ch3/Ch4 Bal. Male XLR Maximum Output Level: +20dBu Digital Processing (DSP): SAM3716, 24bits (data) x 96 bits (coeff.) A/D Converters: AKM5392, 24bits... - Page 40 Information can be viewed online at http://www.galaxyaudio.com/warranty.php DS-SP24 Specifications in this manual are subject to change without notice. For the most up to date manual and information visit www.galaxyaudio.com. 1-800-369-7768 www.galaxyaudio.com © Copyright Galaxy Audio 2014 V02072014 Printed in China...
