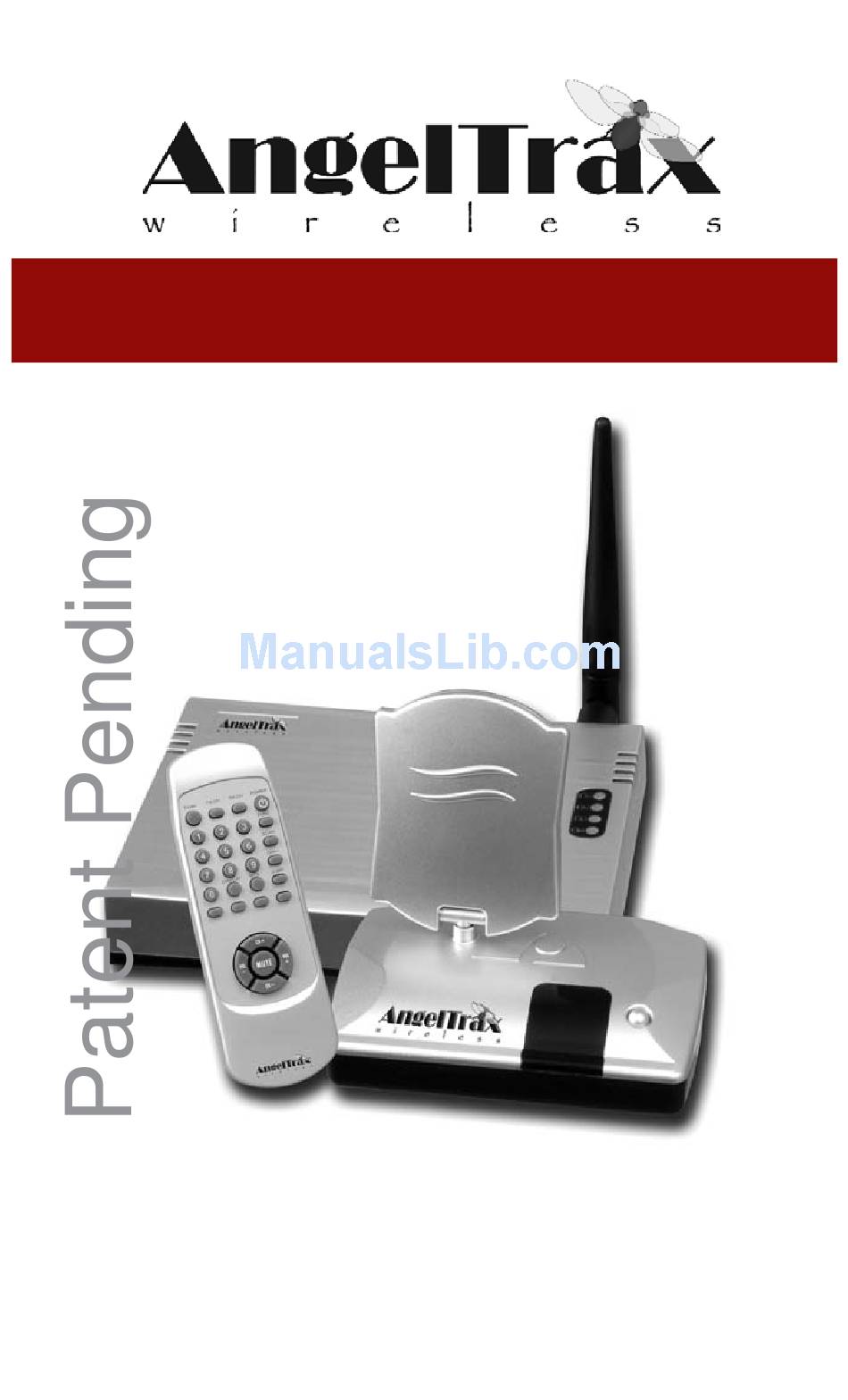

- Page 1 CATV2400 Wireless Cable TV System Set-Up User Manual Patent Pending (Utility and Design)
-
Page 2: Specifications
5. Setting up the Remote 6. Connecting You Digital Box 7. Watching Your Digital Channels (Or DVD, etc...) 8. Using Multiple CATV2400 systems 9. Remote Control Setup fro Multiple Systems FEATURES: 1. Watch Cable TV on a remote TV, Computer or other CRT device in any room or even outside your home within 300’... - Page 3 START HERE Section 1 Powering the Transmitter Plug one of the power adapters into your Transmitter and into an outlet. DO NOT TURN POWER ON YET Attach Antenna 9V DC Input Connecting Your Cable to the Transmitter The cable provided by your service provider Connect the transmitter to your incoming cable outlet supplied by your cable tv provider.
- Page 4 9V DC Input Connecting the receiver to Your TV Connect the RCA plugs from your AngelTrax receiver to your remote TV. Please use special care to match colors from the receiver to the TV. (Red to Red, Yellow to Yellow, White to White)
- Page 5 AngelTrax channel by pushing the CH button on top of the transmitter. (Any channel is OK) As long as we select the same AngelTrax channel on the receiver. (If you experience interference, try a different channel) Change the channel on both the transmitter and receiver.
- Page 6 Make sure your TV is ON and it is set to Video, Input 1, AV1, etc... CATV2400 Remote Control Install the batteries in the the rear pocket of the AngelTrax remote control correctly. Place the battery cover on the remote.
- Page 7 Using your Angeltrax Remote to Change TV Channels After you have installed the batteries, hit the SCAN button on the AngelTrax remote. This will activate the scan feature on the transmitter. You should see your TV scanning through 125 channels. Please wait a few minutes until the system has finished scanning.
- Page 8 Section 2 Digital Cable Box Setup This section is for customers that would like to use advanced features of the CATV2400 to transmit their Digital Channels, Cameras, DVD or VHS movies. Follow the instruction in section 1 for basic con- nection.
-
Page 9: Remote Control Function
This will select the RCA input that you just connected from the previous page. To go back to TV, simply hit the AV/TV button on your AngelTrax remote again. Remote Control Function Power Power On/Off the transmitter TX. CH Switch 2.4GHz transmitting channels of Tx... - Page 10 Advanced Installation & Setup Section 3 Use Multiple Systems for 2 or more rooms The CATV2400 is fully capable of operating in multiple locations in the same home, on the same cable system and still being completely independent of each other and all other TVs.
-
Page 11: Remote Control Setup
Section 3 Setting the remote Control for Multiple System Use. Only perform the following if your remote is not working or if you want to use multiple CATV2400 systems. Remote Control Setup 1. Make sure the batteries are installed FUNC Key correctly. -
Page 12: Trouble Shooting
The terms and conditions of said warrant are as follows: 1. The date of purchase and proof of an AngelTrax Authorized Dealer must be established by original sales receipt which must accompany the unit being returned for warranty service.
