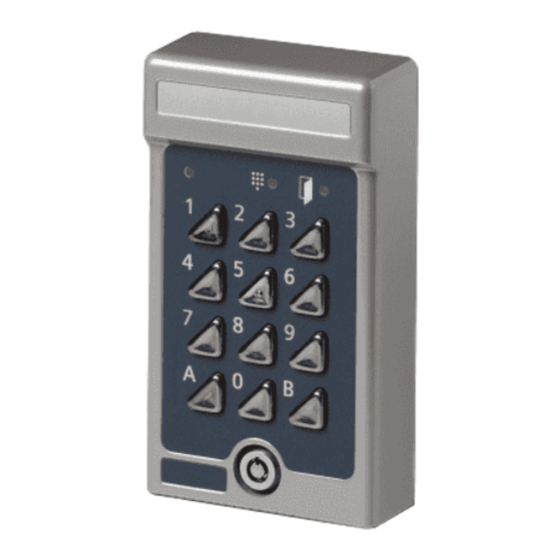

K44 Code lock
Technical manual
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bewator K44

Summary of Contents for Bewator K44

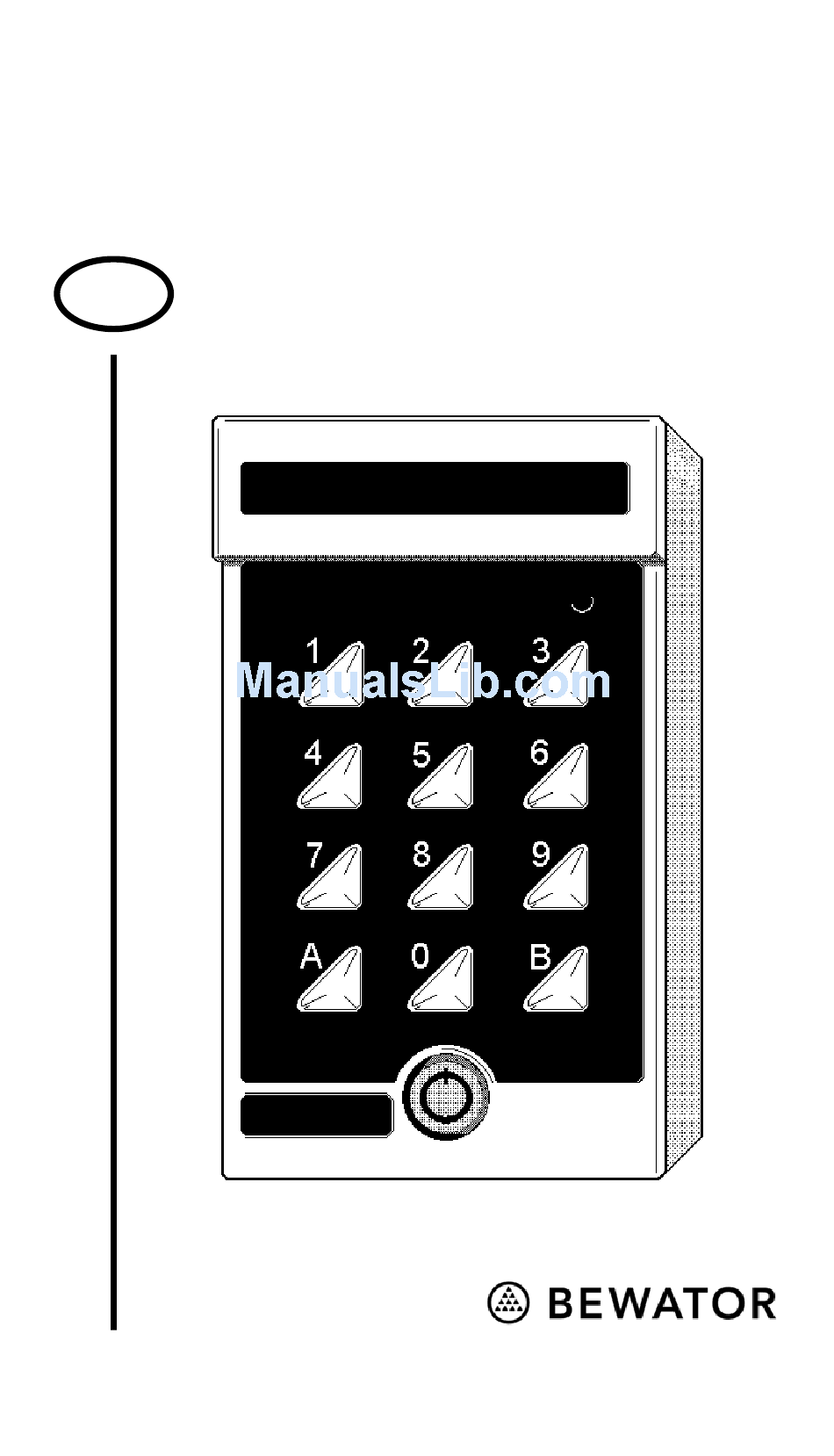

  • Page 1 K44 Code lock Technical manual...
  • Page 2 Copyright © 2002 Bewator AB, Solna, Sweden. Material from the K44 Technical manual may only be copied with the consent in writing of Bewator. Bewator reserves the right to alter both the content of the manual and the design of the product.

  • Page 3: Table Of Contents

    K44 Technical manual What is K44?.......... 4 Timing the codes........4 Standard mode and advanced mode ... 5 Duress ..........5 Zero opening........5 The keypad..........8 Wiring ............. 6 Buzzer and LEDs......... 9 Choose password ......10 Change password ......11 Programming the codes.....

  • Page 4: What Is K44

    K44 Technical manual What is K44? K44 is a compact code lock designed for one door. To open the door, a four-digit entrance code is used (six-digit codes can be used in advanced mode). All programming is done using the keypad.

  • Page 5: Standard Mode And Advanced Mode

    20 four-digit and 10 six-digit codes. Duress K44 is equipped with an output for duress. If a person is forced to open the door under threat, he or she can enter a special code activating an alarm (if connected).

  • Page 6: Wiring

    K44 Technical manual Wiring The numbers refer to the diagram on the right. Electric locking device. Dashed line refers to locks with failsafe function. Voltage feed in, terminal block nos. 1 and 2. Contact for zero opening. Close terminal block nos 6 and 7 (or 13).
  • Page 7 K44 Technical manual...

  • Page 8: The Keypad

    Press B and enter the 6-digit password to program K44. Press B to leave programming mode. Functions as a door bell and starts the sequence telling K44 what you want to program, e.g. A21 to program codes.

  • Page 9: Buzzer And Leds

    K44 Technical manual Programming Before you start programming K44 it might be a good idea to make a note of the codes to program and to which timing group they should belong. On the inside cover you will find a chart designed for this purpose. When programming, look at your notes and follow the instructions below.

  • Page 10: Choose Password

    20 seconds, the code lock goes back to normal operation. Choose password When K44 is delivered, the memory is completely erased. The first thing to do before installing the code lock is to choose a password.

  • Page 11: Change Password

    Press B and enter the password. Enter A21. Enter the desired code location using two digits (01-04 if K44 is in standard mode or 01-30 if K44 is in advanced mode). Note! In the Standard mode or advanced mode section you will find instructions on how to change the setting between standard and advanced mode.

  • Page 12: Erasing Codes

    K44 Technical manual Note! The first four digits in a six-digit code must not be equal to the digits in a four-digit code and vice versa. State whether the code should be timed from an external time clock. Press 0 if the code should not be timed.

  • Page 13: Changing Codes

    Set opening time The opening time determines for how long the lock should remain open following a correct entrance code. When K44 is delivered the opening time is 7 seconds for both relays. Press B and enter the password. Enter A28.

  • Page 14: Deactivating The Buzzer

    K44 Technical manual Deactivating the buzzer When K44 is delivered the buzzer is activated. If you do not want the buzzer to beep during key presses and door opening, you can turn it off. Note that the buzzer will continue beeping during programming.

  • Page 15: Door Open Permanently

    K44 Technical manual Door open permanently When K44 is delivered, the code lock is set so that you cannot unlock the door permanently using the code for code location 04. To activate this possibility, proceed as follows: Press B and enter the password.

  • Page 16: Duress On/Off

    An alarm signal is then transmitted to an alarm central, the police or similar. When K44 is delivered, the duress function is deactivated. This is how to activate the duress function: Press B and enter the password.

  • Page 17: Standard Mode Or Advanced

    K44 Technical manual Standard mode or advanced When K44 is delivered, the code lock is set to standard mode. This means that 4 four-digit codes can be programmed. If set to advanced mode, you can program 20 four-digit and 10 six-digit codes.

  • Page 18: Using K44

    When a correct code is entered the lock opens. The lock will close again after the time set as opening time. K44 is blocked if a visitor performs 12 key presses without managing to find a correct entrance code. To release the blockage, enter a correct code twice in succession.

  • Page 19: Enter Duress Code

    K44 Technical manual Enter duress code This is how to activate the alarm output when forced to open the door under threat: Enter the usual entrance code, only add 1 to the last digit in the code. Example 1: If the entrance code is 1234, enter 1235 instead.

  • Page 20: Technical Data

    K44 Technical manual Technical data Power supply: 8-24V AC, 10-35V DC Power consumption: 7 mA quiescent without backlighting, 35 mA with backlighting. Maximum load over the relay contacts: 2 A 28 V DC Dimensions: 140x80x40 mm (HxWxD) Suitable height: 1200-1400 mm from...
  • Page 21 K44 Technical manual This page is empty...

  • Page 22: Programming Overview

    Programming overview Always start by pressing B and entering the password. Exit: Press B. Function Sequence Step 1 Step 2 Step 3 Step 4 Step 5 New entrance code Enter code Enter code Enter timing Program location (4 or 6 group (0, 1 or 2) new code or (2 digits).
  • Page 23 Code Time group...
