Compex NetPassage 28G Quick Install Manual

Wireless-g multimedia router
Hide thumbs Also See for NetPassage 28G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Install Guide
Wireless-G Multimedia Router
NetPassage 28G
(RoHS-compliant)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetPassage 28G and is the answer not in the manual?

Questions and answers

Related Manuals for Compex NetPassage 28G

Summary of Contents for Compex NetPassage 28G

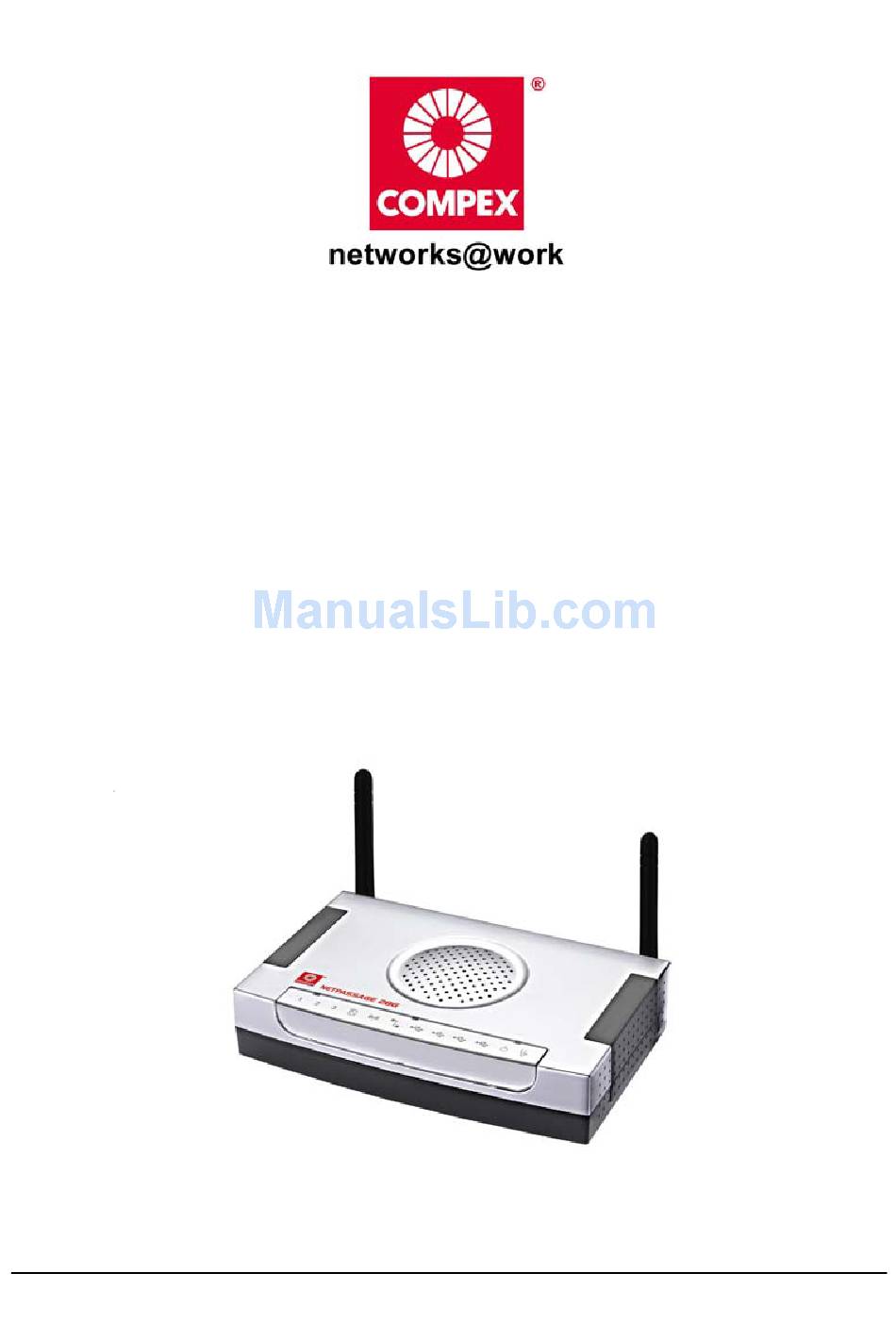

  • Page 1 Quick Install Guide Wireless-G Multimedia Router NetPassage 28G (RoHS-compliant)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: INTRODUCTION................1 CHAPTER 2: NETWORK INFRASTRUCTURE ............2 CHAPTER 3: LET’S GET GOING-HARDWARE SETUP........3 : ..................3 OWER P IN TEPS CHAPTER 4: CONFIGURING WIRELESS NETWORK CONNECTION ....4 CHAPTER 5: CONFIGURING TCP/IP SETTINGS..........6 CHAPTER 6: GETTING STARTED WITH WIZARD SETUP........

  • Page 3: Chapter 1: Introduction

    Of course, it is also a full-fledge broadband Internet Gateway allowing you to share the broadband connection with several users in your home. The NetPassage 28G Multimedia Gateway is, additionally, equipped with advanced features that will make it suitable for the office as well.

  • Page 4: Chapter 2: Network Infrastructure

    Chapter 2 Network Infrastructure Chapter 2: Network Infrastructure Only a few simple steps are required to set up the router to begin your broadband Internet sharing as part of your wired and wireless network infrastructure. Example : BroadBand Internet Access Distribution to a Fast Ethernet Network &...

  • Page 5: Chapter 3: Let's Get Going-Hardware Setup

    Chapter 3 Let’s Get Going – Hardware Setup Chapter 3: Let’s Get Going-Hardware Setup Power Up in 4 Steps: In 4 simple steps, you shall have your router wired and functional. After which, you may proceed to the software configuration and get yourself ready to surf the Internet at high- speeds! Connect the Ethernet cable from your Cable/ADSL modem on one end, and then connect the cable to the socket labeled WAN on the router.

  • Page 6: Chapter 4: Configuring Wireless Network Connection

    Chapter 4 Configuring Wireless Network Connection Chapter 4: Configuring Wireless Network Connection Depending on your client’s wireless adapter, you may set up Windows XP’s Wireless Network Connection as follows: Right-click on Wireless Network Connection corresponding to the wireless Ethernet adapter you wish to connect with the router, and click on Properties.
  • Page 7 Chapter 4 Configuring Wireless Network Connection At the Network name (SSID) field, type in ‘compex’ ( the factory default of the router ). Click OK.

  • Page 8: Chapter 5: Configuring Tcp/Ip Settings

    Chapter 5 Configuring TCP/IP Settings Chapter 5: Configuring TCP/IP Settings You should configure your PC or wireless client to obtain IP address automatically. For users of Microsoft Windows XP, you may configure the TCP/IP settings as follows: Click the Start button. Select Settings and click the Control Panel icon.
  • Page 9 Chapter 5 Configuring TCP/IP Settings Check the radio button next to Obtain address automatically . Then click the OK button on this page, and the OK button on the previous page it returns you to. Restart your computer complete the PC configuration. NOTE The Advanced Setup is not mentioned in this quick guide.

  • Page 10: Chapter 6: Getting Started With Wizard Setup

    Chapter 6 Getting Started with Wizard Setup Chapter 6: Getting Started with Wizard Setup You should configure your PC or wireless client to obtain IP address automatically. For users of Microsoft Windows XP, you may configure the TCP/IP settings as follows: Insert the Product CD to your CD-ROM drive, run the uConfig program.
  • Page 11 Chapter 6 Getting Started with Wizard Setup Check the radio button next to Basic Setup. Click on the Next button. The first page of Setup Wizard is an overview of the basic setup. • Internet Connection This functionality lets you specify the type of Internet Connection you want to use.
  • Page 12 Chapter 6 Getting Started with Wizard Setup To setup your WAN connection, select the following types of Internet Connection such as: • Dynamic IP ( used as an example in this guide) For configuring Static IP address • Static IP For configuring Static IP, you need to manually enter IP Address, Network Mask and...
  • Page 13 Chapter 6 Getting Started with Wizard Setup configure following parameters: • SSID The default SSID is ‘compex’. Click on the Change button to enter your preferred SSID name. Remember change your wireless clients’ settings illustrated in Section 5 after the router has rebooted and the new SSID has taken effect.
  • Page 14 Chapter 6 Getting Started with Wizard Setup If WPA-PSK is enabled, select Hex or Ascii for the key string type to be used. The default WPA-PSK ‘11111111’. default GTK update is ‘600’. To proceed, click on the Next button.
  • Page 15 Chapter 6 Getting Started with Wizard Setup Then the Wizard will detect if any of the USB devices such as printer, storage disk or webcam are connected to the router. more details on setting up USB devices, refer to User’s Manual. If you want to allow access to your storage disk via Internet, click Yes.
  • Page 16 Chapter 6 Getting Started with Wizard Setup To proceed, click on the Next button. You will see the summary of the router’s setup appear for your viewing. Check if the settings such as WAN IP Address, etc are correct. Click on the Finish button to save the settings and reboot the router. You will be returned to the Login page after 30 seconds.

  • Page 17: Chapter 7: Panel Views And Descriptions

    Chapter 7 Panel Views and Descriptions Chapter 7: Panel Views and Descriptions Top View of the Router Back View of the Router...
  • Page 18 Chapter 7 Panel Views and Descriptions Name Description LAN Link/Act LEDs 1, Steady Green LAN connection is enabled. Flashing Green Data transmission connection. WAN (LED) Steady Green The WAN connection is enabled. WLAN (1),(2) Steady Green At least one wireless link is (Link/Activity LED) present.
  • Page 19 Chapter 7 Panel Views and Descriptions WAN (RJ45 Port) 10/100Base-T Port connects Cable/ADSL modem. LAN Ports 1,2,3 Integrated 3-port 10/100Mbps Switching (RJ45) USB Ports 1, 2,3,4 Integrated USB2.0 Ports...

  • Page 20: Chapter 8: Technical Specifications

    Chapter 8 Technical Specifications Chapter 8: Technical Specifications Industry Standards Wired: - IEEE 802.3 10Base-T - IEEE 802.3u 100Base-Tx - IEEE 802.3x Flow Control Wireless: - IEEE 802.11b - IEEE 802.11g WAN Interface - 1x Auto MDI/MDI-X RJ45 Ethernet Port for external Cable/ADSL modem WAN Type - Static IP - Dynamic IP...
  • Page 21 Chapter 8 Technical Specifications 64-bit/128-bit WEP Wireless Pseudo VLAN WPA-PSK USB2.0 Ports 4X integrated USB ports supporting: PC Web Camera Print Server Storage Disk Drive IP Addressing All Classful/Classless subnets Built-in DHCP Server DHCP Reservation NAT Firewall Stateful Packet Inspection (SPI) Firewall Load-Balancing/...
  • Page 22 ~ 0.8 Kg (including power adapter) Weight For more details on the router’s configuration, please refer to the User’s Manual in the accompanying Product CD. This document may become superseded, in which case you may find its latest version at: http://www.compex.com.sg...
  • Page 23 Compex, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.
  • Page 24 DECLARATION OF CONFORMITY: Compex, Inc. declares that the product: Product Name: Wireless-G Broadband Multimedia Router Model No.: NetPassage 28G conforms to the following Product Standards: This device complies with the Electromagnetic Compatibility Directive (89/336/EEC) issued by the Commission of the European Community. Compliance with this directive implies conformity to the following European Norms (in brackets are the equivalent international standards.)

  • Page 25: Warranty Registration Card

    WARRANTY REGISTRATION CARD [M-0088-V2.4C] Register via the Internet at http://www.cpx.com or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety (90) days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product:...
  • Page 26 Manual Number: M-0431-V1.2C Version 1.2 January 2006...
