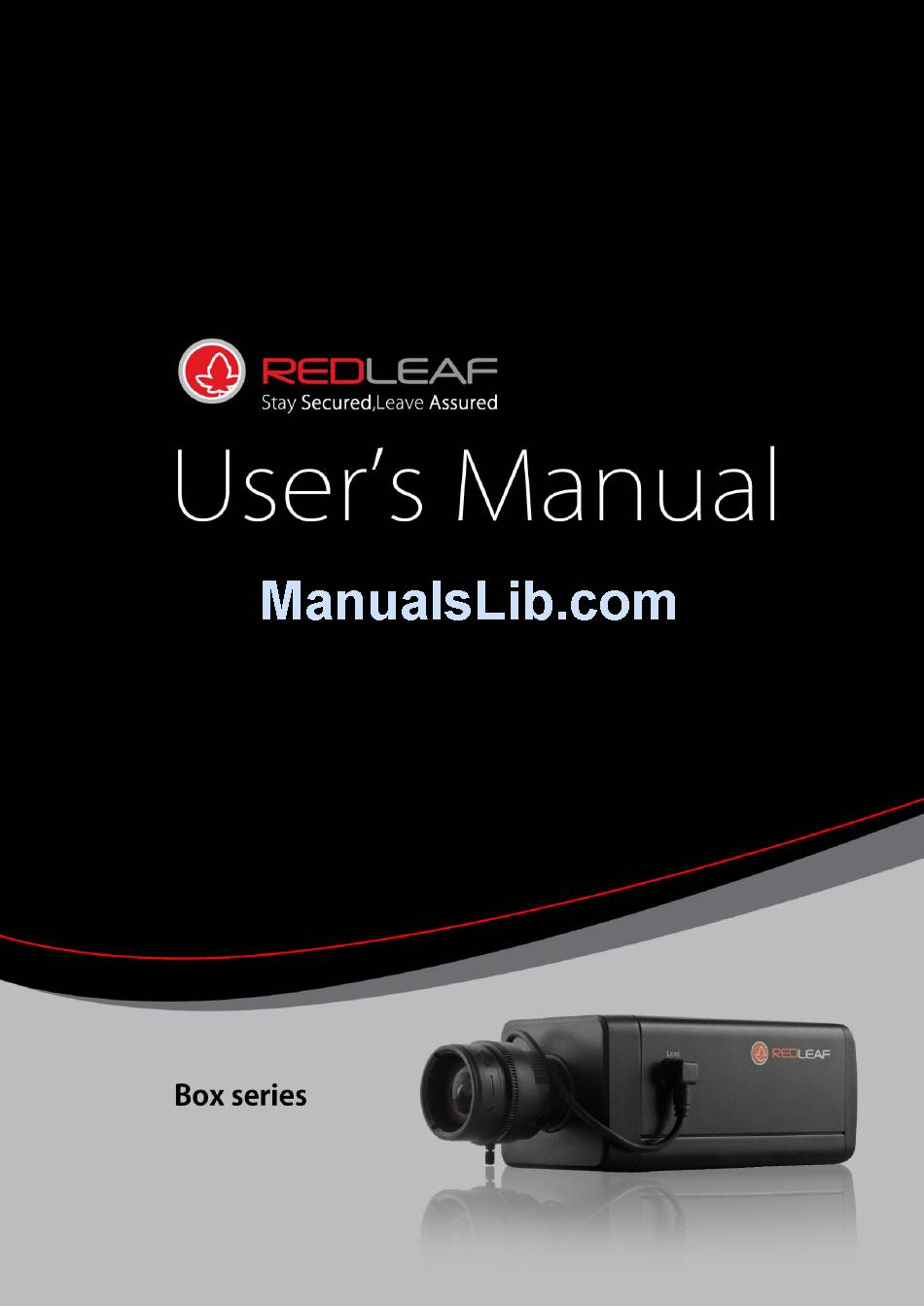

RedLeaf RLC-BF2050 User Manual

Hide thumbs Also See for RLC-BF2050:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLC-BF2050 and is the answer not in the manual?

Questions and answers

Related Manuals for RedLeaf RLC-BF2050

Summary of Contents for RedLeaf RLC-BF2050

  • Page 2 WELCOME Thank you for purchasing our IP camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguards and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!

  • Page 3: Important Safeguards And Warnings

    IMPORTANT SAFEGUARDS AND WARNINGS 1. ELECTRICAL SAFETY All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC1-60950. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
  • Page 4 Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.
  • Page 5 If there is too much dust on the housing, please use the water to dilute the mild detergent first and then use it to clean the device with the clear dry cloth. Finally use the dry cloth to clean the device.

  • Page 6: General Introduction

    1. GENERAL INTRODUCTION 1.1. Overview This series IP camera integrates the traditional camera and network video technology. It adopts audio and video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series RLC uses standard H.264 video compression technology and MJPEG audio compression technology, which maximally guarantee the audio and video quality.

  • Page 7: Specifications

    1.3. SPECIFICATIONS 1.3.1. Performance Please refer to the following sheet for RLC performance specification.
  • Page 18 2. FRAMEWORK 2.1. Rear Panel This series IP camera real panel is shown as below. See Figure 2-1. Please refer to the following sheet for detail information.

  • Page 21: Side Panel

    2.2. SIDE PANEL Please refer to the following interface for side panel dimension information. The unit is mm. See Figure 2-2. 2.3. FRONT PANEL Please refer to the following interface for the front panel information. The unit is mm. See Figure 2-3.

  • Page 22: Pc-End To The Device-End

    Listening Operation at the device end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the pc-end. 2.4.2. PC-END TO THE DEVICE-END Device Connection Connect the speaker or the MIC to the audio input port in the PC and then connect the earphone to the audio output port in the device rear panel.

  • Page 23: Ir Light Connection

    Please refer to the following figure for alarm output information. See Figure 2-6. Port NO and Port C composes an on-off button to provide the alarm output. If the type is NO, this button is normal open. The button becomes on when there is an alarm output.

  • Page 24: Manual Lens

    3. INSTALLATION 3.1. Lens Installation 3.1.1. Auto Aperture Lens Please follow the steps listed below for auto aperture lens installation. The interface is shown as in Figure 3-1 and Figure 3-2. Remove the CCD protection cap of the device, and then line up the lens to the proper installation position.

  • Page 25: Remove Lens

    Use slotted screwdriver to fasten the screw near the focusing ring and then turn counter clockwise to move the focusing ring out for several millimeters. Now you can focus manually and check the video is clear or not. If you can’t see the clear video, you can adjust via the flange-back.
  • Page 26 3.2.2. REMOVE Please follow the steps listed below to remove SD card. The interface is shown as Figure 3-6. Use the screwdriver to loosen the screw of SD card protection cap in the rear panel. Remove the cap from the camera. Follow the SD card direction to remove the SD card.

  • Page 27: Quick Configuration Tool

    4. QUICK CONFIGURATION TOOL 4.1. Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment.
  • Page 28 If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface.

  • Page 29: Web Operation

    5. WEB OPERATION This series RLC product support the Web access and management via PC. Web includes several modules includes monitor channel preview, PTZ control, system configuration, alarm and etc. IP camera factory default setup: . IP address: 192.168.1.108. . User name: admin .
  • Page 30 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too.
  • Page 31 6. FAQ...

  • Page 32: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Note O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard. X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
  • Page 33 About RedLeaf Company: RedLeaf is a Canadian-based IT company offering state-of-the-art network security products fulfilling customers’ needs for cutting edge security technologies. Founded in 2002, RedLeaf internationally provides professional IP based video security solutions for surveillance, remote monitoring other security...

This manual is also suitable for:

Rlc-bm seriesRlc-bf seriesRlc-bh series
