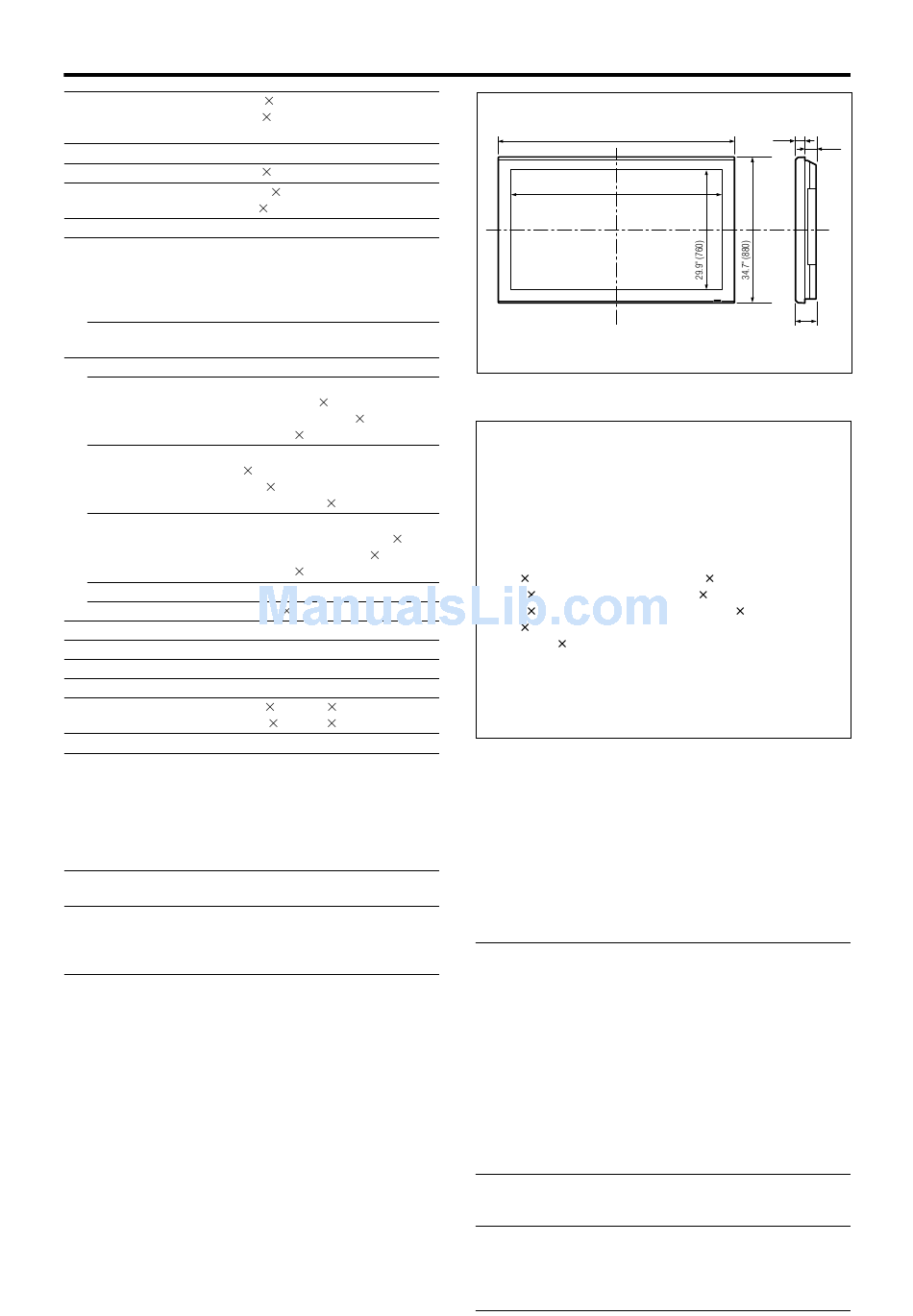

Specifications

Screen Size
53.2"(H) 29.9"(V) inches
1351(H) 760(V) mm
diagonal 61"
Aspect Ratio
16 : 9
Resolution
1365(H) 768(V) pixels
Pixel Pitch
0.039"(H) 0.039"(V) inches
0.99(H) 0.99(V) mm
Color Processing
4,096 steps, 68.7 billion colors
Signals
Synchronization Range
Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals
RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
Input Terminals
RGB
Visual 1 (Analog)
mini D-sub 15-pin 1
Visual 2 (Analog)
BNC (R, G, B, H/CS, V) 1*
Visual 3 (Digital)
DVI-D 24-pin 1*
Video
Visual 1
BNC 1
Visual 2
RCA-pin 1
Visual 3
S-Video: DIN 4-pin 1
DVD/HD/DTV
Visual 1
RCA-pin (Y, PB[CB], PR[CR]) 1*
Visual 2
BNC (Y, PB[CB], PR[CR]) 1*
Visual 3
DVI-D 24-pin 1*
Audio
Stereo RCA 3 (Selectable)
External Control
D-sub 9-pin 1 (RS-232C)
Sound output
9W+9W at 6 ohm
Power Supply
AC100-240V 50/60Hz
Current Rating
8.0A (maximum)
Power Consumption
540W (typical)
Dimensions
57.9 (W) 34.7 (H) 4.7 (D) inches
1470 (W) 880 (H) 119(D) mm
Weight
134.5 lbs / 61.0 kg (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity
20 to 80% (no condensation)
Altitude
0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity
10 to 90% (no condensation)
Altitude
0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Zoom up/down,
Split screen buttons
OSM Functions
PICTURE (PICTURE MEMORY/CONTRAST/
BRIGHTNESS/SHARPNESS/COLOR/TINT/NR/
COLOR TEMP./WHITE BALANCE/GAMMA/
LOW TONE/SET UP LEVEL/COLOR TUNE/
CINEMA MODE/PICTURE MODE), AUDIO
(BASS/TREBLE/BALANCE/AUDIO INPUT1/
AUDIO INPUT2/AUDIO INPUT3), IMAGE
ADJUST (ASPECT MODE/V-POSITION/H-
POSITION/V-HEIGHT/H-WIDTH/AUTO
PICTURE/FINE PICTURE/PICTURE ADJ.),
SET UP (LANGUAGE*/BNC INPUT/D-SUB
INPUT/HD SELECT/RGB SELECT/DVI SET UP/
COLOR SYSTEM/BACK GROUND/GRAY
LEVEL/S1/S2/DISPLAY OSM/OSM ADJ./ALL
RESET), FUNCTION (POWER MGT./INPUT
SKIP/SUB. P DETECT/ZOOM NAV/PICTURE
FREEZE/PDP SAVER [PEAK BRIGHT /
ORBITER / INVERSE/WHITE / SCREEN WIPER
/ SOFT FOCUS / OSM ORBITER / OSM
CONTRAST]/CLOSED CAPTION/CAPTION
CONT), SIGNAL INFO.
Bezel color is silver.
1
1
1
, DVD*
, DTV*
The features and specifications may be subject to change without
notice.
2
1
*
HD/DVD/DTV input signals supported on this system
3
480P (60 Hz)
525I (60 Hz)
625P (50 Hz)
1035I (60 Hz)
2
*
The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
Select one of them under "BNC INPUT".
1
3
*
Compatible with HDCP.
1,
*
2
Supported Signals
3
• 640 480P @ 59.94/60Hz
• 1280 720P @ 59.94/60Hz
• 1920 1080I @ 59.94/60Hz
• 720 480P @ 59.94/60Hz
• 1440 (720) 480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The problem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact NEC Solutions (America), Inc. and also
the manufacturer of the source equipment.
Other Features
Accessories
Regulations
6
57.9" (1470)
53.2" (1351)
480I (60 Hz)
525P (60 Hz)
576P (50 Hz)
576I (50 Hz)
625I (50 Hz)
720P (60 Hz)
1080I (50 Hz)
1080I (60 Hz)
• 1920 1080I @ 50Hz
• 720 576P @ 50Hz
• 1440 (720) 576P @ 50Hz
*English, German, French, Italian, Spanish, Swedish,
Chinese, Russian
Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Self Diagnosis,
Image Burn reduction tools (PEAK BRIGHT,
INVERSE, WHITE, ORBITER, SCREEN
WIPER), Color Temperature select (high/middle/
middle low/low, user has 4 memories), Auto
Picture, Input Skip, Color Tune, Low Tone (3
mode), Gamma Correction (4 mode), Plug and
play (DDC1, DDC2b, RGB3: DDC2b only),
Split screen operations
Remote control with two AAA batteries, Power
cord, Manuals, Safety metal fittings, Ferrite cores,
Bands, Cable clamps, HDMI-DVI cable
UL Approved (UL 60950-1 and UL65000,
CAN/CSA C22.2 No.60950-1 and CAN/CSA-
E60065-00)
DOC Canada requirements
Meets FCC Class B requirements
1.8"
2.9"
(45)
(74)
4.7"
(119)
Units are in inch
(mm)
