Mounting

Remove Monitor Stand for Mounting

To prepare the monitor for an alternate mounting method:
1. Place hands on each side of the monitor and lift up to the highest position. Remove
the cable cover (Figure M.1).
NOTE: If you have difficulty removing the cable cover, please
push the cover up (towards the top of the monitor) in
order to unhook the cover from the stand, then
remove, as shown in (Figure). Handle with care when
removing cable cover.
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure M.2).
NOTE: Handle with care when the monitor is facing down to avoid damage to the
front buttons.
4. Remove the 2 screws connecting the stand to the monitor (Figure M.2).
5. Lift up the stand to unlatch the upper hooks and remove the stand (Figure M.3).
6. Remove the 2 screws on the top of the monitor (Figure M.4). The monitor is now
ready for mounting in an alternate manner.
7. Connect the cables to the back of the monitor.
8. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
Handle with care when removing stand.

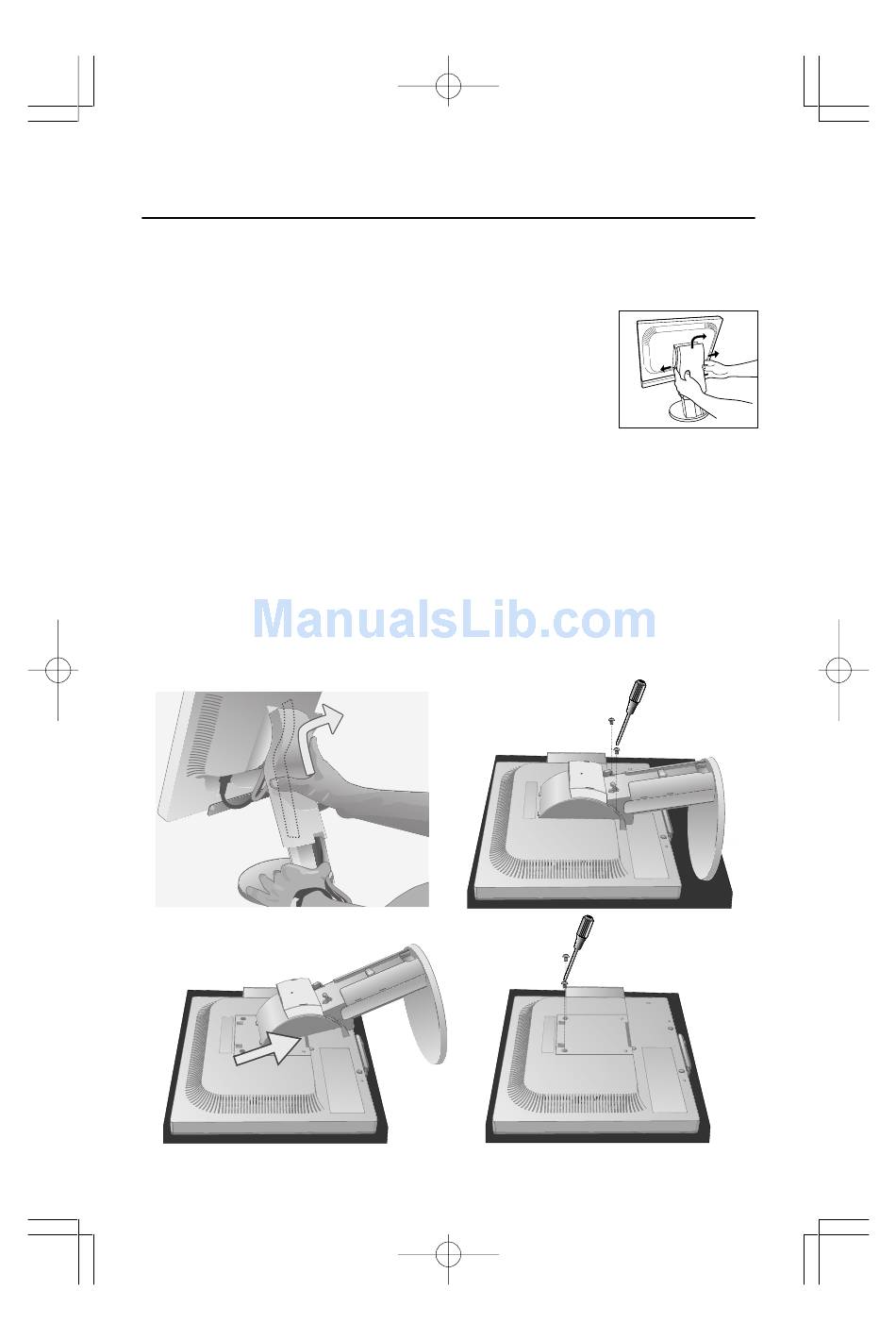

Figure M.1
