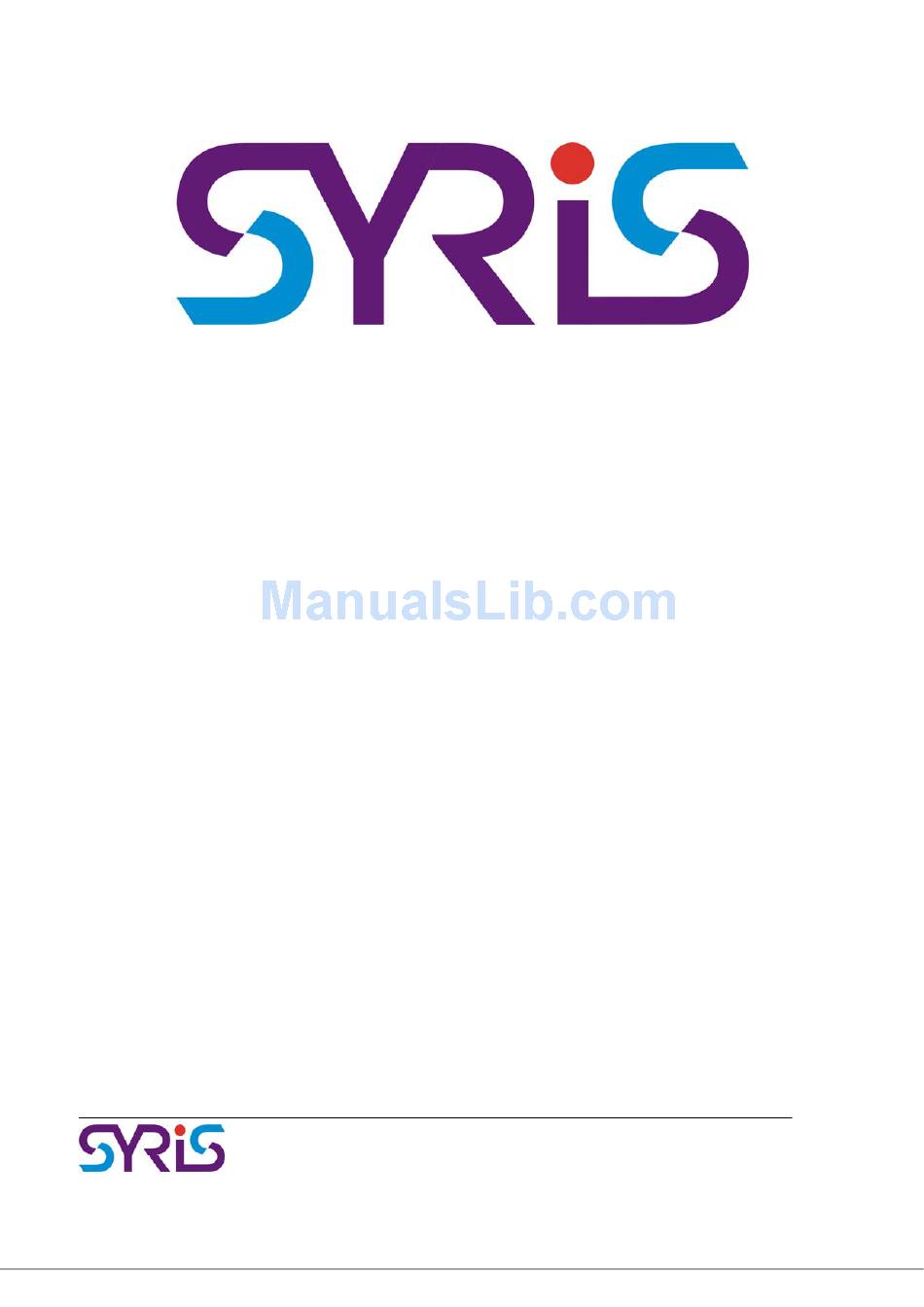

SY210NT V5
Networking Muti-Doors Controller
Installation Manual
WARNING: This manual contains information on limitations
regarding product use and function and information on the
limitations as to liability of the manufacturer. The entire manual
should be carefully read.
SYRIS Technology Corp. 21F-2, NO.12, Sec1, Taijunggang Rd, Taichung , Taiwan (403)
Tel：+886-4-2207-8888 Fax：+886-4-2207-9999 Email：info@syris.net
V0110
1
Advertisement
Table of Contents
Related Manuals for Syris SY210NT V5
Summary of Contents for Syris SY210NT V5
- Page 1 WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read. SYRIS Technology Corp. 21F-2, NO.12, Sec1, Taijunggang Rd, Taichung , Taiwan (403) Tel：+886-4-2207-8888 Fax：+886-4-2207-9999 Email：info@syris.net...
-
Page 2: Table Of Contents
......4 BOUT THIS ANUAL 4.3.3 Delete All Fingerprint......7 1.2.1 New in this Version ......4 SECTION 5: SET UP SY210NT V5 STEP BY STEP 1.2.2 Fast Setting Index Sheet and Card Record Sheet ................7 ..........4 EATURES 5.1 C ......... 7... - Page 3 ABLE 2：P ..12 PPENDIX ROGRAMMING ORKSHEET 3：C PPENDIX NFORMATION ECORD HEET 4： SY210NT V5 C I/O D PPENDIX APACITY AND 5：U SY210NT S ..15 PPENDIX SING THE YSTEM Q1： How to setting reader ID? What Reader ID and are Door relate? ............15 Q2：...
-
Page 4: New In This Version
1.2.1 New in this Version * The local APB will be activated in LAN. The subject matters of the manual are focus on update of SY210NT V5: * The motherboard produced by the SMD technology. The quality is stable and 1.Increase the number of user：The number of user can up to 63,000. -
Page 5: Quipment
230,400、460,800、921,600、1,843,200 (Over 115,200 , must use MDNET-2); Controller ID — 0001- 9999 & 01- 99; Holidays — 366 days; Expand Reader & Module — SYRIS series module; Anti Pass-Back — Level 3 or Group Anti Pass-Back; Speaker Output — Built-in (max 0.2W);... -
Page 6: Section 4: Sy210Nt V5 Settings
While user input invalid password over setting times, the system will lock down. 〈Enlarge〉 User can't input when system lucked. <Setting> Section 3: SY210NT V5 Setting Introduction Comm. Baud rate Setting Menu Login Communication Baud rate (4A/4R). Default is 19200.e.8.1. -
Page 7: Add Card
4.3.3 Delete All Fingerprint 5.1.7 Set Controller Max Card Delete all fingerprints. <Setting> System → Controller Keypad LCD display Annotation Section 5: Set up SY210NT V5 Step by Step Controller ▲▼or MENU Max card 5.1 Controller Function Max card Using numeric keypad Keypad... -
Page 8: Module Auto Detect
Master Card Function Setting 5.2.1 Module Auto Detect → System Module Keypad LCD display Annotation Keypad LCD display Annotation MENU Login Module ▲▼or MENU Auto detect Password Using numeric keypad [ _ _ _ _ _ _ _ ] input password. Auto detect Controller auto... -
Page 9: Single Card Delete
Using ▲▼ choice YES / Please punch the card. System Reboot Punch card (can punch card [ No ] continuously) 5.5.4 Data Backup / Restore NOTE：The manual serial number increases the card commonly used in to increase some → System System utility (The use in optional SD Card Module) specific serial number the card. -
Page 10: Fingerprint Management
Keypad LCD display Annotation All card MENU APB setting Using ▲▼ choice APB setting ▲▼or MENU Enable、Disable or Reset [ Enable ] Fingerprint Management Connection Fingerprint Reader uses. Keypad LCD display Annotation MENU Login Password Using numeric keypad [ _ _ _ _ _ _ _ ] input password. - Page 11 Appendix 1：Quick Reference Programming Table Quick Reference Programming Table 1. System 1. Controller 1. ID 2. Same card Time 3. PIN Lock 4. Comm. Baud rate 5. DI setting 6. Elevator mode 7. Max card 2. Module 1. Auto detect 2.
-
Page 12: Defaults
Appendix 2：Programming Worksheet Programming Worksheet Installation Information 1. Set Name： 2. Device Title： 3. Device ID： 4. Installs Company： 5. Reader Number： 6. Tel.： Device Setting Information Item Default Setting Value ________ Login Password 1234 ____ Same Card Time ____ PIN Lock Error Number ____ PIN Lock Time... -
Page 13: Appendix 3：Card Information Record Sheet
Appendix 3：Card Information Record Sheet Auxiliary Cardholder Name Card Number Card □ I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I I______I _____I______I______I □ I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I I______I _____I______I______I □ I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I I______I _____I______I______I □ I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I I______I _____I______I______I □ I______I______I______I______I______I______I______I______I － I______I______I______I______I______I______I______I______I I______I _____I______I______I □... -
Page 14: Appendix 4： Sy210Nt V5 Card Capacity And I/O Data
Appendix 4： SY210NT V5 Card Capacity and I/O Data List SY210NT V5 Card Capacity and I/O Data List 1. Normal(SSB,TSB) 1. High-capacity (SSA,TSA) 2.High-capacity (SSA-L,TSA-L) Card Capacity I/O DATA Card Capacity I/O DATA Card Capacity I/O DATA 3500 21000 3500... -
Page 15: Appendix 5：Using The Sy210Nt System
Appendix 5：Using the SY210NT System Q1： How to setting reader ID? What Reader ID and are Door Keypad LCD display Annotation relate? MENU Login Password Using numeric keypad input A1： SY210NT-V5 series oneself have no inside set up to read card system, [1234_ _ _ _] password. -
Page 16: Q2： How To Add The Card
Q2： How to add the card? Q3： How to setting the push button from controller? A2： A3： Add Cards Controller DI1 is push button of Door 1 Keypad LCD display Annotation Keypad LCD display Annotation MENU Login MENU Login Password Using numeric keypad... -
Page 17: Q4： How To Connect Hid Readers Of Wiegand Interface
Q4： How to Connect HID Readers of Wiegand interface with Controller? A4：Connect Wiegand Module wiring diagram. -
Page 18: Detector Or Exit Button
Q5： How to use MDDIDO Module Connecting the Exit Detector or Exit Button？ A5: Connecting the Exit Detector or Exit Button wiring diagram The Appliance of MDDIDO-1S with SY210NT controller + 12VDC SY210NT-V5 Controller (Brown Wire) Lock COM1 (Orange Wire) (Yellow Wire) (Green Wire) ********Note********... - Page 19 Keypad LCD display Annotation MENU Login Password Using numeric keypad input [1234_ _ _ _] password. The Setup lamp signal is bright Master OK Setup, Login success. ▼＊2 System Controller ▼＊2 Door Door No : [1] [1] Expresses the Door1. Door ▼＊1 Door Push button setting.
-
Page 20: Appendix 6： General Wiring Diagram
Appendix 6： General Wiring Diagram SY210NT-V5 SERI AL CONTROLLER WIRING DIAGRAM 控制器接線圖 Relay Max : 7A 30VDC / 7A 250VAC NC 3 Normal Close ( NC ) COM 3 Common ( COM ) NO 3 Normal Open ( NO ) NC 4 Relay DO Feature...
