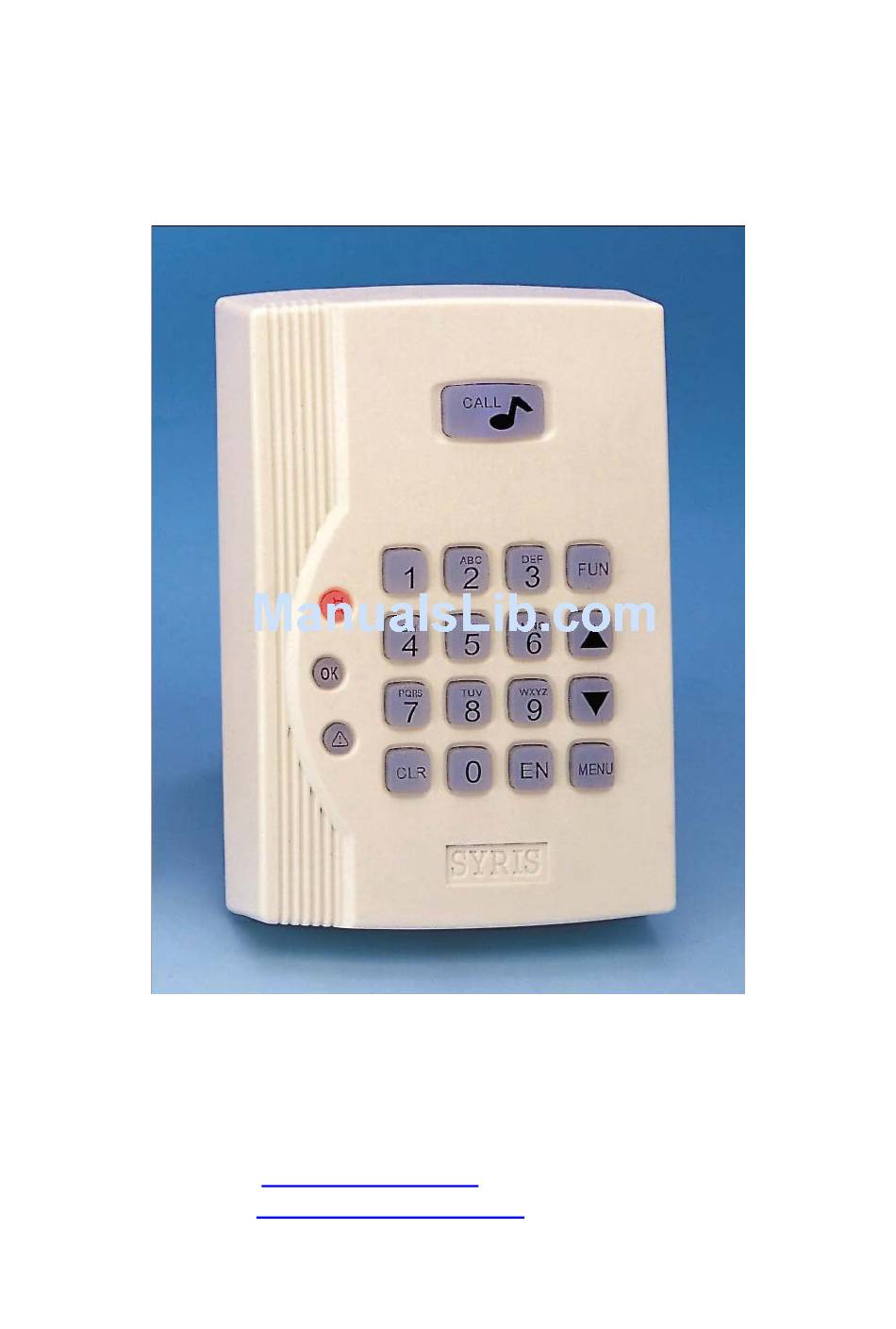

- Page 1 SYRIS SY120SA-V5EM SY120SA-V5M1 Operation Manual SYRIS Technology Corp. 12F, NO.12, Sec1, Taijunggang Rd, Taichung , Taiwan (403) Tel ： +886-4-2207-8888 Fax：886-4-2207-9999 Email：service@syris.com web： http://www.syris.com Ver: 03.24...
-
Page 2: Table Of Contents
SY120SA SINGLE DOOR CONTROLLER contents 1.Login/Logout Procedure........................- 2 - 2.Add card operation procedure【this function need to operate under login status】 ......- 3 - 3.Delete Card Operation Procedure【this function needs to operate under login status】 ..... - 3 - 4.Modify Card Operation Procedure【this function nees to operate under login status】...... - 4 - 5. -
Page 3: Login/Logout Procedure
SY120SA SINGLE DOOR CONTROLLER 1.Login/Logout Procedure 1-1 System login Enter FUN + ２ + EN , the “OK” pilot lamp flashes and wait for enter password Enter password(preset：1234) + EN, and CALL key flashes, it means login success. Example：【login procedure】 FUN + ２... -
Page 4: Add Card Operation Procedure【This Function Need To Operate Under Login Status
SY120SA SINGLE DOOR CONTROLLER 2.Add card operation procedure 【this function need to operate under login status】 2-1 Add One Card Enter FUN + ３ １ + 【NNNN】+【G】+ EN then proximity to one card. NNNN：Assign add card number, range: 0001~2000。 G：Assign card group number, range : 1~4。 Example ：【add one card sequent number0001, and set to group１】... -
Page 5: Modify Card Operation Procedure【This Function Nees To Operate Under Login Status
SY120SA SINGLE DOOR CONTROLLER 3-2 Delete Multi Cards Enter FUN + ３ ６ + 【NNNN】+【EEEE】+ EN。 NNNN：assign the begin card number which wants to delete, range : 0001~2000。 E E E E：assign the end card number which want to delete, range 0001~2000。 Example：【delete cards of sequent number from 0002~0006】... -
Page 6: System Di Function Setup【This Function Needs To Operate Under Login Status
SY120SA SINGLE DOOR CONTROLLER 4-4 Modify Multi Cards Enter FUN + ３ ８ +【NNNN】 + 【EEEE】 + 【S】 + EN。 NNNN：assign the begin card number of card status which wants to modify; range:0001～2000 E E E E：assign the end number of card status which wants to modify; range: 0001～2000。 S：S = 1 set up card enable；S = 0 set up card disable Example：... -
Page 7: System Do Function Setup【This Function Needs To Operate Under Login Status
SY120SA SINGLE DOOR CONTROLLER 6. System DO Function Setup 【this function needs to operate under login status】 Enter FUN + ７ １ + 【K】 + 【F】 + 【TTT】 + EN 。 K：The DO sequent number which wants to set up; K = 1 as electric lock DO, K = 2 as relay DO, K = 3 as expand relay DO,... - Page 8 SY120SA SINGLE DOOR CONTROLLER 7-1 System Ttime Setup Enter FUN + ８ １ +【YYYY】+【MM】+【DD】+【hh】+【mm】+【ss】+ EN YYYY：year, range: 2000～2199。 （MM） ：month, range: 01～12。 DD：day, range: 01～31。 hh：hour, range: 00～23。 mm：minute, range: 00～59。 ss：second, range: 00～59。 ※Partly week automatically count by controller Example:【set up April/15/2004 time: 16:30】...
-
Page 9: Set Up Card Number And Password Open Door Way
SY120SA SINGLE DOOR CONTROLLER 7-5 group weekly plan Enter FUN + ８ ４ + 【G】 + 【WWWWWWW】 + 【H】 + EN WWWWWWW：weekly plan from Sunday to satruday, 1= can pass（default）, 0= can not pass G：group number; range: 1～4。 H：holiday control, 1= can pass（default）, 0= can not pass Example：【set up group 1 normal passage from Monday to Friday, Staturday, Sunday and holidaycan not pass】... -
Page 10: System Default
SY120SA SINGLE DOOR CONTROLLER Example：card password alter from 0000 to 5678 After proximity card then enter０ ０ ０ ０ + ５ ６ ７ ８ + ５ ６ ７ ８ + EN The card password change from 0000 to 5678 【group set up open door mode to password open door mode】 Enter 【NNNN】+【pppp】+【nnnn】+【nnnn】+ EN , the system will decide correct or not, and will response correct status and modify the old password to new password. -
Page 11: Anti-Force Function Setup
SY120SA SINGLE DOOR CONTROLLER 11. Anti-Force Function Setup 11-1 anti-force password start using Enter FUN + ４ ３ + Ｇ + Ｐ Ｐ Ｐ Ｐ ＋ EN。 G: anti-force password group, range: 1~4。 PPPP: enter anti-force password. ※ system default 1-4 groups all define 5555. If personal password the same with anti-force password, it will take as presonal password. -
Page 12: Sy120Sa And Other Sy120Sa Wiring Diagram
SY120SA SINGLE DOOR CONTROLLER 14.SY120SA and Other SY120SA Wiring Diagram 15. SY120SA and MD120EXT-1S Wiring Diagram - 11 -... -
Page 13: Sy120Sa And Syrdk5 Wiring Diagram
WXYZ BEEPER Violet(紫色) Green(綠色) MENU TAMPER SW JP1 E-Lock Setting SYRIS POWER & RS485 E-Lock(電鎖) RELAY(繼電器) (電源與網路) SYRIS New Version FAIL - SECURE FAIL - SAFE SYRDS1 , SYRDS5 (送電開門) (斷電開門) SYRDK5 , SYRDL5 SYRDF5 Lock + Brown(棕色) Lock- Orange(橙色) TAMPER SW (反破壞開關) -
Page 14: Advanced Features
SY120SA SINGLE DOOR CONTROLLER 17. Advanced Features 17-1 System setting function Code Function Code Function Code Function Remove security Setup Master card Setup I/O data mode To deploy security Setup Anti-duress password Setup extern reader Login / Logout Remove Anti-duress alarm Enabled or Disable Door Forced Configure Input point setting Add single card... - Page 15 (E): E=0 cancel door time-out (default) ; E=1 enabled door time-out alarm (TT): Time-Out time setting, Range:01~99; default :20,unit:sec 17-6 Enabled or Disable Encryption Card (V3.0) Enter[FUN][4][8](E) [EN] (E): E=0 EM/TEMIC Card (default); E=1 Use SYRIS Encryption Card; E=2 Use Security Encryption Card 17-7 Error psaaword keylock setting Enter[FUN][5][3](K)(L)(A)[EN] (K):setting acceptable error times,range:1~9;default :6...
- Page 16 SY120SA SINGLE DOOR CONTROLLER (B):B = 0 close doorbell voice output, B = 1 allow doorbell voice output(default) 17-11 Configure Input/Output Data(V2.0) Enter[FUN][5][8](M)[EN] (M):M = 0 only in out data mode M = 1 all in out data mode(default) 17-12 Automatic door Setting Enter[FUN] [8] [6]（N）（HHMM）（hhmm）[EN] （N）：...
